C1E-24.000-10-1010-R-24MHz-10PPM-10PF-2016-AKER

频率：24MHZ

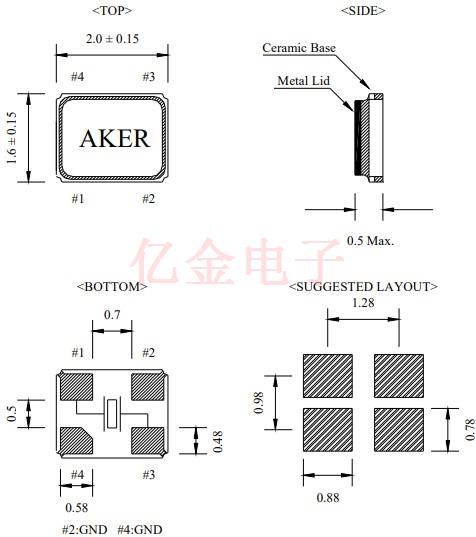

尺寸：2.0*1.6mm

C1E-24.000-10-1010-R-24MHz-10PPM-10PF-2016-AKER，贴片石英晶振，台湾晶振,贴片晶振,石英晶振,AKER晶振,C1E-24.000-10-1010-R晶振,高品质晶振,四脚晶振,无源晶振,石英晶振,小尺寸晶振,2016晶振,智能穿戴设备晶振,家庭多媒体系统晶振,微处理器晶体，单元低轮廓，2.0 x 1.6毫米表面安装，-4垫通用产品规格，

订购热线：0755-27876565

SITIME-2

C1E-24.000-10-1010-R-24MHz-10PPM-10PF-2016-AKER，贴片石英晶振，台湾晶振,贴片晶振,石英晶振,AKER晶振,C1E-24.000-10-1010-R晶振,高品质晶振,四脚晶振,无源晶振,石英晶振,小尺寸晶振,2016晶振,智能穿戴设备晶振,家庭多媒体系统晶振,微处理器晶体，单元低轮廓，2.0 x 1.6毫米表面安装，-4垫通用产品规格，

yijin-2

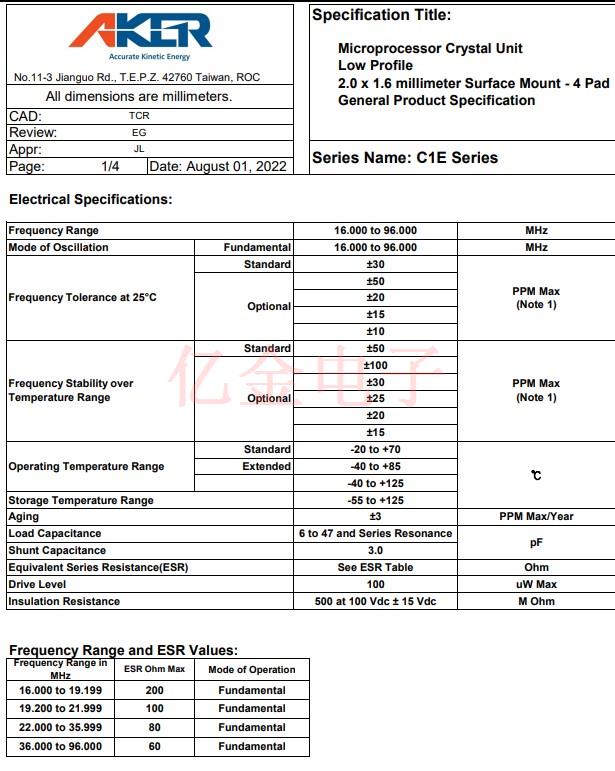

C1E-24.000-10-1010-R-24MHz-10PPM-10PF-2016-AKER

频率范围

16.000 to 96.000

MHz

工作模式

Fundamental

16.000 to 96.000

MHz

频率容差 at 25°C

Standard

±30

PPM Max (Note 1)

Optional

±50

±20

±15

±10

在温度范围内的频率偏差度

Standard

±50

PPM Max (Note 1)

Optional

±100

±30

±25

±20

±15

工作温度范围

Standard

-20 to +70

℃

Extended

-40 to +85

-40 to +125

储存温度范围

-55 to +125

老化

±3

PPM Max/Year

负载电容

6 to 47 and Series Resonance

并联电阻

3.0

等效串联电阻(ESR)

See ESR Table

Ohm

驱动电平

100

uW Max

绝缘电阻

500 at 100 Vdc ± 15 Vdc

M Ohm

yijin-3

C1E-24.000-10-1010-R-24MHz-10PPM-10PF-2016-AKER

AKER制造商零件编号	供应商	系列	频率	频率稳定性	频率容差	负载电容
C3E-8.000-18-3030-R	Aker晶振	C3E	8 MHz	±30ppm	±30ppm	18pF
C3E-25.000-8-1015-X-R	Aker晶振	C3E	25 MHz	±15ppm	±10ppm	8pF
C3E-24.576-12-3030-X-R	Aker晶振	C3E	24.576 MHz	±30ppm	±30ppm	12pF
C2E-25.000-10-3030-X-M	Aker晶振	C2E	25 MHz	±30ppm	±30ppm	10pF
C3E-16.000-8-1015-R	Aker晶振	C3E	16 MHz	±15ppm	±10ppm	8pF
C3E-12.000-12-1015-R	Aker晶振	C3E	12 MHz	±15ppm	±10ppm	12pF
C3E-16.000-8-50100-X1-R	Aker晶振	C3E	16 MHz	±100ppm	±50ppm	8pF
C3E-12.000-18-3030-X-R	Aker晶振	C3E	12 MHz	±30ppm	±30ppm	18pF
C1E-25.000-20-2030-R	Aker晶振	C1E	25 MHz	±30ppm	±20ppm	20pF
C2E-16.000-8-1530-X-R	Aker晶振	C2E	16 MHz	±30ppm	±15ppm	8pF
C3E-8.000-10-3030-R	Aker晶振	C3E	8 MHz	±30ppm	±30ppm	10pF
C3E-24.000-12-1015-X-R	Aker晶振	C3E	24 MHz	±15ppm	±10ppm	12pF
C3E-32.000-10-1015-R	Aker晶振	C3E	32 MHz	±15ppm	±10ppm	10pF
C3E-25.000-12-3030-X-R	Aker晶振	C3E	25 MHz	±30ppm	±30ppm	12pF
C3E-32.000-8-1015-X-R	Aker晶振	C3E	32 MHz	±15ppm	±10ppm	8pF
C3E-24.000-10-1010-R	Aker晶振	C3E	24 MHz	±10ppm	±10ppm	10pF
C3E-12.000-12-3030-X-R	Aker晶振	C3E	12 MHz	±30ppm	±30ppm	12pF
C3E-25.000-8-1010-R	Aker晶振	C3E	25 MHz	±10ppm	±10ppm	8pF
C3E-8.000-18-3030-X-R	Aker晶振	C3E	8 MHz	±30ppm	±30ppm	18pF
C3E-16.000-12-3030-X-R	Aker晶振	C3E	16 MHz	±30ppm	±30ppm	12pF
C1E-32.000-8-1515-R	Aker晶振	C1E	32 MHz	±15ppm	±15ppm	8pF
C3E-13.560-12-1530-X-R	Aker晶振	C3E	13.56 MHz	±30ppm	±15ppm	12pF
C2E-24.000-10-1010-R	Aker晶振	C2E	24 MHz	±10ppm	±10ppm	10pF
C1E-24.000-10-1010-R	Aker晶振	C1E	24 MHz	±10ppm	±10ppm	10pF
C3E-25.000-10-3030-X-R	Aker晶振	C3E	25 MHz	±30ppm	±30ppm	10pF
C3E-25.000-18-2030-R	Aker晶振	C3E	25 MHz	±30ppm	±20ppm	18pF
C3E-24.000-8-1015-R	Aker晶振	C3E	24 MHz	±15ppm	±10ppm	8pF
C3E-8.000-10-3030-X-R	Aker晶振	C3E	8 MHz	±30ppm	±30ppm	10pF
C3E-16.000-12-1015-R	Aker晶振	C3E	16 MHz	±15ppm	±10ppm	12pF
C3E-16.000-12-3030-R	Aker晶振	C3E	16 MHz	±30ppm	±30ppm	12pF
C3E-24.000-10-1015-X-R	Aker晶振	C3E	24 MHz	±15ppm	±10ppm	10pF
C3E-25.000-18-3030-R	Aker晶振	C3E	25 MHz	±30ppm	±30ppm	18pF
C2E-25.000-10-3030-X-R	Aker晶振	C2E	25 MHz	±30ppm	±30ppm	10pF
C3E-32.000-12-1010-R	Aker晶振	C3E	32 MHz	±10ppm	±10ppm	12pF
C3E-12.000-8-3030-R	Aker晶振	C3E	12 MHz	±30ppm	±30ppm	8pF
C3E-32.000-10-1010-R	Aker晶振	C3E	32 MHz	±10ppm	±10ppm	10pF
C2E-16.000-10-1010-R	Aker晶振	C2E	16 MHz	±10ppm	±10ppm	10pF
C3E-12.000-8-1010-R	Aker晶振	C3E	12 MHz	±10ppm	±10ppm	8pF
C3E-24.000-12-1530-X-R	Aker晶振	C3E	24 MHz	±30ppm	±15ppm	12pF
C3E-12.000-8-1520-R	Aker晶振	C3E	12 MHz	±20ppm	±15ppm	8pF
C3E-24.000-18-1010-R	Aker晶振	C3E	24 MHz	±10ppm	±10ppm	18pF
C3E-20.000-12-3030-X-R	Aker晶振	C3E	20 MHz	±30ppm	±30ppm	12pF
C1E-32.000-10-1015-X-R	Aker晶振	C1E	32 MHz	±15ppm	±10ppm	10pF
C1E-24.000-10-1015-M	Aker晶振	C1E	24 MHz	±15ppm	±10ppm	10pF
C3E-24.576-12-1010-R	Aker晶振	C3E	24.576 MHz	±10ppm	±10ppm	12pF
C3E-25.000-8-1015-R	Aker晶振	C3E	25 MHz	±15ppm	±10ppm	8pF
C3E-12.000-18-3030-R	Aker晶振	C3E	12 MHz	±30ppm	±30ppm	18pF
C3E-16.000-12-1015-X-R	Aker晶振	C3E	16 MHz	±15ppm	±10ppm	12pF
C1E-32.000-8-1015-X-R	Aker晶振	C1E	32 MHz	±15ppm	±10ppm	8pF
C3E-27.120-12-1010-R	Aker晶振	C3E	27.12 MHz	±10ppm	±10ppm	12pF
C3E-25.000-8-1530-X-R	Aker晶振	C3E	25 MHz	±30ppm	±15ppm	8pF
C3E-16.000-12-1015-X-M	Aker晶振	C3E	16 MHz	±15ppm	±10ppm	12pF
C3E-24.000-12-3030-X-R	Aker晶振	C3E	24 MHz	±30ppm	±30ppm	12pF
C3E-32.000-12-1530-X-R	Aker晶振	C3E	32 MHz	±30ppm	±15ppm	12pF
C3E-25.000-8-1520-R	Aker晶振	C3E	25 MHz	±20ppm	±15ppm	8pF
C3E-20.000-10-1530-X-R	Aker晶振	C3E	20 MHz	±30ppm	±15ppm	10pF
C3E-40.000-10-1015-X-R	Aker晶振	C3E	40 MHz	±15ppm	±10ppm	10pF
C3E-26.000-10-1015-X-R3	Aker晶振	C3E	26 MHz	±15ppm	±10ppm	10pF
C3E-16.000-18-3030-X-R	Aker晶振	C3E	16 MHz	±30ppm	±30ppm	18pF
C1E-24.000-10-1015-R	Aker晶振	C1E	24 MHz	±15ppm	±10ppm	10pF
C2E-16.000-12-3030-X-R	Aker晶振	C2E	16 MHz	±30ppm	±30ppm	12pF
C3E-8.000-12-1020-R	Aker晶振	C3E	8 MHz	±20ppm	±10ppm	12pF
C3E-8.000-20-1020-R	Aker晶振	C3E	8 MHz	±20ppm	±10ppm	12pF
C3E-8.000-18-1020-R	Aker晶振	C3E	8 MHz	±20ppm	±10ppm	18pF
C3E-8.000-10-1020-M	Aker晶振	C3E	8 MHz	±20ppm	±10ppm	10pF
C3E-8.000-18-1020-X-R	Aker晶振	C3E	8 MHz	±20ppm	±10ppm	18pF
C2E-12.000-18-1020-X-R	Aker晶振	C2E	12 MHz	±20ppm	±10ppm	18pF
C2E-12.000-18-1020-R	Aker晶振	C2E	12 MHz	±20ppm	±10ppm	18pF
C3E-25.000-20-1015-X-R	Aker晶振	C3E	25 MHz	±15ppm	±10ppm	20pF
C3E-24.000-9-1015-X-R	Aker晶振	C3E	24 MHz	±15ppm	±10ppm	9pF
C3E-16.000-9-1015-X-R	Aker晶振	C3E	16 MHz	±15ppm	±10ppm	9pF
C3E-24.000-9-1010-R	Aker晶振	C3E	24 MHz	±10ppm	±10ppm	9pF
C3E-16.000-9-1010-R	Aker晶振	C3E	16 MHz	±10ppm	±10ppm	9pF
C2E-19.200-13-2030-X-R	Aker晶振	C2E	19.2 MHz	±30ppm	±20ppm	13pF
