IQD英国进口晶振|85SMX千赫晶体|32.768K晶振|6G无线网络晶振

频率：32.768KHz

尺寸：8.7mm×3.7mm

IQD英国进口晶振|85SMX千赫晶体|32.768K晶振|6G无线网络晶振,IQD晶振,英国进口晶振,85SMX千赫晶体,无源晶振,行业标准SMD封装,引线间距为5.5mm,塑料封装,32.768K晶振,石英晶体谐振器,四脚贴片晶振,抗冲击晶振,高稳定性晶振,高可靠性晶振,6G无线网络晶振,实时时钟应用晶振,健身设备晶振,智能手表晶振.

订购热线：0755-27876565

IQD英国进口晶振|85SMX千赫晶体|32.768K晶振|6G无线网络晶振,IQD晶振,英国进口晶振,85SMX千赫晶体,无源晶振,行业标准SMD封装,引线间距为5.5mm,塑料封装,32.768K晶振,石英晶体谐振器,四脚贴片晶振,抗冲击晶振,高稳定性晶振,高可靠性晶振,6G无线网络晶振,实时时钟应用晶振,健身设备晶振,智能手表晶振.

IQD英国进口晶振|85SMX千赫晶体|32.768K晶振|6G无线网络晶振特点：

-行业标准SMD封装，引线间距为5.5mm

-适用于实时时钟应用

-塑料封装

yijin-2

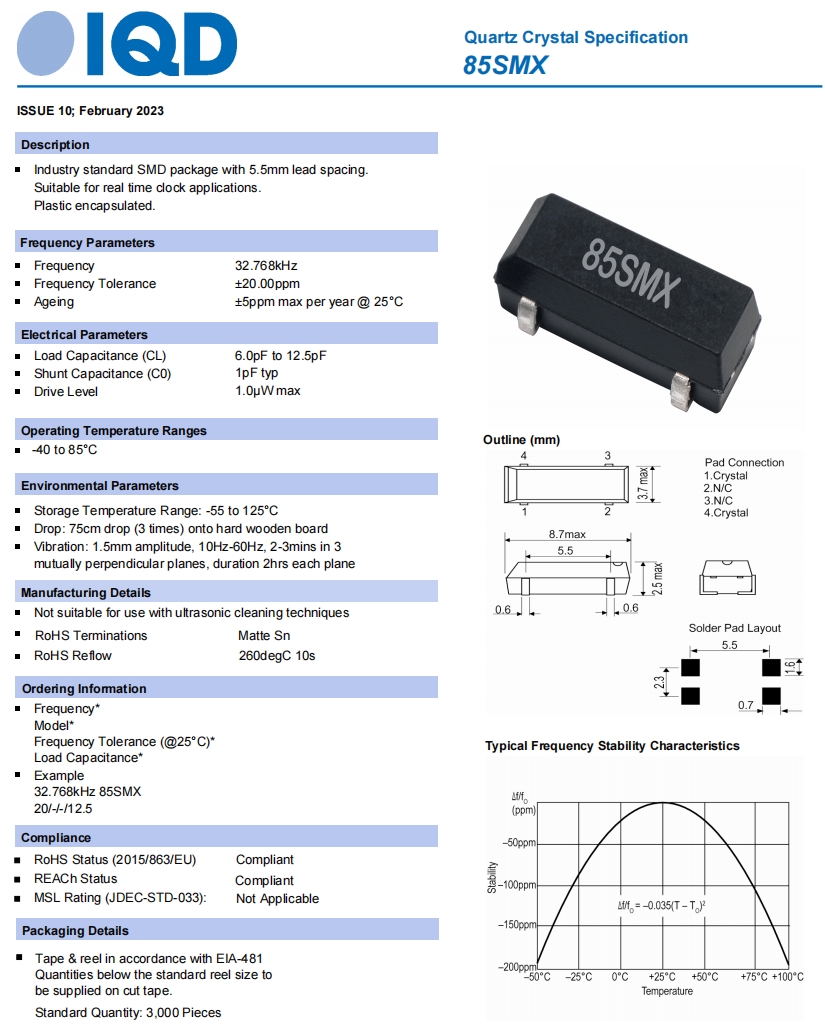

IQD英国进口晶振|85SMX千赫晶体|32.768K晶振|6G无线网络晶振规格表

参数	数值
频率	32.768KHz
频率容差@ 25°C ± 3°C	±20ppm
工作温度	-40~85°C
储存温度	-55~125°C
负载	6pF to 12.5pF
并联电容	1.0pF typ
驱动电平	±1.0μW max.
老化@ 25°C ± 3°C	±5.0ppm max. for 1st year

yijin-3

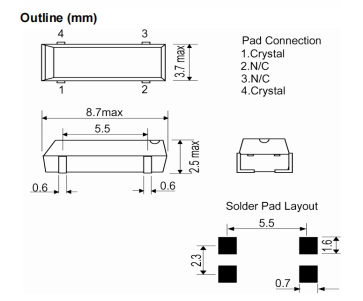

IQD英国进口晶振|85SMX千赫晶体|32.768K晶振|6G无线网络晶振尺寸图

编码	型号	频率	频率容差	工作温度	负载
LFXTAL078348Reel	IQXC-146	0.032768MHz	±20ppm	-40°C to 85°C	6.00pF
LFXTAL080915Reel	IQXC-146	0.032768MHz	±20ppm	-40°C to 85°C	12.50pF
LFXTAL065253Cutt	IQXC-90	0.032768MHz	±20ppm	-40°C to 85°C	12.50pF
LFXTAL066198Cutt	IQXC-90	0.032768MHz	±20ppm	-40°C to 85°C	9.00pF
LFXTAL066198Reel	IQXC-90	0.032768MHz	±20ppm	-40°C to 85°C	9.00pF
LFXTAL066431Cutt	IQXC-90	0.032768MHz	±20ppm	-40°C to 85°C	7.00pF
LFXTAL082140Reel	IQXC-90	0.032768MHz	±20ppm	-40°C to 85°C	4.00pF
LFXTAL050789Bulk	IQXC-25	0.032768MHz	±20ppm	-40°C to 85°C	12.50pF
LFXTAL050789Cutt	IQXC-25	0.032768MHz	±20ppm	-40°C to 85°C	12.50pF
LFXTAL050789Reel	IQXC-25	0.032768MHz	±20ppm	-40°C to 85°C	12.50pF
LFXTAL051643Reel	IQXC-25	0.032768MHz	±20ppm	-40°C to 85°C	9.00pF
LFXTAL059461Cutt	IQXC-25	0.032768MHz	±20ppm	-40°C to 85°C	7.00pF
LFXTAL059461Reel	IQXC-25	0.032768MHz	±20ppm	-40°C to 85°C	7.00pF
LFXTAL062558Cutt	IQXC-25	0.032768MHz	±10ppm	-40°C to 85°C	9.00pF
LFXTAL062558Reel	IQXC-25	0.032768MHz	±10ppm	-40°C to 85°C	9.00pF
LFXTAL063829Reel	IQXC-25	0.032768MHz	±10ppm	-40°C to 85°C	12.50pF
LFXTAL065455Cutt	IQXC-25	0.032768MHz	±20ppm	-40°C to 85°C	6.00pF
LFXTAL065455Reel	IQXC-25	0.032768MHz	±20ppm	-40°C to 85°C	6.00pF
LFXTAL073264Cutt	IQXC-25	0.032768MHz	±20ppm	-40°C to 85°C	4.00pF
LFXTAL073264Reel	IQXC-25	0.032768MHz	±20ppm	-40°C to 85°C	4.00pF
LFXTAL079143Cutt	IQXC-25	0.032768MHz	±20ppm	-40°C to 85°C	12.50pF
LFXTAL009678	CFPX-217	0.032768MHz	±20ppm	-40°C to 85°C	12.50pF
LFXTAL009706	CFPX-217	0.032768MHz	±20ppm	-40°C to 85°C	9.00pF
LFXTAL009709	CFPX-217	0.032768MHz	±20ppm	-40°C to 85°C	7.00pF
LFXTAL054236	CFPX-217	0.032768MHz	±20ppm	-40°C to 85°C	6.00pF
LFXTAL059555Tray	CX11V TF	0.032768MHz	±20ppm	-55°C to 125°C	9.00pF
LFXTAL084882	IQXC-217	0.032768MHz	±20ppm	-40°C to 85°C	12.50pF
LFXTAL084883	IQXC-217	0.032768MHz	±20ppm	-40°C to 85°C	9.00pF
LFXTAL084884	IQXC-217	0.032768MHz	±20ppm	-40°C to 85°C	7.00pF
LFXTAL084885	IQXC-217	0.032768MHz	±20ppm	-40°C to 85°C	6.00pF
LFXTAL059873Tray	CX9VHT TF	0.032768MHz	±100ppm	0°C to 200°C	9.00pF
LFXTAL077368Tray	CX4VHT TF	0.032768MHz	±30ppm	0°C to 200°C	9.00pF
LFXTAL078991Tray	CX4VHT TF	0.032768MHz	±100ppm	0°C to 200°C	9.00pF
LFXTAL083045Reel	CX4V TF	0.2MHz	±100ppm	-40°C to 85°C	9.00pF
LFXTAL009589Reel	CFPX-155	0.032768MHz	±20ppm	-40°C to 85°C	12.50pF
LFXTAL055127Cutt	CFPX-155	0.032768MHz	±20ppm	-40°C to 85°C	6.00pF
LFXTAL003426Reel	CX1V TF	0.032768MHz	±30ppm	-40°C to 85°C	9.00pF
LFXTAL003426Tray	CX1V TF	0.032768MHz	±30ppm	-40°C to 85°C	9.00pF
LFXTAL083548Reel	CX1V TF	0.032768MHz	±30ppm	-40°C to 85°C	9.00pF
LFXTAL083548Tray	CX1V TF	0.032768MHz	±30ppm	-40°C to 85°C	9.00pF
LFXTAL056539Reel	CX1V TF	0.4608MHz	±500ppm	-40°C to 85°C	4.00pF
LFXTAL029873Tray	CX1 EXT	1.024MHz	±100ppm	-40°C to 85°C	10.00pF
LFXTAL014590Reel	CX1 EXT	1.8432MHz	±500ppm	-40°C to 85°C	7.00pF
LFXTAL014590Tray	CX1 EXT	1.8432MHz	±500ppm	-40°C to 85°C	7.00pF
LFXTAL090622Tray	CX1 EXT	1.8432MHz	±500ppm	-40°C to 85°C	7.00pF
LFXTAL003000	85SMX	0.032768MHz	±20ppm	-40°C to 85°C	12.50pF
LFXTAL016178	85SMX	0.032768MHz	±20ppm	-40°C to 85°C	6.00pF
LFXTAL025159Bulk	CFPX-56	0.032768MHz	±20ppm	-40°C to 85°C	12.50pF
LFXTAL025159Reel	CFPX-56	0.032768MHz	±20ppm	-40°C to 85°C	12.50pF
LFXTAL058243Bulk	CFPX-56	0.032768MHz	±20ppm	-40°C to 85°C	7.00pF
LFXTAL001420Bulk	WATCH	0.032768MHz	±10ppm	-20°C to 70°C	12.50pF
LFXTAL002995Bulk	WATCH	0.032768MHz	±20ppm	-20°C to 70°C	12.50pF
LFXTAL002996Bulk	WATCH	0.032768MHz	±15ppm	-20°C to 70°C	12.50pF
LFXTAL002997Bulk	WATCH	0.032768MHz	±20ppm	-20°C to 70°C	12.50pF
LFXTAL010831Bulk	WATCH	0.032768MHz	±10ppm	-20°C to 70°C	12.50pF
LFXTAL012459Bulk	WATCH	0.032768MHz	±20ppm	-20°C to 70°C	6.00pF
LFXTAL012511Bulk	WATCH	0.032768MHz	±20ppm	-20°C to 70°C	6.00pF
LFXTAL014219Bulk	WATCH	0.032768MHz	±20ppm	-20°C to 70°C	6.00pF
LFXTAL020030Bulk	WATCH	0.032768MHz	±10ppm	-20°C to 70°C	6.00pF
LFXTAL023551Bulk	WATCH	0.032768MHz	±10ppm	-20°C to 70°C	10.00pF
LFXTAL025125Bulk	WATCH	0.032768MHz	±20ppm	-20°C to 70°C	7.00pF
LFXTAL079092Bulk	WATCH	0.032768MHz	±20ppm	-20°C to 70°C	9.00pF
