Hosonic品牌|D3SX37E0X0007E|3225mm|6G基站晶振

频率：37.125MHz

尺寸：3.2mm×2.5mm

Hosonic品牌|D3SX37E0X0007E|3225mm|6G基站晶振,台湾Hosonic晶振,D3SX有源晶振,D3SX37E0X0007E晶振,石英晶体振荡器,3225进口晶振,四脚贴片晶振,频率37.125MHz,电压3.3V,频率稳定性25ppm,工作温度-40~85°C,小体积晶振,高可靠性晶振,低老化晶振,6G基站晶振,家庭安防设备晶振,低姿态应用晶振,移动通信晶振.

订购热线：0755-27876565

yijin-1

Hosonic品牌|D3SX37E0X0007E|3225mm|6G基站晶振,台湾Hosonic晶振,D3SX有源晶振,D3SX37E0X0007E晶振,石英晶体振荡器,3225进口晶振,四脚贴片晶振,频率37.125MHz,电压3.3V,频率稳定性25ppm,工作温度-40~85°C,小体积晶振,高可靠性晶振,低老化晶振,6G基站晶振,家庭安防设备晶振,低姿态应用晶振,移动通信晶振.

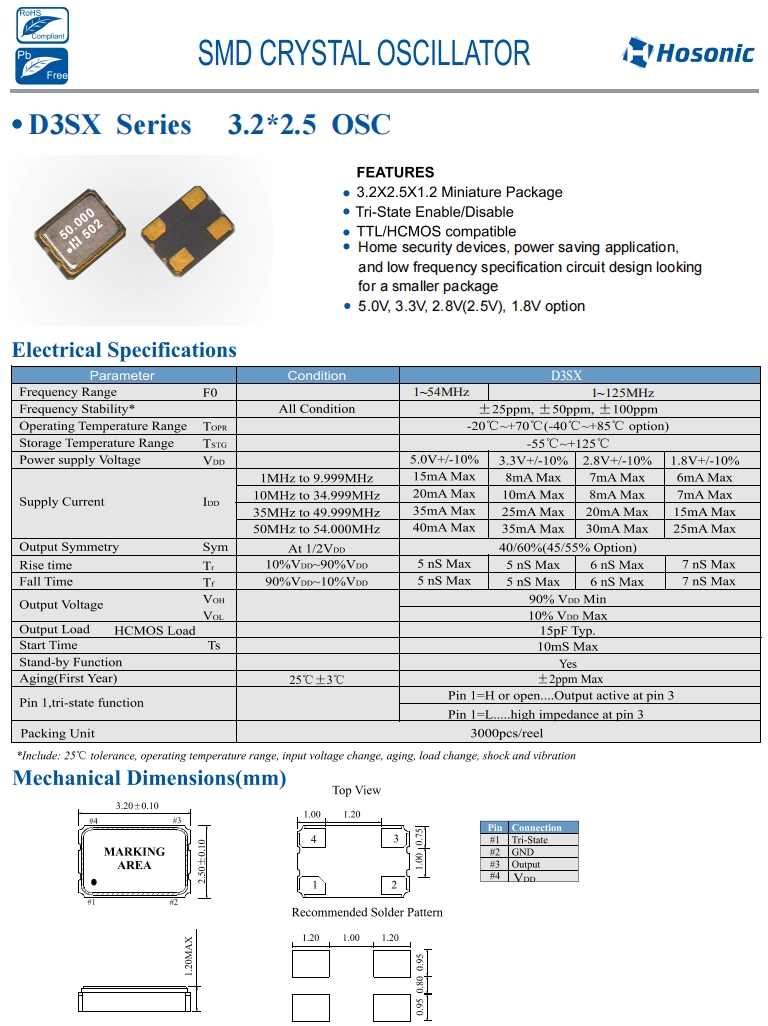

Hosonic品牌|D3SX37E0X0007E|3225mm|6G基站晶振特点：

- 3.2X2.5X1.2微型封装

-三态启用/禁用

-TTL / CMOS兼容

-家庭安防设备，节能应用，以及低频规格电路设计寻求更小的封装

-5.0v,3.3 v, 2.8 v (2.5 v), 1.8 v可选

yijin-2

Hosonic品牌|D3SX37E0X0007E|3225mm|6G基站晶振规格表

Parameter	Condition	D3SX
Frequency Range		37.125MHz
Frequency Stability*	AIl Condition	士25ppm
Operating Temperature Range		-40°C~+85'℃
Storage Temperature Range		-55°C-+125℃
Power supply Voltage		3.3V+/-10%
Supply Current Ipo	1MHz to 9.999MHz	8mA Max
	10MHz to 34.999MHz	10mA Max
	35MHz 10 49.999MHz	25mA Max
	50MHz to 62,500MHz	35mA Max
Output Symmetry	At 1/2Vop	40/60%(45/ /55% Option)
Rise time	10%Vpp-90%VDD	5 ns Max
Fall Time	90%Vpp-10%VDD	5 ns Max
Output Voltage	VOH	90% Vop Min
	VOL	10% Voo Max
VoI Output Load		15pF Typ.
Start Time		10mS Max
Stand-by Function		Yes
Aging(First Year)	25℃+3℃	+2ppm Max
Pin 1,tri-state function		Pin 1-H or open.... Output active at pin 3
		Pin 1-L......high impedance at pin 3
Packing Unit		3000pcs/reel

yijin-3

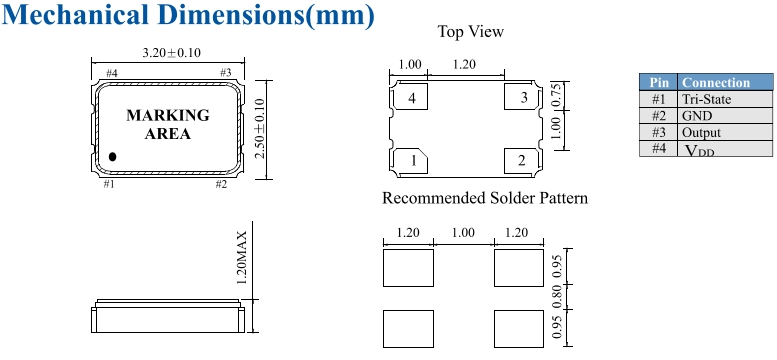

Hosonic品牌|D3SX37E0X0007E|3225mm|6G基站晶振尺寸图

原厂编码	制造厂家	型号	频率	负载电容	频率容差	频率稳定度	尺寸
E3FB16.0000F18E33	Hosonic晶振	E3FB	16MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB17.0000F18E33	Hosonic晶振	E3FB	17MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB18.0000F18E33	Hosonic晶振	E3FB	18MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB19.0000F18E33	Hosonic晶振	E3FB	19MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB20.0000F18E33	Hosonic晶振	E3FB	20MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB21.0000F18E33	Hosonic晶振	E3FB	21MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB22.0000F18E33	Hosonic晶振	E3FB	22MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB23.0000F18E33	Hosonic晶振	E3FB	23MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB24.0000F18E33	Hosonic晶振	E3FB	24MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB25.0000F18E33	Hosonic晶振	E3FB	25MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB26.0000F18E33	Hosonic晶振	E3FB	26MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB27.0000F18E33	Hosonic晶振	E3FB	27MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB28.0000F18E33	Hosonic晶振	E3FB	28MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB29.0000F18E33	Hosonic晶振	E3FB	29MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB30.0000F18E33	Hosonic晶振	E3FB	30MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB31.0000F18E33	Hosonic晶振	E3FB	31MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB32.0000F18E33	Hosonic晶振	E3FB	32MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB33.0000F18E33	Hosonic晶振	E3FB	33MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB34.0000F18E33	Hosonic晶振	E3FB	34MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB35.0000F18E33	Hosonic晶振	E3FB	35MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB36.0000F18E33	Hosonic晶振	E3FB	36MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB37.0000F18E33	Hosonic晶振	E3FB	37MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB38.0000F18E33	Hosonic晶振	E3FB	38MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB39.0000F18E33	Hosonic晶振	E3FB	39MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB40.0000F18E33	Hosonic晶振	E3FB	40MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB41.0000F18E33	Hosonic晶振	E3FB	41MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB42.0000F18E33	Hosonic晶振	E3FB	42MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB43.0000F18E33	Hosonic晶振	E3FB	43MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB44.0000F18E33	Hosonic晶振	E3FB	44MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB45.0000F18E33	Hosonic晶振	E3FB	45MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB46.0000F18E33	Hosonic晶振	E3FB	46MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB47.0000F18E33	Hosonic晶振	E3FB	47MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB48.0000F18E33	Hosonic晶振	E3FB	48MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB49.0000F18E33	Hosonic晶振	E3FB	49MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB50.0000F18E33	Hosonic晶振	E3FB	50MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB51.0000F18E33	Hosonic晶振	E3FB	51MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB52.0000F18E33	Hosonic晶振	E3FB	52MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB53.0000F18E33	Hosonic晶振	E3FB	53MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB54.0000F18E33	Hosonic晶振	E3FB	54MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB55.0000F18E33	Hosonic晶振	E3FB	55MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB56.0000F18E33	Hosonic晶振	E3FB	56MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB57.0000F18E33	Hosonic晶振	E3FB	57MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB58.0000F18E33	Hosonic晶振	E3FB	58MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB59.0000F18E33	Hosonic晶振	E3FB	59MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB60.0000F18E33	Hosonic晶振	E3FB	60MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB61.0000F18E33	Hosonic晶振	E3FB	61MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB62.0000F18E33	Hosonic晶振	E3FB	62MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB63.0000F18E33	Hosonic晶振	E3FB	63MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB64.0000F18E33	Hosonic晶振	E3FB	64MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB65.0000F18E33	Hosonic晶振	E3FB	65MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E3FB66.0000F18E33	Hosonic晶振	E3FB	66MHz	18pF	±30ppm	±30ppm	3.2 x 2.5 x 0.8 mm
E2SB10.0000F10E12	Hosonic晶振	E2SB	10MHz	10pF	±10ppm	±10ppm	2.5 x 2 x 0.56 mm
E2SB12.0000F10E11	Hosonic晶振	E2SB	12MHz	10pF	±10ppm	±10ppm	2.5 x 2 x 0.55 mm
E2SB16.0000F10E12	Hosonic晶振	E2SB	16MHz	10pF	±10ppm	±10ppm	2.5 x 2 x 0.56 mm
E2SB17.0000F10E12	Hosonic晶振	E2SB	17MHz	10pF	±10ppm	±10ppm	2.5 x 2 x 0.56 mm
E2SB18.4320F10E12	Hosonic晶振	E2SB	18.432MHz	10pF	±10ppm	±10ppm	2.5 x 2 x 0.56 mm
E2SB18.0000F10E12	Hosonic晶振	E2SB	18MHz	10pF	±10ppm	±10ppm	2.5 x 2 x 0.56 mm
E2SB19.0000F10E12	Hosonic晶振	E2SB	19MHz	10pF	±10ppm	±10ppm	2.5 x 2 x 0.56 mm
E2SB20.0000F10E12	Hosonic晶振	E2SB	20MHz	10pF	±10ppm	±10ppm	2.5 x 2 x 0.56 mm
E2SB21.0000F10E12	Hosonic晶振	E2SB	21MHz	10pF	±10ppm	±10ppm	2.5 x 2 x 0.56 mm
E2SB22.0000F10E12	Hosonic晶振	E2SB	22MHz	10pF	±10ppm	±10ppm	2.5 x 2 x 0.56 mm
E2SB23.0000F10E12	Hosonic晶振	E2SB	23MHz	10pF	±10ppm	±10ppm	2.5 x 2 x 0.56 mm
E2SB24.0000F10E12	Hosonic晶振	E2SB	24MHz	10pF	±10ppm	±10ppm	2.5 x 2 x 0.56 mm
E2SB25.0000F10E12	Hosonic晶振	E2SB	25MHz	10pF	±10ppm	±10ppm	2.5 x 2 x 0.56 mm
E49A12E00000ME	Hosonic晶振	E49A	12 MHz	20 pF	±30 ppm	±30 ppm	11.05×4.65mm
E49A13E00000ME	Hosonic晶振	E49A	13 MHz	20 pF	±30 ppm	±30 ppm	11.05×4.65mm
E49A14E00000ME	Hosonic晶振	E49A	14 MHz	20 pF	±30 ppm	±30 ppm	11.05×4.65mm
E49A15E00000ME	Hosonic晶振	E49A	15 MHz	20 pF	±30 ppm	±30 ppm	11.05×4.65mm
E49A16E00000ME	Hosonic晶振	E49A	16 MHz	20 pF	±30 ppm	±30 ppm	11.05×4.65mm
E49A17E00000ME	Hosonic晶振	E49A	17 MHz	20 pF	±30 ppm	±30 ppm	11.05×4.65mm
E49A18E00000ME	Hosonic晶振	E49A	18 MHz	20 pF	±30 ppm	±30 ppm	11.05×4.65mm
E49A19E00000ME	Hosonic晶振	E49A	19 MHz	20 pF	±30 ppm	±30 ppm	11.05×4.65mm
E49A20E00000ME	Hosonic晶振	E49A	20 MHz	20 pF	±30 ppm	±30 ppm	11.05×4.65mm
E49A21E00000ME	Hosonic晶振	E49A	21 MHz	20 pF	±30 ppm	±30 ppm	11.05×4.65mm
E49A22E00000ME	Hosonic晶振	E49A	22 MHz	20 pF	±30 ppm	±30 ppm	11.05×4.65mm
E49A23E00000ME	Hosonic晶振	E49A	23 MHz	20 pF	±30 ppm	±30 ppm	11.05×4.65mm
E49A24E00000ME	Hosonic晶振	E49A	24 MHz	20 pF	±30 ppm	±30 ppm	11.05×4.65mm
E49A25E00000ME	Hosonic晶振	E49A	25 MHz	20 pF	±30 ppm	±30 ppm	11.05×4.65mm
E49A26E00000ME	Hosonic晶振	E49A	26 MHz	20 pF	±30 ppm	±30 ppm	11.05×4.65mm
E49A27E00000ME	Hosonic晶振	E49A	27 MHz	20 pF	±30 ppm	±30 ppm	11.05×4.65mm
E49A28E00000ME	Hosonic晶振	E49A	28 MHz	20 pF	±30 ppm	±30 ppm	11.05×4.65mm
E49A29E00000ME	Hosonic晶振	E49A	29 MHz	20 pF	±30 ppm	±30 ppm	11.05×4.65mm
E49A30E00000ME	Hosonic晶振	E49A	30 MHz	20 pF	±30 ppm	±30 ppm	11.05×4.65mm
E49A31E00000ME	Hosonic晶振	E49A	31 MHz	20 pF	±30 ppm	±30 ppm	11.05×4.65mm
E49A32E00000ME	Hosonic晶振	E49A	32 MHz	20 pF	±30 ppm	±30 ppm	11.05×4.65mm
E49A33E00000ME	Hosonic晶振	E49A	33 MHz	20 pF	±30 ppm	±30 ppm	11.05×4.65mm
E49A34E00000ME	Hosonic晶振	E49A	34 MHz	20 pF	±30 ppm	±30 ppm	11.05×4.65mm
E49A35E00000ME	Hosonic晶振	E49A	35 MHz	20 pF	±30 ppm	±30 ppm	11.05×4.65mm
E49A36E00000ME	Hosonic晶振	E49A	36 MHz	20 pF	±30 ppm	±30 ppm	11.05×4.65mm
E49A37E00000ME	Hosonic晶振	E49A	37 MHz	20 pF	±30 ppm	±30 ppm	11.05×4.65mm
E49A38E00000ME	Hosonic晶振	E49A	38 MHz	20 pF	±30 ppm	±30 ppm	11.05×4.65mm
E49A39E00000ME	Hosonic晶振	E49A	39 MHz	20 pF	±30 ppm	±30 ppm	11.05×4.65mm
E49A40E00000ME	Hosonic晶振	E49A	40 MHz	20 pF	±30 ppm	±30 ppm	11.05×4.65mm
E49A41E00000ME	Hosonic晶振	E49A	41 MHz	20 pF	±30 ppm	±30 ppm	11.05×4.65mm
E49A42E00000ME	Hosonic晶振	E49A	42 MHz	20 pF	±30 ppm	±30 ppm	11.05×4.65mm
E49A43E00000ME	Hosonic晶振	E49A	43 MHz	20 pF	±30 ppm	±30 ppm	11.05×4.65mm
E49A44E00000ME	Hosonic晶振	E49A	44 MHz	20 pF	±30 ppm	±30 ppm	11.05×4.65mm
E49A45E00000ME	Hosonic晶振	E49A	45 MHz	20 pF	±30 ppm	±30 ppm	11.05×4.65mm
E49A46E00000ME	Hosonic晶振	E49A	46 MHz	20 pF	±30 ppm	±30 ppm	11.05×4.65mm
E49A47E00000ME	Hosonic晶振	E49A	47 MHz	20 pF	±30 ppm	±30 ppm	11.05×4.65mm
E49A48E00000ME	Hosonic晶振	E49A	48 MHz	20 pF	±30 ppm	±30 ppm	11.05×4.65mm
E49A49E00000ME	Hosonic晶振	E49A	49 MHz	20 pF	±30 ppm	±30 ppm	11.05×4.65mm
E49A50E00000ME	Hosonic晶振	E49A	50 MHz	20 pF	±30 ppm	±30 ppm	11.05×4.65mm
E49A51E00000ME	Hosonic晶振	E49A	51 MHz	20 pF	±30 ppm	±30 ppm	11.05×4.65mm
E49A52E00000ME	Hosonic晶振	E49A	52 MHz	20 pF	±30 ppm	±30 ppm	11.05×4.65mm
E49A53E00000ME	Hosonic晶振	E49A	53 MHz	20 pF	±30 ppm	±30 ppm	11.05×4.65mm
E49A54E00000ME	Hosonic晶振	E49A	54 MHz	20 pF	±30 ppm	±30 ppm	11.05×4.65mm
E49A55E00000ME	Hosonic晶振	E49A	55 MHz	20 pF	±30 ppm	±30 ppm	11.05×4.65mm
E49A56E00000ME	Hosonic晶振	E49A	56 MHz	20 pF	±30 ppm	±30 ppm	11.05×4.65mm
E49A57E00000ME	Hosonic晶振	E49A	57 MHz	20 pF	±30 ppm	±30 ppm	11.05×4.65mm
E2SB26.0000F10E12	Hosonic晶振	E2SB	26MHz	10pF	±10ppm	±10ppm	2.5 x 2 x 0.56 mm
E2SB27.0000F10E12	Hosonic晶振	E2SB	27MHz	10pF	±10ppm	±10ppm	2.5 x 2 x 0.56 mm
E2SB28.0000F10E12	Hosonic晶振	E2SB	28MHz	10pF	±10ppm	±10ppm	2.5 x 2 x 0.56 mm
E2SB29.0000F10E12	Hosonic晶振	E2SB	29MHz	10pF	±10ppm	±10ppm	2.5 x 2 x 0.56 mm
E2SB30.0000F10E12	Hosonic晶振	E2SB	30MHz	10pF	±10ppm	±10ppm	2.5 x 2 x 0.56 mm
E2SB31.0000F10E12	Hosonic晶振	E2SB	31MHz	10pF	±10ppm	±10ppm	2.5 x 2 x 0.56 mm
E2SB32.0000F10E12	Hosonic晶振	E2SB	32MHz	10pF	±10ppm	±10ppm	2.5 x 2 x 0.56 mm
E2SB33.0000F10E12	Hosonic晶振	E2SB	33MHz	10pF	±10ppm	±10ppm	2.5 x 2 x 0.56 mm
E2SB34.0000F10E12	Hosonic晶振	E2SB	34MHz	10pF	±10ppm	±10ppm	2.5 x 2 x 0.56 mm
E2SB35.0000F10E12	Hosonic晶振	E2SB	35MHz	10pF	±10ppm	±10ppm	2.5 x 2 x 0.56 mm
E2SB36.0000F10E12	Hosonic晶振	E2SB	36MHz	10pF	±10ppm	±10ppm	2.5 x 2 x 0.56 mm
E2SB37.0000F10E12	Hosonic晶振	E2SB	37MHz	10pF	±10ppm	±10ppm	2.5 x 2 x 0.56 mm
E2SB38.0000F10E12	Hosonic晶振	E2SB	38MHz	10pF	±10ppm	±10ppm	2.5 x 2 x 0.56 mm
E2SB39.0000F10E12	Hosonic晶振	E2SB	39MHz	10pF	±10ppm	±10ppm	2.5 x 2 x 0.56 mm
E2SB40.0000F10E12	Hosonic晶振	E2SB	40MHz	10pF	±10ppm	±10ppm	2.5 x 2 x 0.56 mm
E2SB41.0000F10E12	Hosonic晶振	E2SB	41MHz	10pF	±10ppm	±10ppm	2.5 x 2 x 0.56 mm
E2SB42.0000F10E12	Hosonic晶振	E2SB	42MHz	10pF	±10ppm	±10ppm	2.5 x 2 x 0.56 mm
E2SB43.0000F10E12	Hosonic晶振	E2SB	43MHz	10pF	±10ppm	±10ppm	2.5 x 2 x 0.56 mm
E2SB44.0000F10E12	Hosonic晶振	E2SB	44MHz	10pF	±10ppm	±10ppm	2.5 x 2 x 0.56 mm
E2SB45.0000F10E12	Hosonic晶振	E2SB	45MHz	10pF	±10ppm	±10ppm	2.5 x 2 x 0.56 mm
E2SB46.0000F10E12	Hosonic晶振	E2SB	46MHz	10pF	±10ppm	±10ppm	2.5 x 2 x 0.56 mm
E2SB47.0000F10E12	Hosonic晶振	E2SB	47MHz	10pF	±10ppm	±10ppm	2.5 x 2 x 0.56 mm
E2SB48.0000F10E12	Hosonic晶振	E2SB	48MHz	10pF	±10ppm	±10ppm	2.5 x 2 x 0.56 mm
E2SB49.0000F10E12	Hosonic晶振	E2SB	49MHz	10pF	±10ppm	±10ppm	2.5 x 2 x 0.56 mm
E2SB50.0000F10E12	Hosonic晶振	E2SB	50MHz	10pF	±10ppm	±10ppm	2.5 x 2 x 0.56 mm
E2SB51.0000F10E12	Hosonic晶振	E2SB	51MHz	10pF	±10ppm	±10ppm	2.5 x 2 x 0.56 mm
E2SB52.0000F10E12	Hosonic晶振	E2SB	52MHz	10pF	±10ppm	±10ppm	2.5 x 2 x 0.56 mm
E2SB53.0000F10E12	Hosonic晶振	E2SB	53MHz	10pF	±10ppm	±10ppm	2.5 x 2 x 0.56 mm
E2SB54.0000F10E12	Hosonic晶振	E2SB	54MHz	10pF	±10ppm	±10ppm	2.5 x 2 x 0.56 mm
E2SB55.0000F10E12	Hosonic晶振	E2SB	55MHz	10pF	±10ppm	±10ppm	2.5 x 2 x 0.56 mm
E2SB56.0000F10E12	Hosonic晶振	E2SB	56MHz	10pF	±10ppm	±10ppm	2.5 x 2 x 0.56 mm
E3SB13.0000F18E22	Hosonic晶振	E3SB	13 MHz	18 pF	±20 ppm	±20 ppm	3.2 x 2.5 x 0.65 mm
E3SB14.0000F18E22	Hosonic晶振	E3SB	14 MHz	18 pF	±20 ppm	±20 ppm	3.2 x 2.5 x 0.65 mm
E3SB15.0000F18E22	Hosonic晶振	E3SB	15 MHz	18 pF	±20 ppm	±20 ppm	3.2 x 2.5 x 0.65 mm
E3SB16.0000F18E22	Hosonic晶振	E3SB	16 MHz	18 pF	±20 ppm	±20 ppm	3.2 x 2.5 x 0.65 mm
E3SB17.0000F18E22	Hosonic晶振	E3SB	17 MHz	18 pF	±20 ppm	±20 ppm	3.2 x 2.5 x 0.65 mm
E3SB18.0000F18E22	Hosonic晶振	E3SB	18 MHz	18 pF	±20 ppm	±20 ppm	3.2 x 2.5 x 0.65 mm
E3SB19.0000F18E22	Hosonic晶振	E3SB	19 MHz	18 pF	±20 ppm	±20 ppm	3.2 x 2.5 x 0.65 mm
E3SB20.0000F18E22	Hosonic晶振	E3SB	20 MHz	18 pF	±20 ppm	±20 ppm	3.2 x 2.5 x 0.65 mm
E3SB21.0000F18E22	Hosonic晶振	E3SB	21 MHz	18 pF	±20 ppm	±20 ppm	3.2 x 2.5 x 0.65 mm
E3SB22.0000F18E22	Hosonic晶振	E3SB	22 MHz	18 pF	±20 ppm	±20 ppm	3.2 x 2.5 x 0.65 mm
E3SB23.0000F18E22	Hosonic晶振	E3SB	23 MHz	18 pF	±20 ppm	±20 ppm	3.2 x 2.5 x 0.65 mm
E3SB24.0000F18E22	Hosonic晶振	E3SB	24 MHz	18 pF	±20 ppm	±20 ppm	3.2 x 2.5 x 0.65 mm
E3SB25.0000F18E22	Hosonic晶振	E3SB	25 MHz	18 pF	±20 ppm	±20 ppm	3.2 x 2.5 x 0.65 mm
E3SB26.0000F18E22	Hosonic晶振	E3SB	26 MHz	18 pF	±20 ppm	±20 ppm	3.2 x 2.5 x 0.65 mm
E3SB27.0000F18E22	Hosonic晶振	E3SB	27 MHz	18 pF	±20 ppm	±20 ppm	3.2 x 2.5 x 0.65 mm
E3SB28.0000F18E22	Hosonic晶振	E3SB	28 MHz	18 pF	±20 ppm	±20 ppm	3.2 x 2.5 x 0.65 mm
E3SB29.0000F18E22	Hosonic晶振	E3SB	29 MHz	18 pF	±20 ppm	±20 ppm	3.2 x 2.5 x 0.65 mm
E3SB30.0000F18E22	Hosonic晶振	E3SB	30 MHz	18 pF	±20 ppm	±20 ppm	3.2 x 2.5 x 0.65 mm
E3SB31.0000F18E22	Hosonic晶振	E3SB	31 MHz	18 pF	±20 ppm	±20 ppm	3.2 x 2.5 x 0.65 mm
E3SB32.0000F18E22	Hosonic晶振	E3SB	32 MHz	18 pF	±20 ppm	±20 ppm	3.2 x 2.5 x 0.65 mm
E3SB33.0000F18E22	Hosonic晶振	E3SB	33 MHz	18 pF	±20 ppm	±20 ppm	3.2 x 2.5 x 0.65 mm
E3SB34.0000F18E22	Hosonic晶振	E3SB	34 MHz	18 pF	±20 ppm	±20 ppm	3.2 x 2.5 x 0.65 mm
E3SB35.0000F18E22	Hosonic晶振	E3SB	35 MHz	18 pF	±20 ppm	±20 ppm	3.2 x 2.5 x 0.65 mm
E3SB36.0000F18E22	Hosonic晶振	E3SB	36 MHz	18 pF	±20 ppm	±20 ppm	3.2 x 2.5 x 0.65 mm
E3SB37.0000F18E22	Hosonic晶振	E3SB	37 MHz	18 pF	±20 ppm	±20 ppm	3.2 x 2.5 x 0.65 mm
E3SB38.0000F18E22	Hosonic晶振	E3SB	38 MHz	18 pF	±20 ppm	±20 ppm	3.2 x 2.5 x 0.65 mm
E3SB39.0000F18E22	Hosonic晶振	E3SB	39 MHz	18 pF	±20 ppm	±20 ppm	3.2 x 2.5 x 0.65 mm
E3SB40.0000F18E22	Hosonic晶振	E3SB	40 MHz	18 pF	±20 ppm	±20 ppm	3.2 x 2.5 x 0.65 mm
E3SB41.0000F18E22	Hosonic晶振	E3SB	41 MHz	18 pF	±20 ppm	±20 ppm	3.2 x 2.5 x 0.65 mm
E3SB42.0000F18E22	Hosonic晶振	E3SB	42 MHz	18 pF	±20 ppm	±20 ppm	3.2 x 2.5 x 0.65 mm
E3SB43.0000F18E22	Hosonic晶振	E3SB	43 MHz	18 pF	±20 ppm	±20 ppm	3.2 x 2.5 x 0.65 mm
E3SB44.0000F18E22	Hosonic晶振	E3SB	44 MHz	18 pF	±20 ppm	±20 ppm	3.2 x 2.5 x 0.65 mm
E3SB45.0000F18E22	Hosonic晶振	E3SB	45MHz	18 pF	±20 ppm	±20 ppm	3.2 x 2.5 x 0.65 mm
E3SB46.0000F18E22	Hosonic晶振	E3SB	46MHz	18 pF	±20 ppm	±20 ppm	3.2 x 2.5 x 0.65 mm
E3SB47.0000F18E22	Hosonic晶振	E3SB	47MHz	18 pF	±20 ppm	±20 ppm	3.2 x 2.5 x 0.65 mm
E3SB48.0000F18E22	Hosonic晶振	E3SB	48MHz	18 pF	±20 ppm	±20 ppm	3.2 x 2.5 x 0.65 mm
E3SB49.0000F18E22	Hosonic晶振	E3SB	49MHz	18 pF	±20 ppm	±20 ppm	3.2 x 2.5 x 0.65 mm
E3SB50.0000F18E22	Hosonic晶振	E3SB	50MHz	18 pF	±20 ppm	±20 ppm	3.2 x 2.5 x 0.65 mm
E3SB51.0000F18E22	Hosonic晶振	E3SB	51MHz	18 pF	±20 ppm	±20 ppm	3.2 x 2.5 x 0.65 mm
E3SB52.0000F18E22	Hosonic晶振	E3SB	52MHz	18 pF	±20 ppm	±20 ppm	3.2 x 2.5 x 0.65 mm
E3SB53.0000F18E22	Hosonic晶振	E3SB	53MHz	18 pF	±20 ppm	±20 ppm	3.2 x 2.5 x 0.65 mm
E3SB54.0000F18E22	Hosonic晶振	E3SB	54MHz	18 pF	±20 ppm	±20 ppm	3.2 x 2.5 x 0.65 mm
E3SB55.0000F18E22	Hosonic晶振	E3SB	55MHz	18 pF	±20 ppm	±20 ppm	3.2 x 2.5 x 0.65 mm
E3SB56.0000F18E22	Hosonic晶振	E3SB	56MHz	18 pF	±20 ppm	±20 ppm	3.2 x 2.5 x 0.65 mm

yijin-5

YJ-6

深圳市亿金电子有限公司 SHENZHEN YIJIN ELECTRONICS CO;LTD

mphone 联系人黄娜：18924600166

工作QQ:857950243

myt 贸易通：yijindz2014

tel 座机：0755-27876565

email 邮箱:yijindz@163.com

inter 网址：http://www.yijindz.com

mwx 微信：yijindz，公众号：NDKcrystal

home 地址：广东省深圳市宝安区107国道旁甲岸路

wxewm

Hosonic品牌 D3SX37E0X0007E 3225mm 6G基站晶振

跟此产品相关的产品 / Related Products

: SXO75L3B481-148.500M,美国松图Suntsu晶振,7050金属封装; SXO75L3B481-148.500M,美国松图Suntsu晶振,7050金属封装,该晶振采用行业经典的7050表面贴装晶振(尺寸7.0mm×5.0mm),金属外壳不仅具备出色的机械防护能力,能抵御外部冲击,挤压对内部结构的损伤,还能有效屏蔽电磁干扰(EMI),减少外部环境对高频信号的干扰,同时,金属封装的气密性更强,可隔绝水汽,粉尘等污染物,延长晶振使用寿命.在核心性能上,其固定输出148.500MHz高频信号,频率精度典型值可达±10ppm以内(具体以松图原厂规格书为准),输出信号纯度高,相位噪声低,能为高速数据处理,射频通信等场景提供稳定的时钟基准,无需额外复杂电路调试即可直接适配.

: O25,0-JT33-B-K-3,3-LF,削峰正弦波晶振,TCXO有源贴片晶振; O25,0-JT33-B-K-3,3-LF,削峰正弦波晶振,TCXO有源贴片晶振,针对便携式智能电子晶振设备的低功耗需求,O25,0-JT33-B-K-3,3-LFTCXO有源贴片晶振在保证性能的同时优化功耗设计,3.3V标准工作电压下实现低静态电流运行,延长设备续航时间.其采用削峰正弦波输出,相比方波输出更能降低信号传输过程中的能量损耗,且输出信号失真度低,可减少对周边电路的干扰.该晶振尺寸小巧,贴片封装适配小型化设备布局,适用于智能穿戴设备,便携式测量仪器,物联网终端等对功耗与空间双重敏感的产品,为设备提供稳定可靠的时钟信号支持.

: O0.032768-JO22-G-1V3-1-T1-LF,高频稳定性晶振,2520金属封装晶振; O0.032768-JO22-G-1V3-1-T1-LF,高频稳定性晶振,2520金属封装晶振,聚焦封装防护与耐用性,O0.032768-JO22-G-1V3-1-T1-LF晶振采用行业标准2520金属封装,相比塑料封装具备更强的抗冲击,抗振动能力,能有效抵御外界物理碰撞对内部电路的损伤,金属材质还能形成良好的电磁屏蔽层,减少外部电磁辐射对晶振信号的干扰,提升输出信号纯净度.该晶振频率为32.768kHz有源晶振,是实时时钟电路的常用频率.
