Microchip晶振,VCC4A-B3D-24M5760000TR,5032mm,6G以太网晶振
prevnext

Microchip晶振,VCC4A-B3D-24M5760000TR,5032mm,6G以太网晶振

频率：24.576MHZ

尺寸：5.0mm x 3.2mm

Microchip晶振,VCC4A-B3D-24M5760000TR,5032mm,6G以太网晶振,Microchip晶振,VCC4A-B3D-24M5760000TR晶振,进口有源晶振,5032贴片晶振,高品质晶振,VCC4A晶体振荡器(XO)是一种具有CMOS输出的石英稳定方波发生器,采用基频或第三泛音晶体,抖动性能非常低,采用单片集成电路,提高了可靠性,降低了成本,6G以太网晶振,SONET晶振,微处理器晶振,COTS网络设备晶振.
订购热线：0755-27876565
QQ咨询 点击这里给我发消息

yijin-1

Microchip晶振,VCC4A-B3D-24M5760000TR,5032mm,6G以太网晶振,Microchip晶振,VCC4A-B3D-24M5760000TR晶振,进口有源晶振,5032贴片晶振,高品质晶振,VCC4A晶体振荡器(XO)是一种具有CMOS输出的石英稳定方波发生器,采用基频或第三泛音晶体,抖动性能非常低,采用单片集成电路,提高了可靠性,降低了成本,6G以太网晶振,SONET晶振,微处理器晶振,COTS网络设备晶振.

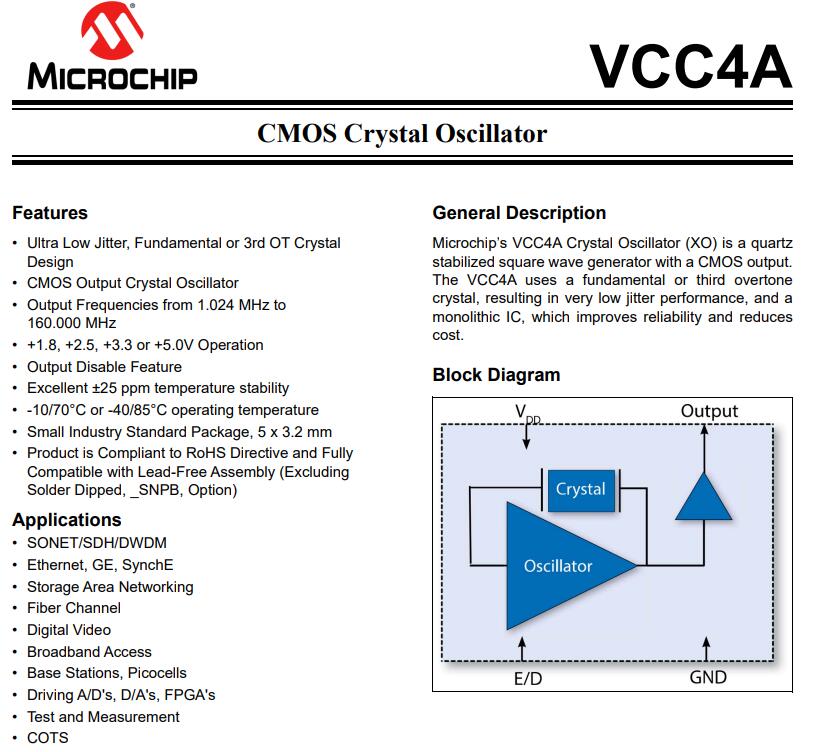

Microchip晶振,VCC4A-B3D-24M5760000TR,5032mm,6G以太网晶振晶振特点：

•超低抖动，基本或第三泛音水晶设计

•CMOS输出晶体振荡器

•输出频率从1.024 MHz到160.000MHz

•1.8V, 2.5V, 3.3V, 5.0V操作

•输出禁用功能

•卓越的±25 ppm温度稳定性

•工作温度为-10°C至+70°C， -40°C至+85°C

•小型工业标准5.0mmx 3.2mm包装

•产品符合RoHS指令和与无铅组件完全兼容(不包括焊浸_SNPB选项)

yijin-2

Microchip晶振,VCC4A-B3D-24M5760000TR,5032mm,6G以太网晶振规格表

项目 规格说明 条件
额定频率 24.576MHz 请联系我们以便获取其它可用频率的相关信息
电源电压 3.3V
储存温度 -55℃~+125℃ 裸存
工作温度 -40℃~ +85℃
频率稳定度 ±50ppm 包括由初始公差、温度和电源电压引起的频率变化
老化 ±5ppm
 1 year @ +25°C
电流 8mA Max 20.001 MHz to 40 MHz
负载 15pf
输出逻辑电平低（Vol） 0.1x VDD  Max
输出逻辑电平高（Voh） 0.9x VDD  Max
输出上升下降时间
 5ns Max
 20.001 MHz to 50 MHz
起始时间 10ms Max
占空比 45%~55%
周期抖动
 2.8ps 100MHz,RMS

yijin-3

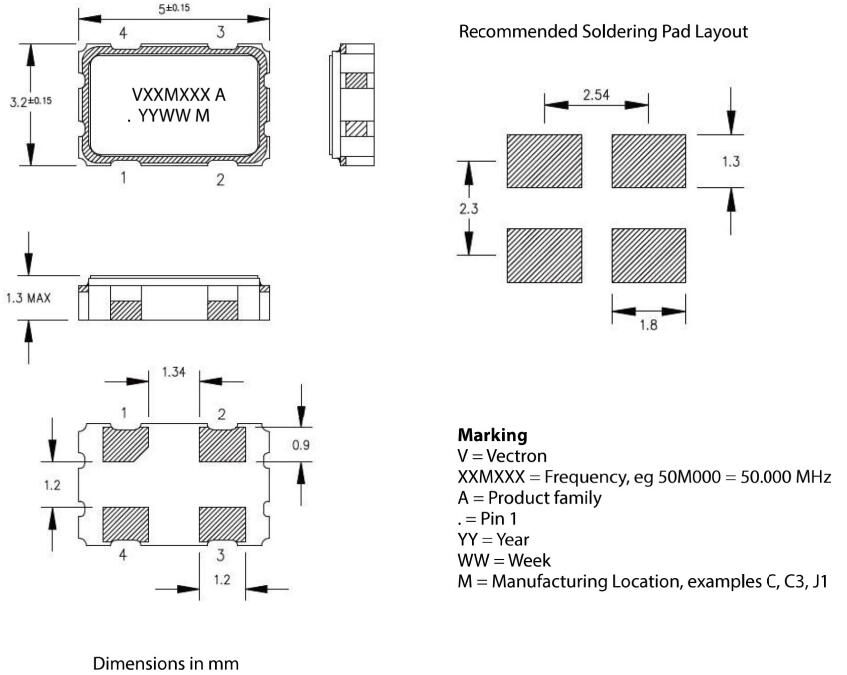

Microchip晶振,VCC4A-B3D-24M5760000TR,5032mm,6G以太网晶振尺寸图

VCC4A-1

VCC4AVCC4A-2

原厂代码 晶振品牌 型号 类型 频率 电压 尺寸
DSC1123CI2-125.0000 Microchip Technology DSC1123 MEMS (Silicon) 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123CI2-200.0000 Microchip Technology DSC1123 MEMS (Silicon) 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123AE2-100.0000 Microchip Technology DSC1123 MEMS (Silicon) 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1001CI2-027.0000 Microchip Technology DSC1001 MEMS (Silicon) 27MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123CE1-156.2500 Microchip Technology DSC1123 MEMS (Silicon) 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123CI2-150.0000 Microchip Technology DSC1123 MEMS (Silicon) 150MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123CI2-100.0000 Microchip Technology DSC1123 MEMS (Silicon) 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103DI2-312.5000 Microchip Technology DSC1103 MEMS (Silicon) 312.5MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1123DI2-050.0000 Microchip Technology DSC1123 MEMS (Silicon) 50MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1123CI2-156.2500 Microchip Technology DSC1123 MEMS (Silicon) 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123BL2-125.0000 Microchip Technology DSC1123 MEMS (Silicon) 125MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1123CI5-125.0000 Microchip Technology DSC1123 MEMS (Silicon) 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-300.0000 Microchip Technology DSC1103 MEMS (Silicon) 300MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123DL5-200.0000 Microchip Technology DSC1123 MEMS (Silicon) 200MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1123NL5-100.0000 Microchip Technology DSC1123 MEMS (Silicon) 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
MX574BBD322M265 Microchip Technology MX57 XO (Standard) 322.265625MHz 2.375 V ~ 3.63 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1001CI2-018.4320 Microchip Technology DSC1001 MEMS (Silicon) 18.432MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123CI1-200.0000 Microchip Technology DSC1123 MEMS (Silicon) 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123CI1-156.2500 Microchip Technology DSC1123 MEMS (Silicon) 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123AE2-300.0000 Microchip Technology DSC1123 MEMS (Silicon) 300MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1123AI1-125.0000 Microchip Technology DSC1123 MEMS (Silicon) 125MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1123AI2-125.0000 Microchip Technology DSC1123 MEMS (Silicon) 125MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1122CE1-125.0000 Microchip Technology DSC1122 MEMS (Silicon) 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123AE2-200.0000 Microchip Technology DSC1123 MEMS (Silicon) 200MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103CI1-075.0000 Microchip Technology DSC1103 MEMS (Silicon) 75MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123AI2-150.0000 Microchip Technology DSC1123 MEMS (Silicon) 150MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1123AI1-200.0000 Microchip Technology DSC1123 MEMS (Silicon) 200MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC557-0344SI1 Microchip Technology DSC557-03 MEMS (Silicon) 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.177" W (5.00mm x 4.50mm)
DSC6003CI1A-033.0000 Microchip Technology DSC60XX MEMS (Silicon) 33MHz 1.71 V ~ 3.63 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC6111CI1A-008.0000 Microchip Technology DSC6100 MEMS (Silicon) 8MHz 1.71 V ~ 3.63 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC6011JI1A-024.0000 Microchip Technology DSC60XX MEMS (Silicon) 24MHz 1.71 V ~ 3.63 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC6083CI2A-032K800 Microchip Technology DSC60XX MEMS (Silicon) 32.8kHz 1.71 V ~ 3.63 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC6083CI2A-307K000 Microchip Technology DSC60XX MEMS (Silicon) 307kHz 1.71 V ~ 3.63 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC6001CI2A-004.0000 Microchip Technology DSC60XX MEMS (Silicon) 4MHz 1.71 V ~ 3.63 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC6001CI2A-032.0000 Microchip Technology DSC60XX MEMS (Silicon) 32MHz 1.71 V ~ 3.63 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC6083CI2A-250K000 Microchip Technology DSC60XX MEMS (Silicon) 250kHz 1.71 V ~ 3.63 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC6083CI2A-002K000 Microchip Technology DSC60XX MEMS (Silicon) 2kHz 1.71 V ~ 3.63 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC6101JI2A-024.0000 Microchip Technology DSC6100 MEMS (Silicon) 24MHz 1.71 V ~ 3.63 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1001CC1-047.3333 Microchip Technology DSC1001 MEMS (Silicon) 47.3333MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1030BC1-008.0000 Microchip Technology DSC1030 MEMS (Silicon) 8MHz 3V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1001BC1-024.0000 Microchip Technology DSC1001 MEMS (Silicon) 24MHz 1.8 V ~ 3.3 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1033BC1-026.6000 Microchip Technology DSC1033 MEMS (Silicon) 26MHz 3.3V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1001DI1-001.8432 Microchip Technology DSC1001 MEMS (Silicon) 1.8432MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1033CI1-048.0000 Microchip Technology DSC1033 MEMS (Silicon) 48MHz 3.3V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1033CI1-024.0000 Microchip Technology DSC1033 MEMS (Silicon) 24MHz 3.3V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1033DI1-012.0000 Microchip Technology DSC1033 MEMS (Silicon) 12MHz 3.3V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1033DI1-036.0000 Microchip Technology DSC1033 MEMS (Silicon) 36MHz 3.3V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1001CI1-027.0000 Microchip Technology DSC1001 MEMS (Silicon) 27MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1033CI1-050.0000 Microchip Technology DSC1033 MEMS (Silicon) 50MHz 3.3V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC6001CI1A-011.0592 Microchip Technology DSC60XX MEMS (Silicon) 11.0592MHz 1.71 V ~ 3.63 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1001CI2-024.0000 Microchip Technology DSC1001 MEMS (Silicon) 24MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1033BE2-024.0000 Microchip Technology DSC1033 MEMS (Silicon) 24MHz 3.3V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1001DI2-038.4000 Microchip Technology DSC1001 MEMS (Silicon) 38.4MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1001CI5-033.3333 Microchip Technology DSC1001 MEMS (Silicon) 33.3333MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1101DM2-012.0000 Microchip Technology DSC1101 MEMS (Silicon) 12MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1001DE5-018.4320 Microchip Technology DSC1001 MEMS (Silicon) 18.432MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1101AI2-040.0000 Microchip Technology DSC1101 MEMS (Silicon) 40MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1101AI2-080.0000 Microchip Technology DSC1101 MEMS (Silicon) 80MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1101AI2-064.0000 Microchip Technology DSC1101 MEMS (Silicon) 64MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1124CI5-100.0000 Microchip Technology DSC1124 MEMS (Silicon) 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CM2-040.0000 Microchip Technology DSC1121 MEMS (Silicon) 40MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1101DL5-020.0000 Microchip Technology DSC1101 MEMS (Silicon) 20MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1101BI5-133.0000 Microchip Technology DSC1101 MEMS (Silicon) 133MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1101CL5-100.0000 Microchip Technology DSC1101 MEMS (Silicon) 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1122NE1-025.0000 Microchip Technology DSC1122 MEMS (Silicon) 25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1123CE1-125.0000 Microchip Technology DSC1123 MEMS (Silicon) 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1122DI2-200.0000 Microchip Technology DSC1122 MEMS (Silicon) 200MHz 2.25 V ~ 3.6 V 0.100" L x 0.079" W (2.54mm x 2.00mm)
DSC1123CI2-333.3333 Microchip Technology DSC1123 MEMS (Silicon) 333.3333MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123CI2-020.0000 Microchip Technology DSC1123 MEMS (Silicon) 20MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE1-125.0000 Microchip Technology DSC1103 MEMS (Silicon) 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123CI1-027.0000 Microchip Technology DSC1123 MEMS (Silicon) 27MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123CI2-333.3300 Microchip Technology DSC1123 MEMS (Silicon) 333.33MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123AI2-156.2570 Microchip Technology DSC1123 MEMS (Silicon) 156.257MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1123AI2-148.5000 Microchip Technology DSC1123 MEMS (Silicon) 148.5MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1123BL5-156.2500 Microchip Technology DSC1123 MEMS (Silicon) 156.25MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1123BI2-100.0000 Microchip Technology DSC1123 MEMS (Silicon) 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BI2-148.5000 Microchip Technology DSC1103 MEMS (Silicon) 148.5MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BI2-135.0000 Microchip Technology DSC1103 MEMS (Silicon) 135MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1102BI2-125.0000 Microchip Technology DSC1102 MEMS (Silicon) 125MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1102BI2-153.6000 Microchip Technology DSC1102 MEMS (Silicon) 153.6MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1123CI5-100.0000 Microchip Technology DSC1123 MEMS (Silicon) 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123CI5-156.2500 Microchip Technology DSC1123 MEMS (Silicon) 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123DL1-125.0000 Microchip Technology DSC1123 MEMS (Silicon) 125MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
MX575ABC70M0000 Microchip Technology MX57 XO (Standard) 70MHz 2.375 V ~ 3.63 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
MX553BBD156M250 Microchip Technology MX55 XO (Standard) 156.25MHz 2.375 V ~ 3.63 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
MX575ABB50M0000 Microchip Technology MX57 XO (Standard) 50MHz 2.375 V ~ 3.63 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
MX573LBB148M500 Microchip Technology MX57 XO (Standard) 148.5MHz 2.375 V ~ 3.63 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
MX554BBD322M265 Microchip Technology MX55 XO (Standard) 322.265625MHz 2.375 V ~ 3.63 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
MX573NBB311M040 Microchip Technology MX57 XO (Standard) 311.04MHz 2.375 V ~ 3.63 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
MX573NBD311M040 Microchip Technology MX57 XO (Standard) 311.04MHz 2.375 V ~ 3.63 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
MX573NBA622M080 Microchip Technology MX57 XO (Standard) 622.08MHz 2.375 V ~ 3.63 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1033DC1-012.0000 Microchip Technology DSC1033 MEMS (Silicon) 12MHz 3.3V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1001CI2-066.6666B Microchip Technology DSC1001 MEMS (Silicon) 66.6666MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1001CI2-066.6666B Microchip Technology DSC1001 MEMS (Silicon) 66.6666MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1001CI2-066.6666B Microchip Technology DSC1001 MEMS (Silicon) 66.6666MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1001DI1-026.0000T Microchip Technology DSC1001 MEMS (Silicon) 26MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1001DI1-026.0000T Microchip Technology DSC1001 MEMS (Silicon) 26MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1001DI1-026.0000T Microchip Technology DSC1001 MEMS (Silicon) 26MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1101CM2-062.2080T Microchip Technology DSC1101 MEMS (Silicon) 62.208MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1101CM2-062.2080T Microchip Technology DSC1101 MEMS (Silicon) 62.208MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1101CM2-062.2080T Microchip Technology DSC1101 MEMS (Silicon) 62.208MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121DM1-033.3333 Microchip Technology DSC1121 MEMS (Silicon) 33.3333MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1001DI2-004.0960T Microchip Technology DSC1001 MEMS (Silicon) 4.096MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1001DI2-004.0960T Microchip Technology DSC1001 MEMS (Silicon) 4.096MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1001DI2-004.0960T Microchip Technology DSC1001 MEMS (Silicon) 4.096MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1121BM1-024.0000 Microchip Technology DSC1121 MEMS (Silicon) 24MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1101CI5-020.0000T Microchip Technology DSC1101 MEMS (Silicon) 20MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1101CI5-020.0000T Microchip Technology DSC1101 MEMS (Silicon) 20MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1101CI5-020.0000T Microchip Technology DSC1101 MEMS (Silicon) 20MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123CI2-125.0000T Microchip Technology DSC1123 MEMS (Silicon) 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1101CL5-014.7456 Microchip Technology DSC1101 MEMS (Silicon) 14.7456MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1104BE2-100.0000 Microchip Technology DSC1104 MEMS (Silicon) 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1123AI2-062.5000T Microchip Technology DSC1123 MEMS (Silicon) 62.5MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1123AI2-062.5000T Microchip Technology DSC1123 MEMS (Silicon) 62.5MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1123AI2-062.5000T Microchip Technology DSC1123 MEMS (Silicon) 62.5MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103BI2-100.0000T Microchip Technology DSC1103 MEMS (Silicon) 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BI2-100.0000T Microchip Technology DSC1103 MEMS (Silicon) 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BI2-100.0000T Microchip Technology DSC1103 MEMS (Silicon) 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1121BI2-080.0000 Microchip Technology DSC1121 MEMS (Silicon) 80MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1124CI2-156.2500 Microchip Technology DSC1124 MEMS (Silicon) 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124CI5-100.0000T Microchip Technology DSC1124 MEMS (Silicon) 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124CI5-100.0000T Microchip Technology DSC1124 MEMS (Silicon) 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124CI5-100.0000T Microchip Technology DSC1124 MEMS (Silicon) 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1101DL5-052.8000 Microchip Technology DSC1101 MEMS (Silicon) 52.8MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1104CI5-125.0000 Microchip Technology DSC1104 MEMS (Silicon) 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1001DL5-020.0000T Microchip Technology DSC1001 MEMS (Silicon) 20MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1001DL5-020.0000T Microchip Technology DSC1001 MEMS (Silicon) 20MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1001DL5-020.0000T Microchip Technology DSC1001 MEMS (Silicon) 20MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1001DL5-024.0000T Microchip Technology DSC1001 MEMS (Silicon) 24MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1001DL5-024.0000T Microchip Technology DSC1001 MEMS (Silicon) 24MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1001DL5-024.0000T Microchip Technology DSC1001 MEMS (Silicon) 24MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1123DI2-100.0000B Microchip Technology DSC1123 MEMS (Silicon) 100MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1123DI2-100.0000B Microchip Technology DSC1123 MEMS (Silicon) 100MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1123DI2-100.0000B Microchip Technology DSC1123 MEMS (Silicon) 100MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1123CI1-022.8800T Microchip Technology DSC1123 MEMS (Silicon) 22.88MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123CI1-022.8800T Microchip Technology DSC1123 MEMS (Silicon) 22.88MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123CI1-022.8800T Microchip Technology DSC1123 MEMS (Silicon) 22.88MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123CI2-212.5000 Microchip Technology DSC1123 MEMS (Silicon) 212.5MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1122CI2-103.1250 Microchip Technology DSC1122 MEMS (Silicon) 103.125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123CI1-122.8800 Microchip Technology DSC1123 MEMS (Silicon) 122.88MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE1-200.0000T Microchip Technology DSC1103 MEMS (Silicon) 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE1-200.0000T Microchip Technology DSC1103 MEMS (Silicon) 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE1-200.0000T Microchip Technology DSC1103 MEMS (Silicon) 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE1-156.2500T Microchip Technology DSC1103 MEMS (Silicon) 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE1-156.2500T Microchip Technology DSC1103 MEMS (Silicon) 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE1-156.2500T Microchip Technology DSC1103 MEMS (Silicon) 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1122CI1-156.2500 Microchip Technology DSC1122 MEMS (Silicon) 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123AE1-125.0000T Microchip Technology DSC1123 MEMS (Silicon) 125MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1123AE1-125.0000T Microchip Technology DSC1123 MEMS (Silicon) 125MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1123AE1-125.0000T Microchip Technology DSC1123 MEMS (Silicon) 125MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1122AE2-156.2500 Microchip Technology DSC1122 MEMS (Silicon) 156.25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1122BE1-156.2500T Microchip Technology DSC1122 MEMS (Silicon) 156.25MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1122BE1-156.2500T Microchip Technology DSC1122 MEMS (Silicon) 156.25MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1122BE1-156.2500T Microchip Technology DSC1122 MEMS (Silicon) 156.25MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1123AE2-040.0000 Microchip Technology DSC1123 MEMS (Silicon) 40MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1123AI2-040.0000 Microchip Technology DSC1123 MEMS (Silicon) 40MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1122BI1-100.0000 Microchip Technology DSC1122 MEMS (Silicon) 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1122BI2-100.0000 Microchip Technology DSC1122 MEMS (Silicon) 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1122BI2-114.2850 Microchip Technology DSC1122 MEMS (Silicon) 114.285MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1122BI2-155.5200 Microchip Technology DSC1122 MEMS (Silicon) 155.52MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1122BI2-156.2500 Microchip Technology DSC1122 MEMS (Silicon) 156.25MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1102BI1-100.0000 Microchip Technology DSC1102 MEMS (Silicon) 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1122AI2-150.0000 Microchip Technology DSC1122 MEMS (Silicon) 150MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1001DL5-075.0000 Microchip Technology DSC1001 MEMS (Silicon) 75MHz 1.7 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1001DL5-133.3330 Microchip Technology DSC1001 MEMS (Silicon) 133.333MHz 1.7 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1101CM1-075.0000 Microchip Technology DSC1101 MEMS (Silicon) 75MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1101CM1-033.3333 Microchip Technology DSC1101 MEMS (Silicon) 33.3333MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1101CM1-005.0000 Microchip Technology DSC1101 MEMS (Silicon) 5MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1001DI5-080.0000 Microchip Technology DSC1001 MEMS (Silicon) 80MHz 1.7 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1123CE5-100.0000 Microchip Technology DSC1123 MEMS (Silicon) 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1122NI5-025.0020 Microchip Technology DSC1122 MEMS (Silicon) 25.002MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103DI5-171.8181T Microchip Technology DSC1103 MEMS (Silicon) 171.8181MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI5-171.8181T Microchip Technology DSC1103 MEMS (Silicon) 171.8181MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI5-171.8181T Microchip Technology DSC1103 MEMS (Silicon) 171.8181MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI5-171.8181 Microchip Technology DSC1103 MEMS (Silicon) 171.8181MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1102CI5-150.0000T Microchip Technology DSC1102 MEMS (Silicon) 150MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1102CI5-150.0000T Microchip Technology DSC1102 MEMS (Silicon) 150MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1102CI5-150.0000T Microchip Technology DSC1102 MEMS (Silicon) 150MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-224.8200 Microchip Technology DSC1103 MEMS (Silicon) 224.82MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123AL1-150.0000 Microchip Technology DSC1123 MEMS (Silicon) 150MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1122AI5-025.0020 Microchip Technology DSC1122 MEMS (Silicon) 25.002MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1123BI5-156.2500T Microchip Technology DSC1123 MEMS (Silicon) 156.25MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1123BI5-156.2500T Microchip Technology DSC1123 MEMS (Silicon) 156.25MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1123BI5-156.2500T Microchip Technology DSC1123 MEMS (Silicon) 156.25MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103CL5-106.2500T Microchip Technology DSC1103 MEMS (Silicon) 106.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CL5-106.2500T Microchip Technology DSC1103 MEMS (Silicon) 106.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CL5-106.2500T Microchip Technology DSC1103 MEMS (Silicon) 106.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124CI1-156.2500TA Microchip Technology DSC1124 MEMS (Silicon) 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124CI1-156.2500TA Microchip Technology DSC1124 MEMS (Silicon) 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124CI1-156.2500TA Microchip Technology DSC1124 MEMS (Silicon) 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103BL5-062.5000 Microchip Technology DSC1103 MEMS (Silicon) 62.5MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
MX553BBA312M500 Microchip Technology MX55 XO (Standard) 312.5MHz 2.375 V ~ 3.63 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC6111CI1A-016.0000 Microchip Technology DSC6100 MEMS (Silicon) 16MHz 1.71 V ~ 3.63 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1001CL2-012.0000 Microchip Technology DSC1001 MEMS (Silicon) 12MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1001DI1-050.0000 Microchip Technology DSC1001 MEMS (Silicon) 50MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1001DI1-024.0000 Microchip Technology DSC1001 MEMS (Silicon) 24MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1001DI1-025.0000 Microchip Technology DSC1001 MEMS (Silicon) 25MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1001CI2-033.3300 Microchip Technology DSC1001 MEMS (Silicon) 33.33MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1001DI5-100.0000 Microchip Technology DSC1001 MEMS (Silicon) 100MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1001DL5-025.0000 Microchip Technology DSC1001 MEMS (Silicon) 25MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1001CE2-006.0000 Microchip Technology DSC1001 MEMS (Silicon) 6MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1001CI1-050.0000 Microchip Technology DSC1001 MEMS (Silicon) 50MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1001CI2-012.0000 Microchip Technology DSC1001 MEMS (Silicon) 12MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1001CI2-033.3333 Microchip Technology DSC1001 MEMS (Silicon) 33.3333MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1001CI5-004.9152 Microchip Technology DSC1001 MEMS (Silicon) 4.9152MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1122CI5-200.0000 Microchip Technology DSC1122 MEMS (Silicon) 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1001CI1-048.0000 Microchip Technology DSC1001 MEMS (Silicon) 48MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1001CI1-026.0000 Microchip Technology DSC1001 MEMS (Silicon) 26MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1001AI2-050.0000 Microchip Technology DSC1001 MEMS (Silicon) 50MHz 1.8 V ~ 3.3 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1001AL2-027.0000 Microchip Technology DSC1001 MEMS (Silicon) 27MHz 1.8 V ~ 3.3 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC6083HE1A-032K800T Microchip Technology DSC60XX MEMS (Silicon) 32.8kHz 1.71 V ~ 3.63 V 0.063" L x 0.047" W (1.60mm x 1.20mm)
DSC6083HE1A-032K800T Microchip Technology DSC60XX MEMS (Silicon) 32.8kHz 1.71 V ~ 3.63 V 0.063" L x 0.047" W (1.60mm x 1.20mm)
DSC6083HE1A-032K800T Microchip Technology DSC60XX MEMS (Silicon) 32.8kHz 1.71 V ~ 3.63 V 0.063" L x 0.047" W (1.60mm x 1.20mm)
DSC6011HI1A-002.5000T Microchip Technology DSC60XX MEMS (Silicon) 2.5MHz 1.71 V ~ 3.63 V 0.063" L x 0.047" W (1.60mm x 1.20mm)
DSC6011HI1A-002.5000T Microchip Technology DSC60XX MEMS (Silicon) 2.5MHz 1.71 V ~ 3.63 V 0.063" L x 0.047" W (1.60mm x 1.20mm)
DSC6011HI1A-002.5000T Microchip Technology DSC60XX MEMS (Silicon) 2.5MHz 1.71 V ~ 3.63 V 0.063" L x 0.047" W (1.60mm x 1.20mm)
DSC6013HI1A-002.5000T Microchip Technology DSC60XX MEMS (Silicon) 2.5MHz 1.71 V ~ 3.63 V 0.063" L x 0.047" W (1.60mm x 1.20mm)


yijin-5

YJ-6

深圳市亿金电子有限公司    SHENZHEN YIJIN ELECTRONICS CO;LTD

mphone联系人黄娜：18924600166

QQ工作QQ:857950243

myt贸易通：yijindz2014

tel座机：0755-27876565

email邮箱:yijindz@163.com

inter 网址：http://www.yijindz.com

mwx微信：yijindz，公众号：NDKcrystal

home地址：广东省深圳市宝安区107国道旁甲岸路

wxewm

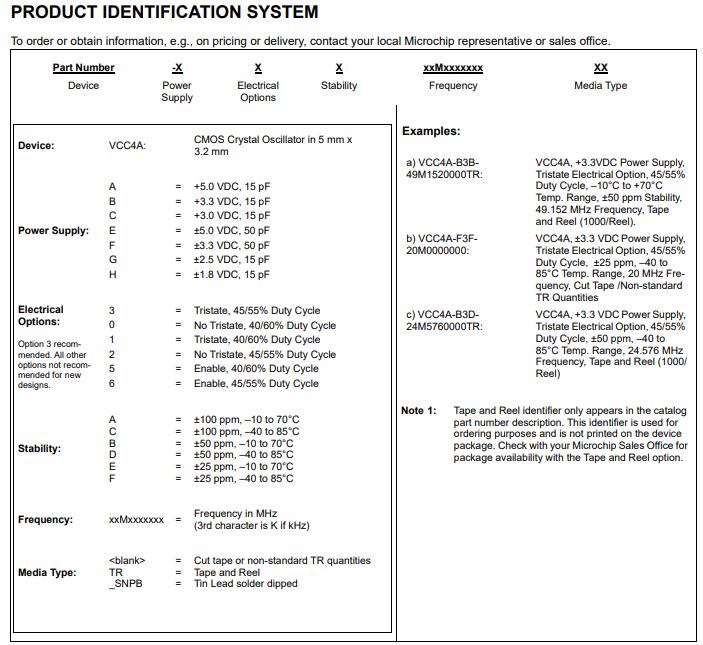

Microchip晶振 VCC4A-B3D-24M5760000TR 5032mm 6G以太网晶振

跟此产品相关的产品 / Related Products

台产石英晶振,光纤通道晶振,FD0810003晶振,Diodes振荡器,FD贴片晶体
台产石英晶振,光纤通道晶振,FD0810003晶振,Diodes振荡器,FD贴片晶体
FD0810003台产Diodes晶振，凭借其在光纤通道领域的卓越表现，成为光纤通信系统中的关键组件。它基于先进的石英制造工艺，确保了在 - 40℃至 + 85℃的宽温度范围内，具备出色的频率稳定性，能将频率偏差严格控制在极小范围，为光纤通道设备提供可靠的时钟基准。作为FD贴片晶体，其封装形式不仅实现了体积的小型化，便于在光纤通信设备的电路板上进行高密度安装，适应设备小型化、集成化的发展趋势，还优化了散热性能和电气性能，提升了晶振在不同工作条件下的稳定性和抗干扰能力。
SM7745HV-40.0M,贴片有源晶振,美国进口Pletronics晶振,7050石英振荡器,SM77HV晶振
SM7745HV-40.0M,贴片有源晶振,美国进口Pletronics晶振,7050石英振荡器,SM77HV晶振
SM7745HV-40.0M,贴片有源晶振,美国进口Pletronics晶振,7050石英振荡器,SM77HV晶振   Pletronics晶振以技术创新与严苛品控为核心，持续为全球客户提供精准、可靠的频率控制解决方案，助力电子系统在复杂环境中实现卓越性能。SM7745HV-40.0M 是美国 Pletronics 生产的 7050 封装贴片有源晶振，即 SM77HV 晶振。它可输出精准的 40.0MHz 频率，为电子设备提供稳定时钟信号。有源设计简化了电路，增强了稳定性。基于石英材质，具有良好的频率稳定性和抗干扰能力，可适应复杂工作环境。广泛应用于通信、工业自动化、测试测量等领域，有助于提升设备的性能和可靠性，是电子工程师在设计中值得考虑的优质选择。
Pletronics进口晶振,SM55振荡器,低抖动晶振,SM5545JEW-12.288MDK,CMOS振荡器
Pletronics进口晶振,SM55振荡器,低抖动晶振,SM5545JEW-12.288MDK,CMOS振荡器
Pletronics进口晶振,SM55振荡器,低抖动晶振,SM5545JEW-12.288MDK,CMOS振荡器   SM5545JEW-12.288MDK 是 Pletronics 生产的进口低抖动 CMOS 振荡器。它能输出精准的 12.288MHz 频率，为电子设备提供稳定的时钟基准。低抖动特性确保信号稳定，有效提升设备的精准性和可靠性。CMOS 输出具备低功耗、高噪声容限等优势，适配性强。紧凑设计便于安装和集成。广泛应用于通信、计算机、工业控制等领域，有助于提高设备的性能和运行稳定性，是一款值得信赖的晶振产品。
亿金电子产品中心 Product Center

晶振系列

日本进口晶振

台产晶振

欧美晶振

有源晶振

雾化片

贴片晶振

32.768K

声表面滤波器

石英晶振

KDS晶振

爱普生晶振

NDK晶振

温补晶振

联系亿金电子Contact us
咨询热线：0755-27876565

手机：189 2460 0166

QQ：857950243

邮箱：yijindz@163.com

地址：深圳市宝安区新安107国道旁甲岸路

Fast Track
快速通道

国内晶振分类：
Domestic Crystal
陶瓷晶振
泰艺晶振
TXC晶振
鸿星晶振
希华晶振
加高晶振
百利通亚陶晶振
嘉硕晶振
津绽晶振
石英晶体谐振器
SMD晶振
MERCURY晶振
应达利晶振
AKER晶振
香港NKG晶振
石英晶振
有源晶振
声表面滤波器
雾化片
32.768K
温补晶振
VC-TCXO晶振
差分晶振
压控晶振
恒温晶振
石英晶体振荡器
陶瓷谐振器
进口晶振分类：
Import Crystal
京瓷晶振
精工晶振
西铁城晶振
村田晶振
大河晶振
CTS晶振
微晶晶振
瑞康晶振
康纳温菲尔德晶振
高利奇晶振
Jauch晶振
AbraconCrystal晶振
维管晶振
ECScrystal晶振
日蚀晶振
拉隆晶振
格林雷晶振
SiTimeCrystal晶振
IDTcrystal晶振
PletronicsCrystal晶振
StatekCrystal晶振
KDS Quartz crystal
NDK Quartz crystal
EPSON Quartz crystal
AEK晶振
AEL晶振
Cardinal晶振
Crystek晶振
Euroquartz晶振
福克斯晶振
Frequency晶振
GEYER晶振
ILSI晶振
KVG晶振
MMDCOMP晶振
MtronPTI晶振
QANTEK晶振
QuartzCom晶振
QuartzChnik晶振
SUNTSU晶振
Transko晶振
WI2WI晶振
富士晶振
韩国三呢晶振
ITTI晶振
ACT晶振
Milliren晶振
Lihom晶振
rubyquartz晶振
Oscilent晶振
NAKA晶振
SHINSUNG晶振
SMI晶振
PDI晶振
C-TECH晶振
IQD晶振
Microchip晶振
NJR晶振
Silicon晶振
Fortiming晶振
CORE晶振
NIPPON晶振
NIC晶振
QVS晶振
Bomar晶振
Bliley晶振
GED晶振
FILTRONETICS晶振
STD晶振
Q-Tech晶振
Anderson晶振
Wenzel晶振
NEL晶振
EM晶振
PETERMANN晶振
FCD-Tech晶振
HEC晶振
FMI晶振
Macrobizes晶振
AXTAL晶振
瑞萨renesas晶振
Skyworks晶振
亿金首页32.768K贴片晶振有源晶振声表面滤波器KDS晶振NDK晶振爱普生晶振行业新闻联系亿金网站地图

Copyright © 1996-2012

深圳亿金电子有限公司版权所有

备案号：粤ICP备17105583号-1
