IQD晶振|IQXC-41晶振|LFXTAL060055Reel|HC-49S贴片晶振

频率:24MHZ

尺寸:11.4mm×4.7mm

IQD晶振|IQXC-41晶振|LFXTAL060055Reel|HC-49S贴片晶振,IQD晶振,IQXC-41无源晶振,HC-49S贴片晶振,LFXTAL060055Reel晶振,石英晶体谐振器,SMD晶振,三脚封装晶振,频率24MHz,负载18pF,频率容差20ppm,工作温度范围-40~85°C,低成本晶振,低老化晶振,高稳定性晶振,随身听晶振,无线路由器晶振,智能家居晶振,家用电视机顶盒晶振.

订购热线:0755-27876565
QQ咨询 点击这里给我发消息

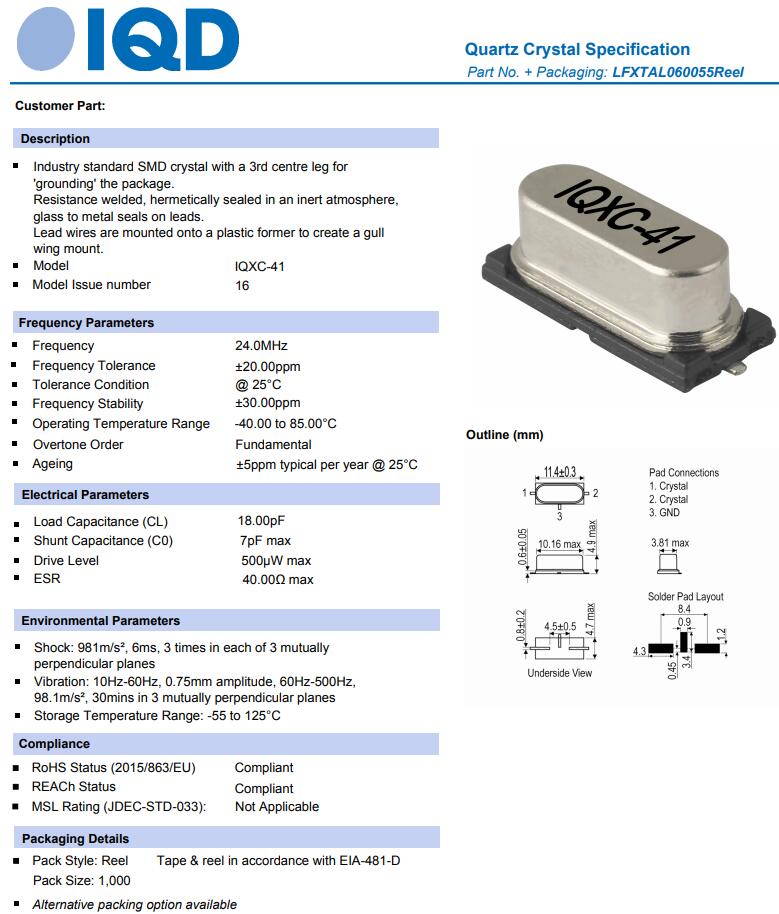

yijin-1IQD晶振|IQXC-41晶振|LFXTAL060055Reel|HC-49S贴片晶振,IQD晶振,IQXC-41无源晶振,HC-49S贴片晶振,LFXTAL060055Reel晶振,石英晶体谐振器,SMD晶体,三脚封装晶振,频率24MHz,负载18pF,频率容差20ppm,工作温度范围-40~85°C,低成本晶振,低老化晶振,高稳定性晶振,随身听晶振,无线路由器晶振,智能家居晶振,家用电视机顶盒晶振.

yijin-2IQD晶振|IQXC-41晶振|LFXTAL060055Reel|HC-49S贴片晶振规格表

参数 数值
频率 24MHz
频率容差@ 25°C ± 3°C ±20ppm
频率稳定性 ±30ppm
工作温度 -40~85°C
储存温度 -55~125°C
负载 18 pF
并联电容 7pF max
驱动电平
500µW max
老化@ 25°C ± 3°C
±5.0ppm  max per year

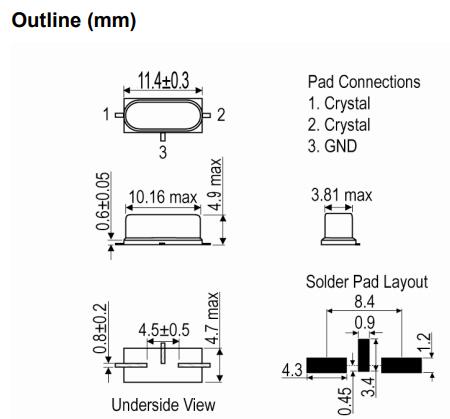

yijin-3IQD晶振|IQXC-41晶振|LFXTAL060055Reel|HC-49S贴片晶振尺寸图

IQXC-41-1

IQXC-41-2

编码 型号 频率 频率容差 频率稳定性 工作温度 负载
LFXTAL081314Reel IQXC-240 37.4MHz ±7ppm ±15ppm -30°C to 85°C 5.00pF
LFXTAL081316Reel IQXC-240 38.4MHz ±7ppm ±15ppm -30°C to 85°C 5.00pF
LFXTAL072539Reel IQXC-26 24.0MHz ±15ppm ±15ppm -20°C to 70°C 8.00pF
LFXTAL078691Cutt IQXC-26 24.0MHz ±10ppm ±30ppm -40°C to 85°C 20.00pF
LFXTAL081608Cutt IQXC-26 24.0MHz ±10ppm ±20ppm -40°C to 85°C 8.00pF
LFXTAL081608Reel IQXC-26 24.0MHz ±10ppm ±20ppm -40°C to 85°C 8.00pF
LFXTAL081609Cutt IQXC-26 25.0MHz ±10ppm ±20ppm -40°C to 85°C 8.00pF
LFXTAL083890Cutt IQXC-26 25.0MHz ±10ppm ±20ppm -40°C to 85°C 20.00pF
LFXTAL052799Cutt IQXC-26 26.0MHz ±10ppm ±30ppm -40°C to 85°C 10.00pF
LFXTAL066742Cutt IQXC-26 26.0MHz ±15ppm ±15ppm -20°C to 70°C 8.00pF
LFXTAL066742Reel IQXC-26 26.0MHz ±15ppm ±15ppm -20°C to 70°C 8.00pF
LFXTAL069296Cutt IQXC-26 26.0MHz ±15ppm ±20ppm -20°C to 70°C 8.00pF
LFXTAL070729Cutt IQXC-26 26.0MHz ±10ppm ±15ppm -20°C to 70°C 12.00pF
LFXTAL081614Cutt IQXC-26 26.0MHz ±10ppm ±20ppm -40°C to 85°C 8.00pF
LFXTAL081614Reel IQXC-26 26.0MHz ±10ppm ±20ppm -40°C to 85°C 8.00pF
LFXTAL072541Cutt IQXC-26 27.0MHz ±15ppm ±15ppm -20°C to 70°C 8.00pF
LFXTAL072541Reel IQXC-26 27.0MHz ±15ppm ±15ppm -20°C to 70°C 8.00pF
LFXTAL081610Cutt IQXC-26 27.0MHz ±10ppm ±20ppm -40°C to 85°C 8.00pF
LFXTAL072302Cutt IQXC-26 30.0MHz ±15ppm ±15ppm 20°C to 70°C 8.00pF
LFXTAL081612Cutt IQXC-26 30.0MHz ±10ppm ±20ppm -40°C to 85°C 8.00pF
LFXTAL056523Cutt IQXC-26 32.0MHz ±20ppm ±20ppm -20°C to 70°C 8.00pF
LFXTAL056523Reel IQXC-26 32.0MHz ±20ppm ±20ppm -20°C to 70°C 8.00pF
LFXTAL069526Cutt IQXC-26 32.0MHz ±15ppm ±15ppm -20°C to 70°C 8.00pF
LFXTAL069526Reel IQXC-26 32.0MHz ±15ppm ±15ppm -20°C to 70°C 8.00pF
LFXTAL079322Cutt IQXC-26 32.0MHz ±10ppm ±20ppm -20°C to 70°C 12.00pF
LFXTAL079322Reel IQXC-26 32.0MHz ±10ppm ±20ppm -20°C to 70°C 12.00pF
LFXTAL081613Cutt IQXC-26 32.0MHz ±10ppm ±20ppm -40°C to 85°C 8.00pF
LFXTAL083149Reel IQXC-26 32.0MHz ±10ppm ±20ppm -40°C to 85°C 6.00pF
LFXTAL072304Cutt IQXC-26 37.4MHz ±15ppm ±15ppm 20°C to 70°C 8.00pF
LFXTAL081616Cutt IQXC-26 37.4MHz ±10ppm ±20ppm -40°C to 85°C 8.00pF
LFXTAL063312Cutt IQXC-26 40.0MHz ±30ppm ±30ppm -40°C to 85°C 16.00pF
LFXTAL069527Cutt IQXC-26 40.0MHz ±15ppm ±15ppm -20°C to 70°C 8.00pF
LFXTAL069527Reel IQXC-26 40.0MHz ±15ppm ±15ppm -20°C to 70°C 8.00pF
LFXTAL081619Cutt IQXC-26 40.0MHz ±10ppm ±20ppm -40°C to 85°C 8.00pF
LFXTAL069528Cutt IQXC-26 48.0MHz ±15ppm ±15ppm -20°C to 70°C 8.00pF
LFXTAL069528Reel IQXC-26 48.0MHz ±15ppm ±15ppm -20°C to 70°C 8.00pF
LFXTAL081620Cutt IQXC-26 48.0MHz ±10ppm ±20ppm -40°C to 85°C 8.00pF
LFXTAL078795Cutt IQXC-42 16.0MHz ±15ppm ±50ppm -40°C to 85°C 8.00pF
LFXTAL081780RL3K IQXC-42 16.0MHz ±10ppm ±20ppm -30°C to 85°C 8.00pF
LFXTAL081781RL3K IQXC-42 16.0MHz ±10ppm ±20ppm -40°C to 85°C 8.00pF
LFXTAL081821Cutt IQXC-42 16.0MHz ±10ppm ±15ppm -30°C to 85°C 12.00pF
LFXTAL082887RL3K IQXC-42 16.0MHz ±10ppm ±30ppm -40°C to 105°C 10.00pF
LFXTAL059585Cutt IQXC-42 20.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL059585Reel IQXC-42 20.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL059585RL3K IQXC-42 20.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL064174RL3K IQXC-42 24.0MHz ±30ppm ±30ppm -40°C to 85°C 12.00pF
LFXTAL066139Cutt IQXC-42 24.0MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL069476RL3K IQXC-42 24.0MHz ±10ppm ±10ppm -20°C to 75°C 12.00pF
LFXTAL069493Cutt IQXC-42 24.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL069493Reel IQXC-42 24.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL069493RL3K IQXC-42 24.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL072577RL3K IQXC-42 24.0MHz ±10ppm ±20ppm -40°C to 85°C 18.00pF
LFXTAL076411Cutt IQXC-42 24.0MHz ±10ppm ±10ppm -20°C to 70°C 10.00pF
LFXTAL076411RL3K IQXC-42 24.0MHz ±10ppm ±10ppm -20°C to 70°C 10.00pF
LFXTAL081531RL3K IQXC-42 24.0MHz ±10ppm ±20ppm -40°C to 85°C 8.00pF
LFXTAL081646RL3K IQXC-42 24.0MHz ±15ppm ±20ppm -40°C to 85°C 8.00pF
LFXTAL082123Cutt IQXC-42 24.0MHz ±10ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL082123RL3K IQXC-42 24.0MHz ±10ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL090516RL3K IQXC-42 24.0MHz ±50ppm ±50ppm -40°C to 85°C 12.00pF
LFXTAL054026Cutt IQXC-42 25.0MHz ±25ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL059552Reel IQXC-42 25.0MHz ±20ppm ±30ppm -40°C to 85°C 12.00pF
LFXTAL064933Cutt IQXC-42 25.0MHz ±30ppm ±30ppm 0°C to 50°C 10.00pF
LFXTAL066140Cutt IQXC-42 25.0MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL069494Bulk IQXC-42 25.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL069494Cutt IQXC-42 25.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL069494Reel IQXC-42 25.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL069494RL3K IQXC-42 25.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL075431RL3K IQXC-42 25.0MHz ±30ppm ±40ppm -30°C to 85°C 6.00pF
LFXTAL082125Cutt IQXC-42 25.0MHz ±10ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL082125RL3K IQXC-42 25.0MHz ±10ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL085846RL3K IQXC-42 25.0MHz ±25ppm ±50ppm -40°C to 125°C 10.00pF
LFXTAL090436RL3K IQXC-42 25.0MHz ±10ppm ±20ppm -40°C to 105°C 10.00pF
LFXTAL059591Cutt IQXC-42 26.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL059591Reel IQXC-42 26.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL059591RL3K IQXC-42 26.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL066141Cutt IQXC-42 26.0MHz ±15ppm ±15ppm -20°C to 70°C 10.00pF
LFXTAL076879Bulk IQXC-42 26.0MHz ±30ppm ±30ppm -40°C to 85°C 12.00pF
LFXTAL078377RL3K IQXC-42 26.0MHz ±10ppm ±10ppm -20°C to 75°C 12.00pF
LFXTAL081595Cutt IQXC-42 26.0MHz ±10ppm ±30ppm -40°C to 85°C 8.00pF
LFXTAL082126Cutt IQXC-42 26.0MHz ±10ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL082126Reel IQXC-42 26.0MHz ±10ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL082126RL3K IQXC-42 26.0MHz ±10ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL083241Cutt IQXC-42 26.0MHz ±15ppm ±20ppm -20°C to 70°C 8.00pF
LFXTAL059592Cutt IQXC-42 27.0MHz ±15ppm ±15ppm -40°C to 85°C 10.00pF
LFXTAL072543Cutt IQXC-42 27.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL072543Reel IQXC-42 27.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL072543RL3K IQXC-42 27.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL081349Reel IQXC-42 27.0MHz ±15ppm ±20ppm -40°C to 85°C 12.00pF
LFXTAL083147RL3K IQXC-42 27.0MHz ±10ppm ±10ppm -20°C to 70°C 18.00pF
LFXTAL063227Reel IQXC-42 27.12MHz ±30ppm ±50ppm -40°C to 85°C 12.00pF
LFXTAL063227RL3K IQXC-42 27.12MHz ±30ppm ±50ppm -40°C to 85°C 12.00pF
LFXTAL071489Bulk IQXC-42 27.12MHz ±30ppm ±30ppm -20°C to 70°C 10.00pF
LFXTAL071489Cutt IQXC-42 27.12MHz ±30ppm ±30ppm -20°C to 70°C 10.00pF
LFXTAL071489RL3K IQXC-42 27.12MHz ±30ppm ±30ppm -20°C to 70°C 10.00pF
LFXTAL076164Cutt IQXC-42 27.12MHz ±10ppm ±10ppm -20°C to 70°C 8.00pF
LFXTAL076164Reel IQXC-42 27.12MHz ±10ppm ±10ppm -20°C to 70°C 8.00pF
LFXTAL081630Cutt IQXC-42 27.12MHz ±10ppm ±10ppm -20°C to 70°C 8.00pF
LFXTAL081630RL3K IQXC-42 27.12MHz ±10ppm ±10ppm -20°C to 70°C 8.00pF
LFXTAL082127Cutt IQXC-42 27.12MHz ±10ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL082127RL3K IQXC-42 27.12MHz ±10ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL059596Cutt IQXC-42 30.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL059596Reel IQXC-42 30.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL059596RL3K IQXC-42 30.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL082128Cutt IQXC-42 30.0MHz ±10ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL082128RL3K IQXC-42 30.0MHz ±10ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL058002RL3K IQXC-42 32.0MHz ±10ppm ±10ppm 0°C to 50°C 8.00pF
LFXTAL058004Cutt IQXC-42 32.0MHz ±10ppm ±10ppm -20°C to 70°C 8.00pF
LFXTAL058004RL3K IQXC-42 32.0MHz ±10ppm ±10ppm -20°C to 70°C 8.00pF
LFXTAL058067Cutt IQXC-42 32.0MHz ±15ppm ±20ppm -40°C to 85°C 8.00pF
LFXTAL058130RL3K IQXC-42 32.0MHz ±10ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL058699Cutt IQXC-42 32.0MHz ±10ppm ±10ppm -10°C to 60°C 10.00pF
LFXTAL058962RL3K IQXC-42 32.0MHz ±10ppm ±15ppm -20°C to 70°C 12.00pF
LFXTAL059597Cutt IQXC-42 32.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL059597Reel IQXC-42 32.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL059597RL3K IQXC-42 32.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL061700Cutt IQXC-42 32.0MHz ±20ppm ±30ppm -40°C to 85°C 8.00pF
LFXTAL061700Reel IQXC-42 32.0MHz ±20ppm ±30ppm -40°C to 85°C 8.00pF
LFXTAL072861RL3K IQXC-42 32.0MHz ±10ppm ±20ppm -40°C to 85°C 8.00pF
LFXTAL073170RL3K IQXC-42 32.0MHz ±10ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL077362RL3K IQXC-42 32.0MHz ±10ppm ±20ppm -40°C to 85°C 6.00pF
LFXTAL081227RL3K IQXC-42 32.0MHz ±30ppm ±50ppm -40°C to 85°C 12.00pF
LFXTAL081538RL3K IQXC-42 32.0MHz ±10ppm ±10ppm -20°C to 75°C 8.00pF
LFXTAL081567Cutt IQXC-42 32.0MHz ±10ppm ±10ppm -20°C to 75°C 8.00pF
LFXTAL081839RL3K IQXC-42 32.0MHz ±30ppm ±30ppm -40°C to 85°C 6.00pF
LFXTAL082129Cutt IQXC-42 32.0MHz ±10ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL082129RL3K IQXC-42 32.0MHz ±10ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL083004RL3K IQXC-42 32.0MHz ±10ppm ±10ppm -20°C to 70°C 10.00pF
LFXTAL085946RL3K IQXC-42 32.0MHz ±10ppm ±20ppm -40°C to 105°C 12.00pF
LFXTAL088678RL3K IQXC-42 32.768MHz ±30ppm ±50ppm -20°C to 70°C 8.00pF
LFXTAL082130Cutt IQXC-42 37.4MHz ±10ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL082130RL3K IQXC-42 37.4MHz ±10ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL059627Cutt IQXC-42 38.4MHz ±15ppm ±30ppm -40°C to 85°C 10.00pF
LFXTAL059627Reel IQXC-42 38.4MHz ±15ppm ±30ppm -40°C to 85°C 10.00pF
LFXTAL059627RL3K IQXC-42 38.4MHz ±15ppm ±30ppm -40°C to 85°C 10.00pF
LFXTAL075418Cutt IQXC-42 38.4MHz ±10ppm ±10ppm -20°C to 70°C 10.00pF
LFXTAL075418Reel IQXC-42 38.4MHz ±10ppm ±10ppm -20°C to 70°C 10.00pF
LFXTAL078271Cutt IQXC-42 38.4MHz ±10ppm ±20ppm -40°C to 85°C 18.00pF
LFXTAL081635Cutt IQXC-42 38.4MHz ±10ppm ±10ppm -20°C to 70°C 8.00pF
LFXTAL081635RL3K IQXC-42 38.4MHz ±10ppm ±10ppm -20°C to 70°C 8.00pF
LFXTAL081883RL3K IQXC-42 38.4MHz ±10ppm ±15ppm -35°C to 85°C 8.00pF
LFXTAL082131Cutt IQXC-42 38.4MHz ±10ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL082131RL3K IQXC-42 38.4MHz ±10ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL082468Cutt IQXC-42 38.4MHz ±10ppm ±15ppm -40°C to 85°C 10.00pF
LFXTAL082468RL3K IQXC-42 38.4MHz ±10ppm ±15ppm -40°C to 85°C 10.00pF
LFXTAL059632Cutt IQXC-42 40.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL059632Reel IQXC-42 40.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL059632RL3K IQXC-42 40.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL082132Cutt IQXC-42 40.0MHz ±10ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL082132Reel IQXC-42 40.0MHz ±10ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL082132RL3K IQXC-42 40.0MHz ±10ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL090469RL3K IQXC-42 43.935MHz ±20ppm ±30ppm -40°C to 85°C 12.00pF
LFXTAL090628Reel IQXC-42 45.761MHz ±20ppm ±30ppm -40°C to 85°C 12.00pF
LFXTAL066363Cutt IQXC-42 48.0MHz ±50ppm ±50ppm -40°C to 85°C 12.00pF
LFXTAL072546Cutt IQXC-42 48.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL072546Reel IQXC-42 48.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL072546RL3K IQXC-42 48.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL082135Cutt IQXC-42 48.0MHz ±10ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL082135RL3K IQXC-42 48.0MHz ±10ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL079374Cutt IQXC-42 50.0MHz ±15ppm ±30ppm -40°C to 85°C 10.00pF
LFXTAL085859RL3K IQXC-42 50.0MHz ±10ppm ±50ppm -40°C to 125°C 8.00pF
LFXTAL071255Cutt IQXC-42 AUTO 16.0MHz ±10ppm ±100ppm -40°C to 125°C 10.00pF
LFXTAL071255Reel IQXC-42 AUTO 16.0MHz ±10ppm ±100ppm -40°C to 125°C 10.00pF
LFXTAL071256Cutt IQXC-42 AUTO 20.0MHz ±10ppm ±100ppm -40°C to 125°C 10.00pF
LFXTAL071256Reel IQXC-42 AUTO 20.0MHz ±10ppm ±100ppm -40°C to 125°C 10.00pF
LFXTAL082989Cutt IQXC-42 AUTO 20.0MHz ±50ppm ±150ppm -40°C to 150°C 8.00pF
LFXTAL082989Reel IQXC-42 AUTO 20.0MHz ±50ppm ±150ppm -40°C to 150°C 8.00pF
LFXTAL083912Cutt IQXC-42 AUTO 20.0MHz ±30ppm ±45ppm -40°C to 125°C 8.00pF
LFXTAL071257Cutt IQXC-42 AUTO 24.0MHz ±10ppm ±100ppm -40°C to 125°C 10.00pF
LFXTAL071257Reel IQXC-42 AUTO 24.0MHz ±10ppm ±100ppm -40°C to 125°C 10.00pF
LFXTAL071258Cutt IQXC-42 AUTO 24.576MHz ±10ppm ±100ppm -40°C to 125°C 10.00pF
LFXTAL071258Reel IQXC-42 AUTO 24.576MHz ±10ppm ±100ppm -40°C to 125°C 10.00pF
LFXTAL071259Cutt IQXC-42 AUTO 25.0MHz ±10ppm ±100ppm -40°C to 125°C 10.00pF
LFXTAL071259Reel IQXC-42 AUTO 25.0MHz ±10ppm ±100ppm -40°C to 125°C 10.00pF
LFXTAL071260Cutt IQXC-42 AUTO 26.0MHz ±10ppm ±100ppm -40°C to 125°C 10.00pF
LFXTAL071260Reel IQXC-42 AUTO 26.0MHz ±10ppm ±100ppm -40°C to 125°C 10.00pF
LFXTAL071261Cutt IQXC-42 AUTO 27.0MHz ±10ppm ±100ppm -40°C to 125°C 10.00pF
LFXTAL071261Reel IQXC-42 AUTO 27.0MHz ±10ppm ±100ppm -40°C to 125°C 10.00pF
LFXTAL071262Cutt IQXC-42 AUTO 32.0MHz ±10ppm ±100ppm -40°C to 125°C 10.00pF
LFXTAL071262Reel IQXC-42 AUTO 32.0MHz ±10ppm ±100ppm -40°C to 125°C 10.00pF
LFXTAL084010Reel IQXC-42 AUTO 32.0MHz ±10ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL082907Cutt IQXC-42 AUTO 38.4MHz ±20ppm ±80ppm -40°C to 125°C 8.00pF
LFXTAL070734Cutt IQXC-42 AUTO 40.0MHz ±50ppm ±100ppm -40°C to 125°C 8.00pF
LFXTAL070734Reel IQXC-42 AUTO 40.0MHz ±50ppm ±100ppm -40°C to 125°C 8.00pF
LFXTAL071265Cutt IQXC-42 AUTO 40.0MHz ±10ppm ±100ppm -40°C to 125°C 10.00pF
LFXTAL071265Reel IQXC-42 AUTO 40.0MHz ±10ppm ±100ppm -40°C to 125°C 10.00pF
LFXTAL090472Reel IQXC-42 AUTO 43.935MHz ±20ppm ±30ppm -40°C to 85°C 12.00pF
LFXTAL071266Cutt IQXC-42 AUTO 48.0MHz ±10ppm ±100ppm -40°C to 125°C 10.00pF
LFXTAL071266Reel IQXC-42 AUTO 48.0MHz ±10ppm ±100ppm -40°C to 125°C 10.00pF
LFXTAL071267Cutt IQXC-42 AUTO 50.0MHz ±10ppm ±100ppm -40°C to 125°C 10.00pF
LFXTAL071267Reel  IQXC-42 AUTO 50.0MHz ±10ppm ±100ppm -40°C to 125°C 10.00pF
LFXTAL083269Cutt  IQXC-152 200.0MHz ±50ppm ±50ppm -10°C to 60°C SR
LFXTAL083706Reel  IQXC-180 AUTO 8.0MHz ±50ppm ±150ppm -40°C to 150°C 8.00pF
LFXTAL071742Cutt  IQXC-180 AUTO 12.0MHz ±30ppm ±50ppm -40°C to 85°C 8.00pF
LFXTAL071742Reel  IQXC-180 AUTO 12.0MHz ±30ppm ±50ppm -40°C to 85°C 8.00pF
LFXTAL071774Cutt  IQXC-180 AUTO 12.0MHz ±50ppm ±100ppm -40°C to 85°C 8.00pF
LFXTAL071774Reel  IQXC-180 AUTO 12.0MHz ±50ppm ±100ppm -40°C to 85°C 8.00pF
LFXTAL073664Cutt  IQXC-180 AUTO 12.0MHz ±50ppm ±100ppm -40°C to 125°C 8.00pF
LFXTAL073664Reel  IQXC-180 AUTO 12.0MHz ±50ppm ±100ppm -40°C to 125°C 8.00pF
LFXTAL081472Reel  IQXC-180 AUTO 12.0MHz ±50ppm ±150ppm -40°C to 85°C 18.00pF
LFXTAL082456Cutt  IQXC-180 AUTO 12.0MHz ±20ppm ±50ppm -40°C to 125°C 12.00pF
LFXTAL082456Reel  IQXC-180 AUTO 12.0MHz ±20ppm ±50ppm -40°C to 125°C 12.00pF
LFXTAL082563Reel  IQXC-180 AUTO 12.0MHz ±30ppm ±30ppm -40°C to 105°C 16.00pF
LFXTAL071743Cutt  IQXC-180 AUTO 14.318MHz ±30ppm ±50ppm -40°C to 85°C 8.00pF
LFXTAL071743Reel  IQXC-180 AUTO 14.318MHz ±30ppm ±50ppm -40°C to 85°C 8.00pF
LFXTAL071775Cutt  IQXC-180 AUTO 14.318MHz ±50ppm ±100ppm -40°C to 125°C 8.00pF
LFXTAL071775Reel  IQXC-180 AUTO 14.318MHz ±50ppm ±100ppm -40°C to 125°C 8.00pF
LFXTAL082014Reel  IQXC-180 AUTO 14.7456MHz ±25ppm ±30ppm -40°C to 105°C 18.00pF
LFXTAL053426Cutt  IQXC-180 AUTO 16.0MHz ±50ppm ±100ppm -40°C to 125°C 8.00pF
LFXTAL053426Reel  IQXC-180 AUTO 16.0MHz ±50ppm ±100ppm -40°C to 125°C 8.00pF
LFXTAL053849Reel  IQXC-180 AUTO 16.0MHz ±15ppm ±50ppm -40°C to 125°C 8.00pF
LFXTAL054327Cutt  IQXC-180 AUTO 16.0MHz ±50ppm ±50ppm -40°C to 125°C 8.00pF
LFXTAL054327Reel  IQXC-180 AUTO 16.0MHz ±50ppm ±50ppm -40°C to 125°C 8.00pF
LFXTAL065160Reel  IQXC-180 AUTO 16.0MHz ±20ppm ±50ppm -40°C to 125°C 8.00pF
LFXTAL065518Reel  IQXC-180 AUTO 16.0MHz ±25ppm ±50ppm -40°C to 125°C 16.00pF
LFXTAL071744Cutt  IQXC-180 AUTO 16.0MHz ±30ppm ±50ppm -40°C to 85°C 8.00pF
LFXTAL071744Reel  IQXC-180 AUTO 16.0MHz ±30ppm ±50ppm -40°C to 85°C 8.00pF
LFXTAL076098Cutt  IQXC-180 AUTO 16.0MHz ±20ppm ±50ppm -40°C to 125°C 12.00pF
LFXTAL076098Reel  IQXC-180 AUTO 16.0MHz ±20ppm ±50ppm -40°C to 125°C 12.00pF
LFXTAL076787Reel  IQXC-180 AUTO 16.0MHz ±50ppm ±150ppm -40°C to 150°C 8.00pF
LFXTAL071747Cutt  IQXC-180 AUTO 16.384MHz ±30ppm ±50ppm -40°C to 85°C 8.00pF
LFXTAL071747Reel  IQXC-180 AUTO 16.384MHz ±30ppm ±50ppm -40°C to 85°C 8.00pF
LFXTAL071777Cutt  IQXC-180 AUTO 16.384MHz ±50ppm ±100ppm -40°C to 125°C 8.00pF
LFXTAL071777Reel  IQXC-180 AUTO 16.384MHz ±50ppm ±100ppm -40°C to 125°C 8.00pF
LFXTAL055720Bulk  IQXC-180 AUTO 20.0MHz ±50ppm ±50ppm -40°C to 125°C 12.00pF
LFXTAL055720Reel  IQXC-180 AUTO 20.0MHz ±50ppm ±50ppm -40°C to 125°C 12.00pF
LFXTAL055998Cutt  IQXC-180 AUTO 20.0MHz ±50ppm ±100ppm -40°C to 125°C 8.00pF
LFXTAL055998Reel  IQXC-180 AUTO 20.0MHz ±50ppm ±100ppm -40°C to 125°C 8.00pF
LFXTAL071750Cutt  IQXC-180 AUTO 20.0MHz ±30ppm ±50ppm -40°C to 85°C 8.00pF
LFXTAL071750Reel  IQXC-180 AUTO 20.0MHz ±30ppm ±50ppm -40°C to 85°C 8.00pF
LFXTAL081836Reel  IQXC-180 AUTO 20.0MHz ±15ppm ±50ppm -40°C to 125°C 8.00pF
LFXTAL082433Reel  IQXC-180 AUTO 20.0MHz ±30ppm ±100ppm -40°C to 125°C 12.00pF
LFXTAL082940Cutt  IQXC-180 AUTO 20.0MHz ±50ppm ±150ppm -40°C to 150°C 8.00pF
LFXTAL082940Reel  IQXC-180 AUTO 20.0MHz ±50ppm ±150ppm -40°C to 150°C 8.00pF
LFXTAL056140Bulk  IQXC-180 AUTO 24.0MHz ±50ppm ±100ppm -40°C to 125°C 8.00pF
LFXTAL056140Cutt  IQXC-180 AUTO 24.0MHz ±50ppm ±100ppm -40°C to 125°C 8.00pF
LFXTAL056140Reel  IQXC-180 AUTO 24.0MHz ±50ppm ±100ppm -40°C to 125°C 8.00pF
LFXTAL057623Cutt  IQXC-180 AUTO 24.0MHz ±30ppm ±50ppm -40°C to 85°C 8.00pF
LFXTAL057623Reel  IQXC-180 AUTO 24.0MHz ±30ppm ±50ppm -40°C to 85°C 8.00pF
LFXTAL071455Reel  IQXC-180 AUTO 24.0MHz ±20ppm ±20ppm -40°C to 85°C 18.00pF
LFXTAL073317Cutt  IQXC-180 AUTO 24.0MHz ±20ppm ±50ppm -40°C to 125°C 12.00pF
LFXTAL073317Reel  IQXC-180 AUTO 24.0MHz ±20ppm ±50ppm -40°C to 125°C 12.00pF
LFXTAL075729Reel  IQXC-180 AUTO 24.0MHz ±20ppm ±50ppm -40°C to 125°C 8.00pF
LFXTAL082615Reel  IQXC-180 AUTO 24.0MHz ±30ppm ±100ppm -40°C to 125°C 6.00pF
LFXTAL082659Reel  IQXC-180 AUTO 24.0MHz ±30ppm ±100ppm -40°C to 125°C 6.00pF
LFXTAL071782Cutt  IQXC-180 AUTO 24.576MHz ±50ppm ±100ppm -40°C to 125°C 8.00pF
LFXTAL078894Cutt  IQXC-180 AUTO 24.576MHz ±30ppm ±100ppm -40°C to 125°C 12.00pF
LFXTAL078894Reel  IQXC-180 AUTO 24.576MHz ±30ppm ±100ppm -40°C to 125°C 12.00pF
LFXTAL053510Reel  IQXC-180 AUTO 25.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL066777Bulk  IQXC-180 AUTO 25.0MHz ±50ppm ±50ppm -40°C to 125°C 8.00pF
LFXTAL071758Cutt  IQXC-180 AUTO 25.0MHz ±30ppm ±50ppm -40°C to 85°C 8.00pF
LFXTAL071758Reel  IQXC-180 AUTO 25.0MHz ±30ppm ±50ppm -40°C to 85°C 8.00pF
LFXTAL071785Cutt  IQXC-180 AUTO 25.0MHz ±50ppm ±100ppm -40°C to 125°C 8.00pF
LFXTAL071785Reel  IQXC-180 AUTO 25.0MHz ±50ppm ±100ppm -40°C to 125°C 8.00pF
LFXTAL075419Cutt  IQXC-180 AUTO 25.0MHz ±20ppm ±50ppm -40°C to 125°C 12.00pF
LFXTAL075419Reel  IQXC-180 AUTO 25.0MHz ±20ppm ±50ppm -40°C to 125°C 12.00pF
LFXTAL081757Reel  IQXC-180 AUTO 25.0MHz ±20ppm ±30ppm -40°C to 125°C 8.00pF
LFXTAL083358Reel  IQXC-180 AUTO 25.0MHz ±30ppm ±50ppm -40°C to 105°C 12.50pF
LFXTAL053044Reel  IQXC-180 AUTO 26.0MHz ±15ppm ±50ppm -40°C to 125°C 8.00pF
LFXTAL071761Cutt  IQXC-180 AUTO 26.0MHz ±30ppm ±50ppm -40°C to 85°C 8.00pF
LFXTAL071761Reel  IQXC-180 AUTO 26.0MHz ±30ppm ±50ppm -40°C to 85°C 8.00pF
LFXTAL071788Cutt  IQXC-180 AUTO 26.0MHz ±50ppm ±100ppm -40°C to 125°C 8.00pF
LFXTAL071788Reel  IQXC-180 AUTO 26.0MHz ±50ppm ±100ppm -40°C to 125°C 8.00pF
LFXTAL082658Reel  IQXC-180 AUTO 26.0MHz ±20ppm ±50ppm -40°C to 125°C 12.00pF
LFXTAL071765Cutt  IQXC-180 AUTO 27.0MHz ±30ppm ±50ppm -40°C to 85°C 8.00pF
LFXTAL071765Reel  IQXC-180 AUTO 27.0MHz ±30ppm ±50ppm -40°C to 85°C 8.00pF
LFXTAL071791Cutt  IQXC-180 AUTO 27.0MHz ±50ppm ±100ppm -40°C to 125°C 8.00pF
LFXTAL071791Reel  IQXC-180 AUTO 27.0MHz ±50ppm ±100ppm -40°C to 125°C 8.00pF
LFXTAL080872Cutt  IQXC-180 AUTO 28.63636MHz ±20ppm ±100ppm -40°C to 125°C 8.00pF
LFXTAL080872Reel  IQXC-180 AUTO 28.63636MHz ±20ppm ±100ppm -40°C to 125°C 8.00pF
LFXTAL071768Cutt  IQXC-180 AUTO 30.0MHz ±30ppm ±50ppm -40°C to 85°C 8.00pF
LFXTAL071794Cutt  IQXC-180 AUTO 30.0MHz ±50ppm ±100ppm -40°C to 125°C 8.00pF
LFXTAL075983Reel  IQXC-180 AUTO 32.0MHz ±20ppm ±50ppm -40°C to 125°C 8.00pF
LFXTAL071771Cutt  IQXC-180 AUTO 36.4MHz ±30ppm ±50ppm -40°C to 85°C 8.00pF
LFXTAL071773Cutt  IQXC-180 AUTO 40.0MHz ±30ppm ±50ppm -40°C to 85°C 8.00pF
LFXTAL071799Bulk  IQXC-180 AUTO 40.0MHz ±50ppm ±100ppm -40°C to 125°C 8.00pF
LFXTAL071799Cutt  IQXC-180 AUTO 40.0MHz ±50ppm ±100ppm -40°C to 125°C 8.00pF
LFXTAL071799Reel  IQXC-180 AUTO 40.0MHz ±50ppm ±100ppm -40°C to 125°C 8.00pF
LFXTAL079388Reel  IQXC-180 AUTO 48.0MHz ±10ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL079399Reel  IQXC-180 AUTO 48.0MHz ±10ppm ±20ppm -40°C to 85°C 8.00pF
LFXTAL081760Reel  IQXC-180 AUTO 50.0MHz ±20ppm ±30ppm -40°C to 125°C 8.00pF
LFXTAL081789Reel  IQXC-180 AUTO 50.0MHz ±20ppm ±20ppm -10°C to 105°C 12.00pF
LFXTAL081818Reel  IQXC-180 AUTO 50.0MHz ±20ppm ±20ppm -10°C to 105°C 19.00pF
LFXTAL085222Reel  IQXC-32 25.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL057150Reel  IQXC-104 AUTO 12.288MHz ±50ppm ±50ppm -40°C to 85°C 8.00pF
LFXTAL077082Cutt  IQXC-49 8.0MHz ±50ppm ±100ppm -20°C to 70°C 16.00pF
LFXTAL077089Cutt  IQXC-49 8.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL077089Reel  IQXC-49 8.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL084035Reel  IQXC-49 8.0MHz ±30ppm ±30ppm -20°C to 70°C 12.00pF
LFXTAL084673Reel  IQXC-49 8.0MHz ±50ppm ±50ppm -40°C to 85°C 8.00pF
LFXTAL085089Reel  IQXC-49 8.0MHz ±20ppm ±20ppm -40°C to 85°C 20.00pF
LFXTAL077084Reel  IQXC-49 10.0MHz ±30ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL077086Reel  IQXC-49 10.0MHz ±30ppm ±30ppm -20°C to 70°C 18.00pF
LFXTAL084712Reel  IQXC-49 11.0592MHz ±30ppm ±30ppm -20°C to 70°C 18.00pF
LFXTAL077079Reel  IQXC-49 18.432MHz ±30ppm ±50ppm -40°C to 85°C 18.00pF
LFXTAL084840Reel  IQXC-49 20.0MHz ±30ppm ±30ppm -20°C to 70°C 18.00pF
LFXTAL077077Reel  IQXC-49 24.0MHz ±30ppm ±30ppm -40°C to 85°C 20.00pF
LFXTAL081544Cutt  IQXC-49 24.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL077078Reel  IQXC-49 25.0MHz ±30ppm ±30ppm -40°C to 85°C 20.00pF
LFXTAL077083Bulk  IQXC-49 25.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL077083Cutt  IQXC-49 25.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL077083Reel  IQXC-49 25.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL077085Cutt  IQXC-49 25.0MHz ±20ppm ±50ppm -20°C to 70°C 18.00pF
LFXTAL083868Reel  IQXC-49 25.0MHz ±30ppm ±50ppm -40°C to 85°C 20.00pF
LFXTAL080861Bulk  IQXC-49 27.12MHz ±30ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL084410Cutt  IQXC-49 30.0MHz ±30ppm ±30ppm -20°C to 70°C 18.00pF
LFXTAL084410Reel  IQXC-49 30.0MHz ±30ppm ±30ppm -20°C to 70°C 18.00pF
LFXTAL083139Reel  IQXC-41 18.432MHz ±30ppm ±30ppm -20°C to 70°C 20.00pF
LFXTAL060055Reel  IQXC-41 24.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL066245Bulk  IQXC-41 25.0MHz ±20ppm ±30ppm -25°C to 90°C 20.00pF
LFXTAL066245Reel  IQXC-41 25.0MHz ±20ppm ±30ppm -25°C to 90°C 20.00pF

yijin-5

YJ-6

深圳市亿金电子有限公司    SHENZHEN YIJIN ELECTRONICS CO;LTD

mphone联系人黄娜:18924600166

QQ工作QQ:857950243

myt贸易通:yijindz2014

tel座机:0755-27876565

email邮箱:yijindz@163.com

inter 网址:http://www.yijindz.com

mwx微信:yijindz,公众号:NDKcrystal

home地址:广东省深圳市宝安区107国道旁甲岸路

wxewm

跟此产品相关的产品 / Related Products

福克斯高精度晶振,FK124EIWM0.032768-T5进口表晶,FK124数码相机晶体
福克斯高精度晶振,FK124EIWM0.032768-T5进口表晶,FK124数码相机晶体
福克斯高精度晶振,FK124EIWM0.032768-T5进口表晶,FK124数码相机晶体,美国FOX晶振公司,福克斯晶振,FK124系列晶振,FK124EIWM0.032768-T5晶振,石英晶振石英晶体谐振器,无源晶振,贴片晶振,音叉晶振,32.768KHz晶振,超小型晶振,1210晶振,无源晶振,移动通讯晶振,微型晶振,航空航天晶振,,环保无铅晶振,低损耗晶振,高精度晶振,二脚晶振,进口晶振,美国晶振通过创造尖端产品,提高石英晶振的精度性能,可靠性与准确性。
福克斯超小型表晶,FK121进口晶振,FK121EIWM0.032768-T5医疗器械晶振
福克斯超小型表晶,FK121进口晶振,FK121EIWM0.032768-T5医疗器械晶振
福克斯超小型表晶,FK121进口晶振,FK121EIWM0.032768-T5医疗器械晶振,美国FOX晶振公司,FK121系列晶振,石英晶振石英晶体谐振器,无源晶振,贴片晶振,智能手表晶振,音叉晶振,32.768KHz晶振,超小型晶振,1210晶振,无源晶振,医疗手表晶振,移动通讯晶振,微型晶振,航空航天晶振,,环保无铅晶振,低损耗晶振,高精度晶振,二脚晶振,进口晶振,美国晶振,无源石英谐振器通过创造尖端产品,提高石英晶振的精度性能,可靠性与准确性。
NKG晶振|SHO6|SHO66B-100.000-WTS|差分石英晶体振荡器
NKG晶振|SHO6|SHO66B-100.000-WTS|差分石英晶体振荡器

NKG晶振|SHO6|SHO66B-100.000-WTS|差分石英晶体振荡器,香港NKG晶振,SHO6差分石英晶体振荡器,有源晶振,SHO66B-100.000-WTS晶振,3225进口晶振,六脚贴片晶振,HCSL输出晶振,频率100MHz,电压3.3V,频率稳定性50ppm,工作温范围-40~85°C,低老化晶振,小体积晶振,超低抖动晶振,无线通信晶振,高速转换器晶振,机载设备晶振,电信传输晶振.

亿金电子产品中心 Product Center

晶振系列

日本进口晶振

台产晶振

欧美晶振

有源晶振

雾化片

贴片晶振

32.768K

声表面滤波器

石英晶振

KDS晶振

爱普生晶振

NDK晶振

温补晶振

联系亿金电子Contact us
咨询热线:0755-27876565

手机:189 2460 0166

QQ:857950243

邮箱:yijindz@163.com

地址:深圳市宝安区新安107国道旁甲岸路

Fast Track
快速通道

国内晶振分类:
Domestic Crystal
进口晶振分类:
Import Crystal
