IQD晶振|12SMX晶振|LFXTAL036703Bulk|7050mm晶振

频率：16MHz

尺寸：7.0mm×5.0mm

IQD晶振|12SMX晶振|LFXTAL036703Bulk|7050mm晶振,IQD晶振,12SMX无源晶振,石英贴片晶振,LFXTAL036703Bulk晶振,5x7mm贴片晶振,晶体谐振器,四脚封装晶振,频率16MHz,负载18pF,频率容差20ppm,工作温度范围-40~85°C,高可靠性晶振,低老化晶振,无铅环保晶振,存储区域网络晶振,监控摄像机晶振,医疗电子设备晶振,调制解调器晶振.

订购热线：0755-27876565

IQD晶振|12SMX晶振|LFXTAL036703Bulk|7050mm晶振,IQD晶振,12SMX无源晶振,石英贴片晶振,LFXTAL036703Bulk晶振,5x7mm贴片晶振,晶体谐振器,四脚封装晶振,频率16MHz,负载18pF,频率容差20ppm,工作温度范围-40~85°C,高可靠性晶振,低老化晶振,无铅环保晶振,存储区域网络晶振,监控摄像机晶振,医疗电子设备晶振,调制解调器晶振.

yijin-2 IQD晶振|12SMX晶振|LFXTAL036703Bulk|7050mm晶振规格表

参数	数值
频率	16MHz
频率容差@ 25°C ± 3°C	±20ppm
频率稳定性	±30ppm
工作温度	-40~85°C
储存温度	-40~125°C
负载	18pF
并联电容	7pF typ
驱动电平	100µW max.
老化@ 25°C ± 3°C	±5.0ppm per year max

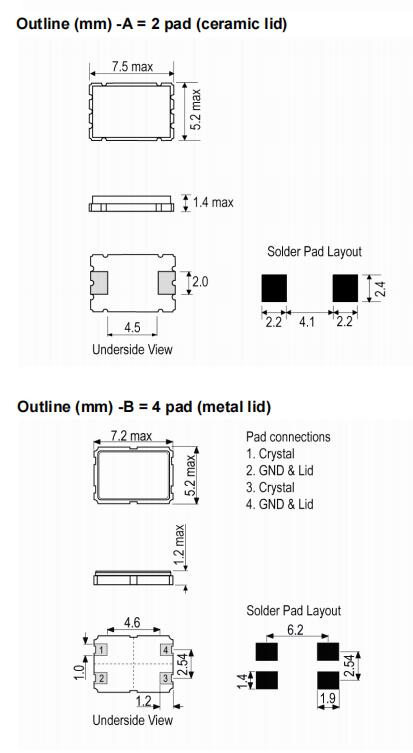

yijin-3 IQD晶振|12SMX晶振|LFXTAL036703Bulk|7050mm晶振尺寸图

编码	型号	频率	频率容差	频率稳定性	工作温度	负载
LFXTAL035561Cutt	12SMX	6.0MHz	±30ppm	±30ppm	-40°C to 85°C	20.00pF
LFXTAL037076Bulk	12SMX	6.0MHz	±30ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL053899Reel	12SMX	6.0MHz	±30ppm	±50ppm	-10°C to 60°C	16.00pF
LFXTAL081961Reel	12SMX	6.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL083786Reel	12SMX	6.5536MHz	±30ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL058999Cutt	12SMX	7.3728MHz	±20ppm	±50ppm	-20°C to 70°C	18.00pF
LFXTAL058999Reel	12SMX	7.3728MHz	±20ppm	±50ppm	-20°C to 70°C	18.00pF
LFXTAL062701Bulk	12SMX	7.3728MHz	±30ppm	±50ppm	-40°C to 85°C	12.00pF
LFXTAL062701Reel	12SMX	7.3728MHz	±30ppm	±50ppm	-40°C to 85°C	12.00pF
LFXTAL063838Cutt	12SMX	7.3728MHz	±20ppm	±50ppm	-40°C to 125°C	18.00pF
LFXTAL070694Bulk	12SMX	7.3728MHz	±50ppm	±50ppm	-40°C to 85°C	16.00pF
LFXTAL026380Bulk	12SMX	8.0MHz	±30ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL026380Cutt	12SMX	8.0MHz	±30ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL026380Reel	12SMX	8.0MHz	±30ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL028138Reel	12SMX	8.0MHz	±50ppm	±50ppm	-10°C to 60°C	16.00pF
LFXTAL033064Reel	12SMX	8.0MHz	±50ppm	±50ppm	-40°C to 85°C	16.00pF
LFXTAL035430Bulk	12SMX	8.0MHz	±30ppm	±50ppm	-40°C to 85°C	16.00pF
LFXTAL035430Cutt	12SMX	8.0MHz	±30ppm	±50ppm	-40°C to 85°C	16.00pF
LFXTAL035983Reel	12SMX	8.0MHz	±30ppm	±50ppm	-40°C to 85°C	12.00pF
LFXTAL036902Bulk	12SMX	8.0MHz	±30ppm	±30ppm	-40°C to 85°C	12.00pF
LFXTAL050611Reel	12SMX	8.0MHz	±50ppm	±50ppm	-40°C to 85°C	12.00pF
LFXTAL050644Reel	12SMX	8.0MHz	±20ppm	±20ppm	-20°C to 70°C	75.00pF
LFXTAL054213Reel	12SMX	8.0MHz	±30ppm	±50ppm	-20°C to 70°C	20.00pF
LFXTAL055050Bulk	12SMX	8.0MHz	±30ppm	±50ppm	-20°C to 70°C	12.00pF
LFXTAL056516Bulk	12SMX	8.0MHz	±30ppm	±30ppm	-20°C to 70°C	12.00pF
LFXTAL059082Cutt	12SMX	8.0MHz	±20ppm	±50ppm	-20°C to 70°C	10.00pF
LFXTAL059082Reel	12SMX	8.0MHz	±20ppm	±50ppm	-20°C to 70°C	10.00pF
LFXTAL061125Bulk	12SMX	8.0MHz	±30ppm	±30ppm	-20°C to 70°C	18.00pF
LFXTAL078329Cutt	12SMX	8.0MHz	±10ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL082934Bulk	12SMX	8.0MHz	±30ppm	±30ppm	0°C to 70°C	10.00pF
LFXTAL083440Reel	12SMX	8.0MHz	±30ppm	±30ppm	-40°C to 85°C	12.00pF
LFXTAL083524Reel	12SMX	8.0MHz	±30ppm	±50ppm	-40°C to 85°C	20.00pF
LFXTAL079369Reel	12SMX	9.216MHz	±50ppm	±100ppm	-40°C to 85°C	20.00pF
LFXTAL078330Cutt	12SMX	9.6MHz	±10ppm	±25ppm	-40°C to 85°C	10.00pF
LFXTAL076072Bulk	12SMX	9.8MHz	±30ppm	±30ppm	-20°C to 70°C	20.00pF
LFXTAL076296Reel	12SMX	9.8304MHz	±30ppm	±30ppm	-20°C to 70°C	12.00pF
LFXTAL029106Reel	12SMX	10.0MHz	±30ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL030919Reel	12SMX	10.0MHz	±50ppm	±50ppm	-30°C to 80°C	20.00pF
LFXTAL037108Reel	12SMX	10.0MHz	±30ppm	±30ppm	-40°C to 85°C	12.00pF
LFXTAL052197Reel	12SMX	10.0MHz	±50ppm	±50ppm	-40°C to 85°C	12.00pF
LFXTAL052921Cutt	12SMX	10.0MHz	±30ppm	±100ppm	-40°C to 85°C	16.00pF
LFXTAL090515Reel	12SMX	10.0MHz	±30ppm	±50ppm	-40°C to 85°C	12.00pF
LFXTAL090532Reel	12SMX	10.245MHz	±20ppm	±20ppm	-20°C to 70°C	10.00pF
LFXTAL090533Reel	12SMX	10.245MHz	±20ppm	±20ppm	-20°C to 70°C	30.00pF
LFXTAL026382Bulk	12SMX	11.0592MHz	±30ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL026382Cutt	12SMX	11.0592MHz	±30ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL026382Reel	12SMX	11.0592MHz	±30ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL029535Bulk	12SMX	11.0592MHz	±50ppm	±50ppm	-20°C to 70°C	30.00pF
LFXTAL026384Bulk	12SMX	12.0MHz	±30ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL026384Reel	12SMX	12.0MHz	±30ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL027623Reel	12SMX	12.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL031880Bulk	12SMX	12.0MHz	±30ppm	±50ppm	-10°C to 60°C	16.00pF
LFXTAL034834Bulk	12SMX	12.0MHz	±30ppm	±50ppm	-20°C to 70°C	22.00pF
LFXTAL035467Bulk	12SMX	12.0MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL050609Bulk	12SMX	12.0MHz	±50ppm	±50ppm	-40°C to 85°C	12.00pF
LFXTAL050609Reel	12SMX	12.0MHz	±50ppm	±50ppm	-40°C to 85°C	12.00pF
LFXTAL057971Reel	12SMX	12.0MHz	±50ppm	±50ppm	-40°C to 85°C	12.00pF
LFXTAL050352Bulk	12SMX	12.8MHz	±10ppm	±20ppm	-40°C to 85°C	12.00pF
LFXTAL026386Bulk	12SMX	14.31818MHz	±30ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL026386Reel	12SMX	14.31818MHz	±30ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL035020Reel	12SMX	14.74546MHz	±30ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL020965Reel	12SMX	14.7456MHz	±50ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL026388Bulk	12SMX	14.7456MHz	±30ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL026388Reel	12SMX	14.7456MHz	±30ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL060686Reel	12SMX	14.7456MHz	±20ppm	±50ppm	-20°C to 70°C	18.00pF
LFXTAL062468Bulk	12SMX	14.7456MHz	±30ppm	±50ppm	-40°C to 85°C	16.00pF
LFXTAL062696Reel	12SMX	14.7456MHz	±50ppm	±100ppm	-40°C to 85°C	12.00pF
LFXTAL073093Cutt	12SMX	14.7456MHz	±30ppm	±50ppm	-40°C to 85°C	18.00pF
LFXTAL081921Cutt	12SMX	14.7456MHz	±20ppm	±20ppm	-40°C to 85°C	30.00pF
LFXTAL026392Bulk	12SMX	16.0MHz	±30ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL026392Cutt	12SMX	16.0MHz	±30ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL026392Reel	12SMX	16.0MHz	±30ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL034857Reel	12SMX	16.0MHz	±30ppm	±50ppm	-20°C to 70°C	12.00pF
LFXTAL036703Bulk	12SMX	16.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL036703Cutt	12SMX	16.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL059444Bulk	12SMX	16.0MHz	±30ppm	±30ppm	-40°C to 85°C	12.00pF
LFXTAL061480Bulk	12SMX	16.0MHz	±30ppm	±50ppm	-40°C to 85°C	22.00pF
LFXTAL090604Reel	12SMX	16.2MHz	±30ppm	±50ppm	-40°C to 85°C	16.00pF
LFXTAL034572Reel	12SMX	18.432MHz	±50ppm	±50ppm	-20°C to 70°C	12.00pF
LFXTAL035742Bulk	12SMX	18.432MHz	±30ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL035742Cutt	12SMX	18.432MHz	±30ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL058902Bulk	12SMX	19.6608MHz	±15ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL026394Bulk	12SMX	20.0MHz	±30ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL026394Cutt	12SMX	20.0MHz	±30ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL026394Reel	12SMX	20.0MHz	±30ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL036521Bulk	12SMX	20.0MHz	±30ppm	±50ppm	-40°C to 85°C	16.00pF
LFXTAL036521Cutt	12SMX	20.0MHz	±30ppm	±50ppm	-40°C to 85°C	16.00pF
LFXTAL055012Bulk	12SMX	20.0MHz	±50ppm	±50ppm	-20°C to 70°C	12.00pF
LFXTAL083597Reel	12SMX	20.0MHz	±30ppm	±30ppm	-40°C to 85°C	16.00pF
LFXTAL034854Reel	12SMX	24.0MHz	±20ppm	±50ppm	-20°C to 70°C	18.00pF
LFXTAL059090Bulk	12SMX	24.0MHz	±30ppm	±30ppm	-20°C to 70°C	16.00pF
LFXTAL066367Reel	12SMX	24.0MHz	±30ppm	±30ppm	-20°C to 70°C	12.00pF
LFXTAL022248Reel	12SMX	24.576MHz	±50ppm	±50ppm	-10°C to 60°C	16.00pF
LFXTAL026396Bulk	12SMX	24.576MHz	±30ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL026396Cutt	12SMX	24.576MHz	±30ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL026396Reel	12SMX	24.576MHz	±30ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL028567Reel	12SMX	25.0MHz	±30ppm	±50ppm	-10°C to 60°C	20.00pF
LFXTAL028918Bulk	12SMX	25.0MHz	±30ppm	±50ppm	0°C to 70°C	20.00pF
LFXTAL028918Reel	12SMX	25.0MHz	±30ppm	±50ppm	0°C to 70°C	20.00pF
LFXTAL032328Bulk	12SMX	25.0MHz	±30ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL032762Cutt	12SMX	25.0MHz	±20ppm	±30ppm	-40°C to 85°C	20.00pF
LFXTAL033425Reel	12SMX	25.0MHz	±30ppm	±50ppm	-20°C to 70°C	20.00pF
LFXTAL033818Cutt	12SMX	25.0MHz	±30ppm	±50ppm	-20°C to 70°C	12.00pF
LFXTAL033992Reel	12SMX	25.0MHz	±50ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL034775Reel	12SMX	25.0MHz	±30ppm	±50ppm	-40°C to 85°C	30.00pF
LFXTAL035638Cutt	12SMX	25.0MHz	±100ppm	±30ppm	-10°C to 60°C	16.00pF
LFXTAL036368Cutt	12SMX	25.0MHz	±30ppm	±50ppm	-40°C to 85°C	20.00pF
LFXTAL055488Bulk	12SMX	25.0MHz	±20ppm	±50ppm	-20°C to 70°C	18.00pF
LFXTAL056906Bulk	12SMX	25.0MHz	±20ppm	±20ppm	-10°C to 60°C	18.00pF
LFXTAL078331Cutt	12SMX	25.0MHz	±10ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL079086Cutt	12SMX	25.0MHz	±25ppm	±25ppm	-40°C to 85°C	20.00pF
LFXTAL060693Bulk	12SMX	27.0MHz	±20ppm	±50ppm	-20°C to 70°C	18.00pF
LFXTAL035375Cutt	12SMX	27.12MHz	±100ppm	±30ppm	-10°C to 60°C	16.00pF
LFXTAL026504Bulk	12SMX	30.0MHz	±30ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL026504Reel	12SMX	30.0MHz	±30ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL034993Bulk	12SMX	30.0MHz	±30ppm	±50ppm	-20°C to 70°C	12.50pF
LFXTAL063964Bulk	12SMX	30.0MHz	±50ppm	±100ppm	-40°C to 85°C	12.00pF
LFXTAL034268Cutt	12SMX	32.768MHz	±30ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL034268Reel	12SMX	32.768MHz	±30ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL071673Cutt	12SMX AUTO	6.0MHz	±50ppm	±100ppm	-40°C to 125°C	8.00pF
LFXTAL071673Reel	12SMX AUTO	6.0MHz	±50ppm	±100ppm	-40°C to 125°C	8.00pF
LFXTAL072351Cutt	12SMX AUTO	6.0MHz	±50ppm	±100ppm	-40°C to 125°C	18.00pF
LFXTAL072351Reel	12SMX AUTO	6.0MHz	±50ppm	±100ppm	-40°C to 125°C	18.00pF
LFXTAL053699Cutt	12SMX AUTO	8.0MHz	±50ppm	±100ppm	-40°C to 125°C	8.00pF
LFXTAL053699Reel	12SMX AUTO	8.0MHz	±50ppm	±100ppm	-40°C to 125°C	8.00pF
LFXTAL056187Reel	12SMX AUTO	8.0MHz	±50ppm	±50ppm	-40°C to 125°C	8.00pF
LFXTAL071664Reel	12SMX AUTO	8.0MHz	±30ppm	±50ppm	-40°C to 85°C	8.00pF
LFXTAL072352Cutt	12SMX AUTO	8.0MHz	±50ppm	±100ppm	-40°C to 125°C	18.00pF
LFXTAL072352Reel	12SMX AUTO	8.0MHz	±50ppm	±100ppm	-40°C to 125°C	18.00pF
LFXTAL090563Reel	12SMX AUTO	10.0MHz	±50ppm	±50ppm	-40°C to 85°C	18.00pF
LFXTAL071675Cutt	12SMX AUTO	11.0592MHz	±50ppm	±100ppm	-40°C to 125°C	8.00pF
LFXTAL071675Reel	12SMX AUTO	11.0592MHz	±50ppm	±100ppm	-40°C to 125°C	8.00pF
LFXTAL071676Cutt	12SMX AUTO	12.0MHz	±50ppm	±100ppm	-40°C to 125°C	8.00pF
LFXTAL071676Reel	12SMX AUTO	12.0MHz	±50ppm	±100ppm	-40°C to 125°C	8.00pF
LFXTAL071677Cutt	12SMX AUTO	14.7456MHz	±50ppm	±100ppm	-40°C to 125°C	8.00pF
LFXTAL071677Reel	12SMX AUTO	14.7456MHz	±50ppm	±100ppm	-40°C to 125°C	8.00pF
LFXTAL050310Bulk	12SMX AUTO	16.0MHz	±50ppm	±100ppm	-40°C to 125°C	8.00pF
LFXTAL050310Reel	12SMX AUTO	16.0MHz	±50ppm	±100ppm	-40°C to 125°C	8.00pF
LFXTAL050311Cutt	12SMX AUTO	20.0MHz	±50ppm	±100ppm	-40°C to 125°C	8.00pF
LFXTAL050311Reel	12SMX AUTO	20.0MHz	±50ppm	±100ppm	-40°C to 125°C	8.00pF
