12.86513,GEYER晶振,25MHz,2520贴片晶振,16pF,KX-6T晶振,进口无源晶振
频率:25.0MHz
尺寸:2.5×2.0×0.55mm
12.86513,GEYER晶振,25MHz,2520贴片晶振,16pF,KX-6T晶振,进口无源晶振
GEYER晶振中编码为12.86513的KX-6T晶振为进口无源晶振,该KX-6T晶振的频率是25MHz,负载电容为16pF,频率公差是±30ppm,该晶振的尺寸为2.5×2.0×0.55mm,也称呼为2520贴片晶振。该石英晶体用于需要非常精确和恒定频率的电路中,例如大多数发射器、时钟、微控制器、移动电话、计算机以及频率计数器和数字信号发生器。
12.86513,GEYER晶振,25MHz,2520贴片晶振,16pF,KX-6T晶振,进口无源晶振
GEYER晶振中编码为12.86513的KX-6T晶振为进口无源晶振,该KX-6T晶振的频率是25MHz,负载电容为16pF,频率公差是±30ppm,该晶振的尺寸为2.5×2.0×0.55mm,也称呼为2520贴片晶振。该石英晶体用于需要非常精确和恒定频率的电路中,例如大多数发射器、时钟、微控制器、移动电话、计算机以及频率计数器和数字信号发生器。石英晶体基于人造石英晶体,用作振荡器电路的电子元件,振荡器电路以规定的频率产生电振荡。其工作模式基于与电极接触的内置压电石英晶体的机电谐振原理。石英晶体本身只能决定频率。由于石英晶体既不是振荡器也不是时钟发生器,因此它必须在相应的电路中运行,才能表示石英稳定的振荡器电路(晶体振荡器)。
![Y-3 Y-3](/uploadfiles/pictures/product/20240823160124_0002.jpg)
12.86513,GEYER晶振,25MHz,2520贴片晶振,16pF,KX-6T晶振,进口无源晶振

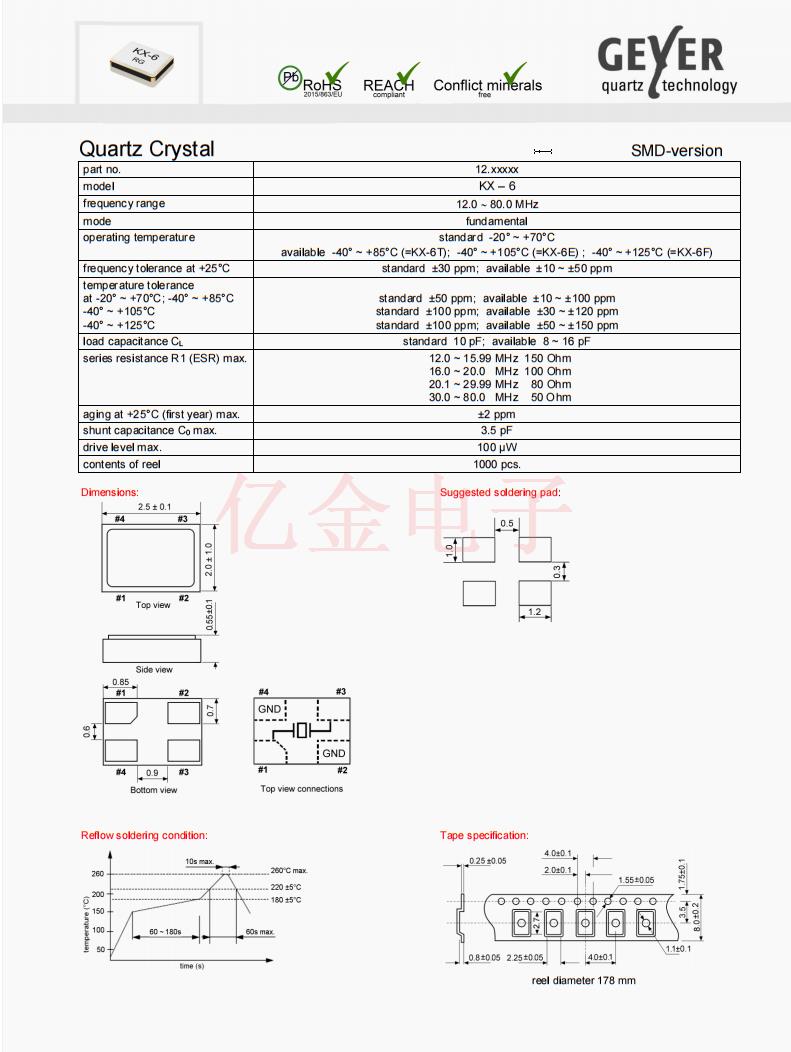

品牌 | GEYER |
编码 | 12.86513 |
型号 | KX-6T |
频率 | 25.0MHz |
精度 | ±30ppm |
负载 | 16pF |

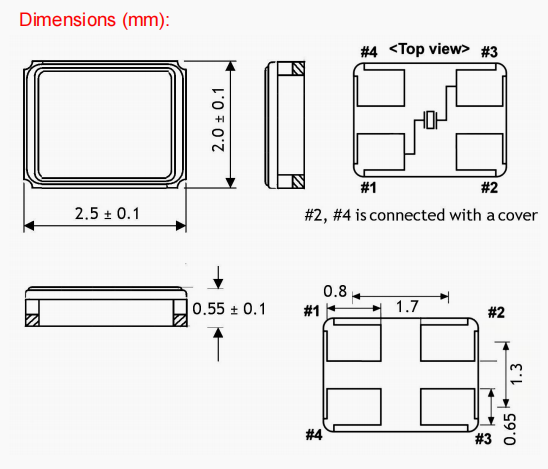

尺寸 | 2.5×2.0×0.55mm |
工作温度 | -40℃~85℃ |
![yijin-3 yijin-3](/uploadfiles/pictures/product/20170908141631_6170.jpg)
12.86513,GEYER晶振,25MHz,2520贴片晶振,16pF,KX-6T晶振,进口无源晶振
更多相关晶振参考
编码 | 品牌 | 型号 | 尺寸 | 频率 | 负载 |
12.86504 | GEYER | KX-6T | 2.5×2.0×0.55mm | 16.0MHz | 16pF |
12.86513 | GEYER | KX-6T | 2.5×2.0×0.55mm | 25.0MHz | 16pF |
12.86523 | GEYER | KX-6T | 2.5×2.0×0.55mm | 22.11840MHz | 10pF |
12.86524 | GEYER | KX-6T | 2.5×2.0×0.55mm | 20.0MHz | 10pF |
12.86526 | GEYER | KX-6T | 2.5×2.0×0.55mm | 26.0MHz | 10pF |
12.86527 | GEYER | KX-6T | 2.5×2.0×0.55mm | 20.0MHz | 10pF |
12.86528 | GEYER | KX-6T | 2.5×2.0×0.55mm | 18.4320MHz | 10pF |
12.86530 | GEYER | KX-6T | 2.5×2.0×0.55mm | 48.0MHz | 10pF |
12.86531 | GEYER | KX-6T | 2.5×2.0×0.55mm | 16.0MHz | 10pF |
12.86533 | GEYER | KX-6T | 2.5×2.0×0.55mm | 26.0MHz | 10pF |
12.86534 | GEYER | KX-6T | 2.5×2.0×0.55mm | 16.0MHz | 16pF |
12.86538 | GEYER | KX-6T | 2.5×2.0×0.55mm | 12.0MHz | 10pF |
12.86542 | GEYER | KX-6T | 2.5×2.0×0.55mm | 24.0MHz | 10pF |
12.86543 | GEYER | KX-6T | 2.5×2.0×0.55mm | 20.0MHz | 20pF |
12.86553 | GEYER | KX-6T | 2.5×2.0×0.55mm | 26.0MHz | 8pF |
12.86555 | GEYER | KX-6T | 2.5×2.0×0.55mm | 32.0MHz | 6pF |
12.86556 | GEYER | KX-6T | 2.5×2.0×0.55mm | 40.0MHz | 8pF |
12.86557 | GEYER | KX-6T | 2.5×2.0×0.55mm | 19,20MHz | 12pF |
12.86560 | GEYER | KX-6T | 2.5×2.0×0.55mm | 16.0MHz | 8pF |
12.86561 | GEYER | KX-6T | 2.5×2.0×0.55mm | 40.0MHz | 10pF |
12.86562 | GEYER | KX-6T | 2.5×2.0×0.55mm | 40.0MHz | 10pF |
12.86564 | GEYER | KX-6T | 2.5×2.0×0.55mm | 14.318180MHz | 10pF |
12.86566 | GEYER | KX-6T | 2.5×2.0×0.55mm | 12.0MHz | 18pF |
12.86567 | GEYER | KX-6T | 2.5×2.0×0.55mm | 28.63630MHz | 16pF |
12.86569 | GEYER | KX-6T | 2.5×2.0×0.55mm | 27.120MHz | 10pF |
12.86572 | GEYER | KX-6T | 2.5×2.0×0.55mm | 16.0MHz | 10pF |
12.86575 | GEYER | KX-6T | 2.5×2.0×0.55mm | 27.0MHz | 10pF |
12.86576 | GEYER | KX-6T | 2.5×2.0×0.55mm | 32.0MHz | 8pF |
12.86578 | GEYER | KX-6T | 2.5×2.0×0.55mm | 32.0MHz | 8pF |
12.86579 | GEYER | KX-6T | 2.5×2.0×0.55mm | 30.0MHz | 8pF |
12.86580 | GEYER | KX-6T | 2.5×2.0×0.55mm | 16.0MHz | 12pF |
12.86581 | GEYER | KX-6T | 2.5×2.0×0.55mm | 38.40MHz | 10pF |
12.86582 | GEYER | KX-6T | 2.5×2.0×0.55mm | 16.0MHz | 10pF |
12.86586 | GEYER | KX-6T | 2.5×2.0×0.55mm | 20.0MHz | 10pF |
12.86587 | GEYER | KX-6T | 2.5×2.0×0.55mm | 24.0MHz | 10pF |
12.86588 | GEYER | KX-6T | 2.5×2.0×0.55mm | 15.4560MHz | 9pF |
12.86590 | GEYER | KX-6T | 2.5×2.0×0.55mm | 24.0MHz | 10pF |
12.86592 | GEYER | KX-6T | 2.5×2.0×0.55mm | 25.0MHz | 12pF |
12.86595 | GEYER | KX-6T | 2.5×2.0×0.55mm | 19,20MHz | 13pF |
12.86596 | GEYER | KX-6T | 2.5×2.0×0.55mm | 16.3840MHz | 10pF |
12.86597 | GEYER | KX-6T | 2.5×2.0×0.55mm | 16.0MHz | 12pF |
12.86599 | GEYER | KX-6T | 2.5×2.0×0.55mm | 25.0MHz | 10pF |
12.86601 | GEYER | KX-6T | 2.5×2.0×0.55mm | 25.0MHz | 16pF |
12.86603 | GEYER | KX-6T | 2.5×2.0×0.55mm | 25.0MHz | 18pF |
12.86604 | GEYER | KX-6T | 2.5×2.0×0.55mm | 27.0MHz | 18pF |
12.86606 | GEYER | KX-6T | 2.5×2.0×0.55mm | 12.0MHz | 10pF |
12.86612 | GEYER | KX-6T | 2.5×2.0×0.55mm | 12.0MHz | 10pF |
12.86614 | GEYER | KX-6T | 2.5×2.0×0.55mm | 16.0MHz | 12pF |
12.86617 | GEYER | KX-6T | 2.5×2.0×0.55mm | 19,20MHz | 10pF |
12.86618 | GEYER | KX-6T | 2.5×2.0×0.55mm | 16.0MHz | 10pF |
12.86619 | GEYER | KX-6T | 2.5×2.0×0.55mm | 32.0MHz | 10pF |
12.86621 | GEYER | KX-6T | 2.5×2.0×0.55mm | 48.0MHz | 12pF |
12.86622 | GEYER | KX-6T | 2.5×2.0×0.55mm | 12.0MHz | 10pF |
12.86627 | GEYER | KX-6T | 2.5×2.0×0.55mm | 18.4320MHz | 12pF |
12.86629 | GEYER | KX-6T | 2.5×2.0×0.55mm | 24.0MHz | 12pF |
12.86630 | GEYER | KX-6T | 2.5×2.0×0.55mm | 20.0MHz | 8pF |
12.86631 | GEYER | KX-6T | 2.5×2.0×0.55mm | 50.0MHz | 8pF |
12.86633 | GEYER | KX-6T | 2.5×2.0×0.55mm | 20.0MHz | 12pF |
12.86634 | GEYER | KX-6T | 2.5×2.0×0.55mm | 38.40MHz | 10pF |
12.86637 | GEYER | KX-6T | 2.5×2.0×0.55mm | 12.0MHz | 12pF |
12.86642 | GEYER | KX-6T | 2.5×2.0×0.55mm | 12.0MHz | 8pF |
12.86643 | GEYER | KX-6T | 2.5×2.0×0.55mm | 25.0MHz | 8pF |
12.86644 | GEYER | KX-6T | 2.5×2.0×0.55mm | 40.0MHz | 12pF |
12.86650 | GEYER | KX-6T | 2.5×2.0×0.55mm | 18.4320MHz | 18pF |
12.86651 | GEYER | KX-6T | 2.5×2.0×0.55mm | 12.2880MHz | 10pF |
12.86652 | GEYER | KX-6T | 2.5×2.0×0.55mm | 25.0MHz | 12pF |
12.86654 | GEYER | KX-6T | 2.5×2.0×0.55mm | 19,20MHz | 13pF |
12.86657 | GEYER | KX-6T | 2.5×2.0×0.55mm | 20.0MHz | 20pF |
12.86658 | GEYER | KX-6T | 2.5×2.0×0.55mm | 40.0MHz | 8pF |
