377LB5C1250T|CTS|125M|LVDS|25PPM|7050
频率：125MHZ
尺寸：7050mm

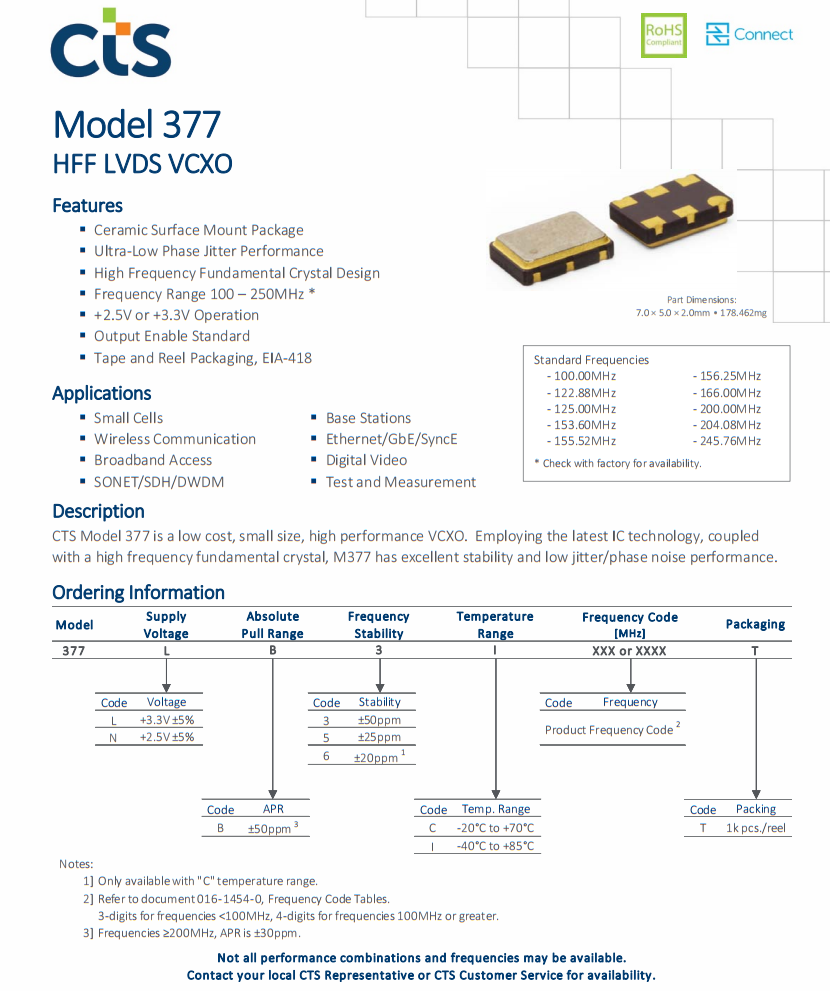

377LB5C1250T|CTS|125M|LVDS|25PPM|7050，美国CTS晶振公司,差分晶振,陶瓷表面安装封装，超低相位抖动性能，高频基本晶体设计，频率范围100-250MHz*，+2.5V或+3.3V操作，输出使标准，磁带和卷轴包装，EIA-418，小区，无线通信，宽带接入，SONET/SDH/DWDM，基站，以太网/GbE/SyncE，数字视频，测试和测量，CTS377型是一款低成本、小尺寸、高性能的VCXO。M377采用最新的IC技术，再加上高频基晶，具有优异的稳定性和低抖动/相位噪声性能。
377LB5C1250T|CTS|125M|LVDS|25PPM|7050，美国CTS晶振公司,差分晶振,陶瓷表面安装封装，超低相位抖动性能，高频基本晶体设计，频率范围100-250MHz*，+2.5V或+3.3V操作，输出使标准，磁带和卷轴包装，EIA-418，小区，无线通信，宽带接入，SONET/SDH/DWDM，基站，以太网/GbE/SyncE，数字视频，测试和测量，CTS377型是一款低成本、小尺寸、高性能的VCXO。M377采用最新的IC技术，再加上高频基晶，具有优异的稳定性和低抖动/相位噪声性能。
377LB5C1250T|CTS|125M|LVDS|25PPM|7050

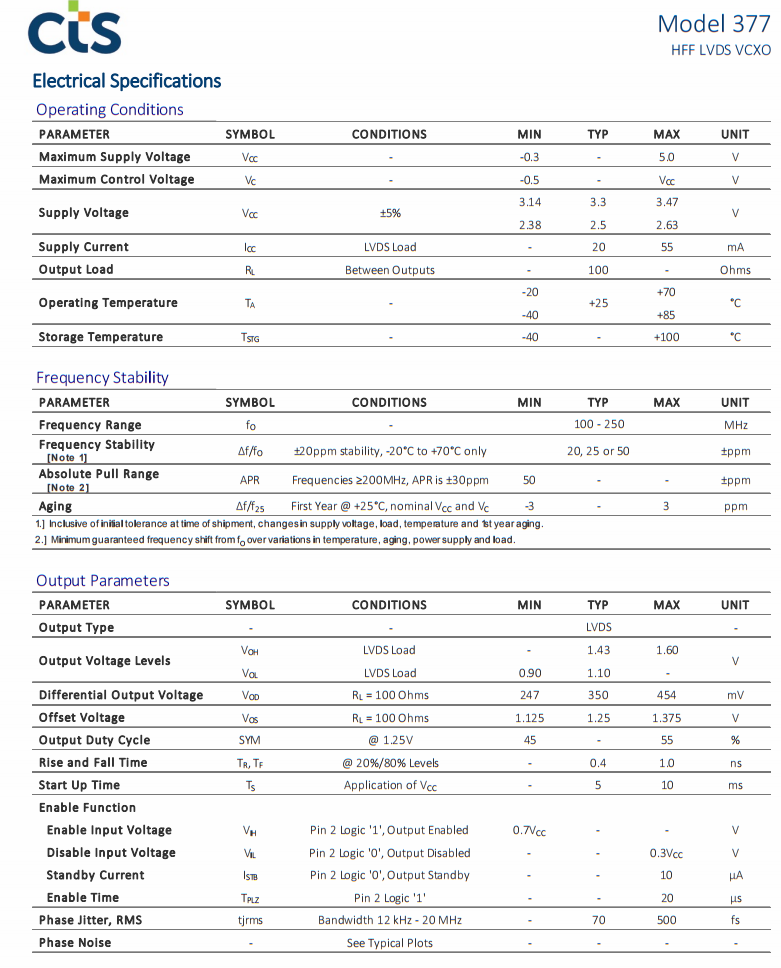

参数
标志
环境
最小值
典型的
最大值
单位
最大电源电压
VCC
-
-0 .3
-
5.0
V
最大控制电压
VC
-
-0 .5
-
VCC
V
电源电压
VCC
±5%
3.14
2.38
3.3
2.5
3.47
2.63
V
源电流
ICC
LVDS Load
-
20
55
mA
输出负载
RL
Between Outputs
-
100
-
Ohms
工作温度
TA
-
-20
-40
+25
+70
+85
°C
储存温度
TSTG
-
--40
-
+100
°C
频率
O
-
100 - 250
MHz
频率容差
Δf/fO
±25ppm stability, -20°C to +70°C only
25, 30 or 50
±ppm
绝对拉力范围
APR
APR
Frequencies <200MHz
Frequencies ≥200MHz
50
30
-
-
-
-
±ppm
±ppm
老化
Δf/f25
First Year @ +25°C, nominal VCC and VC
--3
-
3
ppm
输出类型
-
-
LVDS
-
输出电压水平
VOH
VOL
LVDS Load
LVDS Load
-
0.90
1.43
1.10
1.60
-
V
差分输出电压
VOD
RL = 100 Ohms
247
350
454
mV
偏移电压
VOS
RL = 100 Ohms
1.125
1.25
1.375
V
输出占空比
SYM
@ 1 .25V
45
-
55
%
上升和下降时间
TR, TF
@ 20%/80% Levels
-
0.4
1.0
ns
启动时间
TS
Application of VCC
-
5
10
ms
相位抖动,RMS
tjrms
Bandwidth 12kHz - 20MHz
-
70
200
fs
相位噪音
-
See Typical Plots
-
-
-
-
控制电压
VC
VCC = +3 .3V
VCC = +2 .5V
0.00
0.25
1.65
1.25
3.30
2.25
V
V
频率差异
Δf/fO
VC = 0 .0V
- 155 to -75
VC = +3 .3V
75 to 155
ppm
VC = 0 .0V
- 140 to -50
VC = +2 .5V
50 to 140
ppm
线性
L
Best Straight Line Fit
-
5
10
%
增益转移
KV
Pull Sensitivity; @ +1 .65V, +25°C
Pull Sensitivity; @ +1 .25V, +25°C
-
-
75
75
-
-
ppm/V
ppm/V
输入阻抗
ZVc
-
10
-
-
MOhms
调制卷取
-
@ -3dB
20
-
-
kHz
377LB5C1250T|CTS|125M|LVDS|25PPM|7050
| CTS原厂代码 | 生产商品牌 | 型号 | 类型 | 频率 | 输出 | 电压 |
| 377LB3C1228T | CTS-Frequency Controls | 377 | VCXO | 122.88MHz | LVDS | 3.3V |
| 377NB3C1228T | CTS-Frequency Controls | 377 | VCXO | 122.88MHz | LVDS | 2.5V |
| 377LB3I1228T | CTS-Frequency Controls | 377 | VCXO | 122.88MHz | LVDS | 3.3V |
| 377NB3I1228T | CTS-Frequency Controls | 377 | VCXO | 122.88MHz | LVDS | 2.5V |
| 377LB5C1000T | CTS-Frequency Controls | 377 | VCXO | 100MHz | LVDS | 3.3V |
| 377NB5C1000T | CTS-Frequency Controls | 377 | VCXO | 100MHz | LVDS | 2.5V |
| 377LB5I1000T | CTS-Frequency Controls | 377 | VCXO | 100MHz | LVDS | 3.3V |
| 377LB6C1000T | CTS-Frequency Controls | 377 | VCXO | 100MHz | LVDS | 3.3V |
| 377NB5I1000T | CTS-Frequency Controls | 377 | VCXO | 100MHz | LVDS | 2.5V |
| 377NB6C1000T | CTS-Frequency Controls | 377 | VCXO | 100MHz | LVDS | 2.5V |
| 377LB5C1228T | CTS-Frequency Controls | 377 | VCXO | 122.88MHz | LVDS | 3.3V |
| 377NB5C1228T | CTS-Frequency Controls | 377 | VCXO | 122.88MHz | LVDS | 2.5V |
| 377LB5C1250T | CTS-Frequency Controls | 377 | VCXO | 125MHz | LVDS | 3.3V |
| 377LB5I1228T | CTS-Frequency Controls | 377 | VCXO | 122.88MHz | LVDS | 3.3V |
| 377LB6C1228T | CTS-Frequency Controls | 377 | VCXO | 122.88MHz | LVDS | 3.3V |
| 377NB5C1250T | CTS-Frequency Controls | 377 | VCXO | 125MHz | LVDS | 2.5V |
| 377NB5I1228T | CTS-Frequency Controls | 377 | VCXO | 122.88MHz | LVDS | 2.5V |
| 377NB6C1228T | CTS-Frequency Controls | 377 | VCXO | 122.88MHz | LVDS | 2.5V |
| 377LB3C1000T | CTS-Frequency Controls | 377 | VCXO | 100MHz | LVDS | 3.3V |
| 377NB3C1000T | CTS-Frequency Controls | 377 | VCXO | 100MHz | LVDS | 2.5V |
| 377LB5I1250T | CTS-Frequency Controls | 377 | VCXO | 125MHz | LVDS | 3.3V |
| 377LB6C1250T | CTS-Frequency Controls | 377 | VCXO | 125MHz | LVDS | 3.3V |
| 377NB5I1250T | CTS-Frequency Controls | 377 | VCXO | 125MHz | LVDS | 2.5V |
| 377NB6C1250T | CTS-Frequency Controls | 377 | VCXO | 125MHz | LVDS | 2.5V |
| 377LB3I1000T | CTS-Frequency Controls | 377 | VCXO | 100MHz | LVDS | 3.3V |
| 377NB3I1000T | CTS-Frequency Controls | 377 | VCXO | 100MHz | LVDS | 2.5V |
| 377LB3C1250T | CTS-Frequency Controls | 377 | VCXO | 125MHz | LVDS | 3.3V |
| 377NB3C1250T | CTS-Frequency Controls | 377 | VCXO | 125MHz | LVDS | 2.5V |
| 377LB3I1250T | CTS-Frequency Controls | 377 | VCXO | 125MHz | LVDS | 3.3V |
| 377NB3I1250T | CTS-Frequency Controls | 377 | VCXO | 125MHz | LVDS | 2.5V |
| 377LB5C1536T | CTS-Frequency Controls | 377 | VCXO | 153.6MHz | LVDS | 3.3V |
| 377NB5C1536T | CTS-Frequency Controls | 377 | VCXO | 153.6MHz | LVDS | 2.5V |
| 377LB5I1536T | CTS-Frequency Controls | 377 | VCXO | 153.6MHz | LVDS | 3.3V |
| 377LB6C1536T | CTS-Frequency Controls | 377 | VCXO | 153.6MHz | LVDS | 3.3V |
| 377NB5I1536T | CTS-Frequency Controls | 377 | VCXO | 153.6MHz | LVDS | 2.5V |
| 377NB6C1536T | CTS-Frequency Controls | 377 | VCXO | 153.6MHz | LVDS | 2.5V |
| 377LB3C1536T | CTS-Frequency Controls | 377 | VCXO | 153.6MHz | LVDS | 3.3V |
| 377NB3C1536T | CTS-Frequency Controls | 377 | VCXO | 153.6MHz | LVDS | 2.5V |
| 377LB3C1555T | CTS-Frequency Controls | 377 | VCXO | 155.52MHz | LVDS | 3.3V |
| 377LB3C1562T | CTS-Frequency Controls | 377 | VCXO | 156.25MHz | LVDS | 3.3V |
| 377NB3C1555T | CTS-Frequency Controls | 377 | VCXO | 155.52MHz | LVDS | 2.5V |
| 377NB3C1562T | CTS-Frequency Controls | 377 | VCXO | 156.25MHz | LVDS | 2.5V |
| 377LB5C1555T | CTS-Frequency Controls | 377 | VCXO | 155.52MHz | LVDS | 3.3V |
| 377NB5C1555T | CTS-Frequency Controls | 377 | VCXO | 155.52MHz | LVDS | 2.5V |
| 377LB3I1536T | CTS-Frequency Controls | 377 | VCXO | 153.6MHz | LVDS | 3.3V |
| 377NB3I1536T | CTS-Frequency Controls | 377 | VCXO | 153.6MHz | LVDS | 2.5V |
| 377LB3I1555T | CTS-Frequency Controls | 377 | VCXO | 155.52MHz | LVDS | 3.3V |
| 377LB3I1562T | CTS-Frequency Controls | 377 | VCXO | 156.25MHz | LVDS | 3.3V |
| 377NB3I1555T | CTS-Frequency Controls | 377 | VCXO | 155.52MHz | LVDS | 2.5V |
| 377NB3I1562T | CTS-Frequency Controls | 377 | VCXO | 156.25MHz | LVDS | 2.5V |
| 377LB5I1555T | CTS-Frequency Controls | 377 | VCXO | 155.52MHz | LVDS | 3.3V |
| 377LB6C1555T | CTS-Frequency Controls | 377 | VCXO | 155.52MHz | LVDS | 3.3V |
| 377NB5I1555T | CTS-Frequency Controls | 377 | VCXO | 155.52MHz | LVDS | 2.5V |
| 377NB6C1555T | CTS-Frequency Controls | 377 | VCXO | 155.52MHz | LVDS | 2.5V |
| 377LB5C1562T | CTS-Frequency Controls | 377 | VCXO | 156.25MHz | LVDS | 3.3V |
| 377NB5C1562T | CTS-Frequency Controls | 377 | VCXO | 156.25MHz | LVDS | 2.5V |
| 377LB5I1562T | CTS-Frequency Controls | 377 | VCXO | 156.25MHz | LVDS | 3.3V |
| 377LB6C1562T | CTS-Frequency Controls | 377 | VCXO | 156.25MHz | LVDS | 3.3V |
| 377NB5I1562T | CTS-Frequency Controls | 377 | VCXO | 156.25MHz | LVDS | 2.5V |
| 377NB6C1562T | CTS-Frequency Controls | 377 | VCXO | 156.25MHz | LVDS | 2.5V |
| 377LB3C1660T | CTS-Frequency Controls | 377 | VCXO | 166MHz | LVDS | 3.3V |
| 377NB3C1660T | CTS-Frequency Controls | 377 | VCXO | 166MHz | LVDS | 2.5V |
| 377LB5C1660T | CTS-Frequency Controls | 377 | VCXO | 166MHz | LVDS | 3.3V |
| 377NB5C1660T | CTS-Frequency Controls | 377 | VCXO | 166MHz | LVDS | 2.5V |
| 377LB3I1660T | CTS-Frequency Controls | 377 | VCXO | 166MHz | LVDS | 3.3V |
| 377NB3I1660T | CTS-Frequency Controls | 377 | VCXO | 166MHz | LVDS | 2.5V |
