Hosonic品牌|E2SB12E00000ME|6G无线局域网晶振
prevnext

Hosonic品牌|E2SB12E00000ME|6G无线局域网晶振

频率：12MHz

尺寸：2.5mm×2.0mm

Hosonic品牌|E2SB12E00000ME|6G无线局域网晶振,台湾Hosonic晶振,E2SB无源晶振,E2SB12E00000ME晶振,石英晶体谐振器,2520晶振,四脚贴片晶振,频率12MHz,负载18pF,频率稳定性20ppm,工作温度-40~85°C,无铅环保晶振,高精度晶振,低老化晶振,6G无线局域网晶振,蓝牙模块晶振,办公自动化晶振,可穿戴设备晶振.

订购热线：0755-27876565
QQ咨询 点击这里给我发消息

yijin-1Hosonic品牌|E2SB12E00000ME|6G无线局域网晶振,台湾Hosonic晶振,E2SB无源晶振,E2SB12E00000ME晶振,石英晶体谐振器,2520晶振,四脚贴片晶振,频率12MHz,负载18pF,频率稳定性20ppm,工作温度-40~85°C,无铅环保晶振,高精度晶振,低老化晶振,6G无线局域网晶振,蓝牙模块晶振,办公自动化晶振,可穿戴设备晶振.

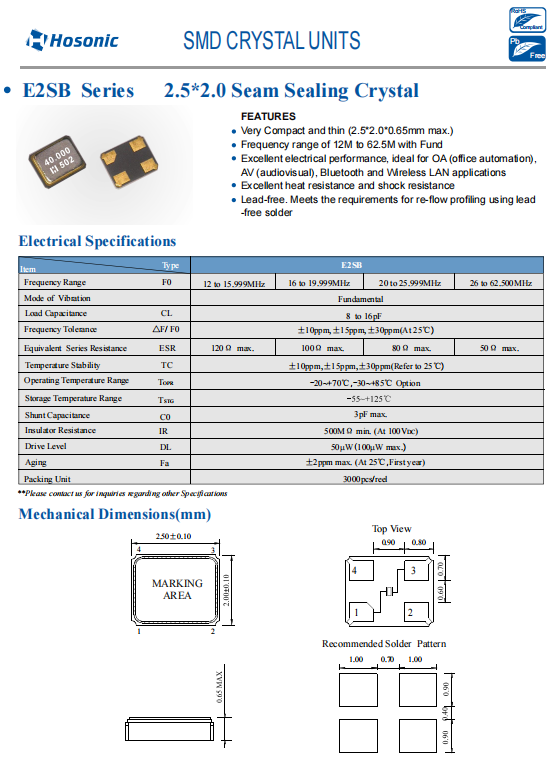

Hosonic品牌|E2SB12E00000ME|6G无线局域网晶振特点：

-非常紧凑和薄(2.5*2.0*0.65毫米最大)

-频率范围为12M至62.5M，带Fund

-优异的电气性能，办公自动化，AV(视听)，蓝牙和无线局域网应用的理想选择

-优异的耐热性和抗震性

-无铅，满足使用无铅焊料的回流剖面要求

yijin-2

Hosonic品牌|E2SB12E00000ME|6G无线局域网晶振规格表

Item   Type E2SB
Frequency Range   F0 12 MHz
Mode of Vibration
Fundamental
Load Capacitance   CL 18pF
Frequency Tolerance ΔF/ F0 ±10ppm (At 25℃)
Equivalent  Series Resistance ESR 100 Ω max.
Temperature Stability TC ±20ppm  (Refer to 25℃)
Operating Temperature Range TOPR -40~+85℃
Storage Temperature Range TSTG -55~+125℃
Shunt Capacitance C0 3pF max.
Insulator Resistance IR 500MΩ min. (At 100VDC)
Drive Level DL 50μW(100μW max.)
Aging Fa ±2ppm max. (At 25℃,First year)
Packing Unit
3000pcs/reel

yijin-3

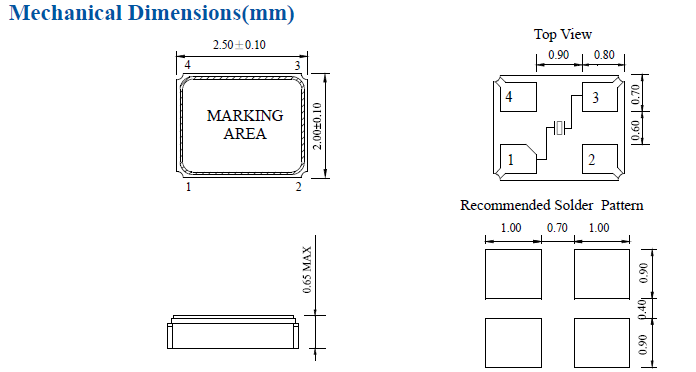

Hosonic品牌|E2SB12E00000ME|6G无线局域网晶振尺寸图

E2SB(Former HCX-2SB) 2520

E2SB

原厂编码 制造厂家 型号 频率 负载电容 频率容差 频率稳定度 尺寸
E3FB16.0000F18E33 Hosonic晶振 E3FB 16MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB17.0000F18E33 Hosonic晶振 E3FB 17MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB18.0000F18E33 Hosonic晶振 E3FB 18MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB19.0000F18E33 Hosonic晶振 E3FB 19MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB20.0000F18E33 Hosonic晶振 E3FB 20MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB21.0000F18E33 Hosonic晶振 E3FB 21MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB22.0000F18E33 Hosonic晶振 E3FB 22MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB23.0000F18E33 Hosonic晶振 E3FB 23MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB24.0000F18E33 Hosonic晶振 E3FB 24MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB25.0000F18E33 Hosonic晶振 E3FB 25MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB26.0000F18E33 Hosonic晶振 E3FB 26MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB27.0000F18E33 Hosonic晶振 E3FB 27MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB28.0000F18E33 Hosonic晶振 E3FB 28MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB29.0000F18E33 Hosonic晶振 E3FB 29MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB30.0000F18E33 Hosonic晶振 E3FB 30MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB31.0000F18E33 Hosonic晶振 E3FB 31MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB32.0000F18E33 Hosonic晶振 E3FB 32MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB33.0000F18E33 Hosonic晶振 E3FB 33MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB34.0000F18E33 Hosonic晶振 E3FB 34MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB35.0000F18E33 Hosonic晶振 E3FB 35MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB36.0000F18E33 Hosonic晶振 E3FB 36MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB37.0000F18E33 Hosonic晶振 E3FB 37MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB38.0000F18E33 Hosonic晶振 E3FB 38MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB39.0000F18E33 Hosonic晶振 E3FB 39MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB40.0000F18E33 Hosonic晶振 E3FB 40MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB41.0000F18E33 Hosonic晶振 E3FB 41MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB42.0000F18E33 Hosonic晶振 E3FB 42MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB43.0000F18E33 Hosonic晶振 E3FB 43MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB44.0000F18E33 Hosonic晶振 E3FB 44MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB45.0000F18E33 Hosonic晶振 E3FB 45MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB46.0000F18E33 Hosonic晶振 E3FB 46MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB47.0000F18E33 Hosonic晶振 E3FB 47MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB48.0000F18E33 Hosonic晶振 E3FB 48MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB49.0000F18E33 Hosonic晶振 E3FB 49MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB50.0000F18E33 Hosonic晶振 E3FB 50MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB51.0000F18E33 Hosonic晶振 E3FB 51MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB52.0000F18E33 Hosonic晶振 E3FB 52MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB53.0000F18E33 Hosonic晶振 E3FB 53MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB54.0000F18E33 Hosonic晶振 E3FB 54MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB55.0000F18E33 Hosonic晶振 E3FB 55MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB56.0000F18E33 Hosonic晶振 E3FB 56MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB57.0000F18E33 Hosonic晶振 E3FB 57MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB58.0000F18E33 Hosonic晶振 E3FB 58MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB59.0000F18E33 Hosonic晶振 E3FB 59MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB60.0000F18E33 Hosonic晶振 E3FB 60MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB61.0000F18E33 Hosonic晶振 E3FB 61MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB62.0000F18E33 Hosonic晶振 E3FB 62MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB63.0000F18E33 Hosonic晶振 E3FB 63MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB64.0000F18E33 Hosonic晶振 E3FB 64MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB65.0000F18E33 Hosonic晶振 E3FB 65MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB66.0000F18E33 Hosonic晶振 E3FB 66MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E2SB10.0000F10E12 Hosonic晶振 E2SB 10MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB12.0000F10E11 Hosonic晶振 E2SB 12MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.55 mm
E2SB16.0000F10E12 Hosonic晶振 E2SB 16MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB17.0000F10E12 Hosonic晶振 E2SB 17MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB18.4320F10E12 Hosonic晶振 E2SB 18.432MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB18.0000F10E12 Hosonic晶振 E2SB 18MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB19.0000F10E12 Hosonic晶振 E2SB 19MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB20.0000F10E12 Hosonic晶振 E2SB 20MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB21.0000F10E12 Hosonic晶振 E2SB 21MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB22.0000F10E12 Hosonic晶振 E2SB 22MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB23.0000F10E12 Hosonic晶振 E2SB 23MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB24.0000F10E12 Hosonic晶振 E2SB 24MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB25.0000F10E12 Hosonic晶振 E2SB 25MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E49A12E00000ME Hosonic晶振 E49A 12 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A13E00000ME Hosonic晶振 E49A 13 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A14E00000ME Hosonic晶振 E49A 14 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A15E00000ME Hosonic晶振 E49A 15 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A16E00000ME Hosonic晶振 E49A 16 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A17E00000ME Hosonic晶振 E49A 17 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A18E00000ME Hosonic晶振 E49A 18 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A19E00000ME Hosonic晶振 E49A 19 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A20E00000ME Hosonic晶振 E49A 20 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A21E00000ME Hosonic晶振 E49A 21 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A22E00000ME Hosonic晶振 E49A 22 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A23E00000ME Hosonic晶振 E49A 23 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A24E00000ME Hosonic晶振 E49A 24 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A25E00000ME Hosonic晶振 E49A 25 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A26E00000ME Hosonic晶振 E49A 26 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A27E00000ME Hosonic晶振 E49A 27 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A28E00000ME Hosonic晶振 E49A 28 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A29E00000ME Hosonic晶振 E49A 29 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A30E00000ME Hosonic晶振 E49A 30 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A31E00000ME Hosonic晶振 E49A 31 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A32E00000ME Hosonic晶振 E49A 32 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A33E00000ME Hosonic晶振 E49A 33 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A34E00000ME Hosonic晶振 E49A 34 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A35E00000ME Hosonic晶振 E49A 35 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A36E00000ME Hosonic晶振 E49A 36 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A37E00000ME Hosonic晶振 E49A 37 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A38E00000ME Hosonic晶振 E49A 38 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A39E00000ME Hosonic晶振 E49A 39 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A40E00000ME Hosonic晶振 E49A 40 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A41E00000ME Hosonic晶振 E49A 41 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A42E00000ME Hosonic晶振 E49A 42 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A43E00000ME Hosonic晶振 E49A 43 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A44E00000ME Hosonic晶振 E49A 44 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A45E00000ME Hosonic晶振 E49A 45 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A46E00000ME Hosonic晶振 E49A 46 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A47E00000ME Hosonic晶振 E49A 47 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A48E00000ME Hosonic晶振 E49A 48 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A49E00000ME Hosonic晶振 E49A 49 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A50E00000ME Hosonic晶振 E49A 50 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A51E00000ME Hosonic晶振 E49A 51 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A52E00000ME Hosonic晶振 E49A 52 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A53E00000ME Hosonic晶振 E49A 53 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A54E00000ME Hosonic晶振 E49A 54 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A55E00000ME Hosonic晶振 E49A 55 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A56E00000ME Hosonic晶振 E49A 56 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A57E00000ME Hosonic晶振 E49A 57 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E2SB26.0000F10E12 Hosonic晶振 E2SB 26MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB27.0000F10E12 Hosonic晶振 E2SB 27MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB28.0000F10E12 Hosonic晶振 E2SB 28MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB29.0000F10E12 Hosonic晶振 E2SB 29MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB30.0000F10E12 Hosonic晶振 E2SB 30MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB31.0000F10E12 Hosonic晶振 E2SB 31MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB32.0000F10E12 Hosonic晶振 E2SB 32MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB33.0000F10E12 Hosonic晶振 E2SB 33MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB34.0000F10E12 Hosonic晶振 E2SB 34MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB35.0000F10E12 Hosonic晶振 E2SB 35MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB36.0000F10E12 Hosonic晶振 E2SB 36MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB37.0000F10E12 Hosonic晶振 E2SB 37MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB38.0000F10E12 Hosonic晶振 E2SB 38MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB39.0000F10E12 Hosonic晶振 E2SB 39MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB40.0000F10E12 Hosonic晶振 E2SB 40MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB41.0000F10E12 Hosonic晶振 E2SB 41MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB42.0000F10E12 Hosonic晶振 E2SB 42MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB43.0000F10E12 Hosonic晶振 E2SB 43MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB44.0000F10E12 Hosonic晶振 E2SB 44MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB45.0000F10E12 Hosonic晶振 E2SB 45MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB46.0000F10E12 Hosonic晶振 E2SB 46MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB47.0000F10E12 Hosonic晶振 E2SB 47MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB48.0000F10E12 Hosonic晶振 E2SB 48MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB49.0000F10E12 Hosonic晶振 E2SB 49MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB50.0000F10E12 Hosonic晶振 E2SB 50MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB51.0000F10E12 Hosonic晶振 E2SB 51MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB52.0000F10E12 Hosonic晶振 E2SB 52MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB53.0000F10E12 Hosonic晶振 E2SB 53MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB54.0000F10E12 Hosonic晶振 E2SB 54MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB55.0000F10E12 Hosonic晶振 E2SB 55MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB56.0000F10E12 Hosonic晶振 E2SB 56MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E3SB13.0000F18E22 Hosonic晶振 E3SB 13 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB14.0000F18E22 Hosonic晶振 E3SB 14 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB15.0000F18E22 Hosonic晶振 E3SB 15 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB16.0000F18E22 Hosonic晶振 E3SB 16 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB17.0000F18E22 Hosonic晶振 E3SB 17 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB18.0000F18E22 Hosonic晶振 E3SB 18 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB19.0000F18E22 Hosonic晶振 E3SB 19 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB20.0000F18E22 Hosonic晶振 E3SB 20 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB21.0000F18E22 Hosonic晶振 E3SB 21 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB22.0000F18E22 Hosonic晶振 E3SB 22 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB23.0000F18E22 Hosonic晶振 E3SB 23 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB24.0000F18E22 Hosonic晶振 E3SB 24 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB25.0000F18E22 Hosonic晶振 E3SB 25 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB26.0000F18E22 Hosonic晶振 E3SB 26 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB27.0000F18E22 Hosonic晶振 E3SB 27 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB28.0000F18E22 Hosonic晶振 E3SB 28 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB29.0000F18E22 Hosonic晶振 E3SB 29 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB30.0000F18E22 Hosonic晶振 E3SB 30 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB31.0000F18E22 Hosonic晶振 E3SB 31 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB32.0000F18E22 Hosonic晶振 E3SB 32 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB33.0000F18E22 Hosonic晶振 E3SB 33 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB34.0000F18E22 Hosonic晶振 E3SB 34 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB35.0000F18E22 Hosonic晶振 E3SB 35 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB36.0000F18E22 Hosonic晶振 E3SB 36 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB37.0000F18E22 Hosonic晶振 E3SB 37 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB38.0000F18E22 Hosonic晶振 E3SB 38 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB39.0000F18E22 Hosonic晶振 E3SB 39 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB40.0000F18E22 Hosonic晶振 E3SB 40 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB41.0000F18E22 Hosonic晶振 E3SB 41 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB42.0000F18E22 Hosonic晶振 E3SB 42 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB43.0000F18E22 Hosonic晶振 E3SB 43 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB44.0000F18E22 Hosonic晶振 E3SB 44 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB45.0000F18E22 Hosonic晶振 E3SB 45MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB46.0000F18E22 Hosonic晶振 E3SB 46MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB47.0000F18E22 Hosonic晶振 E3SB 47MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB48.0000F18E22 Hosonic晶振 E3SB 48MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB49.0000F18E22 Hosonic晶振 E3SB 49MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB50.0000F18E22 Hosonic晶振 E3SB 50MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB51.0000F18E22 Hosonic晶振 E3SB 51MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB52.0000F18E22 Hosonic晶振 E3SB 52MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB53.0000F18E22 Hosonic晶振 E3SB 53MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB54.0000F18E22 Hosonic晶振 E3SB 54MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB55.0000F18E22 Hosonic晶振 E3SB 55MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB56.0000F18E22 Hosonic晶振 E3SB 56MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm


yijin-5

YJ-6

深圳市亿金电子有限公司    SHENZHEN YIJIN ELECTRONICS CO;LTD

mphone联系人黄娜：18924600166

QQ工作QQ:857950243

myt贸易通：yijindz2014

tel座机：0755-27876565

email邮箱:yijindz@163.com

inter 网址：http://www.yijindz.com

mwx微信：yijindz，公众号：NDKcrystal

home地址：广东省深圳市宝安区107国道旁甲岸路

wxewm

Hosonic品牌 E2SB12E00000ME 6G无线局域网晶振

跟此产品相关的产品 / Related Products

ISM91-3251BH-8.000MHz,ILSI品牌晶振,7050mm,光纤通道晶振
ISM91-3251BH-8.000MHz,ILSI品牌晶振,7050mm,光纤通道晶振
ISM91-3251BH-8.000MHz,ILSI品牌晶振,7050mm,光纤通道晶振，美国进口晶振，ILSI晶振，艾尔西晶振，型号：ISM91，编码为：ISM91-3251BH-8.000MHz石英晶振，频率：8.000MHz，电压：3.3V，频率容差：±50ppm，工作温度范围：-40℃至+85℃，HCMOS输出晶振，小体积晶振尺寸：7.0x5.0x1.6mm封装，四脚贴片晶振，有源晶振，SMD晶振，石英晶体振荡器，7050晶振，XO振荡器。具有超小型，轻薄型，高性能，高品质，高质量，耐热及耐环等特点。应用于：通讯设备晶振，导航晶振，汽车电子晶振，医疗设备晶振，数码电子晶振等应用。
ILCX04-FB5F20-25.000MHz,ILSI品牌晶振,7050mm,服务器和存储晶振
ILCX04-FB5F20-25.000MHz,ILSI品牌晶振,7050mm,服务器和存储晶振
ILCX04-FB5F20-25.000MHz,ILSI品牌晶振,7050mm,服务器和存储晶振，美国进口晶振，ILSI晶振，艾尔西晶振，型号：ILCX04，编码为：ILCX04-FB5F20-25.000MHz，频率：25.000MHz，频率稳定性：±50ppm，频率容差：±30ppm，负载电容：20pF，工作温度范围：-40℃至+85℃，是一款小体积晶振尺寸：7.0x5.0mm封装，四脚贴片晶振，无源晶振，石英晶振，SMD晶振，无铅晶振，7050晶振，石英晶体谐振器。具有超小型，轻薄型，高品质，耐热及耐环境特点。被广泛应用于：通讯设备，仪器仪表设备，蓝牙模块，服务器和存储，光纤通道，USB，智能家居等应用。
EC2600ETTS-66.666M TR,Ecliptek有源晶振,7050mm,无线模块晶振
EC2600ETTS-66.666M TR,Ecliptek有源晶振,7050mm,无线模块晶振
EC2600ETTS-66.666M TR,Ecliptek有源晶振,7050mm,无线模块晶振，美国进口晶振，Ecliptek晶振，日蚀晶振，型号：EC26系列，编码为：EC2600ETTS-66.666M TR，频率：66.666MHz，电压：3.3V，频率稳定性：±100ppm，CMOS输出晶振，工作温度范围：-40℃至+85℃，小体积晶振尺寸：7.0x5.0mm封装，四脚贴片晶振，7050晶振，石英晶振，有源晶振，石英晶体振荡器。具有超小型，轻薄型，高品质，高性能，耐热及耐环境等特点。应用于：通讯设备晶振，GPS定位晶振，医疗设备晶振，无线蓝牙晶振，物联网等应用。
亿金电子产品中心 Product Center

晶振系列

日本进口晶振

台产晶振

欧美晶振

有源晶振

雾化片

贴片晶振

32.768K

声表面滤波器

石英晶振

KDS晶振

爱普生晶振

NDK晶振

温补晶振

联系亿金电子Contact us
咨询热线：0755-27876565

手机：189 2460 0166

QQ：857950243

邮箱：yijindz@163.com

地址：深圳市宝安区新安107国道旁甲岸路

Fast Track
快速通道

国内晶振分类：
Domestic Crystal
陶瓷晶振
泰艺晶振
TXC晶振
鸿星晶振
希华晶振
加高晶振
百利通亚陶晶振
嘉硕晶振
津绽晶振
石英晶体谐振器
SMD晶振
MERCURY晶振
应达利晶振
AKER晶振
香港NKG晶振
石英晶振
有源晶振
声表面滤波器
雾化片
32.768K
温补晶振
VC-TCXO晶振
差分晶振
压控晶振
恒温晶振
石英晶体振荡器
陶瓷谐振器
进口晶振分类：
Import Crystal
京瓷晶振
精工晶振
西铁城晶振
村田晶振
大河晶振
CTS晶振
微晶晶振
瑞康晶振
康纳温菲尔德晶振
高利奇晶振
Jauch晶振
AbraconCrystal晶振
维管晶振
ECScrystal晶振
日蚀晶振
拉隆晶振
格林雷晶振
SiTimeCrystal晶振
IDTcrystal晶振
PletronicsCrystal晶振
StatekCrystal晶振
KDS Quartz crystal
NDK Quartz crystal
EPSON Quartz crystal
AEK晶振
AEL晶振
Cardinal晶振
Crystek晶振
Euroquartz晶振
福克斯晶振
Frequency晶振
GEYER晶振
ILSI晶振
KVG晶振
MMDCOMP晶振
MtronPTI晶振
QANTEK晶振
QuartzCom晶振
QuartzChnik晶振
SUNTSU晶振
Transko晶振
WI2WI晶振
富士晶振
韩国三呢晶振
ITTI晶振
ACT晶振
Milliren晶振
Lihom晶振
rubyquartz晶振
Oscilent晶振
NAKA晶振
SHINSUNG晶振
SMI晶振
PDI晶振
C-TECH晶振
IQD晶振
Microchip晶振
NJR晶振
Silicon晶振
Fortiming晶振
CORE晶振
NIPPON晶振
NIC晶振
QVS晶振
Bomar晶振
Bliley晶振
GED晶振
FILTRONETICS晶振
STD晶振
Q-Tech晶振
Anderson晶振
Wenzel晶振
NEL晶振
EM晶振
PETERMANN晶振
FCD-Tech晶振
HEC晶振
FMI晶振
Macrobizes晶振
AXTAL晶振
瑞萨renesas晶振
Skyworks晶振
亿金首页32.768K贴片晶振有源晶振声表面滤波器KDS晶振NDK晶振爱普生晶振行业新闻联系亿金网站地图

Copyright © 1996-2012

深圳亿金电子有限公司版权所有

备案号：粤ICP备17105583号-1
