DIODES|FL3840015Z|38.4MHz|10PPM|10PF|-40~85℃

频率：38.4MHZ

尺寸：3.2X2.5mm

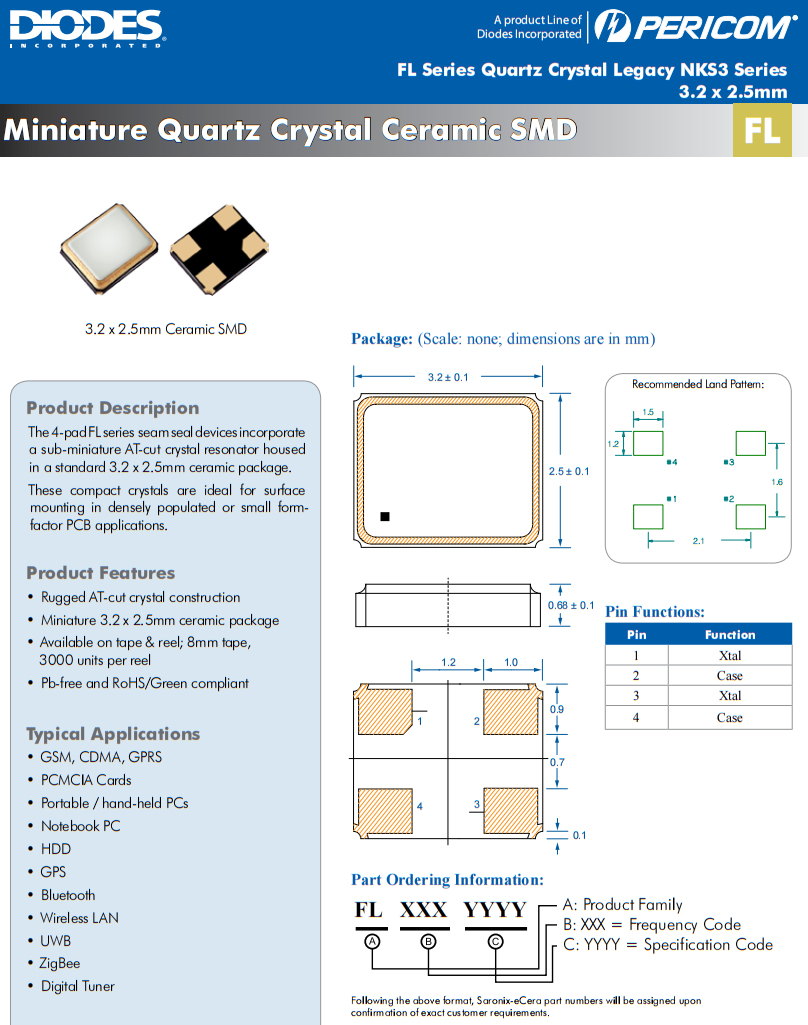

DIODES|FL3840015Z|38.4MHz|10PPM|10PF|-40~85℃，台湾百利通亚陶晶振公司，坚固的AT-cut晶体结构微型3.2x2.5毫米陶瓷包装可在带和卷；8毫米带，3000单位每卷无pb和RoHS/绿色兼容，4垫FL系列接缝密封装置采用标准的3.2 x 2.5mm内存封装尺寸。这些协议用于密集的塑料或小型PCB应用中的表面安装，GSM，CDMA，GPRSpcmcia卡便携式/手持个人电脑，笔记本电脑，硬盘，GPS，蓝牙，无线局域网，UWB，无线个域网，数字调谐器。

订购热线：0755-27876565

BLT-1

yijin-1

DIODES|FL3840015Z|38.4MHz|10PPM|10PF|-40~85℃，台湾百利通亚陶晶振公司，坚固的AT-cut晶体结构微型3.2x2.5毫米陶瓷包装可在带和卷；8毫米带，3000单位每卷无pb和RoHS/绿色兼容，4垫FL系列接缝密封装置采用标准的3.2 x 2.5mm内存封装尺寸。这些协议用于密集的塑料或小型PCB应用中的表面安装，GSM，CDMA，GPRSpcmcia卡便携式/手持个人电脑，笔记本电脑，硬盘，GPS，蓝牙，无线局域网，UWB，无线个域网，数字调谐器。

yijin-2

DIODES|FL3840015Z|38.4MHz|10PPM|10PF|-40~85℃

百利通亚陶晶振	单位	FL晶振频率范围	石英晶振基本条件
标准频率	f_nom	38.4MHZ	标准频率
储存温度	T_stg	-55°C ～ +125°C	裸存
工作温度	T_use	-30°C ～ +85°C	标准温度
激励功率	DL	200μW Max.	推荐:1μW ～ 100μW
频率公差	f_— l	±10 × 10-6 (标准),	+25°C 对于超出标准的规格说明, 请联系我们以便获取相关的信息,http://www.vc-tcxo.com
频率温度特征	f_tem	±10 × 10-6/-20°C ～ +70°C	超出标准的规格请联系我们.
负载电容	CL	10PF	超出标准说明,请联系我们.

DIODES|FL3840015Z|38.4MHz|10PPM|10PF|-40~85℃

FL 3225

DIODES原厂编码	生产厂家	型号	频率	频率稳定度	频率偏差	负载电容	工作温度
FL1200112	Diodes晶振	FL	12MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
FL1200112	Diodes晶振	FL	12MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
FL1200112	Diodes晶振	FL	12MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
FL2000059	Diodes晶振	FL	20MHz	±10ppm	±10ppm	9pF	-30°C ~ 85°C
FL2000059	Diodes晶振	FL	20MHz	±10ppm	±10ppm	9pF	-30°C ~ 85°C
FL2000059	Diodes晶振	FL	20MHz	±10ppm	±10ppm	9pF	-30°C ~ 85°C
FL2400022	Diodes晶振	FL	24MHz	±10ppm	±10ppm	10pF	-25°C ~ 85°C
FL2400022	Diodes晶振	FL	24MHz	±10ppm	±10ppm	10pF	-25°C ~ 85°C
FL2400022	Diodes晶振	FL	24MHz	±10ppm	±10ppm	10pF	-25°C ~ 85°C
FL2500133	Diodes晶振	FL	25MHz	±20ppm	±20ppm	18pF	-40°C ~ 85°C
FL2500133	Diodes晶振	FL	25MHz	±20ppm	±20ppm	18pF	-40°C ~ 85°C
FL2500133	Diodes晶振	FL	25MHz	±20ppm	±20ppm	18pF	-40°C ~ 85°C
FL3000037	Diodes晶振	FL	30MHz	±30ppm	±30ppm	10pF	-20°C ~ 70°C
FL3000037	Diodes晶振	FL	30MHz	±30ppm	±30ppm	10pF	-20°C ~ 70°C
FL3000037	Diodes晶振	FL	30MHz	±30ppm	±30ppm	10pF	-20°C ~ 70°C
FL2400081	Diodes晶振	FL	24MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
FL2400081	Diodes晶振	FL	24MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
FL2400081	Diodes晶振	FL	24MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
FL3200037	Diodes晶振	FL	32MHz	±15ppm	±15ppm	8pF	-20°C ~ 70°C
FL3200037	Diodes晶振	FL	32MHz	±15ppm	±15ppm	8pF	-20°C ~ 70°C
FL3200037	Diodes晶振	FL	32MHz	±15ppm	±15ppm	8pF	-20°C ~ 70°C
FL2400067	Diodes晶振	FL	24MHz	±20ppm	±20ppm	18pF	-20°C ~ 70°C
FL2400067	Diodes晶振	FL	24MHz	±20ppm	±20ppm	18pF	-20°C ~ 70°C
FL2400067	Diodes晶振	FL	24MHz	±20ppm	±20ppm	18pF	-20°C ~ 70°C
FL4000157Z	Diodes晶振	FL	40MHz	±10ppm	±7ppm	15pF	-20°C ~ 85°C
FL4000157Z	Diodes晶振	FL	40MHz	±10ppm	±7ppm	15pF	-20°C ~ 85°C
FL4000157Z	Diodes晶振	FL	40MHz	±10ppm	±7ppm	15pF	-20°C ~ 85°C
FL2600177Z	Diodes晶振	FL	26MHz	±20ppm	±10ppm	10pF	-20°C ~ 70°C
FL2600177Z	Diodes晶振	FL	26MHz	±20ppm	±10ppm	10pF	-20°C ~ 70°C
FL2600177Z	Diodes晶振	FL	26MHz	±20ppm	±10ppm	10pF	-20°C ~ 70°C
FL2700102Z	Diodes晶振	FL	27MHz	±30ppm	±30ppm	12pF	-20°C ~ 70°C
FL2700102Z	Diodes晶振	FL	27MHz	±30ppm	±30ppm	12pF	-20°C ~ 70°C
FL2700102Z	Diodes晶振	FL	27MHz	±30ppm	±30ppm	12pF	-20°C ~ 70°C
FL2500123Z	Diodes晶振	FL	25MHz	±50ppm	±30ppm	20pF	-20°C ~ 80°C
FL2500123Z	Diodes晶振	FL	25MHz	±50ppm	±30ppm	20pF	-20°C ~ 80°C
FL2500123Z	Diodes晶振	FL	25MHz	±50ppm	±30ppm	20pF	-20°C ~ 80°C
FL5000058Z	Diodes晶振	FL	50MHz	±15ppm	±7ppm	10pF	-40°C ~ 85°C
FL5000058Z	Diodes晶振	FL	50MHz	±15ppm	±7ppm	10pF	-40°C ~ 85°C
FL5000058Z	Diodes晶振	FL	50MHz	±15ppm	±7ppm	10pF	-40°C ~ 85°C
FL2400097	Diodes晶振	FL	24MHz	±15ppm	±10ppm	9pF	-40°C ~ 85°C
FL2400097	Diodes晶振	FL	24MHz	±15ppm	±10ppm	9pF	-40°C ~ 85°C
FL2400097	Diodes晶振	FL	24MHz	±15ppm	±10ppm	9pF	-40°C ~ 85°C
FL3840015Z	Diodes晶振	FL	38.4MHz	±10ppm	±10ppm	10pF	-30°C ~ 85°C
FL3840015Z	Diodes晶振	FL	38.4MHz	±10ppm	±10ppm	10pF	-30°C ~ 85°C
FL3840015Z	Diodes晶振	FL	38.4MHz	±10ppm	±10ppm	10pF	-30°C ~ 85°C
FL1840006	Diodes晶振	FL	18.432MHz	±20ppm	±20ppm	15pF	-20°C ~ 70°C
FL1840006	Diodes晶振	FL	18.432MHz	±20ppm	±20ppm	15pF	-20°C ~ 70°C
FL1840006	Diodes晶振	FL	18.432MHz	±20ppm	±20ppm	15pF	-20°C ~ 70°C
FL2500281	Diodes晶振	FL	25MHz	±50ppm	±20ppm	18pF	-20°C ~ 70°C
FL2500281	Diodes晶振	FL	25MHz	±50ppm	±20ppm	18pF	-20°C ~ 70°C
FL2500281	Diodes晶振	FL	25MHz	±50ppm	±20ppm	18pF	-20°C ~ 70°C
FL1350008	Diodes晶振	FL	13.5MHz	±20ppm	±20ppm	16pF	-20°C ~ 70°C
FL1350008	Diodes晶振	FL	13.5MHz	±20ppm	±20ppm	16pF	-20°C ~ 70°C
FL1350008	Diodes晶振	FL	13.5MHz	±20ppm	±20ppm	16pF	-20°C ~ 70°C
FL3740015	Diodes晶振	FL	37.4MHz	±15ppm	±10ppm	16pF	-40°C ~ 85°C
FL3740015	Diodes晶振	FL	37.4MHz	±15ppm	±10ppm	16pF	-40°C ~ 85°C
FL3740015	Diodes晶振	FL	37.4MHz	±15ppm	±10ppm	16pF	-40°C ~ 85°C
FL1920031	Diodes晶振	FL	19.2MHz	±10ppm	±10ppm	8.5pF	-20°C ~ 70°C
FL1920031	Diodes晶振	FL	19.2MHz	±10ppm	±10ppm	8.5pF	-20°C ~ 70°C
FL1920031	Diodes晶振	FL	19.2MHz	±10ppm	±10ppm	8.5pF	-20°C ~ 70°C
FL2400041	Diodes晶振	FL	24MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
FL2400041	Diodes晶振	FL	24MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
FL2400041	Diodes晶振	FL	24MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
FL2400072	Diodes晶振	FL	24MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
FL2400072	Diodes晶振	FL	24MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
FL2400072	Diodes晶振	FL	24MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
FL1600087	Diodes晶振	FL	16MHz	±15ppm	±15ppm	20pF	0°C ~ 85°C
FL1600087	Diodes晶振	FL	16MHz	±15ppm	±15ppm	20pF	0°C ~ 85°C
FL1600087	Diodes晶振	FL	16MHz	±15ppm	±15ppm	20pF	0°C ~ 85°C
FL1000002	Diodes晶振	FL	10MHz	±25ppm	±25ppm	12pF	-40°C ~ 85°C
FL1000002	Diodes晶振	FL	10MHz	±25ppm	±25ppm	12pF	-40°C ~ 85°C
FL1000002	Diodes晶振	FL	10MHz	±25ppm	±25ppm	12pF	-40°C ~ 85°C
FL2600176	Diodes晶振	FL	26MHz	±40ppm	±20ppm	10pF	-40°C ~ 85°C
FL2600176	Diodes晶振	FL	26MHz	±40ppm	±20ppm	10pF	-40°C ~ 85°C
