思佳讯差分晶振,590BA135M000DGR晶振,LVDS晶振,6G相关设备晶振

频率：135MHz

尺寸：7.0×5.0mm

思佳讯差分晶振,590BA135M000DGR晶振,LVDS晶振,6G相关设备晶振,思佳讯差分晶振,Si590石英晶体振荡器,7050mm晶振,用DSPLL时钟合成提供了优越的电源噪声抑制,简化了在通信系统中通常存在的噪声环境中产生低抖动时钟的任务,基于Si590 IC的XO可在工厂配置,适用于各种用户规格,包括频率,电源电压,输出格式和稳定性,特定的配置是工厂在出货时编程,从而消除了与定制振荡器相关的长交货时间,进口有源晶振,SMD晶振,6G相关设备晶振,FPGA/ASIC时钟生成晶振,SONET / SDH (OC-3/12/48)晶振.

订购热线：0755-27876565

yijin-1

思佳讯差分晶振,590BA135M000DGR晶振,LVDS晶振,6G相关设备晶振,思佳讯差分晶振,Si590石英晶体振荡器,7050mm晶振,用DSPLL时钟合成提供了优越的电源噪声抑制,简化了在通信系统中通常存在的噪声环境中产生低抖动时钟的任务,基于Si590 IC的XO可在工厂配置,适用于各种用户规格,包括频率,电源电压,输出格式和稳定性,特定的配置是工厂在出货时编程,从而消除了与定制振荡器相关的长交货时间,进口有源晶振,SMD晶振,6G相关设备晶振,FPGA/ASIC时钟生成晶振,SONET / SDH (OC-3/12/48)晶振.

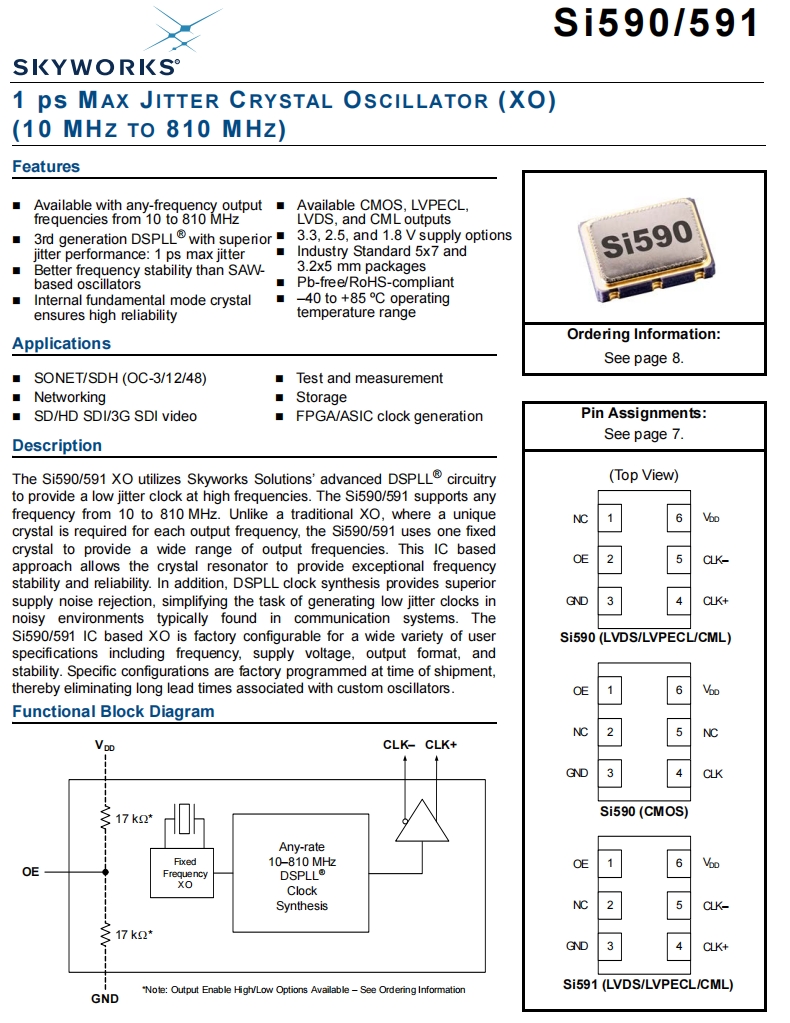

思佳讯差分晶振,590BA135M000DGR晶振,LVDS晶振,6G相关设备晶振特点：

•可与任意速率输出频率从10MHz到810MHz

•第三代DSPLL®具有卓越的抖动性能：最大抖动1ps

•频率稳定性优于SAW-based振荡器

•内部基模晶体保证高可靠性

•可用CMOS, LVPECL，LVDS和CML输出

•3.3, 2.5 V和1.8V电源选项

•行业标准的5 × 7mm和3.2×2.5mm封装

•无铅，符合RoHS标准

•工作温度范围-40至+85ºC

yijin-2

思佳讯差分晶振,590BA135M000DGR晶振,LVDS晶振,6G相关设备晶振规格表

项目	符号	规格说明	条件
额定频率	f_nom	135MHz	请联系我们以便获取其它可用频率的相关信息
电源电压	Vcc	3.3V
储存温度	T_stg	-55℃~+125℃	裸存
工作温度	T_use	-40℃~ +85℃
频率稳定性	f_tol	±50 ppm	+25℃,超出标准的规格说明请联系我们以便获取相关信息
电源电流	IDD	100mA Max	LVDS
对称性（占空比）	SYM	45%~55%	在输出交叉点
输出电压	VOD	0.9VPP Max	LVDS
输出电压	VO	1.275V Max	LVDS
输入电压	VIH	0.75 x VDD Min
输入电压	VIL	0.5V Max
上升下降时间	tr/tf	350ps Max	LVDS
起始时间	t str	10ms Max
相位抖动	tpj	1ps Max

yijin-3

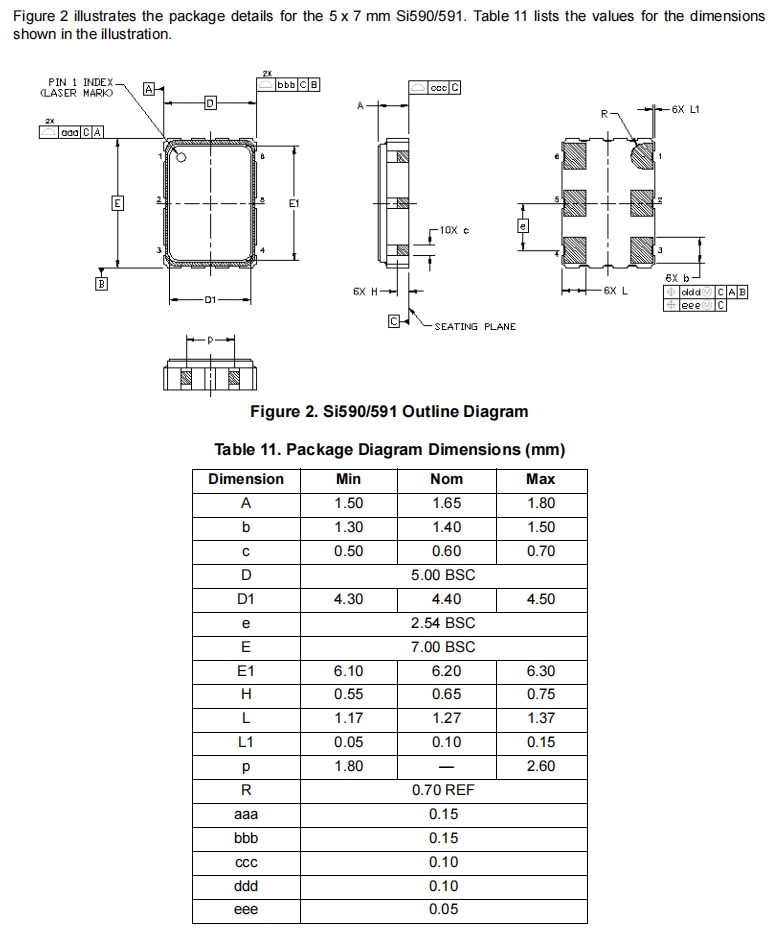

思佳讯差分晶振,590BA135M000DGR晶振,LVDS晶振,6G相关设备晶振尺寸图

原厂编码	品牌	型号	频率	输出	电压	频率稳定性	工作温度	电流 (Max)
590FD297M000DG	Skyworks Solutions Inc.	Si590	297 MHz	LVDS	2.5V	±7ppm	-40°C ~ 85°C	100mA
590AB10M0000DG	Skyworks Solutions Inc.	Si590	10 MHz	LVPECL	3.3V	±25ppm	-40°C ~ 85°C	125mA
590AB22M1184DG	Skyworks Solutions Inc.	Si590	22.1184 MHz	LVPECL	3.3V	±25ppm	-40°C ~ 85°C	125mA
590AB10M0000DGR	Skyworks Solutions Inc.	Si590	10 MHz	LVPECL	3.3V	±25ppm	-40°C ~ 85°C	125mA
590AB22M1184DGR	Skyworks Solutions Inc.	Si590	22.1184 MHz	LVPECL	3.3V	±25ppm	-40°C ~ 85°C	125mA
590AA125M250DGR	Skyworks Solutions Inc.	Si590	125.25 MHz	LVPECL	3.3V	±50ppm	-40°C ~ 85°C	125mA
590AA155M520DGR	Skyworks Solutions Inc.	Si590	155.52 MHz	LVPECL	3.3V	±50ppm	-40°C ~ 85°C	125mA
590AA156M250DGR	Skyworks Solutions Inc.	Si590	156.25 MHz	LVPECL	3.3V	±50ppm	-40°C ~ 85°C	125mA
590AA200M000DGR	Skyworks Solutions Inc.	Si590	200 MHz	LVPECL	3.3V	±50ppm	-40°C ~ 85°C	125mA
590BA135M000DGR	Skyworks Solutions Inc.	Si590	135 MHz	LVDS	3.3V	±50ppm	-40°C ~ 85°C	100mA
590BA156M250DGR	Skyworks Solutions Inc.	Si590	156.25 MHz	LVDS	3.3V	±50ppm	-40°C ~ 85°C	100mA
590EA000174DGR	Skyworks Solutions Inc.	Si590	174 kHz	LVPECL	2.5V	±50ppm	-40°C ~ 85°C	125mA
590EA148M500DGR	Skyworks Solutions Inc.	Si590	148.5 MHz	LVPECL	2.5V	±50ppm	-40°C ~ 85°C	125mA
590EA156M250DGR	Skyworks Solutions Inc.	Si590	156.25 MHz	LVPECL	2.5V	±50ppm	-40°C ~ 85°C	125mA
590FA150M000DGR	Skyworks Solutions Inc.	Si590	150 MHz	LVDS	2.5V	±50ppm	-40°C ~ 85°C	100mA
590FA155M520DGR	Skyworks Solutions Inc.	Si590	155.52 MHz	LVDS	2.5V	±50ppm	-40°C ~ 85°C	100mA
590FA161M133DGR	Skyworks Solutions Inc.	Si590	161.133 MHz	LVDS	2.5V	±50ppm	-40°C ~ 85°C	100mA
590FA167M332DGR	Skyworks Solutions Inc.	Si590	167.332 MHz	LVDS	2.5V	±50ppm	-40°C ~ 85°C	100mA
590AB27M0000DGR	Skyworks Solutions Inc.	Si590	27 MHz	LVPECL	3.3V	±25ppm	-40°C ~ 85°C	125mA
590AB29M7000DGR	Skyworks Solutions Inc.	Si590	29.7 MHz	LVPECL	3.3V	±25ppm	-40°C ~ 85°C	125mA
590AB30M0000DGR	Skyworks Solutions Inc.	Si590	30 MHz	LVPECL	3.3V	±25ppm	-40°C ~ 85°C	125mA
590AB70M6560DGR	Skyworks Solutions Inc.	Si590	70.656 MHz	LVPECL	3.3V	±25ppm	-40°C ~ 85°C	125mA
590BB100M000DGR	Skyworks Solutions Inc.	Si590	100 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C	100mA
590BB120M000DGR	Skyworks Solutions Inc.	Si590	120 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C	100mA
590BB122M880DGR	Skyworks Solutions Inc.	Si590	122.88 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C	100mA
590BB125M000DGR	Skyworks Solutions Inc.	Si590	125 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C	100mA
590BB50M0000DGR	Skyworks Solutions Inc.	Si590	50 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C	100mA
590BB92M4000DGR	Skyworks Solutions Inc.	Si590	92.4 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C	100mA
590EB25M0000DGR	Skyworks Solutions Inc.	Si590	25 MHz	LVPECL	2.5V	±25ppm	-40°C ~ 85°C	125mA
590FB100M000DGR	Skyworks Solutions Inc.	Si590	100 MHz	LVDS	2.5V	±25ppm	-40°C ~ 85°C	100mA
590FB122M880DGR	Skyworks Solutions Inc.	Si590	122.88 MHz	LVDS	2.5V	±25ppm	-40°C ~ 85°C	100mA
590FB125M000DGR	Skyworks Solutions Inc.	Si590	125 MHz	LVDS	2.5V	±25ppm	-40°C ~ 85°C	100mA
590FB50M0000DGR	Skyworks Solutions Inc.	Si590	50 MHz	LVDS	2.5V	±25ppm	-40°C ~ 85°C	100mA
590MB125M000DGR	Skyworks Solutions Inc.	Si590	125 MHz	LVPECL	3.3V	±25ppm	-40°C ~ 85°C	125mA
590SB25M0000DGR	Skyworks Solutions Inc.	Si590	25 MHz	LVDS	2.5V	±25ppm	-40°C ~ 85°C	100mA
590NB122M880DGR	Skyworks Solutions Inc.	Si590	122.88 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C	100mA
590AF50M0000DGR	Skyworks Solutions Inc.	Si590	50 MHz	LVPECL	3.3V	±25ppm	-40°C ~ 85°C	125mA
590FF50M0000DGR	Skyworks Solutions Inc.	Si590	50 MHz	LVDS	2.5V	±25ppm	-40°C ~ 85°C	100mA
590BF50M0000DGR	Skyworks Solutions Inc.	Si590	50 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C	100mA
590BA25M0000DG	Skyworks Solutions Inc.	Si590	25 MHz	LVDS	3.3V	±50ppm	-40°C ~ 85°C	100mA
590NE10M0000DG	Skyworks Solutions Inc.	Si590	10 MHz	LVDS	3.3V	±50ppm	-40°C ~ 85°C	100mA
590AD114M285DG	Skyworks Solutions Inc.	Si590	114.285 MHz	LVPECL	3.3V	±7ppm	-40°C ~ 85°C	125mA
590AD40M0000DG	Skyworks Solutions Inc.	Si590	40 MHz	LVPECL	3.3V	±7ppm	-40°C ~ 85°C	125mA
590AD50M0000DG	Skyworks Solutions Inc.	Si590	50 MHz	LVPECL	3.3V	±7ppm	-40°C ~ 85°C	125mA
590AB100M000DGR	Skyworks Solutions Inc.	Si590	100 MHz	LVPECL	3.3V	±25ppm	-40°C ~ 85°C	125mA
590AB125M000DGR	Skyworks Solutions Inc.	Si590	125 MHz	LVPECL	3.3V	±25ppm	-40°C ~ 85°C	125mA
590AB20M0000DGR	Skyworks Solutions Inc.	Si590	20 MHz	LVPECL	3.3V	±25ppm	-40°C ~ 85°C	125mA
590AB25M0000DGR	Skyworks Solutions Inc.	Si590	25 MHz	LVPECL	3.3V	±25ppm	-40°C ~ 85°C	125mA
590AD114M285DGR	Skyworks Solutions Inc.	Si590	114.285 MHz	LVPECL	3.3V	±7ppm	-40°C ~ 85°C	125mA
590AD40M0000DGR	Skyworks Solutions Inc.	Si590	40 MHz	LVPECL	3.3V	±7ppm	-40°C ~ 85°C	125mA
590AD50M0000DGR	Skyworks Solutions Inc.	Si590	50 MHz	LVPECL	3.3V	±7ppm	-40°C ~ 85°C	125mA
590AA100M000DG	Skyworks Solutions Inc.	Si590	100 MHz	LVPECL	3.3V	±50ppm	-40°C ~ 85°C	125mA
590AA10M0000DG	Skyworks Solutions Inc.	Si590	10 MHz	LVPECL	3.3V	±50ppm	-40°C ~ 85°C	125mA
590AA125M000DG	Skyworks Solutions Inc.	Si590	125 MHz	LVPECL	3.3V	±50ppm	-40°C ~ 85°C	125mA
590BA100M000DG	Skyworks Solutions Inc.	Si590	100 MHz	LVDS	3.3V	±50ppm	-40°C ~ 85°C	100mA
590BA10M0000DG	Skyworks Solutions Inc.	Si590	10 MHz	LVDS	3.3V	±50ppm	-40°C ~ 85°C	100mA
590BA125M000DG	Skyworks Solutions Inc.	Si590	125 MHz	LVDS	3.3V	±50ppm	-40°C ~ 85°C	100mA
590BA32M0000DG	Skyworks Solutions Inc.	Si590	32 MHz	LVDS	3.3V	±50ppm	-40°C ~ 85°C	100mA
590BA50M0000DG	Skyworks Solutions Inc.	Si590	50 MHz	LVDS	3.3V	±50ppm	-40°C ~ 85°C	100mA
590BA52M0000DG	Skyworks Solutions Inc.	Si590	52 MHz	LVDS	3.3V	±50ppm	-40°C ~ 85°C	100mA
590EA125M000DG	Skyworks Solutions Inc.	Si590	125 MHz	LVPECL	2.5V	±50ppm	-40°C ~ 85°C	125mA
590FA100M000DG	Skyworks Solutions Inc.	Si590	100 MHz	LVDS	2.5V	±50ppm	-40°C ~ 85°C	100mA
590FA25M0000DG	Skyworks Solutions Inc.	Si590	25 MHz	LVDS	2.5V	±50ppm	-40°C ~ 85°C	100mA
590BA100M000DGR	Skyworks Solutions Inc.	Si590	100 MHz	LVDS	3.3V	±50ppm	-40°C ~ 85°C	100mA
590BA10M0000DGR	Skyworks Solutions Inc.	Si590	10 MHz	LVDS	3.3V	±50ppm	-40°C ~ 85°C	100mA
590BA125M000DGR	Skyworks Solutions Inc.	Si590	125 MHz	LVDS	3.3V	±50ppm	-40°C ~ 85°C	100mA
590BA32M0000DGR	Skyworks Solutions Inc.	Si590	32 MHz	LVDS	3.3V	±50ppm	-40°C ~ 85°C	100mA
590BA50M0000DGR	Skyworks Solutions Inc.	Si590	50 MHz	LVDS	3.3V	±50ppm	-40°C ~ 85°C	100mA
590BA52M0000DGR	Skyworks Solutions Inc.	Si590	52 MHz	LVDS	3.3V	±50ppm	-40°C ~ 85°C	100mA
590EA125M000DGR	Skyworks Solutions Inc.	Si590	125 MHz	LVPECL	2.5V	±50ppm	-40°C ~ 85°C	125mA
590FA100M000DGR	Skyworks Solutions Inc.	Si590	100 MHz	LVDS	2.5V	±50ppm	-40°C ~ 85°C	100mA
590FA25M0000DGR	Skyworks Solutions Inc.	Si590	25 MHz	LVDS	2.5V	±50ppm	-40°C ~ 85°C	100mA
590BA25M0000DGR	Skyworks Solutions Inc.	Si590	25 MHz	LVDS	3.3V	±50ppm	-40°C ~ 85°C	100mA
590NE10M0000DGR	Skyworks Solutions Inc.	Si590	10 MHz	LVDS	3.3V	±50ppm	-40°C ~ 85°C	100mA
590AA100M000DGR	Skyworks Solutions Inc.	Si590	100 MHz	LVPECL	3.3V	±50ppm	-40°C ~ 85°C	125mA
590AA10M0000DGR	Skyworks Solutions Inc.	Si590	10 MHz	LVPECL	3.3V	±50ppm	-40°C ~ 85°C	125mA
590AA125M000DGR	Skyworks Solutions Inc.	Si590	125 MHz	LVPECL	3.3V	±50ppm	-40°C ~ 85°C	125mA
590AG156M250DGR	Skyworks Solutions Inc.	Si590	156.25 MHz	LVPECL	3.3V	±20ppm	-40°C ~ 85°C	125mA
590BG150M000DGR	Skyworks Solutions Inc.	Si590	150 MHz	LVDS	3.3V	±20ppm	-40°C ~ 85°C	100mA
590AB156M250DGR	Skyworks Solutions Inc.	Si590	156.25 MHz	LVPECL	3.3V	±25ppm	-40°C ~ 85°C	125mA
590AC135M000DGR	Skyworks Solutions Inc.	Si590	135 MHz	LVPECL	3.3V	±20ppm	-40°C ~ 85°C	125mA
590AC155M025DGR	Skyworks Solutions Inc.	Si590	155.025 MHz	LVPECL	3.3V	±20ppm	-40°C ~ 85°C	125mA
590AC156M250DGR	Skyworks Solutions Inc.	Si590	156.25 MHz	LVPECL	3.3V	±20ppm	-40°C ~ 85°C	125mA
590AD10M0000DGR	Skyworks Solutions Inc.	Si590	10 MHz	LVPECL	3.3V	±7ppm	-40°C ~ 85°C	125mA
590AD20M0000DGR	Skyworks Solutions Inc.	Si590	20 MHz	LVPECL	3.3V	±7ppm	-40°C ~ 85°C	125mA
590BC000118DGR	Skyworks Solutions Inc.	Si590	118 kHz	LVDS	3.3V	±20ppm	-40°C ~ 85°C	100mA
590BC148M350DGR	Skyworks Solutions Inc.	Si590	148.35 MHz	LVDS	3.3V	±20ppm	-40°C ~ 85°C	100mA
590BC148M500DGR	Skyworks Solutions Inc.	Si590	148.5 MHz	LVDS	3.3V	±20ppm	-40°C ~ 85°C	100mA
590BC150M000DGR	Skyworks Solutions Inc.	Si590	150 MHz	LVDS	3.3V	±20ppm	-40°C ~ 85°C	100mA
590BC156M250DGR	Skyworks Solutions Inc.	Si590	156.25 MHz	LVDS	3.3V	±20ppm	-40°C ~ 85°C	100mA
590BD10M0000DGR	Skyworks Solutions Inc.	Si590	10 MHz	LVDS	3.3V	±7ppm	-40°C ~ 85°C	100mA
590BD125M000DGR	Skyworks Solutions Inc.	Si590	125 MHz	LVDS	3.3V	±7ppm	-40°C ~ 85°C	100mA
590BD20M0000DGR	Skyworks Solutions Inc.	Si590	20 MHz	LVDS	3.3V	±7ppm	-40°C ~ 85°C	100mA
590BD24M5760DGR	Skyworks Solutions Inc.	Si590	24.576 MHz	LVDS	3.3V	±7ppm	-40°C ~ 85°C	100mA
590FC156M250DGR	Skyworks Solutions Inc.	Si590	156.25 MHz	LVDS	2.5V	±20ppm	-40°C ~ 85°C	100mA
590FD125M000DGR	Skyworks Solutions Inc.	Si590	125 MHz	LVDS	2.5V	±7ppm	-40°C ~ 85°C	100mA
590FD50M0000DGR	Skyworks Solutions Inc.	Si590	50 MHz	LVDS	2.5V	±7ppm	-40°C ~ 85°C	100mA
590FD74M2500DGR	Skyworks Solutions Inc.	Si590	74.25 MHz	LVDS	2.5V	±7ppm	-40°C ~ 85°C	100mA
590AC144M300DGR	Skyworks Solutions Inc.	Si590	144.3 MHz	LVPECL	3.3V	±20ppm	-40°C ~ 85°C	125mA
590FD32M0000DGR	Skyworks Solutions Inc.	Si590	32 MHz	LVDS	2.5V	±7ppm	-40°C ~ 85°C	100mA
590FD32M2400DGR	Skyworks Solutions Inc.	Si590	32.24 MHz	LVDS	2.5V	±7ppm	-40°C ~ 85°C	100mA
590FD36M0000DGR	Skyworks Solutions Inc.	Si590	36 MHz	LVDS	2.5V	±7ppm	-40°C ~ 85°C	100mA
590FC200M000DGR	Skyworks Solutions Inc.	Si590	200 MHz	LVDS	2.5V	±20ppm	-40°C ~ 85°C	100mA
590BC000185DGR	Skyworks Solutions Inc.	Si590	161.132812 MHz	LVDS	3.3V	±20ppm	-40°C ~ 85°C	100mA
590FD100M000DGR	Skyworks Solutions Inc.	Si590	100 MHz	LVDS	2.5V	±7ppm	-40°C ~ 85°C	100mA
590FD40M0000DGR	Skyworks Solutions Inc.	Si590	40 MHz	LVDS	2.5V	±7ppm	-40°C ~ 85°C	100mA
590BD74M2500DGR	Skyworks Solutions Inc.	Si590	74.25 MHz	LVDS	3.3V	±7ppm	-40°C ~ 85°C	100mA
590BD80M0000DGR	Skyworks Solutions Inc.	Si590	80 MHz	LVDS	3.3V	±7ppm	-40°C ~ 85°C	100mA
590BC200M000DGR	Skyworks Solutions Inc.	Si590	200 MHz	LVDS	3.3V	±20ppm	-40°C ~ 85°C	100mA
590BC000351DGR	Skyworks Solutions Inc.	Si590	195.3125 MHz	LVDS	3.3V	±20ppm	-40°C ~ 85°C	100mA
590FD61M3800DGR	Skyworks Solutions Inc.	Si590	61.38 MHz	LVDS	2.5V	±7ppm	-40°C ~ 85°C	100mA
590BD122M880DGR	Skyworks Solutions Inc.	Si590	122.88 MHz	LVDS	3.3V	±7ppm	-40°C ~ 85°C	100mA
590EC148M500DGR	Skyworks Solutions Inc.	Si590	148.5 MHz	LVPECL	2.5V	±20ppm	-40°C ~ 85°C	125mA
590AC125M000DG	Skyworks Solutions Inc.	Si590	125 MHz	LVPECL	3.3V	±20ppm	-40°C ~ 85°C	125mA
590AC16M0000DG	Skyworks Solutions Inc.	Si590	16 MHz	LVPECL	3.3V	±20ppm	-40°C ~ 85°C	125mA
590BC20M0000DG	Skyworks Solutions Inc.	Si590	20 MHz	LVDS	3.3V	±20ppm	-40°C ~ 85°C	100mA
590BC27M0000DG	Skyworks Solutions Inc.	Si590	27 MHz	LVDS	3.3V	±20ppm	-40°C ~ 85°C	100mA
590BC40M0000DG	Skyworks Solutions Inc.	Si590	40 MHz	LVDS	3.3V	±20ppm	-40°C ~ 85°C	100mA
590BC117M675DG	Skyworks Solutions Inc.	Si590	117.675 MHz	LVDS	3.3V	±20ppm	-40°C ~ 85°C	100mA
590BC117M765DG	Skyworks Solutions Inc.	Si590	117.765 MHz	LVDS	3.3V	±20ppm	-40°C ~ 85°C	100mA
590BC125M000DG	Skyworks Solutions Inc.	Si590	125 MHz	LVDS	3.3V	±20ppm	-40°C ~ 85°C	100mA
590AC50M0700DG	Skyworks Solutions Inc.	Si590	50.07 MHz	LVPECL	3.3V	±20ppm	-40°C ~ 85°C	125mA
590AC117M765DG	Skyworks Solutions Inc.	Si590	117.765 MHz	LVPECL	3.3V	±20ppm	-40°C ~ 85°C	125mA
590AC117M675DG	Skyworks Solutions Inc.	Si590	117.675 MHz	LVPECL	3.3V	±20ppm	-40°C ~ 85°C	125mA
590BG70M6560DG	Skyworks Solutions Inc.	Si590	70.656 MHz	LVDS	3.3V	±20ppm	-40°C ~ 85°C	100mA
590BG125M000DG	Skyworks Solutions Inc.	Si590	125 MHz	LVDS	3.3V	±20ppm	-40°C ~ 85°C	100mA
590BG27M0000DG	Skyworks Solutions Inc.	Si590	27 MHz	LVDS	3.3V	±20ppm	-40°C ~ 85°C	100mA
590FG125M000DG	Skyworks Solutions Inc.	Si590	125 MHz	LVDS	2.5V	±20ppm	-40°C ~ 85°C	100mA
590AC100M000DG	Skyworks Solutions Inc.	Si590	100 MHz	LVPECL	3.3V	±20ppm	-40°C ~ 85°C	125mA
590AC10M0000DG	Skyworks Solutions Inc.	Si590	10 MHz	LVPECL	3.3V	±20ppm	-40°C ~ 85°C	125mA
590AC24M0000DG	Skyworks Solutions Inc.	Si590	24 MHz	LVPECL	3.3V	±20ppm	-40°C ~ 85°C	125mA
590AC25M0000DG	Skyworks Solutions Inc.	Si590	25 MHz	LVPECL	3.3V	±20ppm	-40°C ~ 85°C	125mA
590AC38M8800DG	Skyworks Solutions Inc.	Si590	38.88 MHz	LVPECL	3.3V	±20ppm	-40°C ~ 85°C	125mA
590AC50M0000DG	Skyworks Solutions Inc.	Si590	50 MHz	LVPECL	3.3V	±20ppm	-40°C ~ 85°C	125mA
590AC84M0000DG	Skyworks Solutions Inc.	Si590	84 MHz	LVPECL	3.3V	±20ppm	-40°C ~ 85°C	125mA
590BC100M000DG	Skyworks Solutions Inc.	Si590	100 MHz	LVDS	3.3V	±20ppm	-40°C ~ 85°C	100mA
590BC16M9344DG	Skyworks Solutions Inc.	Si590	16.9344 MHz	LVDS	3.3V	±20ppm	-40°C ~ 85°C	100mA
590NC100M000DG	Skyworks Solutions Inc.	Si590	100 MHz	LVDS	3.3V	±20ppm	-40°C ~ 85°C	100mA
590AC125M000DGR	Skyworks Solutions Inc.	Si590	125 MHz	LVPECL	3.3V	±20ppm	-40°C ~ 85°C	125mA
590AC16M0000DGR	Skyworks Solutions Inc.	Si590	16 MHz	LVPECL	3.3V	±20ppm	-40°C ~ 85°C	125mA
590BC20M0000DGR	Skyworks Solutions Inc.	Si590	20 MHz	LVDS	3.3V	±20ppm	-40°C ~ 85°C	100mA
590BC27M0000DGR	Skyworks Solutions Inc.	Si590	27 MHz	LVDS	3.3V	±20ppm	-40°C ~ 85°C	100mA
590BC40M0000DGR	Skyworks Solutions Inc.	Si590	40 MHz	LVDS	3.3V	±20ppm	-40°C ~ 85°C	100mA
590BC117M765DGR	Skyworks Solutions Inc.	Si590	117.765 MHz	LVDS	3.3V	±20ppm	-40°C ~ 85°C	100mA
590BC125M000DGR	Skyworks Solutions Inc.	Si590	125 MHz	LVDS	3.3V	±20ppm	-40°C ~ 85°C	100mA
590BC117M675DGR	Skyworks Solutions Inc.	Si590	117.675 MHz	LVDS	3.3V	±20ppm	-40°C ~ 85°C	100mA
590AC50M0700DGR	Skyworks Solutions Inc.	Si590	50.07 MHz	LVPECL	3.3V	±20ppm	-40°C ~ 85°C	125mA
590AC117M675DGR	Skyworks Solutions Inc.	Si590	117.675 MHz	LVPECL	3.3V	±20ppm	-40°C ~ 85°C	125mA
590AC117M765DGR	Skyworks Solutions Inc.	Si590	117.765 MHz	LVPECL	3.3V	±20ppm	-40°C ~ 85°C	125mA
590BG70M6560DGR	Skyworks Solutions Inc.	Si590	70.656 MHz	LVDS	3.3V	±20ppm	-40°C ~ 85°C	100mA
590BG125M000DGR	Skyworks Solutions Inc.	Si590	125 MHz	LVDS	3.3V	±20ppm	-40°C ~ 85°C	100mA
590BG27M0000DGR	Skyworks Solutions Inc.	Si590	27 MHz	LVDS	3.3V	±20ppm	-40°C ~ 85°C	100mA
590FG125M000DGR	Skyworks Solutions Inc.	Si590	125 MHz	LVDS	2.5V	±20ppm	-40°C ~ 85°C	100mA
590FB156M250DG	Skyworks Solutions Inc.	Si590	156.25 MHz	LVDS	2.5V	±25ppm	-40°C ~ 85°C	100mA
590FB201M000DG	Skyworks Solutions Inc.	Si590	201 MHz	LVDS	2.5V	±25ppm	-40°C ~ 85°C	100mA
590MB156M250DG	Skyworks Solutions Inc.	Si590	156.25 MHz	LVPECL	3.3V	±25ppm	-40°C ~ 85°C	125mA
590BB160M000DG	Skyworks Solutions Inc.	Si590	160 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C	100mA
590FB200M000DG	Skyworks Solutions Inc.	Si590	200 MHz	LVDS	2.5V	±25ppm	-40°C ~ 85°C	100mA
590AF135M000DG	Skyworks Solutions Inc.	Si590	135 MHz	LVPECL	3.3V	±25ppm	-40°C ~ 85°C	125mA
590AC100M000DGR	Skyworks Solutions Inc.	Si590	100 MHz	LVPECL	3.3V	±20ppm	-40°C ~ 85°C	125mA
590AC10M0000DGR	Skyworks Solutions Inc.	Si590	10 MHz	LVPECL	3.3V	±20ppm	-40°C ~ 85°C	125mA
590AC24M0000DGR	Skyworks Solutions Inc.	Si590	24 MHz	LVPECL	3.3V	±20ppm	-40°C ~ 85°C	125mA
590AC25M0000DGR	Skyworks Solutions Inc.	Si590	25 MHz	LVPECL	3.3V	±20ppm	-40°C ~ 85°C	125mA
590AC38M8800DGR	Skyworks Solutions Inc.	Si590	38.88 MHz	LVPECL	3.3V	±20ppm	-40°C ~ 85°C	125mA
590AC50M0000DGR	Skyworks Solutions Inc.	Si590	50 MHz	LVPECL	3.3V	±20ppm	-40°C ~ 85°C	125mA
590AC84M0000DGR	Skyworks Solutions Inc.	Si590	84 MHz	LVPECL	3.3V	±20ppm	-40°C ~ 85°C	125mA
590BC100M000DGR	Skyworks Solutions Inc.	Si590	100 MHz	LVDS	3.3V	±20ppm	-40°C ~ 85°C	100mA
590BC16M9344DGR	Skyworks Solutions Inc.	Si590	16.9344 MHz	LVDS	3.3V	±20ppm	-40°C ~ 85°C	100mA
590NC100M000DGR	Skyworks Solutions Inc.	Si590	100 MHz	LVDS	3.3V	±20ppm	-40°C ~ 85°C	100mA
590AD000338DG	Skyworks Solutions Inc.	Si590	338 kHz	LVPECL	3.3V	±7ppm	-40°C ~ 85°C	125mA
590AD142M675DG	Skyworks Solutions Inc.	Si590	142.675 MHz	LVPECL	3.3V	±7ppm	-40°C ~ 85°C	125mA
590MD142M675DG	Skyworks Solutions Inc.	Si590	142.675 MHz	LVPECL	3.3V	±7ppm	-40°C ~ 85°C	125mA
590AB155M520DG	Skyworks Solutions Inc.	Si590	155.52 MHz	LVPECL	3.3V	±25ppm	-40°C ~ 85°C	125mA
590AB164M355DG	Skyworks Solutions Inc.	Si590	164.355 MHz	LVPECL	3.3V	±25ppm	-40°C ~ 85°C	125mA
590AB172M500DG	Skyworks Solutions Inc.	Si590	172.5 MHz	LVPECL	3.3V	±25ppm	-40°C ~ 85°C	125mA
590AB200M000DG	Skyworks Solutions Inc.	Si590	200 MHz	LVPECL	3.3V	±25ppm	-40°C ~ 85°C	125mA
590BB133M000DG	Skyworks Solutions Inc.	Si590	133 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C	100mA
590BB148M350DG	Skyworks Solutions Inc.	Si590	148.35 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C	100mA
590BB148M500DG	Skyworks Solutions Inc.	Si590	148.5 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C	100mA

yijin-5

YJ-6

深圳市亿金电子有限公司 SHENZHEN YIJIN ELECTRONICS CO;LTD

mphone 联系人黄娜：18924600166

工作QQ:857950243

myt 贸易通：yijindz2014

tel 座机：0755-27876565

email 邮箱:yijindz@163.com

inter 网址：http://www.yijindz.com

mwx 微信：yijindz，公众号：NDKcrystal

home 地址：广东省深圳市宝安区107国道旁甲岸路

wxewm

思佳讯差分晶振 590BA135M000DGR晶振 LVDS晶振 6G相关设备晶振

跟此产品相关的产品 / Related Products

: ISM91-3251BH-8.000MHz,ILSI品牌晶振,7050mm,光纤通道晶振; ISM91-3251BH-8.000MHz,ILSI品牌晶振,7050mm,光纤通道晶振，美国进口晶振，ILSI晶振，艾尔西晶振，型号：ISM91，编码为：ISM91-3251BH-8.000MHz石英晶振，频率：8.000MHz，电压：3.3V，频率容差：±50ppm，工作温度范围：-40℃至+85℃，HCMOS输出晶振，小体积晶振尺寸：7.0x5.0x1.6mm封装，四脚贴片晶振，有源晶振，SMD晶振，石英晶体振荡器，7050晶振，XO振荡器。具有超小型，轻薄型，高性能，高品质，高质量，耐热及耐环等特点。应用于：通讯设备晶振，导航晶振，汽车电子晶振，医疗设备晶振，数码电子晶振等应用。

: ILCX04-FB5F20-25.000MHz,ILSI品牌晶振,7050mm,服务器和存储晶振; ILCX04-FB5F20-25.000MHz,ILSI品牌晶振,7050mm,服务器和存储晶振，美国进口晶振，ILSI晶振，艾尔西晶振，型号：ILCX04，编码为：ILCX04-FB5F20-25.000MHz，频率：25.000MHz，频率稳定性：±50ppm，频率容差：±30ppm，负载电容：20pF，工作温度范围：-40℃至+85℃，是一款小体积晶振尺寸：7.0x5.0mm封装，四脚贴片晶振，无源晶振，石英晶振，SMD晶振，无铅晶振，7050晶振，石英晶体谐振器。具有超小型，轻薄型，高品质，耐热及耐环境特点。被广泛应用于：通讯设备，仪器仪表设备，蓝牙模块，服务器和存储，光纤通道，USB，智能家居等应用。

: HC49USM-FB1F18-28.224MHz,ILSI服务器和存储晶振,SMD石英晶体; HC49USM-FB1F18-28.224MHz,ILSI服务器和存储晶振,SMD石英晶体，美国进口晶振，ILSI晶振，艾尔西晶振，型号：HC49USM系列，编码为：HC49USM-FB1F18-28.224MHz，频率为：28.224MHz，频率稳定性：±50ppm，频率容差：±30ppm，负载电容：18pF，工作温度范围：0℃至+70℃，小体积晶振尺寸：13x4.7x4.5mm低成本SMD封装，两脚贴片晶振，椭圆形晶振，无源晶振，石英晶振，石英晶体谐振器，无铅晶振。具有超小型，轻薄型，高品质，高质量，高可靠性等特点。被广泛应用于：光纤通道晶振，服务器和存储，车载电子晶振，无线蓝牙晶振，系统时钟晶振，物联网等应用。
