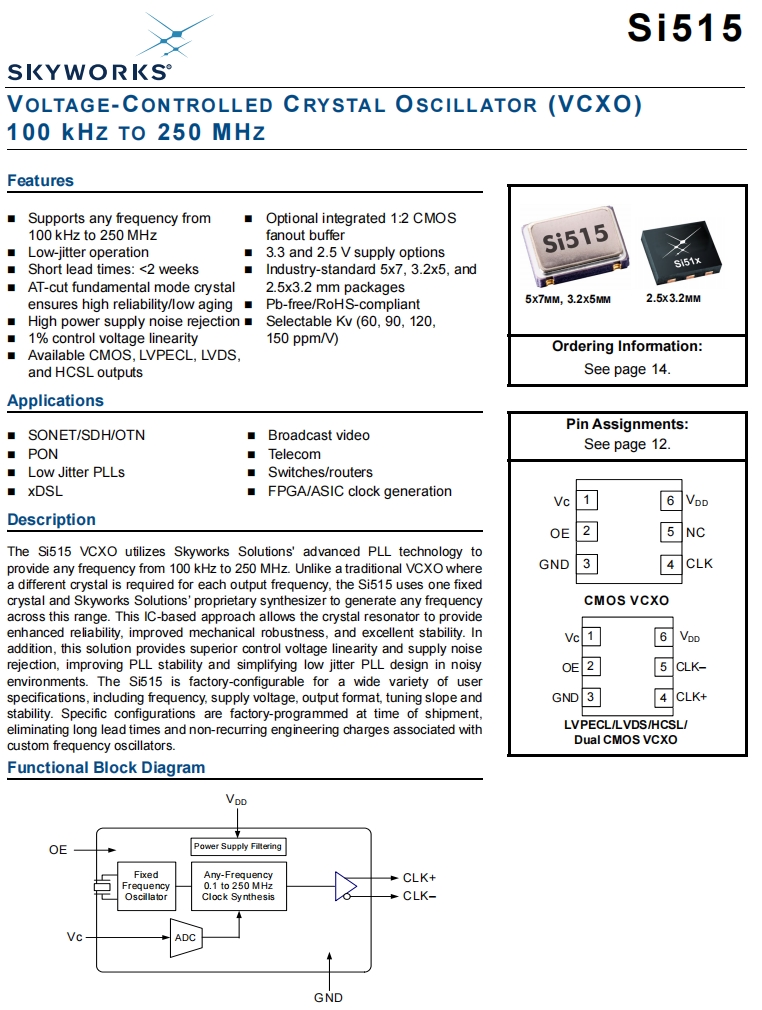

515BDA27M0000AAGR?,Skyworks晶振,VCXO晶振,6G低抖动晶振
频率：27MHz
尺寸：7.0×5.0mm
515BDA27M0000AAGR,Skyworks晶振,VCXO晶振,6G低抖动晶振,Skyworks晶振,7050贴片晶振,Si515有源晶振提供卓越的控制电压线性度和电源噪声抑制,提高锁相环稳定性,简化低抖动锁相环设计环境.Si515可在工厂配置,适用于各种用户规格包括频率,电源电压,输出格式,调谐斜率等稳定.具体配置在出厂时就已编程,消除较长的交货期和非经常性工程费用与自定义频率振荡器,石英晶体振荡器,VCXO晶振,6G低抖动晶振,路由器晶振,便携式多媒体设备晶振.
订购热线：0755-27876565
515BDA27M0000AAGR,Skyworks晶振,VCXO晶振,6G低抖动晶振,Skyworks晶振,7050晶振,六脚贴片晶振,Si515有源晶振提供卓越的控制电压线性度和电源噪声抑制,提高锁相环稳定性,简化低抖动锁相环设计环境.Si515可在工厂配置,适用于各种用户规格包括频率,电源电压,输出格式,调谐斜率等稳定.具体配置在出厂时就已编程,消除较长的交货期和非经常性工程费用与自定义频率振荡器,石英晶体振荡器,VCXO晶振,6G低抖动晶振,路由器晶振,便携式多媒体设备晶振.
515BDA27M0000AAGR,Skyworks晶振,VCXO晶振,6G低抖动晶振规格表
项目
符号
规格说明
条件
额定频率
f_nom
27MHz
请联系我们以便获取其它可用频率的相关信息
电源电压
Vcc
3.3V
储存温度
T_stg
-55℃~+125℃
裸存
工作温度
T_use
-40℃~ +85℃
频率稳定性
f_tol
±20 ppm
+25℃,超出标准的规格说明请联系我们以便获取相关信息
电源电流
IDD
26mA Max
LVDS
对称性（占空比）
SYM
48%~52%
在输出交叉点
输出电压
VOC
1.33V Max
LVDS
VO
0.42Vpp Max
输入电压
VIH
80%VDD Min
VIL
20%VDD Max
上升下降时间
tr/tf
800ps Max
LVDS
起始时间
t str
10ms Max
相位抖动
tpj
1.3ps Max

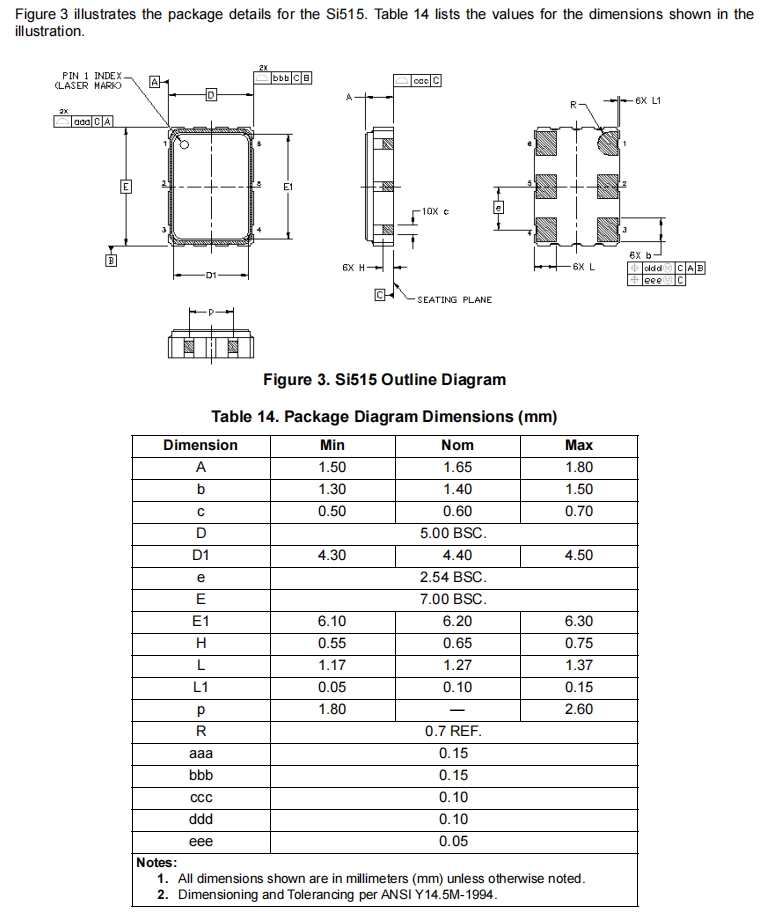

515BDA27M0000AAGR,Skyworks晶振,VCXO晶振,6G低抖动晶振尺寸图
| 原厂编码 | 品牌 | 型号 | 频率 | 输出 | 电压 | 频率稳定性 | 工作温度 | 电流 (Max) |
| 515ABA10M0000BAGR | Skyworks Solutions Inc. | Si515 | 10 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515BBA10M0000BAGR | Skyworks Solutions Inc. | Si515 | 10 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515ABA10M0000BAG | Skyworks Solutions Inc. | Si515 | 10 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515BBA10M0000BAG | Skyworks Solutions Inc. | Si515 | 10 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515ACA77M7600AAGR | Skyworks Solutions Inc. | Si515 | 77.76 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515ACAM614400AAGR | Skyworks Solutions Inc. | Si515 | 6.144 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515BCA10M0000AAGR | Skyworks Solutions Inc. | Si515 | 10 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BCB70M6560AAGR | Skyworks Solutions Inc. | Si515 | 70.656 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BDA27M0000AAGR | Skyworks Solutions Inc. | Si515 | 27 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BBA250M000BAGR | Skyworks Solutions Inc. | Si515 | 250 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BCA250M000BAGR | Skyworks Solutions Inc. | Si515 | 250 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515ACA204M800AAGR | Skyworks Solutions Inc. | Si515 | 204.8 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515BBA250M000BAG | Skyworks Solutions Inc. | Si515 | 250 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BCA250M000BAG | Skyworks Solutions Inc. | Si515 | 250 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515ADA131M072AAGR | Skyworks Solutions Inc. | Si515 | 131.072 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515ACA100M000BAGR | Skyworks Solutions Inc. | Si515 | 100 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515ACA61M4400BAGR | Skyworks Solutions Inc. | Si515 | 61.44 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515ACB78M0000BAGR | Skyworks Solutions Inc. | Si515 | 78 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515BAA125M000BAGR | Skyworks Solutions Inc. | Si515 | 125 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BAB125M000BAGR | Skyworks Solutions Inc. | Si515 | 125 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BBA125M000BAGR | Skyworks Solutions Inc. | Si515 | 125 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BBB125M000BAGR | Skyworks Solutions Inc. | Si515 | 125 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BCA122M880BAGR | Skyworks Solutions Inc. | Si515 | 122.88 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BCA125M000BAGR | Skyworks Solutions Inc. | Si515 | 125 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BCA27M0000BAGR | Skyworks Solutions Inc. | Si515 | 27 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BDA26M0000BAGR | Skyworks Solutions Inc. | Si515 | 26 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BDA27M0000BAGR | Skyworks Solutions Inc. | Si515 | 27 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515FBB125M000BAGR | Skyworks Solutions Inc. | Si515 | 125 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515FCA125M000BAGR | Skyworks Solutions Inc. | Si515 | 125 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BBA122M880BAGR | Skyworks Solutions Inc. | Si515 | 122.88 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BAA100M000CAGR | Skyworks Solutions Inc. | Si515 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515ACA27M0000BAGR | Skyworks Solutions Inc. | Si515 | 27 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515ACAM457000CAGR | Skyworks Solutions Inc. | Si515 | 457 kHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515ACA100M000CAGR | Skyworks Solutions Inc. | Si515 | 100 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515BCB100M000CAGR | Skyworks Solutions Inc. | Si515 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515ACA10M0000CAGR | Skyworks Solutions Inc. | Si515 | 10 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515BCA122M880CAGR | Skyworks Solutions Inc. | Si515 | 122.88 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BCA24M0000BAGR | Skyworks Solutions Inc. | Si515 | 24 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515ACA004723CAGR | Skyworks Solutions Inc. | Si515 | 24.545454 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515BCA10M0000BAGR | Skyworks Solutions Inc. | Si515 | 10 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515ACA125M000CAGR | Skyworks Solutions Inc. | Si515 | 125 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515FCB125M000BAGR | Skyworks Solutions Inc. | Si515 | 125 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515ACA122M880CAGR | Skyworks Solutions Inc. | Si515 | 122.88 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515BCB27M0000CAGR | Skyworks Solutions Inc. | Si515 | 27 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BCA100M000CAGR | Skyworks Solutions Inc. | Si515 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BCB25M0000BAGR | Skyworks Solutions Inc. | Si515 | 25 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515ACA204M800AAG | Skyworks Solutions Inc. | Si515 | 204.8 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515ACA156M250CAG | Skyworks Solutions Inc. | Si515 | 156.25 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515BCA156M250CAG | Skyworks Solutions Inc. | Si515 | 156.25 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BDA156M250CAG | Skyworks Solutions Inc. | Si515 | 156.25 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BCA148M500CAG | Skyworks Solutions Inc. | Si515 | 148.5 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BCA148M350CAG | Skyworks Solutions Inc. | Si515 | 148.35 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BAA004636BAG | Skyworks Solutions Inc. | Si515 | 167.33165 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BAA155M520CAG | Skyworks Solutions Inc. | Si515 | 155.52 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515AAA174M687BAGR | Skyworks Solutions Inc. | Si515 | 174.687 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515AAA174M703BAGR | Skyworks Solutions Inc. | Si515 | 174.703 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515ABB212M500BAGR | Skyworks Solutions Inc. | Si515 | 212.5 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515ABB250M000BAGR | Skyworks Solutions Inc. | Si515 | 250 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515ACA250M000BAGR | Skyworks Solutions Inc. | Si515 | 250 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515BAA000123BAGR | Skyworks Solutions Inc. | Si515 | 123 kHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BCA180M000BAGR | Skyworks Solutions Inc. | Si515 | 180 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515FBA180M000BAGR | Skyworks Solutions Inc. | Si515 | 180 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515FCA200M000BAGR | Skyworks Solutions Inc. | Si515 | 200 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515FCA212M500BAGR | Skyworks Solutions Inc. | Si515 | 212.5 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515ACA200M000BAGR | Skyworks Solutions Inc. | Si515 | 200 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515ACA200M000CAGR | Skyworks Solutions Inc. | Si515 | 200 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515ACA204M800CAGR | Skyworks Solutions Inc. | Si515 | 204.8 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515BCA240M000BAGR | Skyworks Solutions Inc. | Si515 | 240 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515AAA200M000CAGR | Skyworks Solutions Inc. | Si515 | 200 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515AAA161M132BAG | Skyworks Solutions Inc. | Si515 | 161.132 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515AAB156M250BAG | Skyworks Solutions Inc. | Si515 | 156.25 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515ABB155M520BAG | Skyworks Solutions Inc. | Si515 | 155.52 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515ACA000292BAG | Skyworks Solutions Inc. | Si515 | 292 kHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515ACB155M520BAG | Skyworks Solutions Inc. | Si515 | 155.52 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515BAA000108BAG | Skyworks Solutions Inc. | Si515 | 108 kHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BAA155M520BAG | Skyworks Solutions Inc. | Si515 | 155.52 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BAA156M250BAG | Skyworks Solutions Inc. | Si515 | 156.25 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BBA155M520BAG | Skyworks Solutions Inc. | Si515 | 155.52 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BBA156M250BAG | Skyworks Solutions Inc. | Si515 | 156.25 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BBB153M600BAG | Skyworks Solutions Inc. | Si515 | 153.6 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BCA135M000BAG | Skyworks Solutions Inc. | Si515 | 135 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BDA153M600BAG | Skyworks Solutions Inc. | Si515 | 153.6 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BDA156M250BAG | Skyworks Solutions Inc. | Si515 | 156.25 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515FBA148M352BAG | Skyworks Solutions Inc. | Si515 | 148.352 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515FBA148M500BAG | Skyworks Solutions Inc. | Si515 | 148.5 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515FCB135M000BAG | Skyworks Solutions Inc. | Si515 | 135 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515FBA135M000BAG | Skyworks Solutions Inc. | Si515 | 135 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515FBA135M000CAG | Skyworks Solutions Inc. | Si515 | 135 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515ADA131M072AAG | Skyworks Solutions Inc. | Si515 | 131.072 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515ACB78M0000BAG | Skyworks Solutions Inc. | Si515 | 78 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515BAA125M000BAG | Skyworks Solutions Inc. | Si515 | 125 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BAB125M000BAG | Skyworks Solutions Inc. | Si515 | 125 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BBA125M000BAG | Skyworks Solutions Inc. | Si515 | 125 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BBB125M000BAG | Skyworks Solutions Inc. | Si515 | 125 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BCA122M880BAG | Skyworks Solutions Inc. | Si515 | 122.88 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BCA125M000BAG | Skyworks Solutions Inc. | Si515 | 125 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BCA27M0000BAG | Skyworks Solutions Inc. | Si515 | 27 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BDA26M0000BAG | Skyworks Solutions Inc. | Si515 | 26 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BDA27M0000BAG | Skyworks Solutions Inc. | Si515 | 27 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515FBB125M000BAG | Skyworks Solutions Inc. | Si515 | 125 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515FCA125M000BAG | Skyworks Solutions Inc. | Si515 | 125 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BBA122M880BAG | Skyworks Solutions Inc. | Si515 | 122.88 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BCA24M0000BAG | Skyworks Solutions Inc. | Si515 | 24 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515FCB125M000BAG | Skyworks Solutions Inc. | Si515 | 125 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BCB27M0000CAG | Skyworks Solutions Inc. | Si515 | 27 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515ACA27M0000BAG | Skyworks Solutions Inc. | Si515 | 27 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515ACA004723CAG | Skyworks Solutions Inc. | Si515 | 24.545454 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515BCB100M000CAG | Skyworks Solutions Inc. | Si515 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BAA100M000CAG | Skyworks Solutions Inc. | Si515 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BCB25M0000BAG | Skyworks Solutions Inc. | Si515 | 25 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515ACA100M000CAG | Skyworks Solutions Inc. | Si515 | 100 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515ACA125M000CAG | Skyworks Solutions Inc. | Si515 | 125 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515BCA100M000CAG | Skyworks Solutions Inc. | Si515 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515ACAM457000CAG | Skyworks Solutions Inc. | Si515 | 457 kHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515ACA122M880CAG | Skyworks Solutions Inc. | Si515 | 122.88 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515BCA10M0000BAG | Skyworks Solutions Inc. | Si515 | 10 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515ACA10M0000CAG | Skyworks Solutions Inc. | Si515 | 10 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515BCA122M880CAG | Skyworks Solutions Inc. | Si515 | 122.88 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515ACA100M000BAG | Skyworks Solutions Inc. | Si515 | 100 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515ACA61M4400BAG | Skyworks Solutions Inc. | Si515 | 61.44 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515AAA161M132BAGR | Skyworks Solutions Inc. | Si515 | 161.132 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515AAB156M250BAGR | Skyworks Solutions Inc. | Si515 | 156.25 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515ABB155M520BAGR | Skyworks Solutions Inc. | Si515 | 155.52 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515ACA000292BAGR | Skyworks Solutions Inc. | Si515 | 292 kHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515ACB155M520BAGR | Skyworks Solutions Inc. | Si515 | 155.52 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515BAA000108BAGR | Skyworks Solutions Inc. | Si515 | 108 kHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BAA155M520BAGR | Skyworks Solutions Inc. | Si515 | 155.52 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BAA156M250BAGR | Skyworks Solutions Inc. | Si515 | 156.25 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BBA155M520BAGR | Skyworks Solutions Inc. | Si515 | 155.52 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BBA156M250BAGR | Skyworks Solutions Inc. | Si515 | 156.25 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BBB153M600BAGR | Skyworks Solutions Inc. | Si515 | 153.6 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BCA135M000BAGR | Skyworks Solutions Inc. | Si515 | 135 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BDA153M600BAGR | Skyworks Solutions Inc. | Si515 | 153.6 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BDA156M250BAGR | Skyworks Solutions Inc. | Si515 | 156.25 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515FBA148M352BAGR | Skyworks Solutions Inc. | Si515 | 148.352 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515FBA148M500BAGR | Skyworks Solutions Inc. | Si515 | 148.5 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515FCB135M000BAGR | Skyworks Solutions Inc. | Si515 | 135 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515FBA135M000BAGR | Skyworks Solutions Inc. | Si515 | 135 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515FBA135M000CAGR | Skyworks Solutions Inc. | Si515 | 135 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BAA004636BAGR | Skyworks Solutions Inc. | Si515 | 167.33165 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515ACA156M250CAGR | Skyworks Solutions Inc. | Si515 | 156.25 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515BCA156M250CAGR | Skyworks Solutions Inc. | Si515 | 156.25 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BAA155M520CAGR | Skyworks Solutions Inc. | Si515 | 155.52 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BCA148M500CAGR | Skyworks Solutions Inc. | Si515 | 148.5 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BDA156M250CAGR | Skyworks Solutions Inc. | Si515 | 156.25 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BCA148M350CAGR | Skyworks Solutions Inc. | Si515 | 148.35 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515ACA77M7600AAG | Skyworks Solutions Inc. | Si515 | 77.76 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515ACAM614400AAG | Skyworks Solutions Inc. | Si515 | 6.144 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515BCA10M0000AAG | Skyworks Solutions Inc. | Si515 | 10 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BCB70M6560AAG | Skyworks Solutions Inc. | Si515 | 70.656 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BDA27M0000AAG | Skyworks Solutions Inc. | Si515 | 27 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515AAA125M000AAGR | Skyworks Solutions Inc. | Si515 | 125 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515AAA25M0000AAGR | Skyworks Solutions Inc. | Si515 | 25 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515AAA7M10000AAGR | Skyworks Solutions Inc. | Si515 | 7.1 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515ABA25M0000AAGR | Skyworks Solutions Inc. | Si515 | 25 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515ABA80M0000AAGR | Skyworks Solutions Inc. | Si515 | 80 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515ACA106M250AAGR | Skyworks Solutions Inc. | Si515 | 106.25 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515ACA10M0000AAGR | Skyworks Solutions Inc. | Si515 | 10 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515ACA10M7000AAGR | Skyworks Solutions Inc. | Si515 | 10.7 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515ACA54M0000AAGR | Skyworks Solutions Inc. | Si515 | 54 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515ACAM100000AAGR | Skyworks Solutions Inc. | Si515 | 100 kHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515ACB10M0000AAGR | Skyworks Solutions Inc. | Si515 | 10 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515ACB44M1000AAGR | Skyworks Solutions Inc. | Si515 | 44.1 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515ADA50M0000AAGR | Skyworks Solutions Inc. | Si515 | 50 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515BAA125M000AAGR | Skyworks Solutions Inc. | Si515 | 125 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BAA25M0000AAGR | Skyworks Solutions Inc. | Si515 | 25 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BBA100M000AAGR | Skyworks Solutions Inc. | Si515 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BBA122M880AAGR | Skyworks Solutions Inc. | Si515 | 122.88 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BBA70M6560AAGR | Skyworks Solutions Inc. | Si515 | 70.656 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BBA74M2500AAGR | Skyworks Solutions Inc. | Si515 | 74.25 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BBB70M6560AAGR | Skyworks Solutions Inc. | Si515 | 70.656 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BCA100M000AAGR | Skyworks Solutions Inc. | Si515 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BCA105M000AAGR | Skyworks Solutions Inc. | Si515 | 105 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BCA106M250AAGR | Skyworks Solutions Inc. | Si515 | 106.25 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BCA27M0000AAGR | Skyworks Solutions Inc. | Si515 | 27 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BDA30M7200AAGR | Skyworks Solutions Inc. | Si515 | 30.72 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515EDA125M000AAGR | Skyworks Solutions Inc. | Si515 | 125 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515EDA50M0000AAGR | Skyworks Solutions Inc. | Si515 | 50 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515FCA10M0000AAGR | Skyworks Solutions Inc. | Si515 | 10 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515ABA70M6560AAGR | Skyworks Solutions Inc. | Si515 | 70.656 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515BCA20M0000AAGR | Skyworks Solutions Inc. | Si515 | 20 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515FCA26M0000AAGR | Skyworks Solutions Inc. | Si515 | 26 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BCB125M000AAGR | Skyworks Solutions Inc. | Si515 | 125 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515ABA40M0000AAGR | Skyworks Solutions Inc. | Si515 | 40 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515ACA40M0000AAGR | Skyworks Solutions Inc. | Si515 | 40 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515AAA174M687BAG | Skyworks Solutions Inc. | Si515 | 174.687 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515AAA174M703BAG | Skyworks Solutions Inc. | Si515 | 174.703 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515ABB212M500BAG | Skyworks Solutions Inc. | Si515 | 212.5 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515ABB250M000BAG | Skyworks Solutions Inc. | Si515 | 250 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515ACA250M000BAG | Skyworks Solutions Inc. | Si515 | 250 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515BAA000123BAG | Skyworks Solutions Inc. | Si515 | 123 kHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BCA180M000BAG | Skyworks Solutions Inc. | Si515 | 180 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BCA200M000BAG | Skyworks Solutions Inc. | Si515 | 200 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515FBA180M000BAG | Skyworks Solutions Inc. | Si515 | 180 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515FCA200M000BAG | Skyworks Solutions Inc. | Si515 | 200 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515FCA212M500BAG | Skyworks Solutions Inc. | Si515 | 212.5 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515ACA200M000BAG | Skyworks Solutions Inc. | Si515 | 200 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515ACA204M800CAG | Skyworks Solutions Inc. | Si515 | 204.8 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515AAA200M000CAG | Skyworks Solutions Inc. | Si515 | 200 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515BCA240M000BAG | Skyworks Solutions Inc. | Si515 | 240 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515ACA200M000CAG | Skyworks Solutions Inc. | Si515 | 200 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515AAB167M332AAGR | Skyworks Solutions Inc. | Si515 | 167.332 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515ABA155M520AAGR | Skyworks Solutions Inc. | Si515 | 155.52 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515ACA148M350AAGR | Skyworks Solutions Inc. | Si515 | 148.35 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515ACA155M520AAGR | Skyworks Solutions Inc. | Si515 | 155.52 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515ACA156M254AAGR | Skyworks Solutions Inc. | Si515 | 156.254 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515BAA148M000AAGR | Skyworks Solutions Inc. | Si515 | 148 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BAA148M500AAGR | Skyworks Solutions Inc. | Si515 | 148.5 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BBA148M350AAGR | Skyworks Solutions Inc. | Si515 | 148.35 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BBA148M500AAGR | Skyworks Solutions Inc. | Si515 | 148.5 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BCA134M100AAGR | Skyworks Solutions Inc. | Si515 | 134.1 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BCA144M795AAGR | Skyworks Solutions Inc. | Si515 | 144.795 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BCA148M500AAGR | Skyworks Solutions Inc. | Si515 | 148.5 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BCA169M406AAGR | Skyworks Solutions Inc. | Si515 | 169.406 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515EDA156M250AAGR | Skyworks Solutions Inc. | Si515 | 156.25 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515ACA144M575AAGR | Skyworks Solutions Inc. | Si515 | 144.575 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515BAA156M250AAGR | Skyworks Solutions Inc. | Si515 | 156.25 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BCA156M250AAGR | Skyworks Solutions Inc. | Si515 | 156.25 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515ACA144M390AAGR | Skyworks Solutions Inc. | Si515 | 144.39 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515BBA156M250AAGR | Skyworks Solutions Inc. | Si515 | 156.25 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515ACA40M0000AAG | Skyworks Solutions Inc. | Si515 | 40 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515BCB125M000AAG | Skyworks Solutions Inc. | Si515 | 125 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515FCA26M0000AAG | Skyworks Solutions Inc. | Si515 | 26 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515ABA40M0000AAG | Skyworks Solutions Inc. | Si515 | 40 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515AAA125M000AAG | Skyworks Solutions Inc. | Si515 | 125 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515AAA25M0000AAG | Skyworks Solutions Inc. | Si515 | 25 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515AAA7M10000AAG | Skyworks Solutions Inc. | Si515 | 7.1 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515ABA25M0000AAG | Skyworks Solutions Inc. | Si515 | 25 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515ABA80M0000AAG | Skyworks Solutions Inc. | Si515 | 80 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515ACA106M250AAG | Skyworks Solutions Inc. | Si515 | 106.25 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515ACA10M0000AAG | Skyworks Solutions Inc. | Si515 | 10 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515ACA10M7000AAG | Skyworks Solutions Inc. | Si515 | 10.7 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515ACA54M0000AAG | Skyworks Solutions Inc. | Si515 | 54 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515ACAM100000AAG | Skyworks Solutions Inc. | Si515 | 100 kHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515ACB10M0000AAG | Skyworks Solutions Inc. | Si515 | 10 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515ACB44M1000AAG | Skyworks Solutions Inc. | Si515 | 44.1 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515ADA50M0000AAG | Skyworks Solutions Inc. | Si515 | 50 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515BAA125M000AAG | Skyworks Solutions Inc. | Si515 | 125 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BAA25M0000AAG | Skyworks Solutions Inc. | Si515 | 25 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BBA100M000AAG | Skyworks Solutions Inc. | Si515 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BBA122M880AAG | Skyworks Solutions Inc. | Si515 | 122.88 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BBA70M6560AAG | Skyworks Solutions Inc. | Si515 | 70.656 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BBA74M2500AAG | Skyworks Solutions Inc. | Si515 | 74.25 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BBB70M6560AAG | Skyworks Solutions Inc. | Si515 | 70.656 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BCA100M000AAG | Skyworks Solutions Inc. | Si515 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BCA105M000AAG | Skyworks Solutions Inc. | Si515 | 105 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BCA106M250AAG | Skyworks Solutions Inc. | Si515 | 106.25 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BCA27M0000AAG | Skyworks Solutions Inc. | Si515 | 27 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515BDA30M7200AAG | Skyworks Solutions Inc. | Si515 | 30.72 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515EDA125M000AAG | Skyworks Solutions Inc. | Si515 | 125 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515EDA50M0000AAG | Skyworks Solutions Inc. | Si515 | 50 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515FCA10M0000AAG | Skyworks Solutions Inc. | Si515 | 10 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515ABA70M6560AAG | Skyworks Solutions Inc. | Si515 | 70.656 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515BCA20M0000AAG | Skyworks Solutions Inc. | Si515 | 20 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 26mA |
| 515AAB174M703AAGR | Skyworks Solutions Inc. | Si515 | 174.703 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
| 515ABA170M240AAGR | Skyworks Solutions Inc. | Si515 | 170.24 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 46mA |
深圳市亿金电子有限公司 SHENZHEN YIJIN ELECTRONICS CO;LTD
联系人黄娜：18924600166
工作QQ:857950243
贸易通：yijindz2014
座机：0755-27876565
邮箱:yijindz@163.com
网址：
微信：yijindz，公众号：NDKcrystal
地址：广东省深圳市宝安区107国道旁甲岸路
跟此产品相关的产品 / Related Products
- AEK晶振,A072-151.2M1,进口安克晶振,151.2MHz,石英晶振,7050贴片晶振
AEK晶振,A072-151.2M1,进口安克晶振,151.2MHz,石英晶振,7050贴片晶振
俄国进口晶振，AEK晶振，安克晶振，型号：A072系列，编码为：A072-151.2M1，频率为：151.2MHz，小体积晶振尺寸：7.0x5.0mm，10垫脚贴片晶振，SAW滤波器，无源晶振，石英晶振，石英晶体谐振器，SMD晶振，无铅环保晶振，具有超小型，轻薄型，高性能，高品质，高质量等特点。进口晶振，应用于：通讯设备晶振，无线网络晶振，蓝牙模块晶振，物联网晶振，消费电子晶振，仪器仪表设备，数码电子等应用。AEK 拥有自己的生产基地，提供完整的生产周期。我们的技术包括科学密集型工艺，例如具有纳米技术精度的薄膜沉积、投影亚微米光刻、激光加工等。使用世界领先制造商的测量设备对产品进行 100% 的质量控制。我们的生产已通过 ISO 9001：2015 标准认证。
- 4HF050000Z3BACXGI8,Renesas进口晶振,3225mm,差分晶体振荡器
- 4HF050000Z3BACXGI8,Renesas进口晶振,3225mm,差分晶体振荡器，美国进口晶振，Renesas晶振，瑞萨电子晶振，型号：4HF系列晶振，编码为：4HF050000Z3BACXGI8，频率为：50MHz，电源电压：2.5V，频率稳定性：±50ppm，工作温度范围：-40℃至+85℃，小体积尺寸：3.2x2.5mm封装，LVPECL输出差分晶振，MEMS振荡器，六脚贴片晶振，石英晶振，差分晶体振荡器，有源晶振，石英晶体振荡器。具有超小型，轻薄型，低抖动，低相位噪声，低电平，低电源电压，低损耗，低耗能，低功耗等特点。应用于以太网晶振，路由器晶振，交换机晶振，光纤通道晶振，物联网等应用。
- CWX813-060.0M,7050mm,ConnorWinfield有源晶振,GPS应用晶振
- CWX813-060.0M,7050mm,ConnorWinfield有源晶振,GPS应用晶振，美国进口晶振，ConnorWinfield晶振，康纳温菲尔德晶振，型号：CWX8xx系列，编码为：CWX813-060.0M，频率为：60MHz，工作电压3.3V，CMOS输出逻辑，工作温度范围：-20℃至+70℃，小体积晶振尺寸：5.0x7.0mm表面安装，四脚贴片晶振，有源晶振，固定频率晶体控制振荡器（XO）。设计用于需要紧密的频率稳定性和低抖动的应用程序。表面安装包是设计为高密度安装，是最佳的大规模生产。符合RoHS标准，应用于：通讯设备晶振，无线网络晶振，导航晶振，蓝牙模块晶振，GPS定位系统，导航仪，物联网等应用。
亿金电子产品中心
Product Center
晶振系列
日本进口晶振
- 京瓷晶振
- 精工晶振
- 西铁城晶振
- 村田晶振
- 大河晶振
- KDS Quartz crystal
- NDK Quartz crystal
- EPSON Quartz crystal
- 富士晶振
- NAKA晶振
- SMI晶振
- NJR晶振
台产晶振
欧美晶振
- CTS晶振
- 微晶晶振
- 瑞康晶振
- 康纳温菲尔德晶振
- 高利奇晶振
- Jauch晶振
- AbraconCrystal晶振
- 维管晶振
- ECScrystal晶振
- 日蚀晶振
- 拉隆晶振
- 格林雷晶振
- SiTimeCrystal晶振
- IDTcrystal晶振
- PletronicsCrystal晶振
- StatekCrystal晶振
- AEK晶振
- AEL晶振
- Cardinal晶振
- Crystek晶振
- Euroquartz晶振
- 福克斯晶振
- Frequency晶振
- GEYER晶振
- ILSI晶振
- KVG晶振
- MMDCOMP晶振
- MtronPTI晶振
- QANTEK晶振
- QuartzCom晶振
- QuartzChnik晶振
- SUNTSU晶振
- Transko晶振
- WI2WI晶振
- 韩国三呢晶振
- ITTI晶振
- ACT晶振
- Milliren晶振
- Lihom晶振
- rubyquartz晶振
- Oscilent晶振
- SHINSUNG晶振
- PDI晶振
- C-TECH晶振
- IQD晶振
- Microchip晶振
- Silicon晶振
- Fortiming晶振
- CORE晶振
- NIPPON晶振
- NIC晶振
- QVS晶振
- Bomar晶振
- Bliley晶振
- GED晶振
- FILTRONETICS晶振
- STD晶振
- Q-Tech晶振
- Anderson晶振
- Wenzel晶振
- NEL晶振
- EM晶振
- PETERMANN晶振
- FCD-Tech晶振
- HEC晶振
- FMI晶振
- Macrobizes晶振
- AXTAL晶振
- 瑞萨renesas晶振
- Skyworks晶振
有源晶振
雾化片
贴片晶振
32.768K
- 32.768K有源晶振
- 8.0x3.8晶振
- 7.1x3.3晶振
- 7.0x1.5晶振
- 5.0x1.8晶振
- 4.1x1.5晶振
- 3.2x1.5晶振
- 2.0x1.2晶振
- 1.6x1.0晶振
- 1.2x1.0晶振
- 圆柱晶振
声表面滤波器
石英晶振
KDS晶振
爱普生晶振
- EPSON 32.768K晶振
- EPSON无源晶振
- EPSON普通有源晶振
- EPSON压控晶振
- EPSON温补晶振
- EPSON压控温补晶振
- EPSON恒温晶振
- EPSON差分晶振
- EPSON可编程晶振
NDK晶振
温补晶振
联系亿金电子Contact us
亿金公众号
亿金微信号
