Microchip晶振,2520mm,VC-840A-EAE-FAAN-?25M0000000TR?,6G基站晶振
prevnext

Microchip晶振,2520mm,VC-840A-EAE-FAAN-?25M0000000TR?,6G基站晶振

频率：25MHZ

尺寸：2.5mm x 2.0mm

Microchip晶振,2520mm,VC-840A-EAE-FAAN-25M0000000TR,6G基站晶振,Microchip晶振,VC-840A-EAE-FAAN-25M0000000TR晶振,VC-840A有源晶体振荡器(XO)是一种具有CMOS输出的石英稳定方波发生器,使用基音或第三泛音晶体,在基音中振荡,导致非常低的抖动性能和一个单片提高可靠性和降低成本的集成电路,2520贴片晶振,6G基站晶振,存储区域网络晶振,光纤通道晶振,数字视频晶振,宽带接入晶振.
订购热线：0755-27876565
QQ咨询 点击这里给我发消息

yijin-1

Microchip晶振,2520mm,VC-840A-EAE-FAAN-25M0000000TR,6G基站晶振,Microchip晶振,VC-840A-EAE-FAAN-25M0000000TR晶振,VC-840A有源晶体振荡器(XO)是一种具有CMOS输出的石英稳定方波发生器,使用基音或第三泛音晶体,在基音中振荡,导致非常低的抖动性能和一个单片提高可靠性和降低成本的集成电路,2520贴片晶振,6G基站晶振,存储区域网络晶振,光纤通道晶振,数字视频晶振,宽带接入晶振.

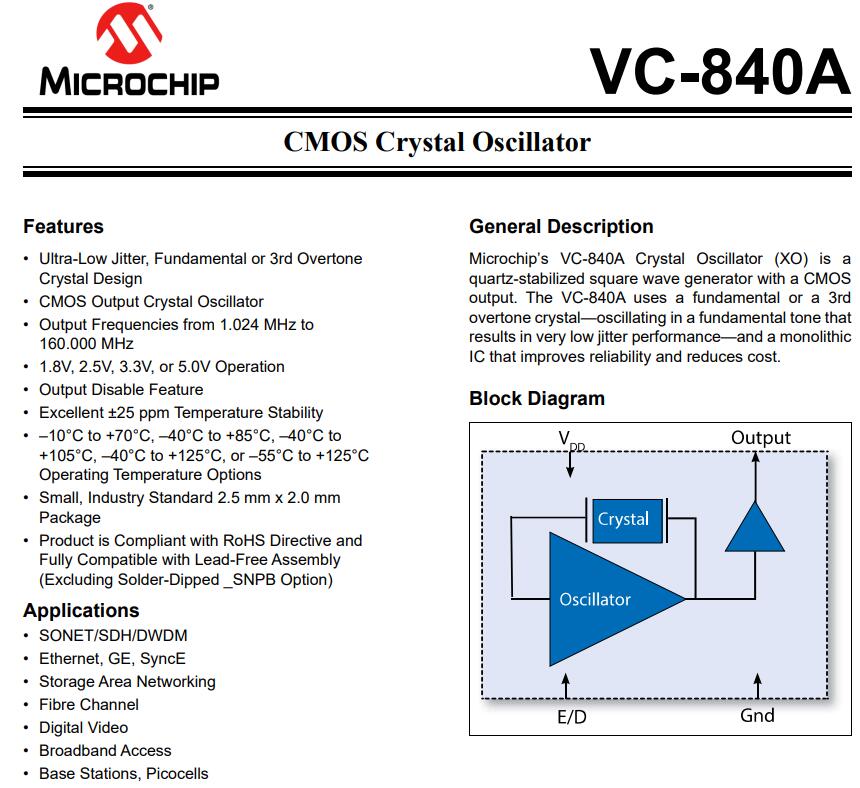

Microchip晶振,2520mm,VC-840A-EAE-FAAN-25M0000000TR,6G基站晶振特点：

•超低抖动，基本或第三泛音水晶设计

•CMOS输出晶体振荡器

•输出频率从1.024 MHz到160.000MHz

•1.8V, 2.5V, 3.3V, 5.0V操作

•输出禁用功能

•卓越的±25 ppm温度稳定性

•工作温度选择-10°C至+70°C， -40°C至+85°C， -40°C至+105°C， -40°C至+125°C或-55°C至+125°C

•小型，工业标准2.5mmx 2.0mm包装

•产品符合RoHS指令和与无铅组件完全兼容(不包括焊浸_SNPB选项)

yijin-2

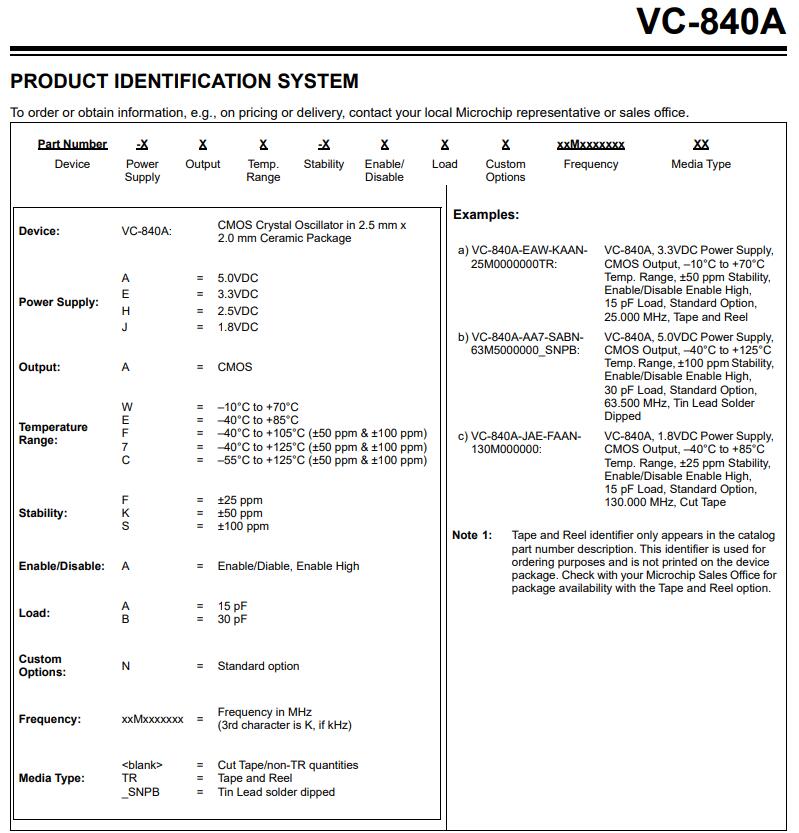

Microchip晶振,2520mm,VC-840A-EAE-FAAN-25M0000000TR,6G基站晶振规格表

项目 规格说明 条件
额定频率 25MHz 请联系我们以便获取其它可用频率的相关信息
电源电压 3.3V
储存温度 -55℃~+125℃ 裸存
工作温度 -40℃~ +85℃
频率稳定度 ±25ppm 包括由初始公差、温度和电源电压引起的频率变化
老化 ±5ppm
 1 year @ +25°C
电流 8mA Max 20.001 MHz to 40 MHz
负载 15pf
输出逻辑电平低（Vol） 0.1x VDD  Max
输出逻辑电平高（Voh） 0.9x VDD  Max
输出上升下降时间
 5ns Max
 20.001 MHz to 50 MHz
起始时间 10ms Max
占空比 45%~55%
周期抖动
 2.4ps 100MHz,RMS

yijin-3

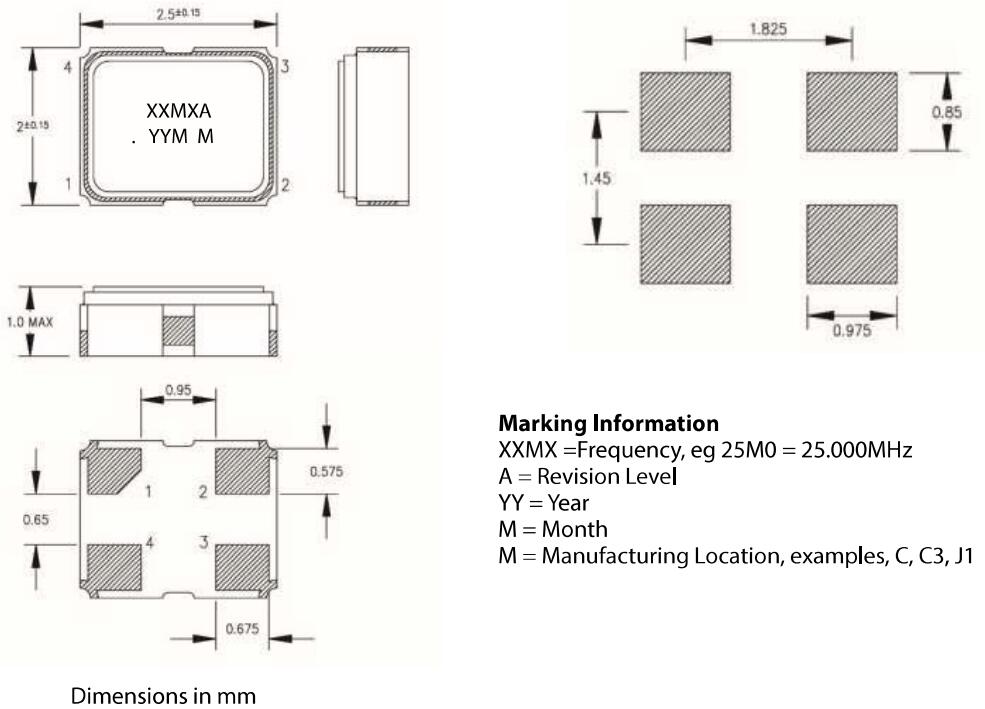

Microchip晶振,2520mm,VC-840A-EAE-FAAN-25M0000000TR,6G基站晶振尺寸图

VC-840A

VC-840A-1

VC-840A-4
