IQD晶振|IQXC-42晶振|LFXTAL063227Reel|2016晶振

频率：27.12MHZ

尺寸：2.0mm×1.6mm

IQD晶振|IQXC-42晶振|LFXTAL063227Reel|2016晶振,IQD晶振,IQXC-42进口晶振,石英贴片晶振,LFXTAL063227Reel晶振,无源晶振,石英晶体谐振器,2016mm贴片晶振,SMD晶体,四脚封装晶振,频率27.12MHz,负载12pF,频率容差30ppm,工作温度范围-40~85°C,轻薄小晶振,低老化晶振,高稳定性晶振,智能手机晶振,笔记本电脑晶振,无线路由器晶振,便携式设备晶振.

订购热线：0755-27876565

IQD晶振|IQXC-42晶振|LFXTAL063227Reel|2016晶振,IQD晶振,IQXC-42进口晶振,石英贴片晶振,LFXTAL063227Reel晶振,无源晶振,石英晶体谐振器,2016mm贴片晶振,SMD晶体,四脚封装晶振,频率27.12MHz,负载12pF,频率容差30ppm,工作温度范围-40~85°C,轻薄小晶振,低老化晶振,高稳定性晶振,智能手机晶振,笔记本电脑晶振,无线路由器晶振,便携式设备晶振.

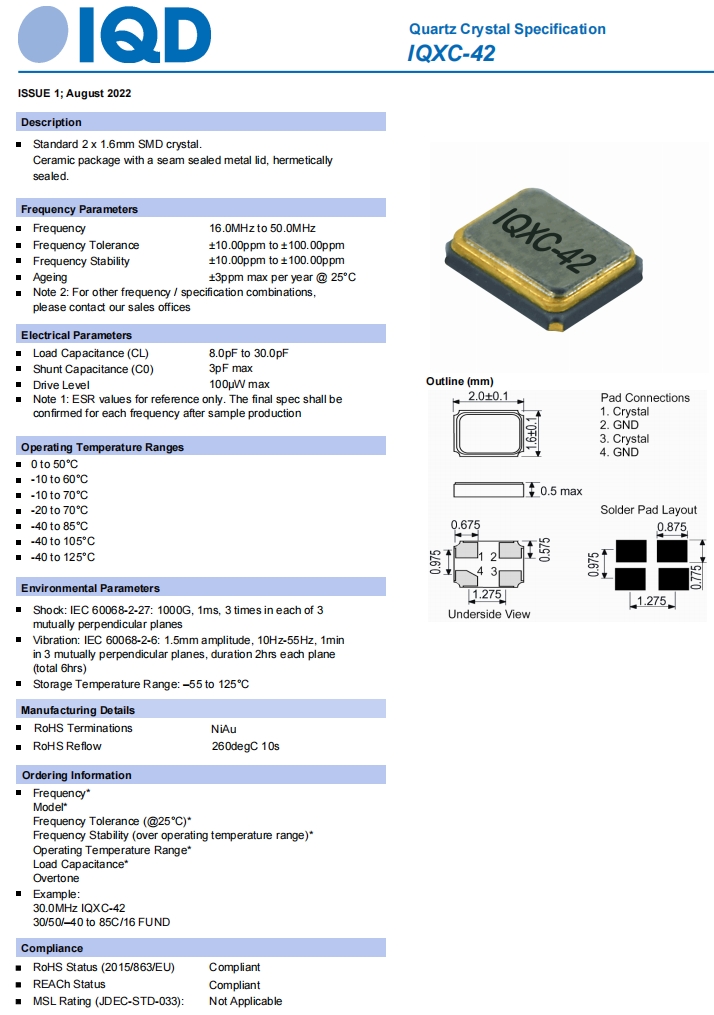

yijin-2 IQD晶振|IQXC-42晶振|LFXTAL063227Reel|2016晶振规格表

参数	数值
频率	27.12MHz
频率容差@ 25°C ± 3°C	±30ppm
频率稳定性	±50ppm
工作温度	-40~85°C
储存温度	-55~125°C
负载	12 pF
并联电容	7pF max
驱动电平	500µW max
老化@ 25°C ± 3°C	±5.0ppm max per year

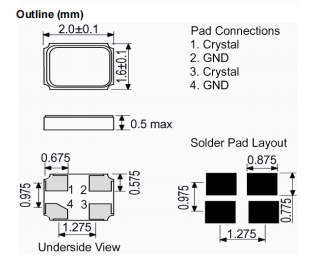

yijin-3 IQD晶振|IQXC-42晶振|LFXTAL063227Reel|2016晶振尺寸图

编码	型号	频率	频率容差	频率稳定性	工作温度	负载
LFXTAL078795Cutt	IQXC-42	16.0MHz	±15ppm	±50ppm	-40°C to 85°C	8.00pF
LFXTAL081780RL3K	IQXC-42	16.0MHz	±10ppm	±20ppm	-30°C to 85°C	8.00pF
LFXTAL081781RL3K	IQXC-42	16.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL081821Cutt	IQXC-42	16.0MHz	±10ppm	±15ppm	-30°C to 85°C	12.00pF
LFXTAL082887RL3K	IQXC-42	16.0MHz	±10ppm	±30ppm	-40°C to 105°C	10.00pF
LFXTAL059585Cutt	IQXC-42	20.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL059585Reel	IQXC-42	20.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL059585RL3K	IQXC-42	20.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL064174RL3K	IQXC-42	24.0MHz	±30ppm	±30ppm	-40°C to 85°C	12.00pF
LFXTAL066139Cutt	IQXC-42	24.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069476RL3K	IQXC-42	24.0MHz	±10ppm	±10ppm	-20°C to 75°C	12.00pF
LFXTAL069493Cutt	IQXC-42	24.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069493Reel	IQXC-42	24.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069493RL3K	IQXC-42	24.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL072577RL3K	IQXC-42	24.0MHz	±10ppm	±20ppm	-40°C to 85°C	18.00pF
LFXTAL076411Cutt	IQXC-42	24.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL076411RL3K	IQXC-42	24.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL081531RL3K	IQXC-42	24.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL081646RL3K	IQXC-42	24.0MHz	±15ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL082123Cutt	IQXC-42	24.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082123RL3K	IQXC-42	24.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL090516RL3K	IQXC-42	24.0MHz	±50ppm	±50ppm	-40°C to 85°C	12.00pF
LFXTAL054026Cutt	IQXC-42	25.0MHz	±25ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL059552Reel	IQXC-42	25.0MHz	±20ppm	±30ppm	-40°C to 85°C	12.00pF
LFXTAL064933Cutt	IQXC-42	25.0MHz	±30ppm	±30ppm	0°C to 50°C	10.00pF
LFXTAL066140Cutt	IQXC-42	25.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069494Bulk	IQXC-42	25.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069494Cutt	IQXC-42	25.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069494Reel	IQXC-42	25.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069494RL3K	IQXC-42	25.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL075431RL3K	IQXC-42	25.0MHz	±30ppm	±40ppm	-30°C to 85°C	6.00pF
LFXTAL082125Cutt	IQXC-42	25.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082125RL3K	IQXC-42	25.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL085846RL3K	IQXC-42	25.0MHz	±25ppm	±50ppm	-40°C to 125°C	10.00pF
LFXTAL090436RL3K	IQXC-42	25.0MHz	±10ppm	±20ppm	-40°C to 105°C	10.00pF
LFXTAL059591Cutt	IQXC-42	26.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL059591Reel	IQXC-42	26.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL059591RL3K	IQXC-42	26.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL066141Cutt	IQXC-42	26.0MHz	±15ppm	±15ppm	-20°C to 70°C	10.00pF
LFXTAL076879Bulk	IQXC-42	26.0MHz	±30ppm	±30ppm	-40°C to 85°C	12.00pF
LFXTAL078377RL3K	IQXC-42	26.0MHz	±10ppm	±10ppm	-20°C to 75°C	12.00pF
LFXTAL081595Cutt	IQXC-42	26.0MHz	±10ppm	±30ppm	-40°C to 85°C	8.00pF
LFXTAL082126Cutt	IQXC-42	26.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082126Reel	IQXC-42	26.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082126RL3K	IQXC-42	26.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL083241Cutt	IQXC-42	26.0MHz	±15ppm	±20ppm	-20°C to 70°C	8.00pF
LFXTAL059592Cutt	IQXC-42	27.0MHz	±15ppm	±15ppm	-40°C to 85°C	10.00pF
LFXTAL072543Cutt	IQXC-42	27.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL072543Reel	IQXC-42	27.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL072543RL3K	IQXC-42	27.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL081349Reel	IQXC-42	27.0MHz	±15ppm	±20ppm	-40°C to 85°C	12.00pF
LFXTAL083147RL3K	IQXC-42	27.0MHz	±10ppm	±10ppm	-20°C to 70°C	18.00pF
LFXTAL063227Reel	IQXC-42	27.12MHz	±30ppm	±50ppm	-40°C to 85°C	12.00pF
LFXTAL063227RL3K	IQXC-42	27.12MHz	±30ppm	±50ppm	-40°C to 85°C	12.00pF
LFXTAL071489Bulk	IQXC-42	27.12MHz	±30ppm	±30ppm	-20°C to 70°C	10.00pF
LFXTAL071489Cutt	IQXC-42	27.12MHz	±30ppm	±30ppm	-20°C to 70°C	10.00pF
LFXTAL071489RL3K	IQXC-42	27.12MHz	±30ppm	±30ppm	-20°C to 70°C	10.00pF
LFXTAL076164Cutt	IQXC-42	27.12MHz	±10ppm	±10ppm	-20°C to 70°C	8.00pF
LFXTAL076164Reel	IQXC-42	27.12MHz	±10ppm	±10ppm	-20°C to 70°C	8.00pF
LFXTAL081630Cutt	IQXC-42	27.12MHz	±10ppm	±10ppm	-20°C to 70°C	8.00pF
LFXTAL081630RL3K	IQXC-42	27.12MHz	±10ppm	±10ppm	-20°C to 70°C	8.00pF
LFXTAL082127Cutt	IQXC-42	27.12MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082127RL3K	IQXC-42	27.12MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL059596Cutt	IQXC-42	30.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL059596Reel	IQXC-42	30.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL059596RL3K	IQXC-42	30.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL082128Cutt	IQXC-42	30.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082128RL3K	IQXC-42	30.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL058002RL3K	IQXC-42	32.0MHz	±10ppm	±10ppm	0°C to 50°C	8.00pF
LFXTAL058004Cutt	IQXC-42	32.0MHz	±10ppm	±10ppm	-20°C to 70°C	8.00pF
LFXTAL058004RL3K	IQXC-42	32.0MHz	±10ppm	±10ppm	-20°C to 70°C	8.00pF
LFXTAL058067Cutt	IQXC-42	32.0MHz	±15ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL058130RL3K	IQXC-42	32.0MHz	±10ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL058699Cutt	IQXC-42	32.0MHz	±10ppm	±10ppm	-10°C to 60°C	10.00pF
LFXTAL058962RL3K	IQXC-42	32.0MHz	±10ppm	±15ppm	-20°C to 70°C	12.00pF
LFXTAL059597Cutt	IQXC-42	32.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL059597Reel	IQXC-42	32.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL059597RL3K	IQXC-42	32.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL061700Cutt	IQXC-42	32.0MHz	±20ppm	±30ppm	-40°C to 85°C	8.00pF
LFXTAL061700Reel	IQXC-42	32.0MHz	±20ppm	±30ppm	-40°C to 85°C	8.00pF
LFXTAL072861RL3K	IQXC-42	32.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL073170RL3K	IQXC-42	32.0MHz	±10ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL077362RL3K	IQXC-42	32.0MHz	±10ppm	±20ppm	-40°C to 85°C	6.00pF
LFXTAL081227RL3K	IQXC-42	32.0MHz	±30ppm	±50ppm	-40°C to 85°C	12.00pF
LFXTAL081538RL3K	IQXC-42	32.0MHz	±10ppm	±10ppm	-20°C to 75°C	8.00pF
LFXTAL081567Cutt	IQXC-42	32.0MHz	±10ppm	±10ppm	-20°C to 75°C	8.00pF
LFXTAL081839RL3K	IQXC-42	32.0MHz	±30ppm	±30ppm	-40°C to 85°C	6.00pF
LFXTAL082129Cutt	IQXC-42	32.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082129RL3K	IQXC-42	32.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL083004RL3K	IQXC-42	32.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL085946RL3K	IQXC-42	32.0MHz	±10ppm	±20ppm	-40°C to 105°C	12.00pF
LFXTAL088678RL3K	IQXC-42	32.768MHz	±30ppm	±50ppm	-20°C to 70°C	8.00pF
LFXTAL082130Cutt	IQXC-42	37.4MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082130RL3K	IQXC-42	37.4MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL059627Cutt	IQXC-42	38.4MHz	±15ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL059627Reel	IQXC-42	38.4MHz	±15ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL059627RL3K	IQXC-42	38.4MHz	±15ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL075418Cutt	IQXC-42	38.4MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL075418Reel	IQXC-42	38.4MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL078271Cutt	IQXC-42	38.4MHz	±10ppm	±20ppm	-40°C to 85°C	18.00pF
LFXTAL081635Cutt	IQXC-42	38.4MHz	±10ppm	±10ppm	-20°C to 70°C	8.00pF
LFXTAL081635RL3K	IQXC-42	38.4MHz	±10ppm	±10ppm	-20°C to 70°C	8.00pF
LFXTAL081883RL3K	IQXC-42	38.4MHz	±10ppm	±15ppm	-35°C to 85°C	8.00pF
LFXTAL082131Cutt	IQXC-42	38.4MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082131RL3K	IQXC-42	38.4MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082468Cutt	IQXC-42	38.4MHz	±10ppm	±15ppm	-40°C to 85°C	10.00pF
LFXTAL082468RL3K	IQXC-42	38.4MHz	±10ppm	±15ppm	-40°C to 85°C	10.00pF
LFXTAL059632Cutt	IQXC-42	40.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL059632Reel	IQXC-42	40.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL059632RL3K	IQXC-42	40.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL082132Cutt	IQXC-42	40.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082132Reel	IQXC-42	40.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082132RL3K	IQXC-42	40.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL090469RL3K	IQXC-42	43.935MHz	±20ppm	±30ppm	-40°C to 85°C	12.00pF
LFXTAL090628Reel	IQXC-42	45.761MHz	±20ppm	±30ppm	-40°C to 85°C	12.00pF
LFXTAL066363Cutt	IQXC-42	48.0MHz	±50ppm	±50ppm	-40°C to 85°C	12.00pF
LFXTAL072546Cutt	IQXC-42	48.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL072546Reel	IQXC-42	48.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL072546RL3K	IQXC-42	48.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL082135Cutt	IQXC-42	48.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082135RL3K	IQXC-42	48.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL079374Cutt	IQXC-42	50.0MHz	±15ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL085859RL3K	IQXC-42	50.0MHz	±10ppm	±50ppm	-40°C to 125°C	8.00pF
LFXTAL071255Cutt	IQXC-42 AUTO	16.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071255Reel	IQXC-42 AUTO	16.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071256Cutt	IQXC-42 AUTO	20.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071256Reel	IQXC-42 AUTO	20.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL082989Cutt	IQXC-42 AUTO	20.0MHz	±50ppm	±150ppm	-40°C to 150°C	8.00pF
LFXTAL082989Reel	IQXC-42 AUTO	20.0MHz	±50ppm	±150ppm	-40°C to 150°C	8.00pF
LFXTAL083912Cutt	IQXC-42 AUTO	20.0MHz	±30ppm	±45ppm	-40°C to 125°C	8.00pF
LFXTAL071257Cutt	IQXC-42 AUTO	24.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071257Reel	IQXC-42 AUTO	24.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071258Cutt	IQXC-42 AUTO	24.576MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071258Reel	IQXC-42 AUTO	24.576MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071259Cutt	IQXC-42 AUTO	25.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071259Reel	IQXC-42 AUTO	25.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071260Cutt	IQXC-42 AUTO	26.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071260Reel	IQXC-42 AUTO	26.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071261Cutt	IQXC-42 AUTO	27.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071261Reel	IQXC-42 AUTO	27.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071262Cutt	IQXC-42 AUTO	32.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071262Reel	IQXC-42 AUTO	32.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL084010Reel	IQXC-42 AUTO	32.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082907Cutt	IQXC-42 AUTO	38.4MHz	±20ppm	±80ppm	-40°C to 125°C	8.00pF
LFXTAL070734Cutt	IQXC-42 AUTO	40.0MHz	±50ppm	±100ppm	-40°C to 125°C	8.00pF
LFXTAL070734Reel	IQXC-42 AUTO	40.0MHz	±50ppm	±100ppm	-40°C to 125°C	8.00pF
LFXTAL071265Cutt	IQXC-42 AUTO	40.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071265Reel	IQXC-42 AUTO	40.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL090472Reel	IQXC-42 AUTO	43.935MHz	±20ppm	±30ppm	-40°C to 85°C	12.00pF
LFXTAL071266Cutt	IQXC-42 AUTO	48.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071266Reel	IQXC-42 AUTO	48.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071267Cutt	IQXC-42 AUTO	50.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071267Reel	IQXC-42 AUTO	50.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL077082Cutt	IQXC-49	8.0MHz	±50ppm	±100ppm	-20°C to 70°C	16.00pF
LFXTAL077089Cutt	IQXC-49	8.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL077089Reel	IQXC-49	8.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL084035Reel	IQXC-49	8.0MHz	±30ppm	±30ppm	-20°C to 70°C	12.00pF
LFXTAL084673Reel	IQXC-49	8.0MHz	±50ppm	±50ppm	-40°C to 85°C	8.00pF
LFXTAL085089Reel	IQXC-49	8.0MHz	±20ppm	±20ppm	-40°C to 85°C	20.00pF
LFXTAL077084Reel	IQXC-49	10.0MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL077086Reel	IQXC-49	10.0MHz	±30ppm	±30ppm	-20°C to 70°C	18.00pF
LFXTAL084712Reel	IQXC-49	11.0592MHz	±30ppm	±30ppm	-20°C to 70°C	18.00pF
LFXTAL077079Reel	IQXC-49	18.432MHz	±30ppm	±50ppm	-40°C to 85°C	18.00pF
LFXTAL084840Reel	IQXC-49	20.0MHz	±30ppm	±30ppm	-20°C to 70°C	18.00pF
LFXTAL077077Reel	IQXC-49	24.0MHz	±30ppm	±30ppm	-40°C to 85°C	20.00pF
LFXTAL081544Cutt	IQXC-49	24.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL077078Reel	IQXC-49	25.0MHz	±30ppm	±30ppm	-40°C to 85°C	20.00pF
LFXTAL077083Bulk	IQXC-49	25.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL077083Cutt	IQXC-49	25.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL077083Reel	IQXC-49	25.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL077085Cutt	IQXC-49	25.0MHz	±20ppm	±50ppm	-20°C to 70°C	18.00pF
LFXTAL083868Reel	IQXC-49	25.0MHz	±30ppm	±50ppm	-40°C to 85°C	20.00pF
LFXTAL080861Bulk	IQXC-49	27.12MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL084410Cutt	IQXC-49	30.0MHz	±30ppm	±30ppm	-20°C to 70°C	18.00pF
LFXTAL084410Reel	IQXC-49	30.0MHz	±30ppm	±30ppm	-20°C to 70°C	18.00pF

yijin-5

YJ-6

深圳市亿金电子有限公司 SHENZHEN YIJIN ELECTRONICS CO;LTD

mphone 联系人黄娜：18924600166

工作QQ:857950243

myt 贸易通：yijindz2014

tel 座机：0755-27876565

email 邮箱:yijindz@163.com

inter 网址：http://www.yijindz.com

mwx 微信：yijindz，公众号：NDKcrystal

home 地址：广东省深圳市宝安区107国道旁甲岸路

wxewm

IQD晶振 IQXC-42晶振 LFXTAL063227Reel 2016晶振

跟此产品相关的产品 / Related Products

: 1TJN090DP1A0004,进口大真空晶振,DST1210A,32.768K晶体; 1TJN090DP1A0004,进口大真空晶振,DST1210A,32.768K晶体 DST1210A贴片石英晶体谐振器，又简称为排带包装，有两脚和四脚两种引脚封装尺寸。产品采用排带盘式包装，使产品在焊接时能采用SMT自动贴片机高速的焊接，大大节约人工，提高工作效率。KDS晶振中的1TJN090DP1A0004 的频率是32.768K，负载电容为9PF，尺寸是1.2*1.0mm，为1210贴片晶振，是尺寸超小型四脚SMD音叉晶体谐振器，厚度仅为0.3mm，带有金属盖的陶瓷封装，提供高精度和可靠性，适用于移动通信、消费类设备、智能卡和可穿戴设备等。

FMXMC12S系列,2012贴片晶振,32.768K时钟晶振,FMI石英晶体,进口无源晶振

FMXMC12S系列,2012贴片晶振,32.768K时钟晶振,FMI石英晶体,进口无源晶振

美国进口FMI石英晶体中的FMXMC12S系列的频率是32.768KHz，负载电容为9.0 pF或12.5 pF，频率公差是±20ppm或±50ppm@ 25°C，工作温度范围为-40~85度，尺寸是2.0 x 1.2 mm，为2012贴片晶振，进口无源晶振，32.768K时钟晶振。2012 石英晶振可以说是一款超小型的贴片式石英晶体谐振器,2012 晶振的频率均是电子产品不可缺少的 32.768K 时钟晶振,FMXMC12S此款贴片晶振体积小型, 焊接可采用自动贴片焊接系统,满足无铅高温回流焊接曲线,可使用在小型高端的智能电子产品领域.

: A239-427.5M1,安克AEK晶振,俄罗斯晶振,5050晶振,SAW滤波器,贴片晶振,石英谐振器; A239-427.5M1,安克AEK晶振,俄罗斯晶振,5050晶振,SAW滤波器,贴片晶振,石英谐振器 AEK（成立于 1991 年 3 月）生产和销售用于无线电通信、导航、汽车和其他设备的电子元件。企业的主要产品是谐振器、窄带和宽带滤波器。AEK 拥有自己的生产基地，提供完整的生产周期。我们的技术包括科学密集型工艺，例如具有纳米技术精度的薄膜沉积、投影亚微米光刻、激光加工等。使用世界领先制造商的测量设备对产品进行 100% 的质量控制。俄罗斯晶振，AEK晶振，安克晶振，型号：A239系列，编码为：A239-427.5M1，频率为：427.5MHz，小体积晶振尺寸：5.0x5.0mm，8垫脚贴片晶振，SAW滤波器，无源晶振，石英晶振，石英晶体谐振器，SMD晶振，无铅环保晶振，具有超小型，轻薄型，高性能，高品质，高质量等特点。
