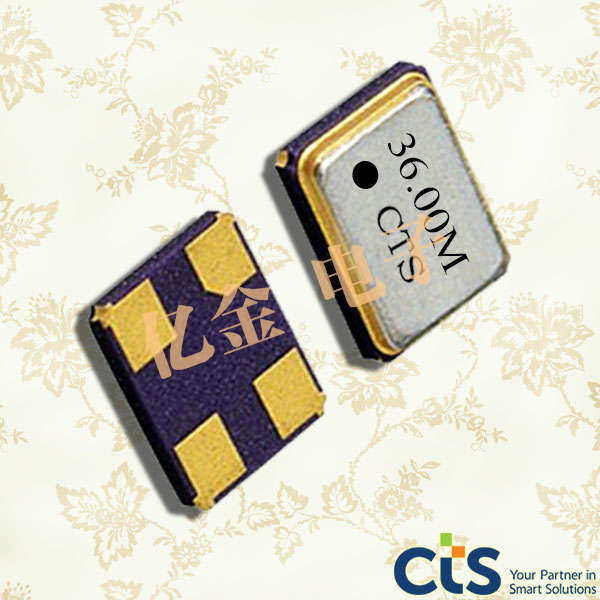

416F44022CKR|20PPM|44MHz|8PF|1612|CTS
频率：44MHZ

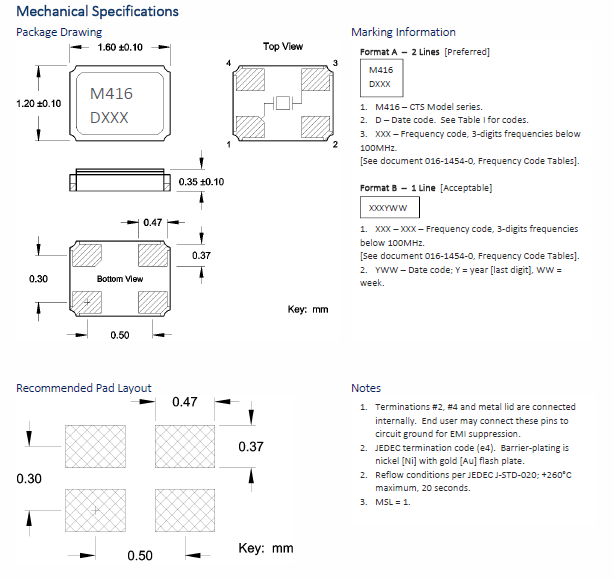

尺寸：1.6*1.2mm

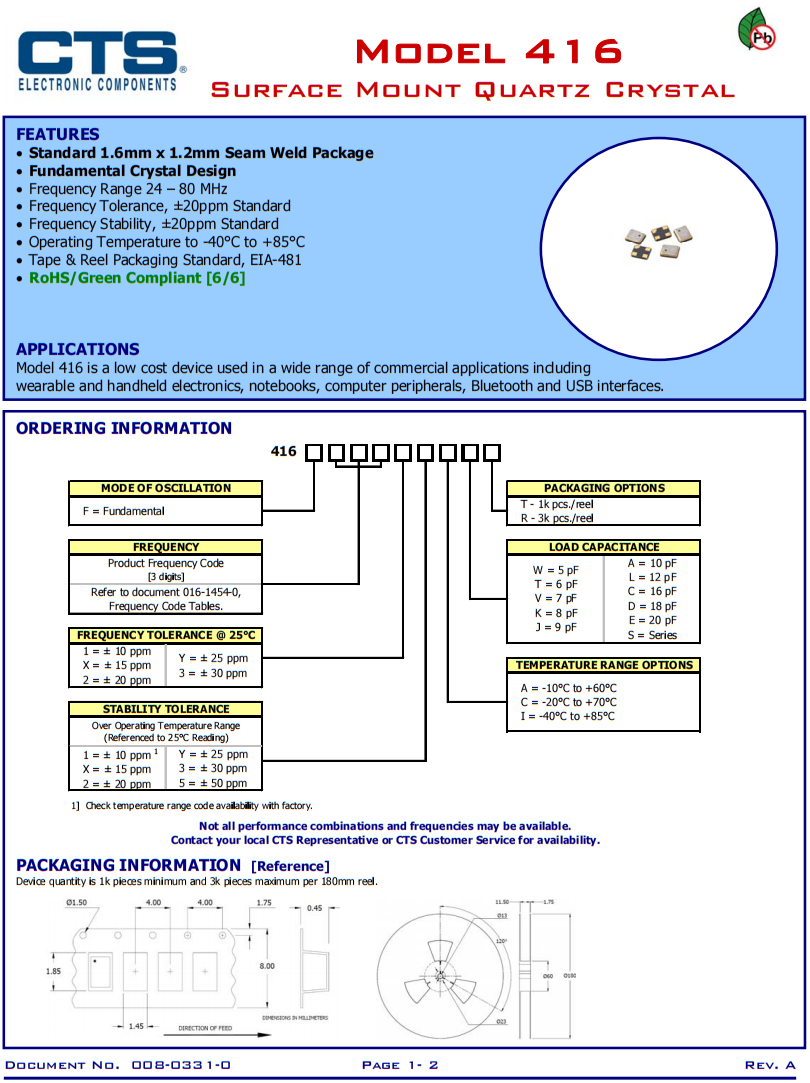

416F44022CKR|20PPM|44MHz|8PF|1612|CTS，美国进口贴片石英晶振,密封陶瓷表面安装封装?基本晶体设计?频率范围24-80MHz?频率公差，±20ppm标准?频率稳定性，±20ppm标准?工作温度范围到-40°C到+85°C?磁带和卷轴包装，EIA-418，可穿戴和手持式电子设备，无线通信，FPGA/微控制器，计算机外设，USB接口，测量设备，消费电子产品，高密度板布局，CTS416型采用了一个高Q石英谐振器，是支持广泛的商业和工业应用的理想选择。
订购热线：0755-27876565
416F44022CKR|20PPM|44MHz|8PF|1612|CTS，美国进口贴片石英晶振,密封陶瓷表面安装封装?基本晶体设计?频率范围24-80MHz?频率公差，±20ppm标准?频率稳定性，±20ppm标准?工作温度范围到-40°C到+85°C?磁带和卷轴包装，EIA-418，可穿戴和手持式电子设备，无线通信，FPGA/微控制器，计算机外设，USB接口，测量设备，消费电子产品，高密度板布局，CTS416型采用了一个高Q石英谐振器，是支持广泛的商业和工业应用的理想选择。
416F44022CKR|20PPM|44MHz|8PF|1612|CTS

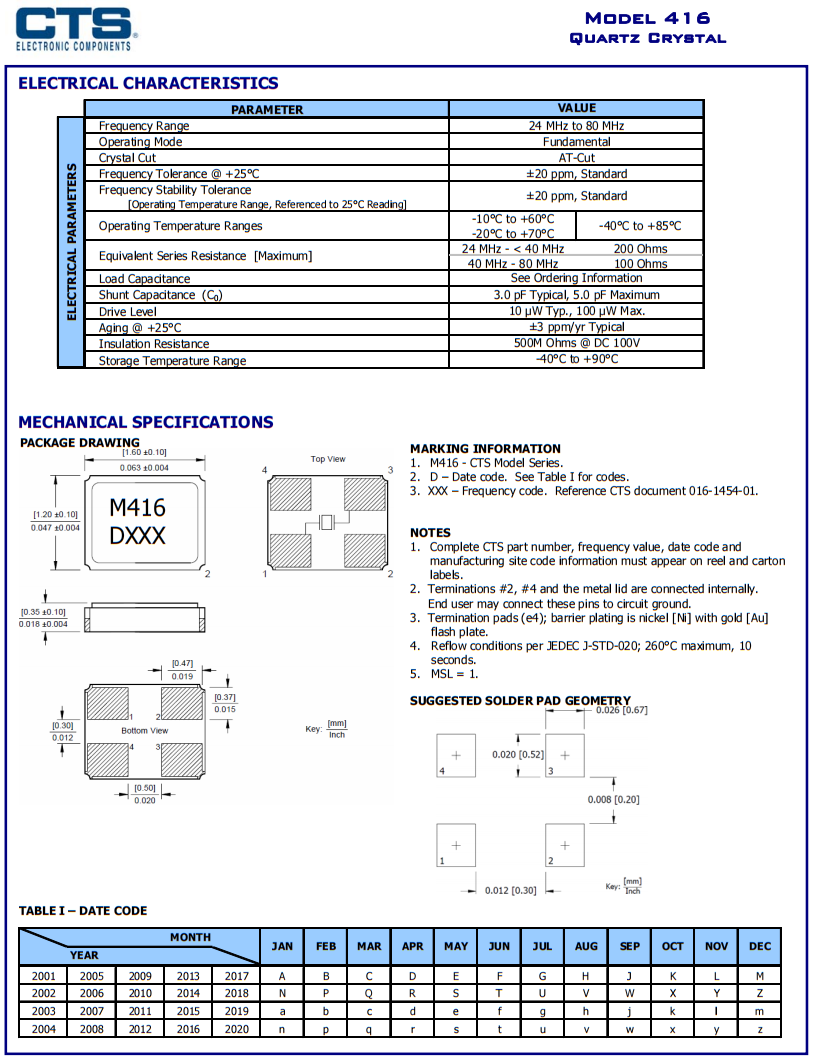

| 参数 | 标志 | 条件 | 最小值 | 典型的 | 最大值 | 单位 | |
| 工作温度 | TA | ‐ |
‐ 10 ‐ 20 ‐30 ‐40 |
+25 |
+60 +70 +85 +85 |
°C | |
| 储存温度 | TSTG | ‐ | ‐40 | ‐ | +90 | °C | |
| 频率范围 |
 O
|
‐ | 24 ‐ 80 | MHz | |||
| 容许频率 | Δf/fO | @ +25°C | 10, 15, 20, 25 or 30 | ±ppm | |||
| 频率稳定性 | Δf/f25 | Referenced to +25°C reading | 10, 15, 20, 25, 30 or 50 | ±ppm | |||
| 老化 | Δf/f0 | Typical per year @ +25°C |
‐ ±3 ‐ |
ppm | |||
| 工作模式 | ‐ | ‐ | Fundamental | ‐ | |||
| 水晶切割 | ‐ | ‐ | AT‐Cut Strip | ‐ | |||
| 负载电容 | CL | ‐ | See Ordering Information | pF | |||
| 分流电容 | C0 | ‐ |
‐ 3 .0 5 .0 |
pF | |||
|
串联电阻 基础的 |
R1 |
24MHz ‐ <30MHz 30MHz ‐ <37MHz 37MHz ‐ <80MHz |
‐ ‐ 120 ‐ ‐ 80 ‐ ‐ 60 |
? | |||
| 驱动电平 | DL | ‐ |
‐ 10 200 |
µW | |||
| 绝缘电阻 | Ri | +100Vdc ±15Vdc |
500 ‐ ‐ |
M? | |||
416F44022CKR|20PPM|44MHz|8PF|1612|CTS
| CTS原厂编码 | 生产厂家 | 型号 | 频率 | 频率偏差 | 负载电容 | Operating Temperature 工作温度 |
| 416F26022CKR | CTS晶振 | 416 | 26MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F26022CKR | CTS晶振 | 416 | 26MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F26022CKR | CTS晶振 | 416 | 26MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F27022CKR | CTS晶振 | 416 | 27MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F27022CKR | CTS晶振 | 416 | 27MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F27022CKR | CTS晶振 | 416 | 27MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F48022CKR | CTS晶振 | 416 | 48MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F48022CKR | CTS晶振 | 416 | 48MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F48022CKR | CTS晶振 | 416 | 48MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F52022CKR | CTS晶振 | 416 | 52MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F52022CKR | CTS晶振 | 416 | 52MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F52022CKR | CTS晶振 | 416 | 52MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F24022IKR | CTS晶振 | 416 | 24MHz | ±20ppm | 8pF | -40°C ~ 85°C |
| 416F24022IKR | CTS晶振 | 416 | 24MHz | ±20ppm | 8pF | -40°C ~ 85°C |
| 416F24022IKR | CTS晶振 | 416 | 24MHz | ±20ppm | 8pF | -40°C ~ 85°C |
| 416F32022IKR | CTS晶振 | 416 | 32MHz | ±20ppm | 8pF | -40°C ~ 85°C |
| 416F32022IKR | CTS晶振 | 416 | 32MHz | ±20ppm | 8pF | -40°C ~ 85°C |
| 416F32022IKR | CTS晶振 | 416 | 32MHz | ±20ppm | 8pF | -40°C ~ 85°C |
| 416F48022IKR | CTS晶振 | 416 | 48MHz | ±20ppm | 8pF | -40°C ~ 85°C |
| 416F48022IKR | CTS晶振 | 416 | 48MHz | ±20ppm | 8pF | -40°C ~ 85°C |
| 416F48022IKR | CTS晶振 | 416 | 48MHz | ±20ppm | 8pF | -40°C ~ 85°C |
| 416F52022IKR | CTS晶振 | 416 | 52MHz | ±20ppm | 8pF | -40°C ~ 85°C |
| 416F52022IKR | CTS晶振 | 416 | 52MHz | ±20ppm | 8pF | -40°C ~ 85°C |
| 416F52022IKR | CTS晶振 | 416 | 52MHz | ±20ppm | 8pF | -40°C ~ 85°C |
| 416F32022CKR | CTS晶振 | 416 | 32MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F32022CKR | CTS晶振 | 416 | 32MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F32022CKR | CTS晶振 | 416 | 32MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F30022CKR | CTS晶振 | 416 | 30MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F30022CKR | CTS晶振 | 416 | 30MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F30022CKR | CTS晶振 | 416 | 30MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F36022CKR | CTS晶振 | 416 | 36MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F36022CKR | CTS晶振 | 416 | 36MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F36022CKR | CTS晶振 | 416 | 36MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F40022CKR | CTS晶振 | 416 | 40MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F40022CKR | CTS晶振 | 416 | 40MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F40022CKR | CTS晶振 | 416 | 40MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F44022CKR | CTS晶振 | 416 | 44MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F44022CKR | CTS晶振 | 416 | 44MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F44022CKR | CTS晶振 | 416 | 44MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F26022IKR | CTS晶振 | 416 | 26MHz | ±20ppm | 8pF | -40°C ~ 85°C |
| 416F26022IKR | CTS晶振 | 416 | 26MHz | ±20ppm | 8pF | -40°C ~ 85°C |
| 416F26022IKR | CTS晶振 | 416 | 26MHz | ±20ppm | 8pF | -40°C ~ 85°C |
| 416F36022IKR | CTS晶振 | 416 | 36MHz | ±20ppm | 8pF | -40°C ~ 85°C |
| 416F36022IKR | CTS晶振 | 416 | 36MHz | ±20ppm | 8pF | -40°C ~ 85°C |
| 416F36022IKR | CTS晶振 | 416 | 36MHz | ±20ppm | 8pF | -40°C ~ 85°C |
| 416F40022IKR | CTS晶振 | 416 | 40MHz | ±20ppm | 8pF | -40°C ~ 85°C |
| 416F40022IKR | CTS晶振 | 416 | 40MHz | ±20ppm | 8pF | -40°C ~ 85°C |
| 416F40022IKR | CTS晶振 | 416 | 40MHz | ±20ppm | 8pF | -40°C ~ 85°C |
| 416F24011AAR | CTS晶振 | 416 | 24MHz | ±10ppm | 10pF | -10°C ~ 60°C |
| 416F24011ADR | CTS晶振 | 416 | 24MHz | ±10ppm | 18pF | -10°C ~ 60°C |
| 416F24011AKR | CTS晶振 | 416 | 24MHz | ±10ppm | 8pF | -10°C ~ 60°C |
| 416F24011ALR | CTS晶振 | 416 | 24MHz | ±10ppm | 12pF | -10°C ~ 60°C |
| 416F24011ASR | CTS晶振 | 416 | 24MHz | ±10ppm | Series | -10°C ~ 60°C |
| 416F24011ATR | CTS晶振 | 416 | 24MHz | ±10ppm | 6pF | -10°C ~ 60°C |
| 416F24011CAR | CTS晶振 | 416 | 24MHz | ±10ppm | 10pF | -20°C ~ 70°C |
| 416F24011CDR | CTS晶振 | 416 | 24MHz | ±10ppm | 18pF | -20°C ~ 70°C |
| 416F24011CKR | CTS晶振 | 416 | 24MHz | ±10ppm | 8pF | -20°C ~ 70°C |
| 416F24011CLR | CTS晶振 | 416 | 24MHz | ±10ppm | 12pF | -20°C ~ 70°C |
| 416F24011CSR | CTS晶振 | 416 | 24MHz | ±10ppm | Series | -20°C ~ 70°C |
| 416F24011CTR | CTS晶振 | 416 | 24MHz | ±10ppm | 6pF | -20°C ~ 70°C |
| 416F24012AAR | CTS晶振 | 416 | 24MHz | ±10ppm | 10pF | -10°C ~ 60°C |
| 416F24012ADR | CTS晶振 | 416 | 24MHz | ±10ppm | 18pF | -10°C ~ 60°C |
| 416F24012AKR | CTS晶振 | 416 | 24MHz | ±10ppm | 8pF | -10°C ~ 60°C |
| 416F24012ALR | CTS晶振 | 416 | 24MHz | ±10ppm | 12pF | -10°C ~ 60°C |
| 416F24012ASR | CTS晶振 | 416 | 24MHz | ±10ppm | Series | -10°C ~ 60°C |
| 416F24012ATR | CTS晶振 | 416 | 24MHz | ±10ppm | 6pF | -10°C ~ 60°C |
| 416F24012CAR | CTS晶振 | 416 | 24MHz | ±10ppm | 10pF | -20°C ~ 70°C |
| 416F24012CDR | CTS晶振 | 416 | 24MHz | ±10ppm | 18pF | -20°C ~ 70°C |
| 416F24012CKR | CTS晶振 | 416 | 24MHz | ±10ppm | 8pF | -20°C ~ 70°C |
