SG5032VAN 156.250000M-KEGA3 156.25M 5032 -40~125℃ 30PPM

频率：156.25MHZ

尺寸：5.0x3.2mm

SG5032VAN 156.250000M-KEGA3 156.25M 5032 -40~125℃ 30PPM，日本EPSON晶振公司，5032mm晶振,贴片晶振,爱普生晶振,SG5032VAN 156.250000M-KEGA3晶振,日本进口晶振,高品质晶振,SG5032晶振,汽车氛围灯控制器晶振,汽车液晶仪表盘晶振，X1G0042610016晶振，X1G0042610027晶振，X1G0042610034晶振

订购热线：0755-27876565

EPSON-2

yijin-1

SG5032VAN 156.250000M-KEGA3 156.25M 5032 -40~125℃ 30PPM，日本EPSON晶振公司，5032mm晶振,贴片晶振 ,爱普生晶振,SG5032VAN 156.250000M-KEGA3晶振,日本进口晶振,高品质晶振,SG5032晶振,汽车氛围灯控制器晶振,汽车液晶仪表盘晶振，X1G0042610016晶振，X1G0042610027晶振，X1G0042610034晶振

yijin-2

SG5032VAN 156.250000M-KEGA3 156.25M 5032 -40~125℃ 30PPM

代码	SG5032VAN 156.250000M-KEGA3
频率	125.000000兆赫
输出波	LVDS
电源电压	2.25至3.63伏

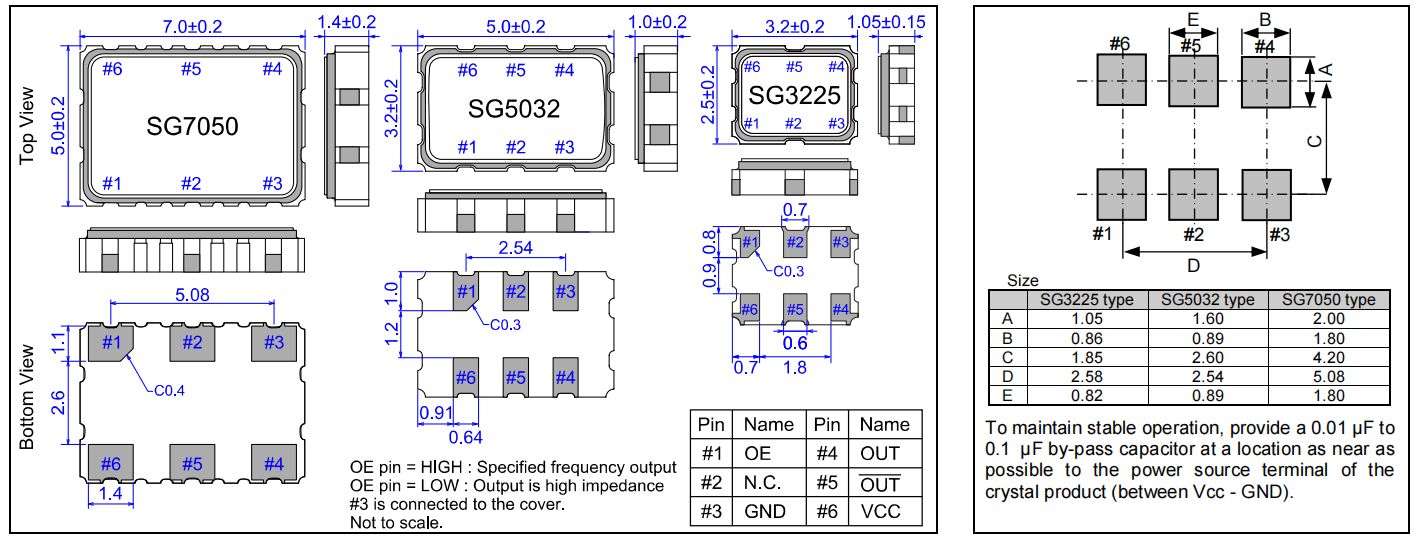

尺寸(长×宽×高)	5.00 x 3.20 x 1.20毫米
工作温度	-40至+85摄氏度
频率公差	50 ppm
OSC类型	时钟振荡器
安装类型	表面张贴型
型号名称	SG5032VAN
电流消耗	30.0毫安
频率老化1	+/-5
频率老化2	不适用的
对称	45%至55 %

yijin-3

SG5032VAN 156.250000M-KEGA3 156.25M 5032 -40~125℃ 30PPM

SG5032VAN-EAN

爱普生原厂编码	型号	频率	尺寸	输出	工作温度	频率稳定度
X1G0042610001	SG5032VAN	100.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	-40 to 85 °C	+/-50 ppm
X1G0042610002	SG5032VAN	125.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	-40 to 85 °C	+/-50 ppm
X1G0042610003	SG5032VAN	125.006250 MHz	5.00 x 3.20 x 1.20 mm	LVDS	-40 to 85 °C	+/-50 ppm
X1G0042610005	SG5032VAN	200.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	-40 to 85 °C	+/-50 ppm
X1G0042610006	SG5032VAN	156.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	-40 to 85 °C	+/-50 ppm
X1G0042610007	SG5032VAN	400.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	-40 to 85 °C	+/-50 ppm
X1G0042610008	SG5032VAN	106.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	-40 to 85 °C	+/-50 ppm
X1G0042610009	SG5032VAN	212.500000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	-40 to 85 °C	+/-50 ppm
X1G0042610010	SG5032VAN	74.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	-40 to 85 °C	+/-50 ppm
X1G0042610011	SG5032VAN	148.500000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	-40 to 85 °C	+/-50 ppm
X1G0042610012	SG5032VAN	75.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	-40 to 85 °C	+/-50 ppm
X1G0042610013	SG5032VAN	150.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	-40 to 85 °C	+/-50 ppm
X1G0042610015	SG5032VAN	312.500000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	-40 to 85 °C	+/-50 ppm
X1G0042610016	SG5032VAN	312.515625 MHz	5.00 x 3.20 x 1.20 mm	LVDS	-40 to 85 °C	+/-50 ppm
X1G0042610017	SG5032VAN	161.132800 MHz	5.00 x 3.20 x 1.20 mm	LVDS	-40 to 85 °C	+/-50 ppm
X1G0042610020	SG5032VAN	125.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	-40 to 85 °C	+/-30 ppm
X1G0042610021	SG5032VAN	125.006250 MHz	5.00 x 3.20 x 1.20 mm	LVDS	-40 to 85 °C	+/-30 ppm
X1G0042610023	SG5032VAN	100.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	-40 to 85 °C	+/-30 ppm
X1G0042610024	SG5032VAN	200.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	-40 to 85 °C	+/-30 ppm
X1G0042610025	SG5032VAN	400.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	-40 to 85 °C	+/-30 ppm
X1G0042610026	SG5032VAN	106.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	-40 to 85 °C	+/-30 ppm
X1G0042610027	SG5032VAN	212.500000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	-40 to 85 °C	+/-30 ppm
X1G0042610028	SG5032VAN	74.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	-40 to 85 °C	+/-30 ppm
X1G0042610029	SG5032VAN	148.500000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	-40 to 85 °C	+/-30 ppm
X1G0042610030	SG5032VAN	75.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	-40 to 85 °C	+/-30 ppm
X1G0042610031	SG5032VAN	150.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	-40 to 85 °C	+/-30 ppm
X1G0042610033	SG5032VAN	156.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	-40 to 85 °C	+/-30 ppm
X1G0042610034	SG5032VAN	312.500000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	-40 to 85 °C	+/-30 ppm
X1G0042610035	SG5032VAN	312.515625 MHz	5.00 x 3.20 x 1.20 mm	LVDS	-40 to 85 °C	+/-30 ppm
X1G0042610036	SG5032VAN	161.132800 MHz	5.00 x 3.20 x 1.20 mm	LVDS	-40 to 85 °C	+/-30 ppm
X1G0042610039	SG5032VAN	125.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	-20 to 70 °C	+/-50 ppm
X1G0042610040	SG5032VAN	125.006250 MHz	5.00 x 3.20 x 1.20 mm	LVDS	-20 to 70 °C	+/-50 ppm
X1G0042610042	SG5032VAN	100.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	-20 to 70 °C	+/-50 ppm
X1G0042610043	SG5032VAN	200.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	-20 to 70 °C	+/-50 ppm
X1G0042610044	SG5032VAN	400.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	-20 to 70 °C	+/-50 ppm
X1G0042610045	SG5032VAN	106.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	-20 to 70 °C	+/-50 ppm
X1G0042610046	SG5032VAN	212.500000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	-20 to 70 °C	+/-50 ppm
X1G0042610047	SG5032VAN	74.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	-20 to 70 °C	+/-50 ppm
X1G0042610048	SG5032VAN	148.500000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	-20 to 70 °C	+/-50 ppm
X1G0042610049	SG5032VAN	75.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	-20 to 70 °C	+/-50 ppm
