CX532|CX532Z-A2B3C5-70-1966080D18|19.6608|30PPM|18PF|2-SMD

频率：19.6608MHZ

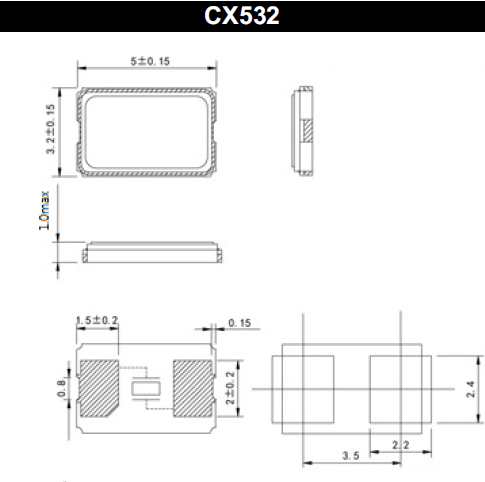

尺寸：5.0*3.2mm

CX532|CX532Z-A2B3C5-70-1966080D18|19.6608|30PPM|18PF|2-SMD，石英晶体谐振器，小的整体包装，尺寸可在2和4垫，陶瓷表面安装贴片晶体，Cardinal贴片晶振,四脚贴片晶振,石英晶振,5032晶振,无源晶振,石英晶体谐振器,美国进口晶振,CX532Z-A2B3C5-70-1966080D18晶振,汽车充电枪晶振,汽车电子中控晶振，用于通讯设备，无线网络，蓝牙模块晶振，汽车电子晶振，医疗设备，数码电子，物联网应用等。

订购热线：0755-27876565

CX532|CX532Z-A2B3C5-70-1966080D18|19.6608|30PPM|18PF|2-SMD，石英晶体谐振器，小的整体包装，尺寸可在2和4垫，陶瓷表面安装贴片晶体，Cardinal贴片晶振,四脚贴片晶振,陶瓷晶振,5032晶振,无源晶振,陶瓷晶体谐振器,美国进口晶振,CX532Z-A2B3C5-70-1966080D18晶振,汽车充电枪晶振,汽车电子中控晶振，被广泛用于通讯设备，无线网络，蓝牙模块晶振，汽车电子晶振，医疗设备，数码电子，物联网应用等。

yijin-2

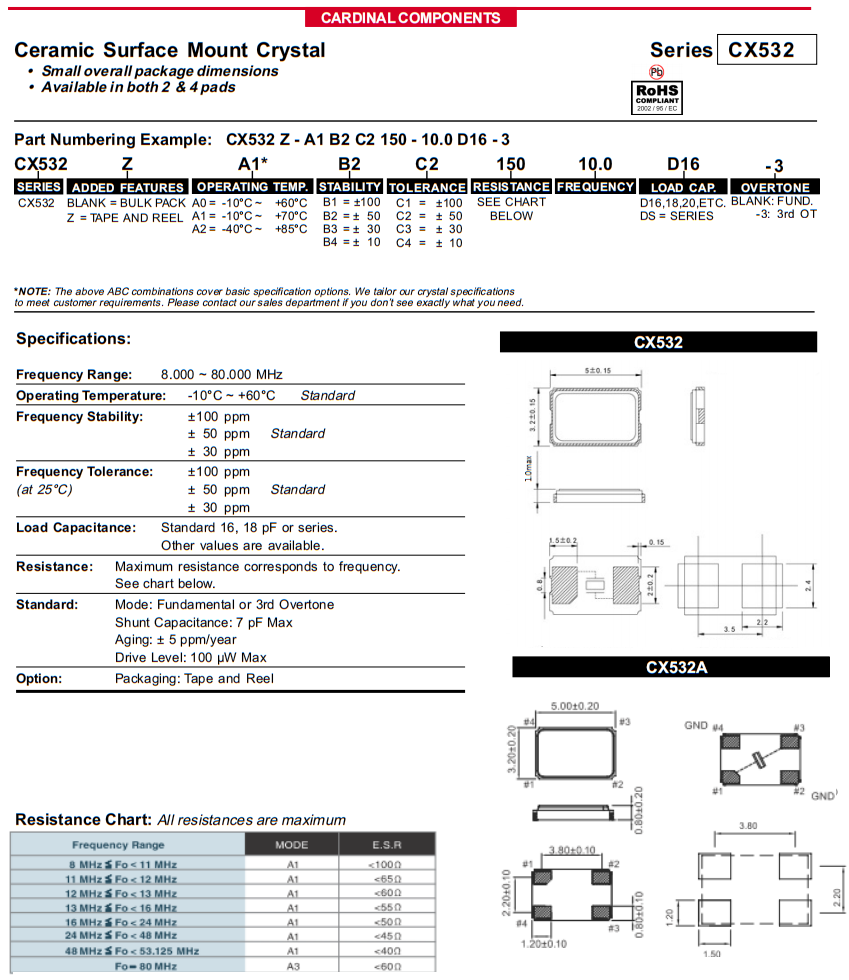

CX532|CX532Z-A2B3C5-70-1966080D18|19.6608|30PPM|18PF|2-SMD

Operating Temperature: - 10°C ~ +60°C Standard
Frequency Stability:	±100ppm Standard ± 50 ± 30	ppm ppm ppm
Frequency Tolerance: (at 25°C)	±100ppm
	± 50ppm Standard	ppm
	± 30ppm	ppm
Load	Standard 16,Other values18 pF or series.are available.
Resistance:	Maximum resistance corresponds to frequency. See chart below.
Standard:	Mode: Fundamental or 3rd Overtone Shunt Capacitance: 7 pF Max Aging: ± 5 ppm/year Drive Level: 100 µW Max

yijin-3

CX532|CX532Z-A2B3C5-70-1966080D18|19.6608|30PPM|18PF|2-SMD

cx532

进口晶振	厂家	型号	系列	频率	频率稳定度
CX532Z-A2B3C5-70-12.288D18	Cardinal Crystal	CX532	MHz Crystal	12.288MHz	±30ppm
CX532Z-A2B3C5-70-16.0D18	Cardinal Crystal	CX532	MHz Crystal	16MHz	±30ppm
CX532Z-A2B3C5-70-12.0D18	Cardinal Crystal	CX532	MHz Crystal	12MHz	±30ppm
CX532Z-A2B3C5-70-1966080D18	Cardinal Crystal	CX532	MHz Crystal	19.6608MHz	±30ppm
CX532Z-A2B3C5-70-33.0D18	Cardinal Crystal	CX532	MHz Crystal	33MHz	±30ppm
CX532Z-A2B3C5-70-27.0D18	Cardinal Crystal	CX532	MHz Crystal	27MHz	±30ppm
CX532Z-A5B3C5-70-20.0D18	Cardinal Crystal	CX532	MHz Crystal	20MHz	±30ppm
CX532Z-A2B3C5-70-14.7456D18	Cardinal Crystal	CX532	MHz Crystal	14.7456MHz	±30ppm
CX532Z-A5B3C5-70-12.0D18	Cardinal Crystal	CX532	MHz Crystal	12MHz	±30ppm
CX532Z-A2B3C5-70-50.0D18	Cardinal Crystal	CX532	MHz Crystal	50MHz	±30ppm
CX532Z-A2B3C5-70-30.0D18	Cardinal Crystal	CX532	MHz Crystal	30MHz	±30ppm
CX532Z-A5B3C5-70-27.0D18	Cardinal Crystal	CX532	MHz Crystal	27MHz	±30ppm
CX532AZ-A5B2C5-70-25.0D18	Cardinal Crystal	CX532	MHz Crystal	25MHz	±50ppm
CX532Z-A5B3C5-70-25.0D18	Cardinal Crystal	CX532	MHz Crystal	25MHz	±30ppm
CX532Z-A2B3C5-70-20.0D18	Cardinal Crystal	CX532	MHz Crystal	20MHz	±30ppm
CX532Z-A2B3C5-70-8.0D18	Cardinal Crystal	CX532	MHz Crystal	8MHz	±30ppm
CX532Z-A5B3C5-70-18.432D18	Cardinal Crystal	CX532	MHz Crystal	18.432MHz	±30ppm
CX532Z-A2B3C5-70-25.0D18	Cardinal Crystal	CX532	MHz Crystal	25MHz	±30ppm
