AKER,C7S-8.000-18-1030-X-R,8.0000MHz,18PF,10PPM,7050

频率：8MHZ

尺寸：7.0*5.0mm

AKER,C7S-8.000-18-1030-X-R,8.0000MHz,18PF,10PPM,7050,台湾AKER晶振台湾晶振,高品质晶振,AKER晶振,C7S晶振,C7S-8.000-18-1030-X-R晶振,7050晶振,微处理器晶振,四脚晶振,贴片晶振,无源晶振,高品质晶振,电脑主板晶振,家用电视机顶盒晶振微处理器晶体，单元低轮廓，7.0 x 5.0毫米表面安装，-4垫通用产品规格，系列名称：C7S系列。

订购热线：0755-27876565

SITIME-2

AKER,C7S-8.000-18-1030-X-R,8.0000MHz,18PF,10PPM,7050,台湾AKER晶振 ，台湾晶振,高品质晶振,AKER晶振,C7S晶振,C7S-8.000-18-1030-X-R晶振,7050晶振,微处理器晶振,四脚晶振,贴片晶振,无源晶振,高品质晶振,电脑主板晶振,家用电视机顶盒晶振微处理器晶体，单元低轮廓，7.0 x 5.0毫米表面安装，-4垫通用产品规格，系列名称：C7S系列。

yijin-2

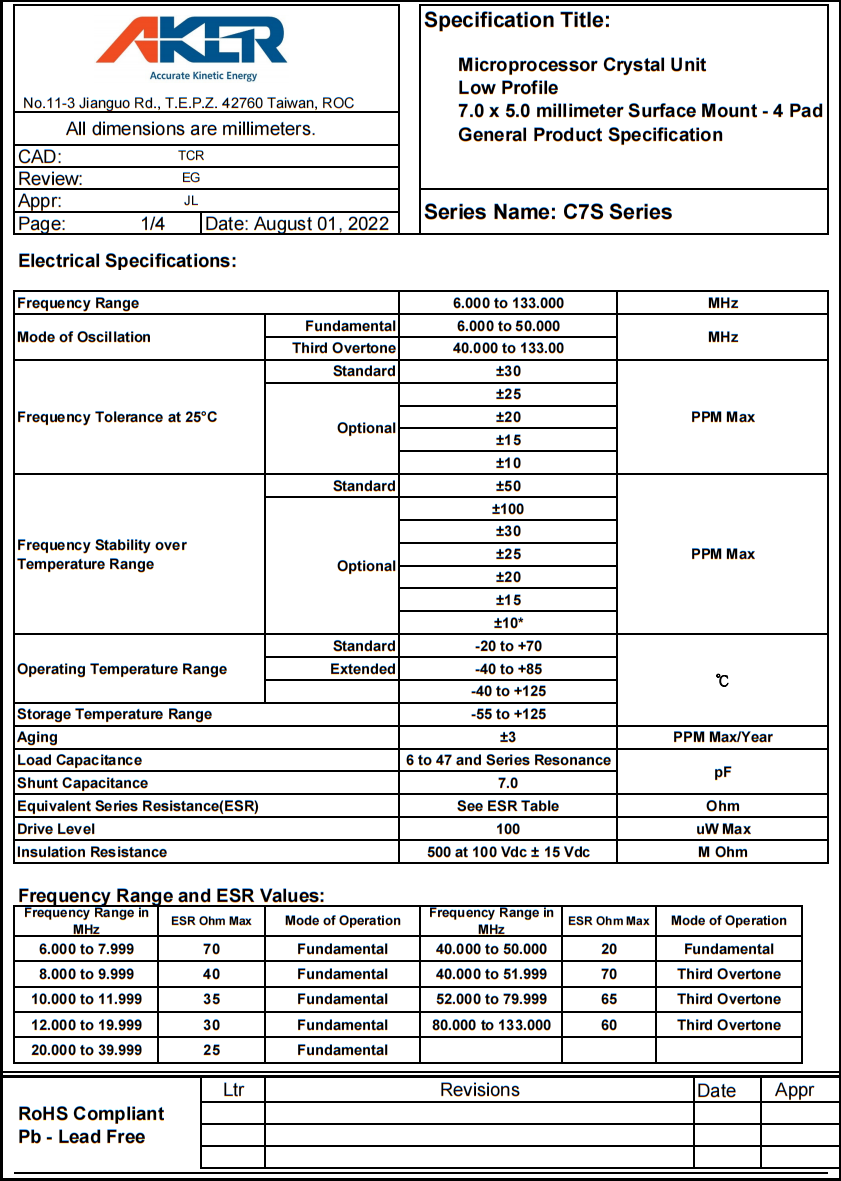

AKER,C7S-8.000-18-1030-X-R,8.0000MHz,18PF,10PPM,7050

频率范围

6.000 to 133.000

MHz

工作模式

Fundamental

6.000 to 52.000

MHz

Third Overtone

40.000 to 133.00

MHz

频率容差 at 25°C

Standard

±30

PPM Max (Note 1)

Optional

±25

±20

±15

±10

在温度范围内的频率稳定

Standard

±50

PPM Max (Note 1)

Optional

±100

±30

±25

±20

±15

±10*

工作温度范围

Standard

-20 to +70

℃

Extended

-40 to +85

-40 to +125

储存温度范围

-55 to +125

老化

±3

PPM Max/Year

负载电容

6 to 47 and Series Resonance

并联电容

7.0

等效串联电阻(ESR)

See ESR Table

Ohm

驱动电平

100

uW Max

绝缘电阻

500 at 100 Vdc ± 15 Vdc

M Ohm

yijin-3

AKER,C7S-8.000-18-1030-X-R,8.0000MHz,18PF,10PPM,7050

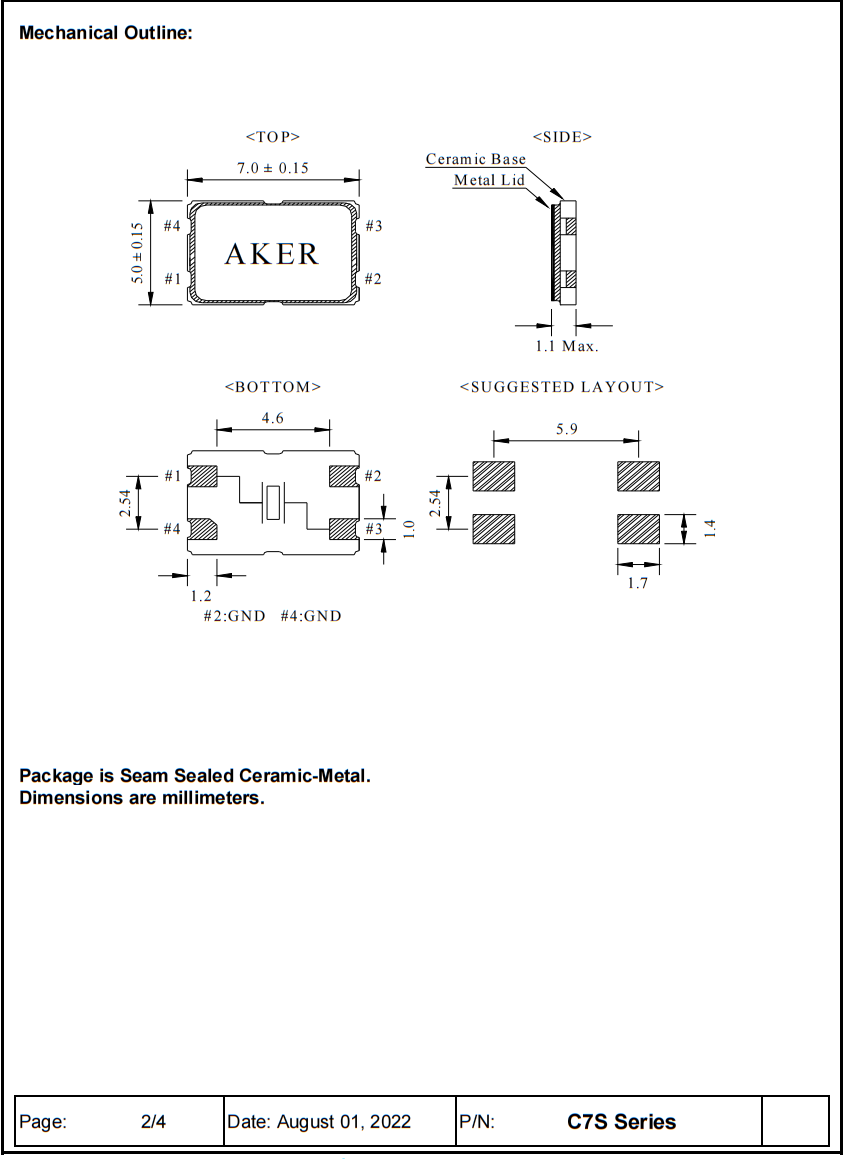

C7S(1)

C7S(2)

AKER制造商零件编号	供应商	系列	频率	频率稳定性	频率容差	负载电容
C16-32.000-8-1515-X-R	Aker晶振	C16	32 MHz	±15ppm	±15ppm	8pF
C1E-96.000-8-1216-X2-R	Aker晶振	-	96 MHz	±16ppm	±12ppm	8pF
C2E-25.000-10-3030-X-M	Aker晶振	C2E	25 MHz	±30ppm	±30ppm	10pF
C1E-25.000-20-2030-R	Aker晶振	C1E	25 MHz	±30ppm	±20ppm	20pF
C16-32.000-8-3030-X-R	Aker晶振	C16	32 MHz	±30ppm	±30ppm	8pF
C2E-16.000-8-1530-X-R	Aker晶振	C2E	16 MHz	±30ppm	±15ppm	8pF
C1E-32.000-8-1515-R	Aker晶振	C1E	32 MHz	±15ppm	±15ppm	8pF
C2E-24.000-10-1010-R	Aker晶振	C2E	24 MHz	±10ppm	±10ppm	10pF
C1E-24.000-10-1010-R	Aker晶振	C1E	24 MHz	±10ppm	±10ppm	10pF
C2E-25.000-10-3030-X-R	Aker晶振	C2E	25 MHz	±30ppm	±30ppm	10pF
C5S-8.000-18-3030-R	Aker晶振	C5S	8 MHz	±30ppm	±30ppm	18pF
C2E-16.000-10-1010-R	Aker晶振	C2E	16 MHz	±10ppm	±10ppm	10pF
C16-26.000-8-1520-R	Aker晶振	C16	26 MHz	±20ppm	±15ppm	8pF
C1E-32.000-10-1015-X-R	Aker晶振	C1E	32 MHz	±15ppm	±10ppm	10pF
C1E-24.000-10-1015-M	Aker晶振	C1E	24 MHz	±15ppm	±10ppm	10pF
C1E-32.000-8-1015-X-R	Aker晶振	C1E	32 MHz	±15ppm	±10ppm	8pF
C1E-24.000-10-1015-R	Aker晶振	C1E	24 MHz	±15ppm	±10ppm	10pF
C2E-16.000-12-3030-X-R	Aker晶振	C2E	16 MHz	±30ppm	±30ppm	12pF
C7S-8.000-18-1020-R	Aker晶振	C7S	8 MHz	±20ppm	±10ppm	18pF
C5S-12.000-18-1020-R	Aker晶振	C5S	12 MHz	±20ppm	±10ppm	18pF
C3E-20.000-8-3050-X1-R	Aker晶振	C3E X1	20 MHz	±50ppm	±30ppm	8pF
C3E-20.000-10-3050-X1-R	Aker晶振	C3E X1	20 MHz	±50ppm	±30ppm	10pF
C3E-16.000-10-2050-X1-R	Aker晶振	C3E X1	10 MHz	±50ppm	±20ppm	10pF
C3E-12.000-8-2050-X1-R	Aker晶振	C3E X1	12 MHz	±50ppm	±20ppm	8pF
C2E-12.000-10-2050-X1-R	Aker晶振	C2E X1	12 MHz	±50ppm	±20ppm	10pF
C2E-12.000-8-2050-X1-R	Aker晶振	C2E X1	12 MHz	±50ppm	±20ppm	8pF
C3E-16.000-10-3050-X1-R	Aker晶振	C3E X1	16 MHz	±50ppm	±30ppm	10pF
C2E-20.000-10-2050-X1-R	Aker晶振	C2E X1	20 MHz	±50ppm	±20ppm	10pF
C3E-30.000-8-2050-X1-R	Aker晶振	C3E X1	8 MHz	±50ppm	±20ppm	8pF
C3E-16.000-8-2050-X1-R	Aker晶振	C3E X1	16 MHz	±50ppm	±20ppm	8pF
C7S-8.000-18-1030-X-R	Aker晶振	C7S	8 MHz	±30ppm	±10ppm	18pF
C2E-12.000-18-1020-X-R	Aker晶振	C2E	12 MHz	±20ppm	±10ppm	18pF
C2E-12.000-18-1020-R	Aker晶振	C2E	12 MHz	±20ppm	±10ppm	18pF
C2E-19.200-13-2030-X-R	Aker晶振	C2E	19.2 MHz	±30ppm	±20ppm	13pF
