S73305T-25.000-R,HCMOS输出时钟振荡器,通用性晶振

当前位置：首页 » 台产晶振 » S73305T-25.000-R,HCMOS输出时钟振荡器,通用性晶振

prevnext

S73305T-25.000-R,HCMOS输出时钟振荡器,通用性晶振

频率：25 MHz

尺寸：7.00mm x 5.00mm

S73305T-25.000-R,HCMOS输出时钟振荡器,通用性晶振
从智能家居中的传感器模块物联网网关,到工业自动化中的PLC控制器伺服驱动系统,再到通信领域的6G路由器晶振交换机,S73305T-25.000-R凭借HCMOS输出的高兼容性频率的通用性以及稳定的性能表现,可作为核心时钟源广泛应用于消费电子工业控制通信网络三大领域,成为跨行业电子设备的通用时钟解决方案.

订购热线：0755-27876565

YJ-1

S73305T-25.000-R,HCMOS输出时钟振荡器,通用性晶振

在提供25.000MHz稳定时钟信号的同时,S73305T-25.000-R通过优化电路设计实现低功耗运行,既适用于对功耗敏感的便携式电子设备(如智能穿戴手持检测仪器),也能满足高性能计算数据传输设备对时钟信号精度(相位噪声低频率稳定度高)的严格要求,采用行业通用的封装规格,与市场上多数同类型时钟振荡器引脚定义一致,可直接替换传统晶振或其他品牌同参数产品,无需修改PCB板布局与焊接工艺.这种高度标准化的设计,不仅方便工程师在项目开发中灵活选型,还能在量产阶段快速切换供应商,保障生产连续性.

YJ-2

S73305T-25.000-R,HCMOS输出时钟振荡器,通用性晶振

原厂型号 Originalmodel：	S73305T-25.000-R	品牌brand：	AKER有源晶振
Manufacturer品牌	AKER有源晶振	OperatingTemperature温度	-20°C ~ 70°C
Series型号	S7	Current-Supply(Max)	7mA
Type类型	XO (Standard)	PackageHeight高度	1.40mm
Frequency频率	25 MHz	Termination 脚位	4-pad
输出方式 Output：	HCMOS	PackageType 封装类型	4-SMD
Voltage-Supply电压	3.3V低电压晶振	Packaging 包装	TapeandReel
FrequencyStability频率稳定度	±50ppm	安装方式 Installation：	Surfacemount
Size/Dimension尺寸	7.00mm x 5.00mm	最小包装数MPQ：	1000

YJ-3

S73305T-25.000-R,HCMOS输出时钟振荡器,通用性晶振

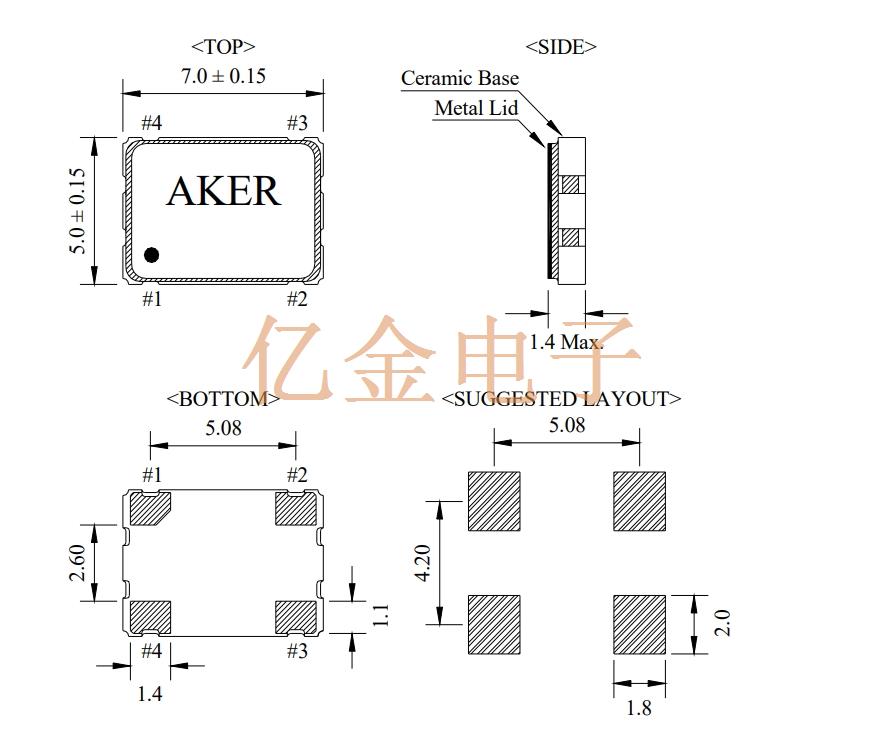

S73305T1

S73305T-25.000-R,HCMOS输出时钟振荡器,通用性晶振

C3E-16.000-18-3030-X-R	AKER	C3E	MHz Crystal	16 MHz	±30ppm	±30ppm	18pF
C3E-20.000-12-3030-X-R	AKER	C3E	MHz Crystal	20 MHz	±30ppm	±30ppm	12pF
C3E-16.000-12-3030-R	AKER	C3E	MHz Crystal	16 MHz	±30ppm	±30ppm	12pF
C3E-25.000-18-2030-R	AKER	C3E	MHz Crystal	25 MHz	±30ppm	±20ppm	18pF
C3E-12.000-8-3030-R	AKER	C3E	MHz Crystal	12 MHz	±30ppm	±30ppm	8pF
C3E-25.000-8-1010-R	AKER	C3E	MHz Crystal	25 MHz	±10ppm	±10ppm	8pF
C3E-25.000-8-1520-R	AKER	C3E	MHz Crystal	25 MHz	±20ppm	±15ppm	8pF
C3E-16.000-12-3030-X-R	AKER	C3E	MHz Crystal	16 MHz	±30ppm	±30ppm	12pF
C3E-32.000-10-1010-R	AKER	C3E	MHz Crystal	32 MHz	±10ppm	±10ppm	10pF
C3E-12.000-8-1520-R	AKER	C3E	MHz Crystal	12 MHz	±20ppm	±15ppm	8pF
C3E-32.000-12-1010-R	AKER	C3E	MHz Crystal	32 MHz	±10ppm	±10ppm	12pF
C3E-25.000-8-1015-R	AKER	C3E	MHz Crystal	25 MHz	±15ppm	±10ppm	8pF
C3E-12.000-18-3030-X-R	AKER	C3E	MHz Crystal	12 MHz	±30ppm	±30ppm	18pF
C3E-25.000-12-3030-X-R	AKER	C3E	MHz Crystal	25 MHz	±30ppm	±30ppm	12pF
C3E-25.000-10-3030-X-R	AKER	C3E	MHz Crystal	25 MHz	±30ppm	±30ppm	10pF
C3E-24.000-8-1015-R	AKER	C3E	MHz Crystal	24 MHz	±15ppm	±10ppm	8pF
C3E-24.000-10-1010-R	AKER	C3E	MHz Crystal	24 MHz	±10ppm	±10ppm	10pF
C3E-32.000-12-1530-X-R	AKER	C3E	MHz Crystal	32 MHz	±30ppm	±15ppm	12pF
C3E-12.000-8-1010-R	AKER	C3E	MHz Crystal	12 MHz	±10ppm	±10ppm	8pF
C3E-16.000-8-1015-R	AKER	C3E	MHz Crystal	16 MHz	±15ppm	±10ppm	8pF
C3E-32.000-10-1015-R	AKER	C3E	MHz Crystal	32 MHz	±15ppm	±10ppm	10pF
C3E-24.000-12-1530-X-R	AKER	C3E	MHz Crystal	24 MHz	±30ppm	±15ppm	12pF
C3E-24.000-12-3030-X-R	AKER	C3E	MHz Crystal	24 MHz	±30ppm	±30ppm	12pF
C3E-24.000-18-1010-R	AKER	C3E	MHz Crystal	24 MHz	±10ppm	±10ppm	18pF
C3E-20.000-10-1530-X-R	AKER	C3E	MHz Crystal	20 MHz	±30ppm	±15ppm	10pF
C3E-25.000-8-1530-X-R	AKER	C3E	MHz Crystal	25 MHz	±30ppm	±15ppm	8pF
C3E-24.000-12-1015-X-R	AKER	C3E	MHz Crystal	24 MHz	±15ppm	±10ppm	12pF
C3E-24.000-10-1015-X-R	AKER	C3E	MHz Crystal	24 MHz	±15ppm	±10ppm	10pF
C3E-16.000-12-1015-X-R	AKER	C3E	MHz Crystal	16 MHz	±15ppm	±10ppm	12pF
C3E-40.000-10-1015-X-R	AKER	C3E	MHz Crystal	40 MHz	±15ppm	±10ppm	10pF
C3E-32.000-8-1015-X-R	AKER	C3E	MHz Crystal	32 MHz	±15ppm	±10ppm	8pF
C3E-32.000-10-1015-X-R	AKER	C3E	MHz Crystal	32 MHz	±15ppm	±10ppm	10pF
C3E-32.000-12-1015-X-R	AKER	C3E	MHz Crystal	32 MHz	±15ppm	±10ppm	12pF
C2E-16.000-12-3030-X-R	AKER	C2E	MHz Crystal	16 MHz	±30ppm	±30ppm	12pF
C2E-25.000-10-3030-X-R	AKER	C2E	MHz Crystal	25 MHz	±30ppm	±30ppm	10pF
C2E-16.000-8-1530-X-R	AKER	C2E	MHz Crystal	16 MHz	±30ppm	±15ppm	8pF
C3E-8.000-10-3030-R	AKER	C3E	MHz Crystal	8 MHz	±30ppm	±30ppm	10pF
C3E-8.000-10-3030-X-R	AKER	C3E	MHz Crystal	8 MHz	±30ppm	±30ppm	10pF
C3E-8.000-18-3030-X-R	AKER	C3E	MHz Crystal	8 MHz	±30ppm	±30ppm	18pF
C3E-8.000-18-3030-R	AKER	C3E	MHz Crystal	8 MHz	±30ppm	±30ppm	18pF
C1E-32.000-10-1015-X-R	AKER	C1E	MHz Crystal	32 MHz	±15ppm	±10ppm	10pF
C1E-25.000-20-2030-R	AKER	C1E	MHz Crystal	25 MHz	±30ppm	±20ppm	20pF
C1E-24.000-10-1015-R	AKER	C1E	MHz Crystal	24 MHz	±15ppm	±10ppm	10pF
C1E-24.000-10-1010-R	AKER	C1E	MHz Crystal	24 MHz	±10ppm	±10ppm	10pF
C3E-16.000-12-1015-X-M	AKER	C3E	MHz Crystal	16 MHz	±15ppm	±10ppm	12pF
C5S-26.000-16-1010-R	AKER晶振	C5S	MHz Crystal	26 MHz	±10ppm	±10ppm	16pF
CAA-8.000-18-3050-X-R	AKER晶振	CAA	MHz Crystal	8 MHz	±50ppm	±30ppm	18pF
CAA-40.000-18-3050-R	AKER晶振	CAA	MHz Crystal	40 MHz	±50ppm	±30ppm	18pF
C3E-12.000-12-1020-X-R	AKER晶振	C3E	MHz Crystal	12 MHz	±10ppm	±20ppm	12pF
C3E-12.000-18-1020-X-R	AKER晶振	C3E	MHz Crystal	12 MHz	±10ppm	±20ppm	18pF
