S533025T-25.000-X-R,AKER有源晶振,智能手环晶振

频率：25 MHz

尺寸：5.00mm x 3.20mm

S533025T-25.000-X-R,AKER有源晶振,智能手环晶振,采用AKER专利低功耗晶振电路设计,搭配99.999%高纯度石英晶片降低信号传输损耗,智能手环需应对户外低温(冬季-15℃跑步),人体佩戴高温(夏季设备内部45℃),特殊行业极端温区(-40℃~+85℃)等多样环境.S533025T-25.000-X-R通过特殊角度石英晶片切割+耐高温环氧树脂封装"工艺,实现全温域稳定工作,且全温区频率偏差≤±15ppm.该特性可彻底规避温度波动导致的故障:低温环境下无心率数据卡顿,运动轨迹偏差≤3米,高温环境下蓝牙通信无中断,消息提醒延迟≤0.5秒,确保手环在家庭,户外,工业辅助等场景下均能可靠运行.

订购热线：0755-27876565

S533025T-25.000-X-R,AKER有源晶振,智能手环晶振

S533025T-25.000-X-R是AKER专为智能穿戴领域打造的有源晶振,其25.000MHz精准频率输出,可精准匹配智能手环心率监测(每秒3-5次信号采样),运动数据(步频/距离)高速运算,蓝牙模块晶振低功耗(BLE)模块高频数据传输等核心场景的时钟需求.产品出厂前通过逐片激光校准,频率误差控制在行业顶尖的微小范围,工程师在手环研发阶段无需额外进行频率调试,可直接与STM32L476RG,NordicnRF52840等主流手环主控芯片无缝兼容,从时钟源头确保数据采集的毫秒级实时性与设备间传输的同步性,为智能手环7×24小时稳定运行提供核心保障.

YJ-2

S533025T-25.000-X-R,AKER有源晶振,智能手环晶振

原厂型号 Originalmodel：	S533025T-25.000-X-R	品牌brand：	AKER有源晶振
Manufacturer品牌	AKER有源晶振	OperatingTemperature温度	-40°C ~ 85°C
Series型号	S5平板电脑晶振	Current-Supply(Max)	12mA
Type类型	XO (Standard)	PackageHeight高度	1.30mm
Frequency频率	25 MHz	Termination 脚位	4-pad
输出方式 Output：	HCMOS	PackageType 封装类型	4-SMD
Voltage-Supply电压	3.3V	Packaging 包装	TapeandReel
FrequencyStability频率稳定度	±25ppm	安装方式 Installation：	Surfacemount
Size/Dimension尺寸	5.00mm x 3.20mm	最小包装数MPQ：	1000

YJ-3

S533025T-25.000-X-R,AKER有源晶振,智能手环晶振

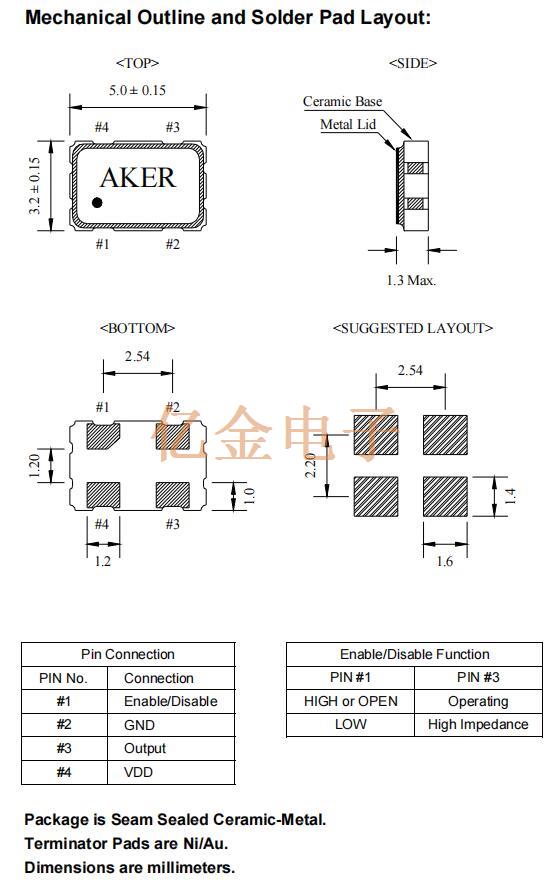

S5P-1

S533025T-25.000-X-R,AKER有源晶振,智能手环晶振

C3E-16.000-18-3030-X-R	AKER	C3E	MHz Crystal	16 MHz	±30ppm	±30ppm	18pF
C3E-20.000-12-3030-X-R	AKER	C3E	MHz Crystal	20 MHz	±30ppm	±30ppm	12pF
C3E-16.000-12-3030-R	AKER	C3E	MHz Crystal	16 MHz	±30ppm	±30ppm	12pF
C3E-25.000-18-2030-R	AKER	C3E	MHz Crystal	25 MHz	±30ppm	±20ppm	18pF
C3E-12.000-8-3030-R	AKER	C3E	MHz Crystal	12 MHz	±30ppm	±30ppm	8pF
C3E-25.000-8-1010-R	AKER	C3E	MHz Crystal	25 MHz	±10ppm	±10ppm	8pF
C3E-25.000-8-1520-R	AKER	C3E	MHz Crystal	25 MHz	±20ppm	±15ppm	8pF
C3E-16.000-12-3030-X-R	AKER	C3E	MHz Crystal	16 MHz	±30ppm	±30ppm	12pF
C3E-32.000-10-1010-R	AKER	C3E	MHz Crystal	32 MHz	±10ppm	±10ppm	10pF
C3E-12.000-8-1520-R	AKER	C3E	MHz Crystal	12 MHz	±20ppm	±15ppm	8pF
C3E-32.000-12-1010-R	AKER	C3E	MHz Crystal	32 MHz	±10ppm	±10ppm	12pF
C3E-25.000-8-1015-R	AKER	C3E	MHz Crystal	25 MHz	±15ppm	±10ppm	8pF
C3E-12.000-18-3030-X-R	AKER	C3E	MHz Crystal	12 MHz	±30ppm	±30ppm	18pF
C3E-25.000-12-3030-X-R	AKER	C3E	MHz Crystal	25 MHz	±30ppm	±30ppm	12pF
C3E-25.000-10-3030-X-R	AKER	C3E	MHz Crystal	25 MHz	±30ppm	±30ppm	10pF
C3E-24.000-8-1015-R	AKER	C3E	MHz Crystal	24 MHz	±15ppm	±10ppm	8pF
C3E-24.000-10-1010-R	AKER	C3E	MHz Crystal	24 MHz	±10ppm	±10ppm	10pF
C3E-32.000-12-1530-X-R	AKER	C3E	MHz Crystal	32 MHz	±30ppm	±15ppm	12pF
C3E-12.000-8-1010-R	AKER	C3E	MHz Crystal	12 MHz	±10ppm	±10ppm	8pF
C3E-16.000-8-1015-R	AKER	C3E	MHz Crystal	16 MHz	±15ppm	±10ppm	8pF
C3E-32.000-10-1015-R	AKER	C3E	MHz Crystal	32 MHz	±15ppm	±10ppm	10pF
C3E-24.000-12-1530-X-R	AKER	C3E	MHz Crystal	24 MHz	±30ppm	±15ppm	12pF
C3E-24.000-12-3030-X-R	AKER	C3E	MHz Crystal	24 MHz	±30ppm	±30ppm	12pF
C3E-24.000-18-1010-R	AKER	C3E	MHz Crystal	24 MHz	±10ppm	±10ppm	18pF
C3E-20.000-10-1530-X-R	AKER	C3E	MHz Crystal	20 MHz	±30ppm	±15ppm	10pF
C3E-25.000-8-1530-X-R	AKER	C3E	MHz Crystal	25 MHz	±30ppm	±15ppm	8pF
C3E-24.000-12-1015-X-R	AKER	C3E	MHz Crystal	24 MHz	±15ppm	±10ppm	12pF
C3E-24.000-10-1015-X-R	AKER	C3E	MHz Crystal	24 MHz	±15ppm	±10ppm	10pF
C3E-16.000-12-1015-X-R	AKER	C3E	MHz Crystal	16 MHz	±15ppm	±10ppm	12pF
C3E-40.000-10-1015-X-R	AKER	C3E	MHz Crystal	40 MHz	±15ppm	±10ppm	10pF
C3E-32.000-8-1015-X-R	AKER	C3E	MHz Crystal	32 MHz	±15ppm	±10ppm	8pF
C3E-32.000-10-1015-X-R	AKER	C3E	MHz Crystal	32 MHz	±15ppm	±10ppm	10pF
C3E-32.000-12-1015-X-R	AKER	C3E	MHz Crystal	32 MHz	±15ppm	±10ppm	12pF
C2E-16.000-12-3030-X-R	AKER	C2E	MHz Crystal	16 MHz	±30ppm	±30ppm	12pF
C2E-25.000-10-3030-X-R	AKER	C2E	MHz Crystal	25 MHz	±30ppm	±30ppm	10pF
C2E-16.000-8-1530-X-R	AKER	C2E	MHz Crystal	16 MHz	±30ppm	±15ppm	8pF
C3E-8.000-10-3030-R	AKER	C3E	MHz Crystal	8 MHz	±30ppm	±30ppm	10pF
C3E-8.000-10-3030-X-R	AKER	C3E	MHz Crystal	8 MHz	±30ppm	±30ppm	10pF
C3E-8.000-18-3030-X-R	AKER	C3E	MHz Crystal	8 MHz	±30ppm	±30ppm	18pF
C3E-8.000-18-3030-R	AKER	C3E	MHz Crystal	8 MHz	±30ppm	±30ppm	18pF
C1E-32.000-10-1015-X-R	AKER	C1E	MHz Crystal	32 MHz	±15ppm	±10ppm	10pF
C1E-25.000-20-2030-R	AKER	C1E	MHz Crystal	25 MHz	±30ppm	±20ppm	20pF
C1E-24.000-10-1015-R	AKER	C1E	MHz Crystal	24 MHz	±15ppm	±10ppm	10pF
C1E-24.000-10-1010-R	AKER	C1E	MHz Crystal	24 MHz	±10ppm	±10ppm	10pF
C3E-16.000-12-1015-X-M	AKER	C3E	MHz Crystal	16 MHz	±15ppm	±10ppm	12pF
C5S-26.000-16-1010-R	AKER晶振	C5S	MHz Crystal	26 MHz	±10ppm	±10ppm	16pF
CAA-8.000-18-3050-X-R	AKER晶振	CAA	MHz Crystal	8 MHz	±50ppm	±30ppm	18pF
CAA-40.000-18-3050-R	AKER晶振	CAA	MHz Crystal	40 MHz	±50ppm	±30ppm	18pF
C3E-12.000-12-1020-X-R	AKER晶振	C3E	MHz Crystal	12 MHz	±10ppm	±20ppm	12pF
C3E-12.000-18-1020-X-R	AKER晶振	C3E	MHz Crystal	12 MHz	±10ppm	±20ppm	18pF
