S3M025T-8.000-R,抗冲击晶振,蓝牙模块晶振

当前位置：首页 » 台产晶振 » S3M025T-8.000-R,抗冲击晶振,蓝牙模块晶振

prevnext

S3M025T-8.000-R,抗冲击晶振,蓝牙模块晶振

频率：8 MHz

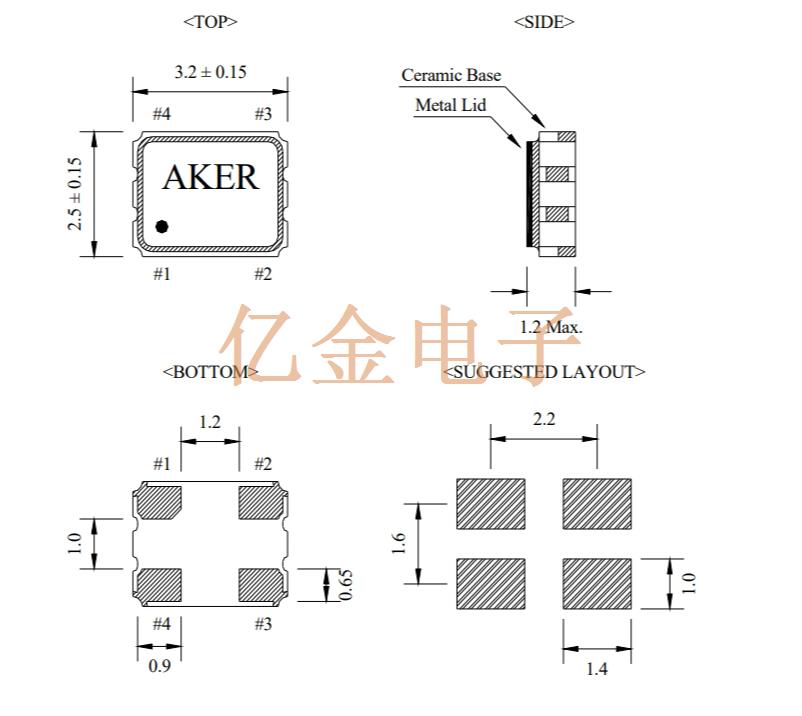

尺寸：3.20mm x 2.50mm

S3M025T-8.000-R,抗冲击晶振,蓝牙模块晶振,作为抗冲击专用晶振,S3M025T-8.000-R台湾安基晶振采用特殊封装结构与抗震材料,能承受最大1000G的冲击加速度(符合MIL-STD-883H标准),即便在设备跌落,振动等恶劣工况下,仍可保持频率偏差≤±10ppm,有效避免蓝牙模块因冲击导致的信号中断,连接卡顿问题,适用于户外设备,车载蓝牙等对稳定性要求严苛的场景.

订购热线：0755-27876565

S3M025T-8.000-R,抗冲击晶振,蓝牙模块晶振

S3M025T-8.000-R采用S3M系列紧凑型封装,体积较传统晶振缩小30%,可灵活适配蓝牙模块的小型贴片晶振设计需求,尤其适合TWS蓝牙耳机,微型蓝牙传感器等空间受限的设备,在有限PCB面积内实现高效集成,提升产品设计灵活性.同时,其具备优异的抗电磁干扰(EMI)性能,可减少蓝牙模块与其他电子元件的信号干扰,保障蓝牙通信的清晰度与传输距离,是高端蓝牙设备的核心时钟组件.

YJ-2

S3M025T-8.000-R,抗冲击晶振,蓝牙模块晶振

原厂型号 Originalmodel：	S3M025T-8.000-R	品牌brand：	AKER有源晶振
Manufacturer品牌	AKER有源晶振	OperatingTemperature温度	-20°C ~ 70°C
Series型号	S3	Current-Supply(Max)	7mA
Type类型	XO (Standard)	PackageHeight高度	1.20mm
Frequency频率	8 MHz	Termination 脚位	4-pad
输出方式 Output：	HCMOS输出晶振	PackageType 封装类型	4-SMD
Voltage-Supply电压	1.62V ~ 3.63V	Packaging 包装	TapeandReel
FrequencyStability频率稳定度	±25ppm	安装方式 Installation：	Surfacemount
Size/Dimension尺寸	3.20mm x 2.50mm	最小包装数MPQ：	3000

YJ-3

S3M025T-8.000-R,抗冲击晶振,蓝牙模块晶振

S33305T

S3M025T-8.000-R,抗冲击晶振,蓝牙模块晶振

C3E-16.000-18-3030-X-R	AKER	C3E	MHz Crystal	16 MHz	±30ppm	±30ppm	18pF
C3E-20.000-12-3030-X-R	AKER	C3E	MHz Crystal	20 MHz	±30ppm	±30ppm	12pF
C3E-16.000-12-3030-R	AKER	C3E	MHz Crystal	16 MHz	±30ppm	±30ppm	12pF
C3E-25.000-18-2030-R	AKER	C3E	MHz Crystal	25 MHz	±30ppm	±20ppm	18pF
C3E-12.000-8-3030-R	AKER	C3E	MHz Crystal	12 MHz	±30ppm	±30ppm	8pF
C3E-25.000-8-1010-R	AKER	C3E	MHz Crystal	25 MHz	±10ppm	±10ppm	8pF
C3E-25.000-8-1520-R	AKER	C3E	MHz Crystal	25 MHz	±20ppm	±15ppm	8pF
C3E-16.000-12-3030-X-R	AKER	C3E	MHz Crystal	16 MHz	±30ppm	±30ppm	12pF
C3E-32.000-10-1010-R	AKER	C3E	MHz Crystal	32 MHz	±10ppm	±10ppm	10pF
C3E-12.000-8-1520-R	AKER	C3E	MHz Crystal	12 MHz	±20ppm	±15ppm	8pF
C3E-32.000-12-1010-R	AKER	C3E	MHz Crystal	32 MHz	±10ppm	±10ppm	12pF
C3E-25.000-8-1015-R	AKER	C3E	MHz Crystal	25 MHz	±15ppm	±10ppm	8pF
C3E-12.000-18-3030-X-R	AKER	C3E	MHz Crystal	12 MHz	±30ppm	±30ppm	18pF
C3E-25.000-12-3030-X-R	AKER	C3E	MHz Crystal	25 MHz	±30ppm	±30ppm	12pF
C3E-25.000-10-3030-X-R	AKER	C3E	MHz Crystal	25 MHz	±30ppm	±30ppm	10pF
C3E-24.000-8-1015-R	AKER	C3E	MHz Crystal	24 MHz	±15ppm	±10ppm	8pF
C3E-24.000-10-1010-R	AKER	C3E	MHz Crystal	24 MHz	±10ppm	±10ppm	10pF
C3E-32.000-12-1530-X-R	AKER	C3E	MHz Crystal	32 MHz	±30ppm	±15ppm	12pF
C3E-12.000-8-1010-R	AKER	C3E	MHz Crystal	12 MHz	±10ppm	±10ppm	8pF
C3E-16.000-8-1015-R	AKER	C3E	MHz Crystal	16 MHz	±15ppm	±10ppm	8pF
C3E-32.000-10-1015-R	AKER	C3E	MHz Crystal	32 MHz	±15ppm	±10ppm	10pF
C3E-24.000-12-1530-X-R	AKER	C3E	MHz Crystal	24 MHz	±30ppm	±15ppm	12pF
C3E-24.000-12-3030-X-R	AKER	C3E	MHz Crystal	24 MHz	±30ppm	±30ppm	12pF
C3E-24.000-18-1010-R	AKER	C3E	MHz Crystal	24 MHz	±10ppm	±10ppm	18pF
C3E-20.000-10-1530-X-R	AKER	C3E	MHz Crystal	20 MHz	±30ppm	±15ppm	10pF
C3E-25.000-8-1530-X-R	AKER	C3E	MHz Crystal	25 MHz	±30ppm	±15ppm	8pF
C3E-24.000-12-1015-X-R	AKER	C3E	MHz Crystal	24 MHz	±15ppm	±10ppm	12pF
C3E-24.000-10-1015-X-R	AKER	C3E	MHz Crystal	24 MHz	±15ppm	±10ppm	10pF
C3E-16.000-12-1015-X-R	AKER	C3E	MHz Crystal	16 MHz	±15ppm	±10ppm	12pF
C3E-40.000-10-1015-X-R	AKER	C3E	MHz Crystal	40 MHz	±15ppm	±10ppm	10pF
C3E-32.000-8-1015-X-R	AKER	C3E	MHz Crystal	32 MHz	±15ppm	±10ppm	8pF
C3E-32.000-10-1015-X-R	AKER	C3E	MHz Crystal	32 MHz	±15ppm	±10ppm	10pF
C3E-32.000-12-1015-X-R	AKER	C3E	MHz Crystal	32 MHz	±15ppm	±10ppm	12pF
C2E-16.000-12-3030-X-R	AKER	C2E	MHz Crystal	16 MHz	±30ppm	±30ppm	12pF
C2E-25.000-10-3030-X-R	AKER	C2E	MHz Crystal	25 MHz	±30ppm	±30ppm	10pF
C2E-16.000-8-1530-X-R	AKER	C2E	MHz Crystal	16 MHz	±30ppm	±15ppm	8pF
C3E-8.000-10-3030-R	AKER	C3E	MHz Crystal	8 MHz	±30ppm	±30ppm	10pF
C3E-8.000-10-3030-X-R	AKER	C3E	MHz Crystal	8 MHz	±30ppm	±30ppm	10pF
C3E-8.000-18-3030-X-R	AKER	C3E	MHz Crystal	8 MHz	±30ppm	±30ppm	18pF
C3E-8.000-18-3030-R	AKER	C3E	MHz Crystal	8 MHz	±30ppm	±30ppm	18pF
C1E-32.000-10-1015-X-R	AKER	C1E	MHz Crystal	32 MHz	±15ppm	±10ppm	10pF
C1E-25.000-20-2030-R	AKER	C1E	MHz Crystal	25 MHz	±30ppm	±20ppm	20pF
C1E-24.000-10-1015-R	AKER	C1E	MHz Crystal	24 MHz	±15ppm	±10ppm	10pF
C1E-24.000-10-1010-R	AKER	C1E	MHz Crystal	24 MHz	±10ppm	±10ppm	10pF
C3E-16.000-12-1015-X-M	AKER	C3E	MHz Crystal	16 MHz	±15ppm	±10ppm	12pF
C5S-26.000-16-1010-R	AKER晶振	C5S	MHz Crystal	26 MHz	±10ppm	±10ppm	16pF
CAA-8.000-18-3050-X-R	AKER晶振	CAA	MHz Crystal	8 MHz	±50ppm	±30ppm	18pF
CAA-40.000-18-3050-R	AKER晶振	CAA	MHz Crystal	40 MHz	±50ppm	±30ppm	18pF
C3E-12.000-12-1020-X-R	AKER晶振	C3E	MHz Crystal	12 MHz	±10ppm	±20ppm	12pF
C3E-12.000-18-1020-X-R	AKER晶振	C3E	MHz Crystal	12 MHz	±10ppm	±20ppm	18pF
