S11805T-25.000-X1-R,汽车级电子晶振,台湾AKER安基晶振

频率：25MHz

尺寸：2.00mm x 1.60mm

S11805T-25.000-X1-R,汽车级电子晶振,台湾AKER安基晶振,针对汽车电子系统(如仪表盘,中控屏,ADAS控制单元)内部PCB板空间紧凑的特点,S11805T-25.000-X1-R采用AKER安基优化的小型化贴片晶振封装,可灵活嵌入车载电子设备狭小的电路布局中.降低人工组装成本与出错率,同时减少PCB板占用空间,为车载电子设备集成更多功能模块(如无线充电,多摄像头接口)预留空间,助力汽车电子系统向小型化,集成化方向发展.

订购热线：0755-27876565

S11805T-25.000-X1-R,汽车级电子晶振,台湾AKER安基晶振

S11805T-25.000-X1-R作为台湾AKER安基专为汽车电子领域研发的晶振,以25.000MHz稳定频率输出,精准匹配汽车多个核心电子系统的时钟信号诉求.在车载信息娱乐系统(IVI)的音频/视频信号同步,车身控制系统(如车窗升降,座椅调节)的指令响应,车载蓝牙晶振模块的数据传输,以及高级辅助驾驶系统(ADAS)中传感器(如毫米波雷达,摄像头)的实时数据采集等场景中,该晶振凭借AKER安基独家的精密校准工艺,出厂前逐片进行频率调试,误差控制在汽车电子行业严苛的±10ppm范围内.无需额外二次调试即可直接集成于汽车电子主控电路(如恩智浦S32K系列,瑞萨RH850系列汽车级芯片),从时钟源头确保车载系统数据处理的精准性与指令执行的同步性,为汽车电子系统稳定运行筑牢核心基础.

YJ-2

S11805T-25.000-X1-R,汽车级电子晶振,台湾AKER安基晶振

原厂型号 Originalmodel：	S11805T-25.000-X1-R	品牌brand：	AKER有源晶振
Manufacturer品牌	AKER安基晶振	OperatingTemperature温度	-40°C ~ 85°C
Series型号	S1	Current-Supply(Max)	5mA
Type类型	XO (Standard)	PackageHeight高度	0.60mm
Frequency频率	25 MHz	Termination 脚位	4-pad
输出方式 Output：	CMOS	PackageType 封装类型	4-SMD
Voltage-Supply电压	1.8V	Packaging 包装	TapeandReel
FrequencyStability频率稳定度	±50ppm	安装方式 Installation：	Surfacemount
Size/Dimension尺寸	2.00mm x 1.60mm	最小包装数MPQ：	3000

YJ-3

S11805T-25.000-X1-R,汽车级电子晶振,台湾AKER安基晶振

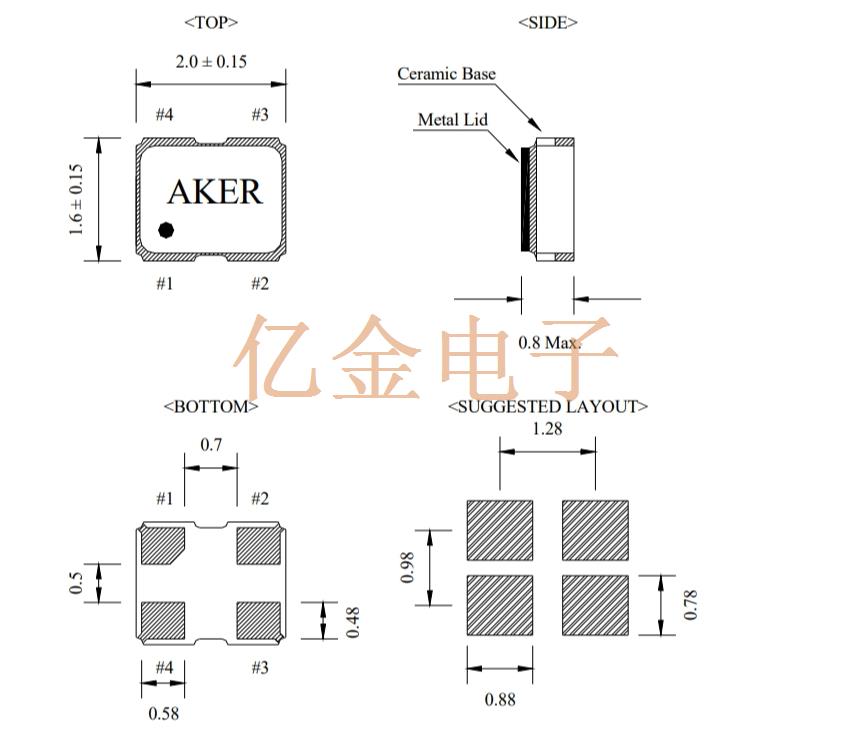

S11805T1

S11805T-25.000-X1-R,汽车级电子晶振,台湾AKER安基晶振

C3E-16.000-18-3030-X-R	AKER	C3E	MHz Crystal	16 MHz	±30ppm	±30ppm	18pF
C3E-20.000-12-3030-X-R	AKER	C3E	MHz Crystal	20 MHz	±30ppm	±30ppm	12pF
C3E-16.000-12-3030-R	AKER	C3E	MHz Crystal	16 MHz	±30ppm	±30ppm	12pF
C3E-25.000-18-2030-R	AKER	C3E	MHz Crystal	25 MHz	±30ppm	±20ppm	18pF
C3E-12.000-8-3030-R	AKER	C3E	MHz Crystal	12 MHz	±30ppm	±30ppm	8pF
C3E-25.000-8-1010-R	AKER	C3E	MHz Crystal	25 MHz	±10ppm	±10ppm	8pF
C3E-25.000-8-1520-R	AKER	C3E	MHz Crystal	25 MHz	±20ppm	±15ppm	8pF
C3E-16.000-12-3030-X-R	AKER	C3E	MHz Crystal	16 MHz	±30ppm	±30ppm	12pF
C3E-32.000-10-1010-R	AKER	C3E	MHz Crystal	32 MHz	±10ppm	±10ppm	10pF
C3E-12.000-8-1520-R	AKER	C3E	MHz Crystal	12 MHz	±20ppm	±15ppm	8pF
C3E-32.000-12-1010-R	AKER	C3E	MHz Crystal	32 MHz	±10ppm	±10ppm	12pF
C3E-25.000-8-1015-R	AKER	C3E	MHz Crystal	25 MHz	±15ppm	±10ppm	8pF
C3E-12.000-18-3030-X-R	AKER	C3E	MHz Crystal	12 MHz	±30ppm	±30ppm	18pF
C3E-25.000-12-3030-X-R	AKER	C3E	MHz Crystal	25 MHz	±30ppm	±30ppm	12pF
C3E-25.000-10-3030-X-R	AKER	C3E	MHz Crystal	25 MHz	±30ppm	±30ppm	10pF
C3E-24.000-8-1015-R	AKER	C3E	MHz Crystal	24 MHz	±15ppm	±10ppm	8pF
C3E-24.000-10-1010-R	AKER	C3E	MHz Crystal	24 MHz	±10ppm	±10ppm	10pF
C3E-32.000-12-1530-X-R	AKER	C3E	MHz Crystal	32 MHz	±30ppm	±15ppm	12pF
C3E-12.000-8-1010-R	AKER	C3E	MHz Crystal	12 MHz	±10ppm	±10ppm	8pF
C3E-16.000-8-1015-R	AKER	C3E	MHz Crystal	16 MHz	±15ppm	±10ppm	8pF
C3E-32.000-10-1015-R	AKER	C3E	MHz Crystal	32 MHz	±15ppm	±10ppm	10pF
C3E-24.000-12-1530-X-R	AKER	C3E	MHz Crystal	24 MHz	±30ppm	±15ppm	12pF
C3E-24.000-12-3030-X-R	AKER	C3E	MHz Crystal	24 MHz	±30ppm	±30ppm	12pF
C3E-24.000-18-1010-R	AKER	C3E	MHz Crystal	24 MHz	±10ppm	±10ppm	18pF
C3E-20.000-10-1530-X-R	AKER	C3E	MHz Crystal	20 MHz	±30ppm	±15ppm	10pF
C3E-25.000-8-1530-X-R	AKER	C3E	MHz Crystal	25 MHz	±30ppm	±15ppm	8pF
C3E-24.000-12-1015-X-R	AKER	C3E	MHz Crystal	24 MHz	±15ppm	±10ppm	12pF
C3E-24.000-10-1015-X-R	AKER	C3E	MHz Crystal	24 MHz	±15ppm	±10ppm	10pF
C3E-16.000-12-1015-X-R	AKER	C3E	MHz Crystal	16 MHz	±15ppm	±10ppm	12pF
C3E-40.000-10-1015-X-R	AKER	C3E	MHz Crystal	40 MHz	±15ppm	±10ppm	10pF
C3E-32.000-8-1015-X-R	AKER	C3E	MHz Crystal	32 MHz	±15ppm	±10ppm	8pF
C3E-32.000-10-1015-X-R	AKER	C3E	MHz Crystal	32 MHz	±15ppm	±10ppm	10pF
C3E-32.000-12-1015-X-R	AKER	C3E	MHz Crystal	32 MHz	±15ppm	±10ppm	12pF
C2E-16.000-12-3030-X-R	AKER	C2E	MHz Crystal	16 MHz	±30ppm	±30ppm	12pF
C2E-25.000-10-3030-X-R	AKER	C2E	MHz Crystal	25 MHz	±30ppm	±30ppm	10pF
C2E-16.000-8-1530-X-R	AKER	C2E	MHz Crystal	16 MHz	±30ppm	±15ppm	8pF
C3E-8.000-10-3030-R	AKER	C3E	MHz Crystal	8 MHz	±30ppm	±30ppm	10pF
C3E-8.000-10-3030-X-R	AKER	C3E	MHz Crystal	8 MHz	±30ppm	±30ppm	10pF
C3E-8.000-18-3030-X-R	AKER	C3E	MHz Crystal	8 MHz	±30ppm	±30ppm	18pF
C3E-8.000-18-3030-R	AKER	C3E	MHz Crystal	8 MHz	±30ppm	±30ppm	18pF
C1E-32.000-10-1015-X-R	AKER	C1E	MHz Crystal	32 MHz	±15ppm	±10ppm	10pF
C1E-25.000-20-2030-R	AKER	C1E	MHz Crystal	25 MHz	±30ppm	±20ppm	20pF
C1E-24.000-10-1015-R	AKER	C1E	MHz Crystal	24 MHz	±15ppm	±10ppm	10pF
C1E-24.000-10-1010-R	AKER	C1E	MHz Crystal	24 MHz	±10ppm	±10ppm	10pF
C3E-16.000-12-1015-X-M	AKER	C3E	MHz Crystal	16 MHz	±15ppm	±10ppm	12pF
C5S-26.000-16-1010-R	AKER晶振	C5S	MHz Crystal	26 MHz	±10ppm	±10ppm	16pF
CAA-8.000-18-3050-X-R	AKER晶振	CAA	MHz Crystal	8 MHz	±50ppm	±30ppm	18pF
CAA-40.000-18-3050-R	AKER晶振	CAA	MHz Crystal	40 MHz	±50ppm	±30ppm	18pF
C3E-12.000-12-1020-X-R	AKER晶振	C3E	MHz Crystal	12 MHz	±10ppm	±20ppm	12pF
C3E-12.000-18-1020-X-R	AKER晶振	C3E	MHz Crystal	12 MHz	±10ppm	±20ppm	18pF
