FW1920001 2016 DIODES 19.2MHz 8PF 10PPM -20~70℃

频率:19.2MHZ

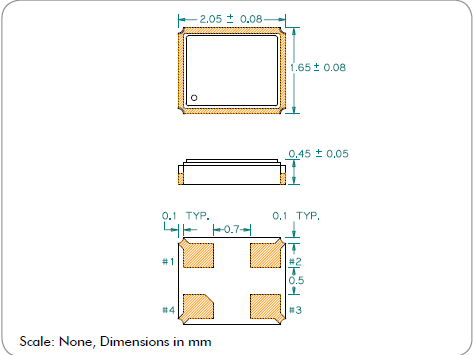

尺寸:2.0x1.6mm

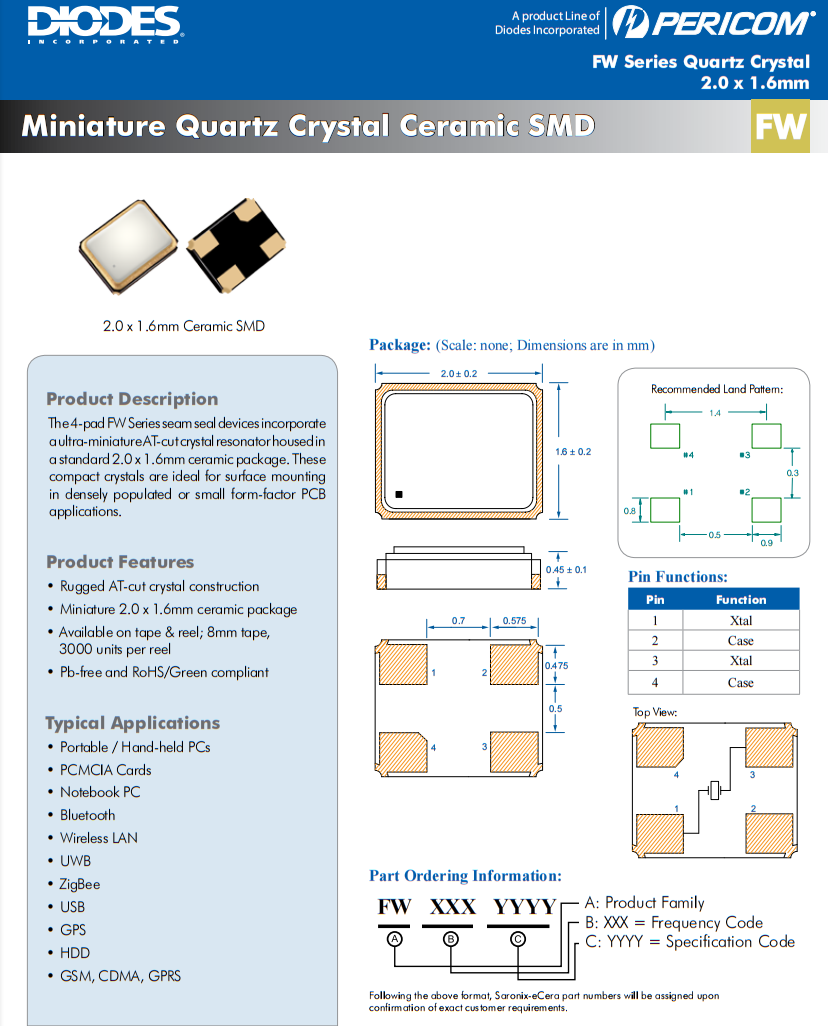

FW1920001 2016 DIODES 19.2MHz 8PF 10PPM -20~70℃台湾百利通亚陶晶振公司,坚固的AT-cut晶体结构微型2.0 x 1.6mm陶瓷包装,可在胶带和卷;8mm带,3000单位每卷无pb和RoHS/绿色兼容,4垫FW系列接缝密封装置包含一个超微型的at切割晶体谐振器,封装在一个标准的2.0 x 1.6mm陶瓷封装中。这些紧凑的晶体是理想的表面安装在密集的人口或小的形状因子PCB应用。智能手机,便携式/手持式电脑,PCMCIA卡,笔记本电脑,蓝牙无线局域网SIPRF-SIM笔驱动器SD模块

订购热线:0755-27876565
QQ咨询 点击这里给我发消息

BLT-2

yijin-1

FW1920001 2016 DIODES 19.2MHz 8PF 10PPM -20~70℃台湾百利通亚陶晶振公司,坚固的AT-cut晶体结构微型2.0 x 1.6mm陶瓷包装,可在胶带和卷;8mm带,3000单位每卷无pb和RoHS/绿色兼容,4垫FW系列接缝密封装置包含一个超微型的at切割晶体谐振器,封装在一个标准的2.0 x 1.6mm陶瓷封装中。这些紧凑的晶体是理想的表面安装在密集的人口或小的形状因子PCB应用。智能手机,便携式/手持式电脑,PCMCIA卡,笔记本电脑,蓝牙无线局域网SIPRF-SIM笔驱动器SD模块

yijin-2

FW1920001 2016 DIODES 19.2MHz 8PF 10PPM -20~70℃

亚陶晶振规格

单位

FWQ/FW晶振频率范围

石英晶振基本条件

标准频率

f_nom

19.2MHZ

标准频率

储存温度

T_stg

-40°C +85°C

裸存

工作温度

T_use

-20°C +70°C

标准温度

激励功率

DL

200μW Max.

推荐:1μW 100μW

频率公差

f_— l

±50 × 10-6 (标准),
(±15 × 10-6  ±50 × 10-6 可用)

+25°C 对于超出标准的规格说明,
请联系我们以便获取相关的信息,http://www.vc-tcxo.com

频率温度特征

f_tem

±30 × 10-6/-20°C +70°C

超出标准的规格请联系我们.

负载电容

CL

8pF

超出标准说明,请联系我们.

yijin-3

FW 2016

FW

DIODES原厂编码 生产厂家 型号 频率 频率稳定度 频率偏差 负载电容 工作温度
FW1600008 Diodes晶振 FW 16MHz ±20ppm ±10ppm 12pF -40°C ~ 85°C
FW1600008 Diodes晶振 FW 16MHz ±20ppm ±10ppm 12pF -40°C ~ 85°C
FW1600008 Diodes晶振 FW 16MHz ±20ppm ±10ppm 12pF -40°C ~ 85°C
FW1920001 Diodes晶振 FW 19.2MHz ±20ppm ±10ppm 8pF -20°C ~ 70°C
FW1920001 Diodes晶振 FW 19.2MHz ±20ppm ±10ppm 8pF -20°C ~ 70°C
FW1920001 Diodes晶振 FW 19.2MHz ±20ppm ±10ppm 8pF -20°C ~ 70°C
FW2600018 Diodes晶振 FW 26MHz ±10ppm ±10ppm 9pF -20°C ~ 75°C
FW2600018 Diodes晶振 FW 26MHz ±10ppm ±10ppm 9pF -20°C ~ 75°C
FW2600018 Diodes晶振 FW 26MHz ±10ppm ±10ppm 9pF -20°C ~ 75°C
FW3740009 Diodes晶振 FW 37.4MHz ±15ppm ±10ppm 11pF -20°C ~ 70°C
FW3740009 Diodes晶振 FW 37.4MHz ±15ppm ±10ppm 11pF -20°C ~ 70°C
FW3740009 Diodes晶振 FW 37.4MHz ±15ppm ±10ppm 11pF -20°C ~ 70°C
FW2000008 Diodes晶振 FW 20MHz ±10ppm ±10ppm 12pF -20°C ~ 85°C
FW2000008 Diodes晶振 FW 20MHz ±10ppm ±10ppm 12pF -20°C ~ 85°C
FW2000008 Diodes晶振 FW 20MHz ±10ppm ±10ppm 12pF -20°C ~ 85°C
FW3000010 Diodes晶振 FW 30MHz ±30ppm ±30ppm 10pF -20°C ~ 70°C
FW3000010 Diodes晶振 FW 30MHz ±30ppm ±30ppm 10pF -20°C ~ 70°C
FW3000010 Diodes晶振 FW 30MHz ±30ppm ±30ppm 10pF -20°C ~ 70°C
FW4000001 Diodes晶振 FW 40MHz ±15ppm ±10ppm 18pF -10°C ~ 85°C
FW4000001 Diodes晶振 FW 40MHz ±15ppm ±10ppm 18pF -10°C ~ 85°C
FW4000001 Diodes晶振 FW 40MHz ±15ppm ±10ppm 18pF -10°C ~ 85°C
FW2400001 Diodes晶振 FW 24MHz ±50ppm ±50ppm 20pF -20°C ~ 70°C
FW2400001 Diodes晶振 FW 24MHz ±50ppm ±50ppm 20pF -20°C ~ 70°C
FW2400001 Diodes晶振 FW 24MHz ±50ppm ±50ppm 20pF -20°C ~ 70°C
FW1600010 Diodes晶振 FW 16MHz ±20ppm ±10ppm 8pF -40°C ~ 85°C
FW1600010 Diodes晶振 FW 16MHz ±20ppm ±10ppm 8pF -40°C ~ 85°C
FW1600010 Diodes晶振 FW 16MHz ±20ppm ±10ppm 8pF -40°C ~ 85°C
FW3200020 Diodes晶振 FW 32MHz ±30ppm ±30ppm 10pF -40°C ~ 85°C
FW3200020 Diodes晶振 FW 32MHz ±30ppm ±30ppm 10pF -40°C ~ 85°C
FW3200020 Diodes晶振 FW 32MHz ±30ppm ±30ppm 10pF -40°C ~ 85°C
FW2500025Z Diodes晶振 FW 25MHz ±30ppm ±30ppm 20pF -20°C ~ 80°C
FW2500025Z Diodes晶振 FW 25MHz ±30ppm ±30ppm 20pF -20°C ~ 80°C
FW2500025Z Diodes晶振 FW 25MHz ±30ppm ±30ppm 20pF -20°C ~ 80°C
FW374WFBR2 Diodes晶振 FW 37.4MHz ±10ppm ±10ppm 16pF -20°C ~ 85°C
FW374WFBR2 Diodes晶振 FW 37.4MHz ±10ppm ±10ppm 16pF -20°C ~ 85°C
FW374WFBR2 Diodes晶振 FW 37.4MHz ±10ppm ±10ppm 16pF -20°C ~ 85°C
FW400WFMT1 Diodes晶振 FW 40MHz ±17ppm ±7ppm 12pF -40°C ~ 100°C
FW400WFMT1 Diodes晶振 FW 40MHz ±17ppm ±7ppm 12pF -40°C ~ 100°C
FW400WFMT1 Diodes晶振 FW 40MHz ±17ppm ±7ppm 12pF -40°C ~ 100°C
FW374WFMR1 Diodes晶振 FW 37.4MHz ±10ppm ±10ppm 8pF -30°C ~ 85°C
FW374WFMR1 Diodes晶振 FW 37.4MHz ±10ppm ±10ppm 8pF -30°C ~ 85°C
FW374WFMR1 Diodes晶振 FW 37.4MHz ±10ppm ±10ppm 8pF -30°C ~ 85°C
FW384WFIN1 Diodes晶振 FW 38.4MHz ±12ppm ±10ppm 7pF -30°C ~ 90°C
FW384WFIN1 Diodes晶振 FW 38.4MHz ±12ppm ±10ppm 7pF -30°C ~ 90°C
FW384WFIN1 Diodes晶振 FW 38.4MHz ±12ppm ±10ppm 7pF -30°C ~ 90°C
FW520WFMT1 Diodes晶振 FW 52MHz ±17ppm ±7ppm 12pF -40°C ~ 100°C
FW520WFMT1 Diodes晶振 FW 52MHz ±17ppm ±7ppm 12pF -40°C ~ 100°C
FW520WFMT1 Diodes晶振 FW 52MHz ±17ppm ±7ppm 12pF -40°C ~ 100°C
FW260WFMT1 Diodes晶振 FW 26MHz ±17ppm ±7ppm 12pF -40°C ~ 100°C
FW260WFMT1 Diodes晶振 FW 26MHz ±17ppm ±7ppm 12pF -40°C ~ 100°C
FW260WFMT1 Diodes晶振 FW 26MHz ±17ppm ±7ppm 12pF -40°C ~ 100°C
FW260WFMR1 Diodes晶振 FW 26MHz ±10ppm ±10ppm 9pF -20°C ~ 85°C
FW260WFMR1 Diodes晶振 FW 26MHz ±10ppm ±10ppm 9pF -20°C ~ 85°C
FW260WFMR1 Diodes晶振 FW 26MHz ±10ppm ±10ppm 9pF -20°C ~ 85°C
FW374WFBR1 Diodes晶振 FW 37.4MHz ±10ppm ±10ppm 12pF -20°C ~ 85°C
FW374WFBR1 Diodes晶振 FW 37.4MHz ±10ppm ±10ppm 12pF -20°C ~ 85°C
FW374WFBR1 Diodes晶振 FW 37.4MHz ±10ppm ±10ppm 12pF -20°C ~ 85°C
FW400WFMR1 Diodes晶振 FW 40MHz ±10ppm ±10ppm 10pF -20°C ~ 85°C
FW400WFMR1 Diodes晶振 FW 40MHz ±10ppm ±10ppm 10pF -20°C ~ 85°C
FW400WFMR1 Diodes晶振 FW 40MHz ±10ppm ±10ppm 10pF -20°C ~ 85°C
FW3840001 Diodes晶振 FW 38.4MHz ±10ppm ±10ppm 9pF -20°C ~ 70°C
FW3840001 Diodes晶振 FW 38.4MHz ±10ppm ±10ppm 9pF -20°C ~ 70°C
FW3840001 Diodes晶振 FW 38.4MHz ±10ppm ±10ppm 9pF -20°C ~ 70°C
FW2500016Z Diodes晶振 FW 25MHz ±40ppm ±30ppm 6pF -30°C ~ 85°C
FW2500016Z Diodes晶振 FW 25MHz ±40ppm ±30ppm 6pF -30°C ~ 85°C
FW2500016Z Diodes晶振 FW 25MHz ±40ppm ±30ppm 6pF -30°C ~ 85°C
FW400WFQA1 Diodes晶振 FW 40MHz ±10ppm ±10ppm 7pF -30°C ~ 85°C
FW400WFQA1 Diodes晶振 FW 40MHz ±10ppm ±10ppm 7pF -30°C ~ 85°C
FW400WFQA1 Diodes晶振 FW 40MHz ±10ppm ±10ppm 7pF -30°C ~ 85°C
FW400WFMR1 Diodes晶振 FW 40MHz ±10ppm ±10ppm 10pF -20°C ~ 85°C
