501BCA16M0000BAF|Silicon品牌|6G相关设备晶振

频率:16MHz

尺寸:4.0mm×3.2mm

501BCA16M0000BAF|Silicon品牌|6G相关设备晶振,Silicon晶振,欧美进口晶振,Si501贴片晶振,501BCA16M0000BAF晶振,有源晶振,OSC石英晶振,5032晶振,SMD晶体,频率16MHz,电压3.3V,频率稳定性20ppm,工作温度-40~85°C,低周期抖动晶振,无铅环保晶振,高品质晶振,6G相关设备晶振,户外电子产品晶振,办公设备晶振,多功能打印机晶振.

订购热线:0755-27876565
QQ咨询 点击这里给我发消息

yijin-1

501BCA16M0000BAF|Silicon品牌|6G相关设备晶振,Silicon晶振,欧美进口晶振,Si501贴片晶振,501BCA16M0000BAF晶振,有源晶振,OSC石英晶振,5032晶振,SMD晶体,频率16MHz,电压3.3V,频率稳定性20ppm,工作温度-40~85°C,低周期抖动晶振,无铅环保晶振,高品质晶振,6G相关设备晶振,户外电子产品晶振,办公设备晶振,多功能打印机晶振.

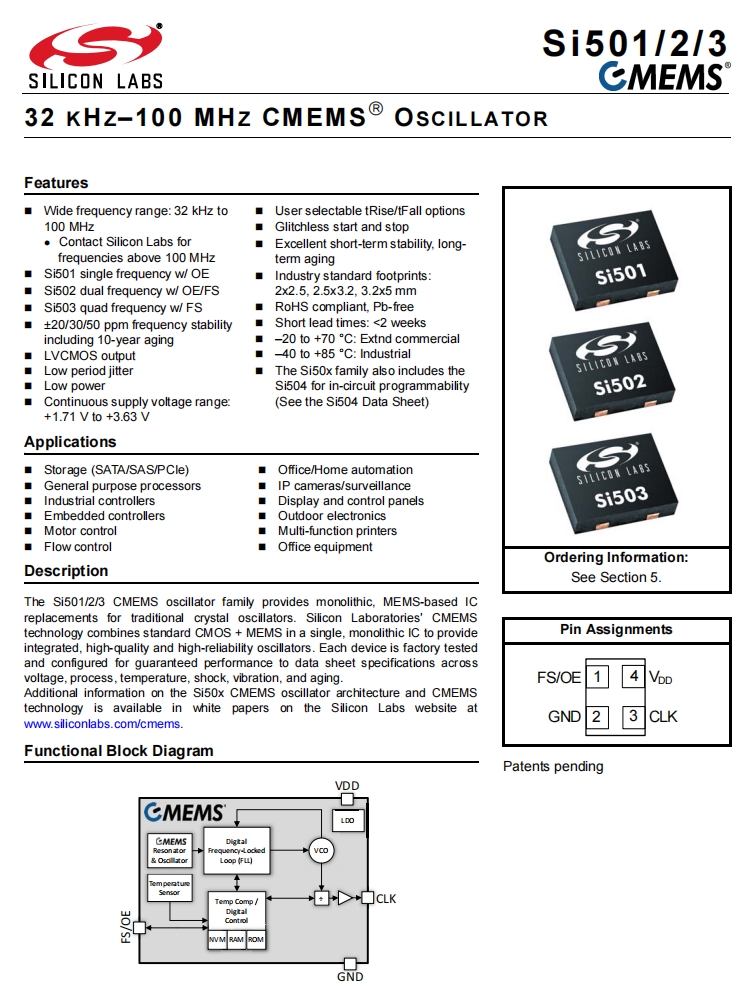

501BCA16M0000BAF|Silicon品牌|6G相关设备晶振特点:

-宽频率范围:32KHz至100MHz

-有关100 MHz以上的频率,请联系Silicon Labs

-Si501单频w/ OE

-Si502双频w/ OE/FS

-Si503四频w/ FS

-±20/30/ 50ppm频率稳定性,包括10年老化

-LVCMOS输出

-低周期抖动

-低功耗

-连续供电电压范围:+1.71 V ~ +3.63 V

-用户可选择的升降选项

-无故障启动和停止

-短期稳定性好,长期老化性好

-行业标准脚印:2x2.5, 2.5x3.2, 3.2x5 mm

-符合RoHS标准,无铅

-缩短交货期:<2周

-20至+70°C:扩展商用

-40至+85°C:工业

-Si50x系列还包括Si504,用于电路可编程性(参见Si504数据表)

yijin-2

501BCA16M0000BAF|Silicon品牌|6G相关设备晶振规格表

Parameters Condition Si501
Frequency Range 100MHZ
Frequency Stability ±20ppm
Operating Temperature Extended Commercial grade -20°C~+70°C
Extended commercial -40°C~+85°C
Storage Temperature -55°C~+125°C
Supply Voltage 3.3V
Supply Current CL=4 pF, 3.3 VDD, FCLK=1.0 MHz, low power option
2.5 mA Max
CL=4 pF, 3.3 VDD, FCLK=100 MHz, low power option
6.5 mA Max
CL=4 pF, 3.3 VDD, FCLK=1.0 MHz, low jitter option
4.9 mA Max
CL=4 pF, 3.3 VDD, FCLK=100 MHz, low jitter option
8.9 mA Max
OE Internal Pull Resistor Ordering option
60 kΩ Max
Rise and Fall Times 1 1st ordering option code2: A and H Z0=25 Ω@ 3.3 V 1.2ns Max
Startup Time2
From VDD crossing 1.71 V to first clock output
4ms Max
    Output High Voltage

1st ordering option code: A and H IOH=–4 mA 0.90 x VDD Min
Output Low Voltage
1st ordering option code: A and H IOH=+4 mA 0.10 x VDD Max
Duty Cycle Drive strength selected such that tRise/tFall (20% to 80%)<10% of period 45% Min ~55% Max
Period Jitter 100 MHz, Low Jitter Option 1st ordering option code: H 1.6 ps RMS Max
100 MHz, Low Power Option 1st ordering option code: A 1.9 ps RMS Max
Phase Jitter
75 MHz FOFFSET=900 kHz to 7.5 MHz Low Jitter Option 1st ordering option code: H
1.3 ps RMS Max
75 MHz FOFFSET=900 kHz to 7.5 MHz Low Power Option 1st ordering option code: A
3.2 ps RMS Max

yijin-3

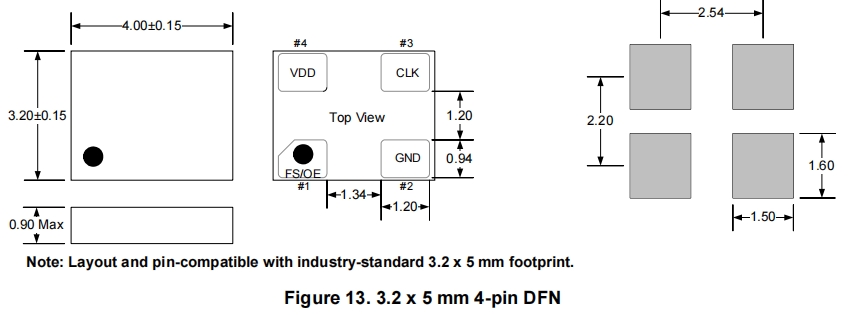

501BCA16M0000BAF|Silicon品牌|6G相关设备晶振尺寸图

Si501-5032

SI501-1

Si501-2

原厂代码 品牌 型号 频率 电压 频率稳定度 尺寸
510BBA156M250BAGR Silicon Labs Si510 156.25MHz 3.3V ±25ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
510BBA156M250BAGR Silicon Labs Si510 156.25MHz 3.3V ±25ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
510BBA156M250BAGR Silicon Labs Si510 156.25MHz 3.3V ±25ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
511FBA125M000BAG Silicon Labs Si511 125MHz 2.5V ±25ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
511BBA100M000AAG Silicon Labs Si511 100MHz 3.3V ±25ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
511BBA148M500BAG Silicon Labs Si511 148.5MHz 3.3V ±25ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
511ABA156M250AAG Silicon Labs Si511 156.25MHz 3.3V ±25ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
511BBA200M000BAG Silicon Labs Si511 200MHz 3.3V ±25ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
530FB125M000DG Silicon Labs Si530 125MHz 2.5V ±20ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
531BB125M000DG Silicon Labs Si531 125MHz 3.3V ±20ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
530BB125M000DG Silicon Labs Si530 125MHz 3.3V ±20ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
531FB200M000DG Silicon Labs Si531 200MHz 2.5V ±20ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
530FB200M000DG Silicon Labs Si530 200MHz 2.5V ±20ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
530BC156M250DG Silicon Labs Si530 156.25MHz 3.3V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
531FC250M000DG Silicon Labs Si531 250MHz 2.5V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
511BBA100M000BAG Silicon Labs Si511 100MHz 3.3V ±25ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
510BBA125M000BAG Silicon Labs Si510 125MHz 3.3V ±25ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
511BBA125M000BAG Silicon Labs Si511 125MHz 3.3V ±25ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
511ABA100M000AAG Silicon Labs Si511 100MHz 3.3V ±25ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
511BBA000110BAG Silicon Labs Si511 148.35165MHz 3.3V ±25ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
511BBA148M500AAG Silicon Labs Si511 148.5MHz 3.3V ±25ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
511FBA200M000BAG Silicon Labs Si511 200MHz 2.5V ±25ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
510BBA200M000BAG Silicon Labs Si510 200MHz 3.3V ±25ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
511FBA200M000AAG Silicon Labs Si511 200MHz 2.5V ±25ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
511ABA25M0000BAG Silicon Labs Si511 25MHz 3.3V ±25ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
511FCA100M000BAG Silicon Labs Si511 100MHz 2.5V ±20ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
511BCA100M000BAG Silicon Labs Si511 100MHz 3.3V ±20ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
530BA125M000DG Silicon Labs Si530 125MHz 3.3V ±50ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
531FB125M000DG Silicon Labs Si531 125MHz 2.5V ±20ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
530BB100M000DG Silicon Labs Si530 100MHz 3.3V ±20ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
530FC156M250DG Silicon Labs Si530 156.25MHz 2.5V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
510ABA125M000BAG Silicon Labs Si510 125MHz 3.3V ±25ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
511BBA74M2500BAG Silicon Labs Si511 74.25MHz 3.3V ±25ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
510BBA156M250BAG Silicon Labs Si510 156.25MHz 3.3V ±25ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
511ABA156M250BAG Silicon Labs Si511 156.25MHz 3.3V ±25ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
510FBA200M000BAG Silicon Labs Si510 200MHz 2.5V ±25ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
510ABA200M000BAG Silicon Labs Si510 200MHz 3.3V ±25ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
530FA156M250DG Silicon Labs Si530 156.25MHz 2.5V ±50ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
531BC000110DG Silicon Labs Si531 148.35165MHz 3.3V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
535FB125M000DG Silicon Labs Si535 125MHz 2.5V ±20ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
SI50122-A4-GM Silicon Labs SI50122-A4 100MHz 2.25 V ~ 3.63 V +100ppm 0.098" L x 0.079" W (2.50mm x 2.00mm)
511ABA156M250AAGR Silicon Labs Si511 156.25MHz 3.3V ±25ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
511ABA156M250AAGR Silicon Labs Si511 156.25MHz 3.3V ±25ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
511ABA156M250AAGR Silicon Labs Si511 156.25MHz 3.3V ±25ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
530FC125M000DG Silicon Labs Si530 125MHz 2.5V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
531BC200M000DG Silicon Labs Si531 200MHz 3.3V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
531BC250M000DG Silicon Labs Si531 250MHz 3.3V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
530AC622M080DG Silicon Labs Si530 622.08MHz 3.3V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
511FBA100M000BAG Silicon Labs Si511 100MHz 2.5V ±25ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
511BBA106M250BAG Silicon Labs Si511 106.25MHz 3.3V ±25ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
510BBA156M250AAG Silicon Labs Si510 156.25MHz 3.3V ±25ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
510ABA156M250AAG Silicon Labs Si510 156.25MHz 3.3V ±25ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
531BC125M000DG Silicon Labs Si531 125MHz 3.3V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
530AC125M000DG Silicon Labs Si530 125MHz 3.3V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
531FB106M250DG Silicon Labs Si531 106.25MHz 2.5V ±20ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
531AC156M250DG Silicon Labs Si531 156.25MHz 3.3V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
531AC200M000DG Silicon Labs Si531 200MHz 3.3V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
531BC148M500DG Silicon Labs Si531 148.5MHz 3.3V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
530AC200M000DG Silicon Labs Si530 200MHz 3.3V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
530BC200M000DG Silicon Labs Si530 200MHz 3.3V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
531BC156M250DG Silicon Labs Si531 156.25MHz 3.3V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
530FC200M000DG Silicon Labs Si530 200MHz 2.5V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
536BB156M250DG Silicon Labs Si536 156.25MHz 3.3V ±20ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
536FB156M250DG Silicon Labs Si536 156.25MHz 2.5V ±20ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
536AB156M250DG Silicon Labs Si536 156.25MHz 3.3V ±20ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
510FBA125M000BAG Silicon Labs Si510 125MHz 2.5V ±25ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
511BBA000149BAG Silicon Labs Si511 74.175824MHz 3.3V ±25ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
510FBA100M000BAG Silicon Labs Si510 100MHz 2.5V ±25ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
511FBA106M250BAG Silicon Labs Si511 106.25MHz 2.5V ±25ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
510BBA106M250BAG Silicon Labs Si510 106.25MHz 3.3V ±25ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
511BBA125M000AAG Silicon Labs Si511 125MHz 3.3V ±25ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
510BBA100M000AAG Silicon Labs Si510 100MHz 3.3V ±25ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
510BBA125M000AAG Silicon Labs Si510 125MHz 3.3V ±25ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
511FBA100M000AAG Silicon Labs Si511 100MHz 2.5V ±25ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
511BBA106M250AAG Silicon Labs Si511 106.25MHz 3.3V ±25ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
511FBA148M500BAG Silicon Labs Si511 148.5MHz 2.5V ±25ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
510FBA148M500BAG Silicon Labs Si510 148.5MHz 2.5V ±25ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
511BBA156M250BAG Silicon Labs Si511 156.25MHz 3.3V ±25ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
511FBA156M250BAG Silicon Labs Si511 156.25MHz 2.5V ±25ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
510BBA148M500BAG Silicon Labs Si510 148.5MHz 3.3V ±25ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
511BBA156M250AAG Silicon Labs Si511 156.25MHz 3.3V ±25ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
510FBA156M250AAG Silicon Labs Si510 156.25MHz 2.5V ±25ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
511ABA155M520AAG Silicon Labs Si511 155.52MHz 3.3V ±25ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
510FBA148M500AAG Silicon Labs Si510 148.5MHz 2.5V ±25ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
511BBA155M520AAG Silicon Labs Si511 155.52MHz 3.3V ±25ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
510BBA148M500AAG Silicon Labs Si510 148.5MHz 3.3V ±25ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
510ABA148M500AAG Silicon Labs Si510 148.5MHz 3.3V ±25ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
510DBA100M000AAG Silicon Labs Si510 100MHz 3.3V ±25ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
531AC125M000DG Silicon Labs Si531 125MHz 3.3V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
531FC125M000DG Silicon Labs Si531 125MHz 2.5V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
530AC156M250DG Silicon Labs Si530 156.25MHz 3.3V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
531FC156M250DG Silicon Labs Si531 156.25MHz 2.5V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
531FC148M500DG Silicon Labs Si531 148.5MHz 2.5V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
531AC155M520DG Silicon Labs Si531 155.52MHz 3.3V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
530AC155M520DG Silicon Labs Si530 155.52MHz 3.3V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
531BC155M520DG Silicon Labs Si531 155.52MHz 3.3V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
531FC200M000DG Silicon Labs Si531 200MHz 2.5V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
530BC148M500DG Silicon Labs Si530 148.5MHz 3.3V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
536EB156M250DG Silicon Labs Si536 156.25MHz 2.5V ±20ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
536BB125M000DG Silicon Labs Si536 125MHz 3.3V ±20ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
531AC622M080DG Silicon Labs Si531 622.08MHz 3.3V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
531AC312M500DG Silicon Labs Si531 312.5MHz 3.3V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
510ABA000149BAG Silicon Labs Si510 74.175824MHz 3.3V ±25ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
510BBA000149BAG Silicon Labs Si510 74.175824MHz 3.3V ±25ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
511FBA000149BAG Silicon Labs Si511 74.175824MHz 2.5V ±25ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
510ABA106M250BAG Silicon Labs Si510 106.25MHz 3.3V ±25ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
511ABA106M250BAG Silicon Labs Si511 106.25MHz 3.3V ±25ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
511FBA74M2500BAG Silicon Labs Si511 74.25MHz 2.5V ±25ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
511ABA000149BAG Silicon Labs Si511 74.175824MHz 3.3V ±25ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
510FBA000149BAG Silicon Labs Si510 74.175824MHz 2.5V ±25ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
510ABA74M2500BAG Silicon Labs Si510 74.25MHz 3.3V ±25ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
510FBA000149AAG Silicon Labs Si510 74.175824MHz 2.5V ±25ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
510ABA125M000AAG Silicon Labs Si510 125MHz 3.3V ±25ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
510ABA106M250AAG Silicon Labs Si510 106.25MHz 3.3V ±25ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
511FBA106M250AAG Silicon Labs Si511 106.25MHz 2.5V ±25ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
510ABA74M2500AAG Silicon Labs Si510 74.25MHz 3.3V ±25ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
511FBA000149AAG Silicon Labs Si511 74.175824MHz 2.5V ±25ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
510BBA000149AAG Silicon Labs Si510 74.175824MHz 3.3V ±25ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
510ABA000149AAG Silicon Labs Si510 74.175824MHz 3.3V ±25ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
510FBA74M2500AAG Silicon Labs Si510 74.25MHz 2.5V ±25ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
511ABA74M2500AAG Silicon Labs Si511 74.25MHz 3.3V ±25ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
510BBA106M250AAG Silicon Labs Si510 106.25MHz 3.3V ±25ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
511ABA000149AAG Silicon Labs Si511 74.175824MHz 3.3V ±25ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
510BBA74M2500AAG Silicon Labs Si510 74.25MHz 3.3V ±25ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
511FBA74M2500AAG Silicon Labs Si511 74.25MHz 2.5V ±25ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
510FBA106M250AAG Silicon Labs Si510 106.25MHz 2.5V ±25ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
511BBA000149AAG Silicon Labs Si511 74.175824MHz 3.3V ±25ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
510ABA155M520BAG Silicon Labs Si510 155.52MHz 3.3V ±25ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
510FBA155M520BAG Silicon Labs Si510 155.52MHz 2.5V ±25ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
511FBA155M520BAG Silicon Labs Si511 155.52MHz 2.5V ±25ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
510ABA000110BAG Silicon Labs Si510 148.35165MHz 3.3V ±25ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
511ABA000110BAG Silicon Labs Si511 148.35165MHz 3.3V ±25ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
511ABA148M500BAG Silicon Labs Si511 148.5MHz 3.3V ±25ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
511ABA155M520BAG Silicon Labs Si511 155.52MHz 3.3V ±25ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
510BBA000110BAG Silicon Labs Si510 148.35165MHz 3.3V ±25ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
510FBA000110BAG Silicon Labs Si510 148.35165MHz 2.5V ±25ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
510BBA155M520BAG Silicon Labs Si510 155.52MHz 3.3V ±25ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
510FBA155M520AAG Silicon Labs Si510 155.52MHz 2.5V ±25ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
510ABA000110AAG Silicon Labs Si510 148.35165MHz 3.3V ±25ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
510FBA000110AAG Silicon Labs Si510 148.35165MHz 2.5V ±25ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
511FBA155M520AAG Silicon Labs Si511 155.52MHz 2.5V ±25ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
510ABA155M520AAG Silicon Labs Si510 155.52MHz 3.3V ±25ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
511ABA148M500AAG Silicon Labs Si511 148.5MHz 3.3V ±25ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
511FBA148M500AAG Silicon Labs Si511 148.5MHz 2.5V ±25ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
511FBA156M250AAG Silicon Labs Si511 156.25MHz 2.5V ±25ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
510FBA212M500BAG Silicon Labs Si510 212.5MHz 2.5V ±25ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
511FBA212M500BAG Silicon Labs Si511 212.5MHz 2.5V ±25ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
510ABA212M500BAG Silicon Labs Si510 212.5MHz 3.3V ±25ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
511ABA200M000BAG Silicon Labs Si511 200MHz 3.3V ±25ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
510ABA212M500AAG Silicon Labs Si510 212.5MHz 3.3V ±25ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
510BBA212M500AAG Silicon Labs Si510 212.5MHz 3.3V ±25ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
510FBA212M500AAG Silicon Labs Si510 212.5MHz 2.5V ±25ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
510FBA200M000AAG Silicon Labs Si510 200MHz 2.5V ±25ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
511ABA212M500AAG Silicon Labs Si511 212.5MHz 3.3V ±25ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
510EBA125M000AAG Silicon Labs Si510 125MHz 2.5V ±25ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
510ACA47M2500AAG Silicon Labs Si510 47.25MHz 3.3V ±20ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
530AC106M250DG Silicon Labs Si530 106.25MHz 3.3V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
530EC106M250DG Silicon Labs Si530 106.25MHz 2.5V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
531AC106M250DG Silicon Labs Si531 106.25MHz 3.3V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
531EC106M250DG Silicon Labs Si531 106.25MHz 2.5V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
530FC106M250DG Silicon Labs Si530 106.25MHz 2.5V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
530BC106M250DG Silicon Labs Si530 106.25MHz 3.3V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
531BC187M500DG Silicon Labs Si531 187.5MHz 3.3V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
530EC155M520DG Silicon Labs Si530 155.52MHz 2.5V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
531EC155M520DG Silicon Labs Si531 155.52MHz 2.5V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
530EC187M500DG Silicon Labs Si530 187.5MHz 2.5V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
531AC187M500DG Silicon Labs Si531 187.5MHz 3.3V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
531EC187M500DG Silicon Labs Si531 187.5MHz 2.5V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
530AC000110DG Silicon Labs Si530 148.35165MHz 3.3V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
530AC148M500DG Silicon Labs Si530 148.5MHz 3.3V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
530EC000110DG Silicon Labs Si530 148.35165MHz 2.5V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
530FC000110DG Silicon Labs Si530 148.35165MHz 2.5V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
531EC000110DG Silicon Labs Si531 148.35165MHz 2.5V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
531EC148M500DG Silicon Labs Si531 148.5MHz 2.5V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
530BC155M520DG Silicon Labs Si530 155.52MHz 3.3V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
530EC156M250DG Silicon Labs Si530 156.25MHz 2.5V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
530AC187M500DG Silicon Labs Si530 187.5MHz 3.3V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
530BC187M500DG Silicon Labs Si530 187.5MHz 3.3V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
530FC187M500DG Silicon Labs Si530 187.5MHz 2.5V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
530EC148M500DG Silicon Labs Si530 148.5MHz 2.5V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
530EC200M000DG Silicon Labs Si530 200MHz 2.5V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
531FC155M520DG Silicon Labs Si531 155.52MHz 2.5V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
531EC156M250DG Silicon Labs Si531 156.25MHz 2.5V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
530FC155M520DG Silicon Labs Si530 155.52MHz 2.5V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
530BC000110DG Silicon Labs Si530 148.35165MHz 3.3V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
530FC148M500DG Silicon Labs Si530 148.5MHz 2.5V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
536AB125M000DG Silicon Labs Si536 125MHz 3.3V ±20ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
535EB125M000DG Silicon Labs Si535 125MHz 2.5V ±20ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
536EB125M000DG Silicon Labs Si536 125MHz 2.5V ±20ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
535BB125M000DG Silicon Labs Si535 125MHz 3.3V ±20ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
535BB156M250DG Silicon Labs Si535 156.25MHz 3.3V ±20ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
535FB156M250DG Silicon Labs Si535 156.25MHz 2.5V ±20ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
530EC312M500DG Silicon Labs Si530 312.5MHz 2.5V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
530BC250M000DG Silicon Labs Si530 250MHz 3.3V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
530EC311M040DG Silicon Labs Si530 311.04MHz 2.5V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
530FC311M040DG Silicon Labs Si530 311.04MHz 2.5V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
530FC622M080DG Silicon Labs Si530 622.08MHz 2.5V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
531AC311M040DG Silicon Labs Si531 311.04MHz 3.3V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
531BC311M040DG Silicon Labs Si531 311.04MHz 3.3V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
531EC311M040DG Silicon Labs Si531 311.04MHz 2.5V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
531EC622M080DG Silicon Labs Si531 622.08MHz 2.5V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
531FC622M080DG Silicon Labs Si531 622.08MHz 2.5V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
531FC311M040DG Silicon Labs Si531 311.04MHz 2.5V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
530BC311M040DG Silicon Labs Si530 311.04MHz 3.3V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
531BC622M080DG Silicon Labs Si531 622.08MHz 3.3V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
531FC312M500DG Silicon Labs Si531 312.5MHz 2.5V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
530EC622M080DG Silicon Labs Si530 622.08MHz 2.5V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
531EC312M500DG Silicon Labs Si531 312.5MHz 2.5V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
530BC622M080DG Silicon Labs Si530 622.08MHz 3.3V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
531AC250M000DG Silicon Labs Si531 250MHz 3.3V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
530AC311M040DG Silicon Labs Si530 311.04MHz 3.3V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
530FC312M500DG Silicon Labs Si530 312.5MHz 2.5V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
531EC250M000DG Silicon Labs Si531 250MHz 2.5V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
530AC312M500DG Silicon Labs Si530 312.5MHz 3.3V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
530EC250M000DG Silicon Labs Si530 250MHz 2.5V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
530AC250M000DG Silicon Labs Si530 250MHz 3.3V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
530FC250M000DG Silicon Labs Si530 250MHz 2.5V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
530BC312M500DG Silicon Labs Si530 312.5MHz 3.3V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
531BC312M500DG Silicon Labs Si531 312.5MHz 3.3V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
530FC50M0000DG Silicon Labs Si530 50MHz 2.5V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
535AB125M000DG Silicon Labs Si535 125MHz 3.3V ±20ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
501AAA27M0000DAF Silicon Labs Si501 27MHz 1.7 V ~ 3.6 V ±50ppm 0.098" L x 0.079" W (2.50mm x 2.00mm)
501AAA27M0000DAG Silicon Labs Si501 27MHz 1.7 V ~ 3.6 V ±50ppm 0.098" L x 0.079" W (2.50mm x 2.00mm)
501JCA100M000CAG Silicon Labs Si501 100MHz 3.3V ±20ppm 0.126" L x 0.098" W (3.20mm x 2.50mm)
501JCA100M000BAG Silicon Labs Si501 100MHz 3.3V ±20ppm 0.157" L x 0.126" W (4.00mm x 3.20mm)
501HCAM032768BAF Silicon Labs Si501 32.768kHz 1.7 V ~ 3.6 V ±20ppm 0.157" L x 0.126" W (4.00mm x 3.20mm)
501BCAM032768DAG Silicon Labs Si501 32.768kHz 3.3V ±20ppm 0.098" L x 0.079" W (2.50mm x 2.00mm)
501JCAM032768DAG Silicon Labs Si501 32.768kHz 3.3V ±20ppm 0.098" L x 0.079" W (2.50mm x 2.00mm)
SI50122-A1-GM Silicon Labs SI50122-A1 100MHz 2.25 V ~ 3.63 V +100ppm 0.098" L x 0.079" W (2.50mm x 2.00mm)
SI50122-A2-GM Silicon Labs SI50122-A2 100MHz 2.25 V ~ 3.63 V +100ppm 0.098" L x 0.079" W (2.50mm x 2.00mm)
511SAA100M000AAG Silicon Labs Si511 100MHz 1.8V ±50ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
510BCA148M500BAG Silicon Labs Si510 148.5MHz 3.3V ±20ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
530AA156M250DG Silicon Labs Si530 156.25MHz 3.3V ±50ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
531AA156M250DG Silicon Labs Si531 156.25MHz 3.3V ±50ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
530FB100M000DG Silicon Labs Si530 100MHz 2.5V ±20ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
511FBA125M000AAG Silicon Labs Si511 125MHz 2.5V ±25ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
530BC125M000DG Silicon Labs Si530 125MHz 3.3V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
535AB156M250DG Silicon Labs Si535 156.25MHz 3.3V ±20ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
536FB125M000DG Silicon Labs Si536 125MHz 2.5V ±20ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
510BBA74M2500BAG Silicon Labs Si510 74.25MHz 3.3V ±25ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
511ABA125M000BAG Silicon Labs Si511 125MHz 3.3V ±25ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
510BBA100M000BAG Silicon Labs Si510 100MHz 3.3V ±25ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
511ABA100M000BAG Silicon Labs Si511 100MHz 3.3V ±25ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
510FBA125M000AAG Silicon Labs Si510 125MHz 2.5V ±25ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
510ABA100M000AAG Silicon Labs Si510 100MHz 3.3V ±25ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
511BBA200M000AAG Silicon Labs Si511 200MHz 3.3V ±25ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
531BC106M250DG Silicon Labs Si531 106.25MHz 3.3V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
531EC125M000DG Silicon Labs Si531 125MHz 2.5V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
511ABA74M2500BAG Silicon Labs Si511 74.25MHz 3.3V ±25ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
510FBA74M2500BAG Silicon Labs Si510 74.25MHz 2.5V ±25ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
510ABA100M000BAG Silicon Labs Si510 100MHz 3.3V ±25ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
510FBA100M000AAG Silicon Labs Si510 100MHz 2.5V ±25ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
511BBA74M2500AAG Silicon Labs Si511 74.25MHz 3.3V ±25ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
511ABA106M250AAG Silicon Labs Si511 106.25MHz 3.3V ±25ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
510ABA148M500BAG Silicon Labs Si510 148.5MHz 3.3V ±25ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
511BBA155M520BAG Silicon Labs Si511 155.52MHz 3.3V ±25ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
510ABA156M250BAG Silicon Labs Si510 156.25MHz 3.3V ±25ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
510FBA156M250BAG Silicon Labs Si510 156.25MHz 2.5V ±25ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
511FBA000110BAG Silicon Labs Si511 148.35165MHz 2.5V ±25ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
510BBA155M520AAG Silicon Labs Si510 155.52MHz 3.3V ±25ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
510BBA000110AAG Silicon Labs Si510 148.35165MHz 3.3V ±25ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
511ABA000110AAG Silicon Labs Si511 148.35165MHz 3.3V ±25ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
511BBA000110AAG Silicon Labs Si511 148.35165MHz 3.3V ±25ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
511FBA000110AAG Silicon Labs Si511 148.35165MHz 2.5V ±25ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
510BBA212M500BAG Silicon Labs Si510 212.5MHz 3.3V ±25ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
511ABA212M500BAG Silicon Labs Si511 212.5MHz 3.3V ±25ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
511BBA212M500BAG Silicon Labs Si511 212.5MHz 3.3V ±25ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
511FBA212M500AAG Silicon Labs Si511 212.5MHz 2.5V ±25ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
510BBA200M000AAG Silicon Labs Si510 200MHz 3.3V ±25ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
511BBA212M500AAG Silicon Labs Si511 212.5MHz 3.3V ±25ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
510ABA200M000AAG Silicon Labs Si510 200MHz 3.3V ±25ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
511ABA200M000AAG Silicon Labs Si511 200MHz 3.3V ±25ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
530EC125M000DG Silicon Labs Si530 125MHz 2.5V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
531FC106M250DG Silicon Labs Si531 106.25MHz 2.5V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
531FC187M500DG Silicon Labs Si531 187.5MHz 2.5V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
531FC000110DG Silicon Labs Si531 148.35165MHz 2.5V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
531EC200M000DG Silicon Labs Si531 200MHz 2.5V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
531AC000110DG Silicon Labs Si531 148.35165MHz 3.3V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
531AC148M500DG Silicon Labs Si531 148.5MHz 3.3V ±7ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
535EB156M250DG Silicon Labs Si535 156.25MHz 2.5V ±20ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
510CBA25M0000BAG Silicon Labs Si510 25MHz 3.3V ±25ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
511SBA156M250BAG Silicon Labs Si511 156.25MHz 1.8V ±50ppm 0.197" L x 0.126" W (5.00mm x 3.20mm)
501JAA24M0000DAF Silicon Labs Si501 24MHz 3.3V ±50ppm 0.098" L x 0.079" W (2.50mm x 2.00mm)
501BAA16M0000DAF Silicon Labs Si501 16MHz 3.3V ±50ppm 0.098" L x 0.079" W (2.50mm x 2.00mm)
501JAA24M0000CAF Silicon Labs Si501 24MHz 3.3V ±50ppm 0.126" L x 0.098" W (3.20mm x 2.50mm)
501AAA27M0000CAF Silicon Labs Si501 27MHz 1.7 V ~ 3.6 V ±50ppm 0.126" L x 0.098" W (3.20mm x 2.50mm)
501AAA25M0000BAF Silicon Labs Si501 25MHz 1.7 V ~ 3.6 V ±50ppm 0.157" L x 0.126" W (4.00mm x 3.20mm)
501JAA40M0000CAF Silicon Labs Si501 40MHz 3.3V ±50ppm 0.126" L x 0.098" W (3.20mm x 2.50mm)
501AAA24M0000BAF Silicon Labs Si501 24MHz 1.7 V ~ 3.6 V ±50ppm 0.157" L x 0.126" W (4.00mm x 3.20mm)
501EAA48M0000CAF Silicon Labs Si501 48MHz 1.7 V ~ 3.6 V ±50ppm 0.126" L x 0.098" W (3.20mm x 2.50mm)
501AAA27M0000BAF Silicon Labs Si501 27MHz 1.7 V ~ 3.6 V ±50ppm 0.157" L x 0.126" W (4.00mm x 3.20mm)

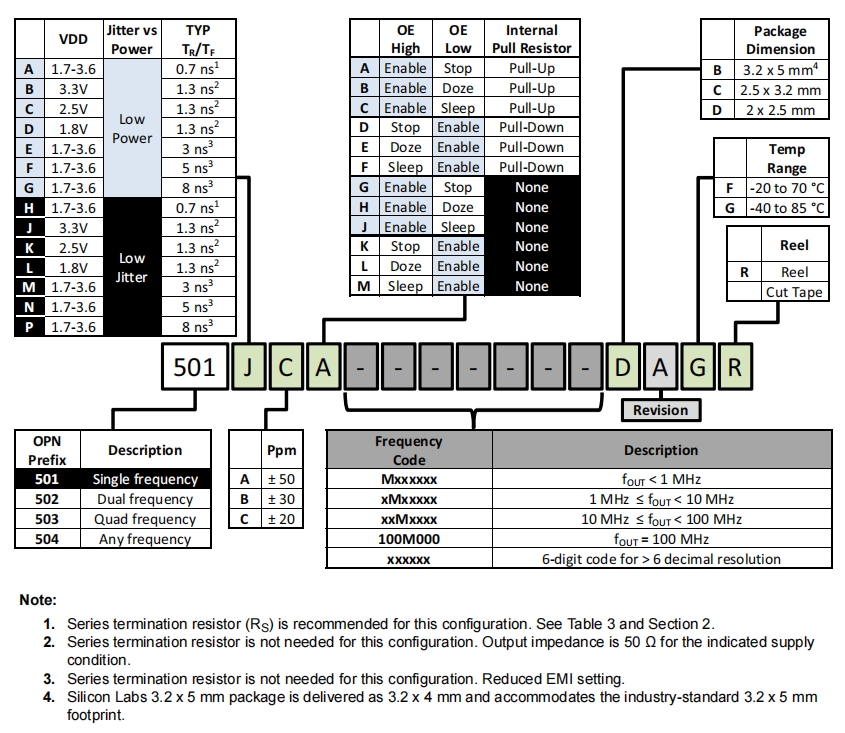

501EAA48M0000BAF Silicon Labs Si501 48MHz 1.7 V ~ 3.6 V ±50ppm 0.157" L x 0.126" W (4.00mm x 3.20mm)
501JAA25M0000BAF Silicon Labs Si501 25MHz 3.3V ±50ppm 0.157" L x 0.126" W (4.00mm x 3.20mm)
501BAA50M0000BAF Silicon Labs Si501 50MHz 3.3V ±50ppm 0.157" L x 0.126" W (4.00mm x 3.20mm)
501AAA50M0000CAF Silicon Labs Si501 50MHz 1.7 V ~ 3.6 V ±50ppm 0.126" L x 0.098" W (3.20mm x 2.50mm)
501EAA48M0000DAG Silicon Labs Si501 48MHz 1.7 V ~ 3.6 V ±50ppm 0.098" L x 0.079" W (2.50mm x 2.00mm)
501AAA25M0000DAG Silicon Labs Si501 25MHz 1.7 V ~ 3.6 V ±50ppm 0.098" L x 0.079" W (2.50mm x 2.00mm)
501HCA27M0000DAF Silicon Labs Si501 27MHz 1.7 V ~ 3.6 V ±20ppm 0.098" L x 0.079" W (2.50mm x 2.00mm)
501ABA8M00000BAF Silicon Labs Si501 8MHz 1.7 V ~ 3.6 V ±30ppm 0.157" L x 0.126" W (4.00mm x 3.20mm)
501HCA12M0000DAF Silicon Labs Si501 12MHz 1.7 V ~ 3.6 V ±20ppm 0.098" L x 0.079" W (2.50mm x 2.00mm)
501JCA24M0000DAF Silicon Labs Si501 24MHz 3.3V ±20ppm 0.098" L x 0.079" W (2.50mm x 2.00mm)
501AAA24M0000BAG Silicon Labs Si501 24MHz 1.7 V ~ 3.6 V ±50ppm 0.157" L x 0.126" W (4.00mm x 3.20mm)
501BCA16M0000BAF Silicon Labs Si501 16MHz 3.3V ±20ppm 0.157" L x 0.126" W (4.00mm x 3.20mm)
501JCA24M0000CAF Silicon Labs Si501 24MHz 3.3V ±20ppm 0.126" L x 0.098" W (3.20mm x 2.50mm)
501HCA26M0000BAF Silicon Labs Si501 26MHz 1.7 V ~ 3.6 V ±20ppm 0.157" L x 0.126" W (4.00mm x 3.20mm)
501JAA25M0000BAG Silicon Labs Si501 25MHz 3.3V ±50ppm 0.157" L x 0.126" W (4.00mm x 3.20mm)
501BCA16M0000CAF Silicon Labs Si501 16MHz 3.3V ±20ppm 0.126" L x 0.098" W (3.20mm x 2.50mm)
501EAA48M0000CAG Silicon Labs Si501 48MHz 1.7 V ~ 3.6 V ±50ppm 0.126" L x 0.098" W (3.20mm x 2.50mm)
501BAA16M0000BAG Silicon Labs Si501 16MHz 3.3V ±50ppm 0.157" L x 0.126" W (4.00mm x 3.20mm)
501BAA16M0000CAG Silicon Labs Si501 16MHz 3.3V ±50ppm 0.126" L x 0.098" W (3.20mm x 2.50mm)
501JAA24M0000BAG Silicon Labs Si501 24MHz 3.3V ±50ppm 0.157" L x 0.126" W (4.00mm x 3.20mm)
501AAA27M0000BAG Silicon Labs Si501 27MHz 1.7 V ~ 3.6 V ±50ppm 0.157" L x 0.126" W (4.00mm x 3.20mm)
501ACA10M0000CAF Silicon Labs Si501 10MHz 1.7 V ~ 3.6 V ±20ppm 0.126" L x 0.098" W (3.20mm x 2.50mm)
501JAA40M0000BAG Silicon Labs Si501 40MHz 3.3V ±50ppm 0.157" L x 0.126" W (4.00mm x 3.20mm)
501ACA10M0000BAF Silicon Labs Si501 10MHz 1.7 V ~ 3.6 V ±20ppm 0.157" L x 0.126" W (4.00mm x 3.20mm)
501JCA10M0000BAF Silicon Labs Si501 10MHz 3.3V ±20ppm 0.157" L x 0.126" W (4.00mm x 3.20mm)
501HCA12M0000BAF Silicon Labs Si501 12MHz 1.7 V ~ 3.6 V ±20ppm 0.157" L x 0.126" W (4.00mm x 3.20mm)
501JCA25M0000CAF Silicon Labs Si501 25MHz 3.3V ±20ppm 0.126" L x 0.098" W (3.20mm x 2.50mm)
501HCA27M0000BAF Silicon Labs Si501 27MHz 1.7 V ~ 3.6 V ±20ppm 0.157" L x 0.126" W (4.00mm x 3.20mm)
501AAA50M0000BAG Silicon Labs Si501 50MHz 1.7 V ~ 3.6 V ±50ppm 0.157" L x 0.126" W (4.00mm x 3.20mm)
501ABA8M00000BAG Silicon Labs Si501 8MHz 1.7 V ~ 3.6 V ±30ppm 0.157" L x 0.126" W (4.00mm x 3.20mm)
501HCA27M0000DAG Silicon Labs Si501 27MHz 1.7 V ~ 3.6 V ±20ppm 0.098" L x 0.079" W (2.50mm x 2.00mm)
501ABA8M00000CAG Silicon Labs Si501 8MHz 1.7 V ~ 3.6 V ±30ppm 0.126" L x 0.098" W (3.20mm x 2.50mm)
501JCA10M0000BAG Silicon Labs Si501 10MHz 3.3V ±20ppm 0.157" L x 0.126" W (4.00mm x 3.20mm)
501ACA10M0000BAG Silicon Labs Si501 10MHz 1.7 V ~ 3.6 V ±20ppm 0.157" L x 0.126" W (4.00mm x 3.20mm)


yijin-5

YJ-6

深圳市亿金电子有限公司    SHENZHEN YIJIN ELECTRONICS CO;LTD

mphone联系人黄娜:18924600166

QQ工作QQ:857950243

myt贸易通:yijindz2014

tel座机:0755-27876565

email邮箱:yijindz@163.com

inter 网址:http://www.yijindz.com

mwx微信:yijindz,公众号:NDKcrystal

home地址:广东省深圳市宝安区107国道旁甲岸路

wxewm

跟此产品相关的产品 / Related Products

AXLE5032S晶振,AXTAL进口晶振,5032贴片晶振,TCXO晶振,德国有源晶振
AXLE5032S晶振,AXTAL进口晶振,5032贴片晶振,TCXO晶振,德国有源晶振

AXLE5032S晶振,AXTAL进口晶振,5032贴片晶振,TCXO晶振,德国有源晶振

AXLE5032晶振的频率范围是10 ~ 50 MHz,尺寸为5.00mm x 3.20mm,是5032贴片晶振。该AXTAL进口晶振专门用于LEO应用,为TCXO晶振,也叫温补晶振,电源电压为3.3V,为德国有源晶振。低相位噪声,高频稳定性,具有低损耗,低耗能,低电压,低抖动,低差损,低电平,低功耗,低电源电压。温补振荡器(TCXO)产品本身具有温度补偿作用,高低温度稳定性:频率精度高0.5 PPM?2.0 PPM,工作温度范围: - 30度?85度,电源电压:1.8V?3.3V之间可供选择,产品本身具有温度电压控制功能,世界上最薄的晶振封装,频率:26兆赫,33.6兆赫,38.4兆赫,40兆赫,因产品性能稳定,精度高等优势,被广泛应用到一些比较高端的数码通讯产品领域,GPS全球定位系统,智能手机,WiMAX和蜂窝和无线通信等产品,符合RoHS/无铅.

ELSADV-16.000MHz-LK-T,AEL晶振,16MHz,2016贴片晶振,进口有源晶振
ELSADV-16.000MHz-LK-T,AEL晶振,16MHz,2016贴片晶振,进口有源晶振

ELSADV-16.000MHz-LK-T,AEL晶振,16MHz,2016贴片晶振,进口有源晶振

AEL晶振中型号为:ELSADV,编码是:ELSADV-16.000MHz-LK-T,频率为:16MHz,电源电压是:1.6V~3.63V,频率稳定性为:±30ppm,工作温度范围是:-40℃至+85℃,电流为:3mA,小体积晶振尺寸:2.0x1.6x0.8mm封装,为2016贴片晶振,进口有源晶振,贴片晶振,无铅环保晶振。具有小体积,轻薄型,高性能,高品质,高温度等特点。被广泛应用于:通讯设备晶振,车载电子晶振,智能家居晶振,无线蓝牙晶振,物联网晶振,安防设备等应用。

4HF050000Z3BACXGI8,Renesas进口晶振,3225mm,差分晶体振荡器
4HF050000Z3BACXGI8,Renesas进口晶振,3225mm,差分晶体振荡器
4HF050000Z3BACXGI8,Renesas进口晶振,3225mm,差分晶体振荡器,美国进口晶振,Renesas晶振,瑞萨电子晶振,型号:4HF系列晶振,编码为:4HF050000Z3BACXGI8,频率为:50MHz,电源电压:2.5V,频率稳定性:±50ppm,工作温度范围:-40℃至+85℃,小体积尺寸:3.2x2.5mm封装,LVPECL输出差分晶振,MEMS振荡器,六脚贴片晶振,石英晶振,差分晶体振荡器,有源晶振,石英晶体振荡器。具有超小型,轻薄型,低抖动,低相位噪声,低电平,低电源电压,低损耗,低耗能,低功耗等特点。应用于以太网晶振,路由器晶振,交换机晶振,光纤通道晶振,物联网等应用。
亿金电子产品中心 Product Center

晶振系列

日本进口晶振

台产晶振

欧美晶振

有源晶振

雾化片

贴片晶振

32.768K

声表面滤波器

石英晶振

KDS晶振

爱普生晶振

NDK晶振

温补晶振

联系亿金电子Contact us
咨询热线:0755-27876565

手机:189 2460 0166

QQ:857950243

邮箱:yijindz@163.com

地址:深圳市宝安区新安107国道旁甲岸路

Fast Track
快速通道

国内晶振分类:
Domestic Crystal
进口晶振分类:
Import Crystal
