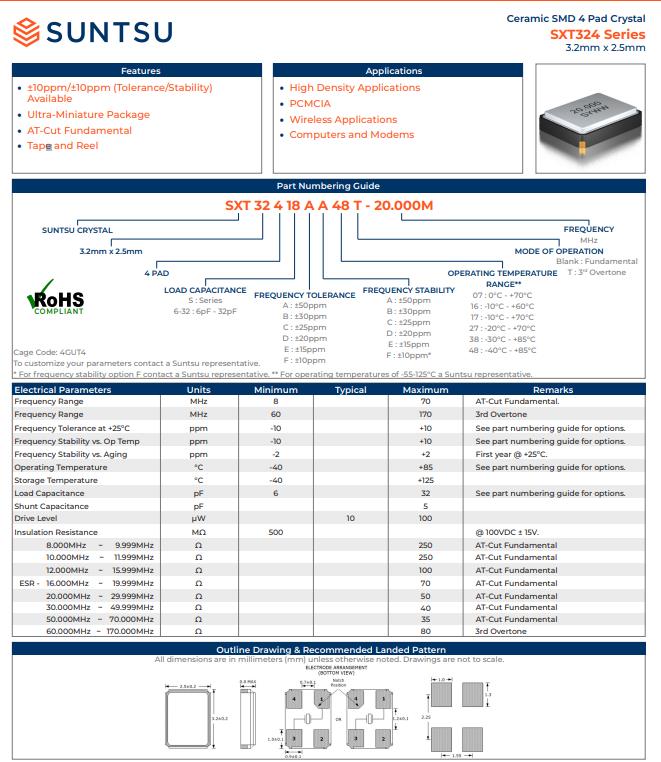

SXT32413BB27-44.000M 13PF 30PPM 44MHz 3225 SUNTSU
频率：44MHZ

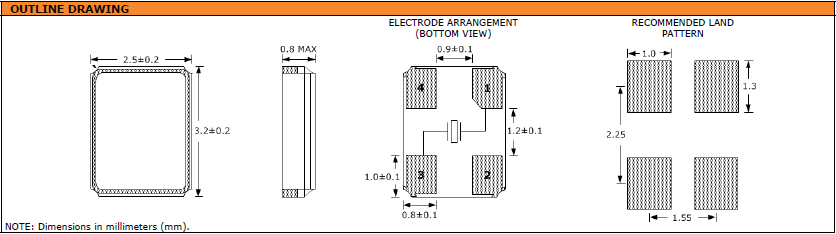

尺寸：3225mm
SXT32413BB27-44.000M 13PF 30PPM 44MHz 3225 SUNTSU
ELECTRICAL PARAMETERS
UNITS
MIN.
TYP.
MAX.
REMARKS
Frequency Range
MHz
12
70
AT-Cut Fundamental.
60
170
3rd Overtone.
Frequency Tolerance at +25ºC
ppm
--10
+10
See part numbering guide for options.
Frequency Stability vs. Operating Temperature (Ref. 25°C)
ppm
--10
+10
See part numbering guide for options.
vs. Aging
--2
+2
First year @ +25ºC.
Operating Temperature
ºC
--40
+85
See part numbering guide for options.
Storage Temperature
ºC
--40
+125
Load Capacitance
pF
7
32
See part numbering guide for options.
Shunt Capacitance
pF
5
Drive Level
µW
10
100
Insulation Resistance
M?
500
@ 100VDC ± 15V.
Equivalent Series Resistance
12.000MHz ~ 15.999MHz
?
100
AT-Cut Fundamental.
16.000MHz ~ 19.999MHz
70
AT-Cut Fundamental.
20.000MHz ~ 29.999MHz
50
AT-Cut Fundamental.
30.000MHz ~ 49.999MHz
40
AT-Cut Fundamental.
50.000MHz ~ 70.000MHz
35
AT-Cut Fundamental.
60.000MHz ~ 170.00MHz
80
3rd Overtone.
SXT32413BB27-44.000M 13PF 30PPM 44MHz 3225 SUNTSU
| SXT32413BB27-26.000M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 26.000M |
| SXT32413BB27-27.000M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 27.000M |
| SXT32413BB27-27.120M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 27.120M |
| SXT32413BB27-28.63636M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 28.63636M |
| SXT32413BB27-29.4912M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 29.4912M |
| SXT32413BB27-30.000M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 30.000M |
| SXT32413BB27-32.000M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 32.000M |
| SXT32413BB27-36.000M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 36.000M |
| SXT32413BB27-37.400M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 37.400M |
| SXT32413BB27-38.400M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 38.400M |
| SXT32413BB27-40.000M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 40.000M |
| SXT32413BB27-44.000M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 44.000M |
| SXT32413BB27-48.000M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 48.000M |
| SXT32413BB27-50.000M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 50.000M |
| SXT32413BB27-52.000M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 52.000M |
| SXT32413BB38-11.0592M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 11.0592M |
| SXT32413BB38-12.000M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 12.000M |
| SXT32413BB38-12.288M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 12.288M |
| SXT32413BB38-13.000M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 13.000M |
| SXT32413BB38-13.560M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 13.560M |
| SXT32413BB38-14.31818M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 14.31818M |
| SXT32413BB38-14.7456M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 14.7456M |
| SXT32413BB38-16.000M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 16.000M |
| SXT32413BB38-16.384M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 16.384M |
| SXT32413BB38-18.432M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 18.432M |
| SXT32413BB38-19.200M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 19.200M |
| SXT32413BB38-19.6608M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 19.6608M |
| SXT32413BB38-20.000M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 20.000M |
| SXT32413BB38-22.1184M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 22.1184M |
| SXT32413BB38-24.000M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 24.000M |
| SXT32413BB38-24.576M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 24.576M |
| SXT32413BB38-25.000M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 25.000M |
| SXT32413BB38-26.000M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 26.000M |
| SXT32413BB38-27.000M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 27.000M |
| SXT32413BB38-27.120M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 27.120M |
| SXT32413BB38-28.63636M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 28.63636M |
| SXT32413BB38-29.4912M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 29.4912M |
| SXT32413BB38-30.000M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 30.000M |
| SXT32413BB38-32.000M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 32.000M |
| SXT32413BB38-36.000M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 36.000M |
| SXT32413BB38-37.400M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 37.400M |
| SXT32413BB38-38.400M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 38.400M |
| SXT32413BB38-40.000M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 40.000M |
| SXT32413BB38-44.000M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 44.000M |
| SXT32413BB38-48.000M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 48.000M |
| SXT32413BB38-50.000M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 50.000M |
| SXT32413BB38-52.000M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 52.000M |
| SXT32413BB48-11.0592M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 11.0592M |
| SXT32413BB48-12.000M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 12.000M |
| SXT32413BB48-12.288M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 12.288M |
| SXT32413BB48-13.000M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 13.000M |
| SXT32413BB48-13.560M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 13.560M |
| SXT32413BB48-14.31818M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 14.31818M |
| SXT32413BB48-14.7456M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 14.7456M |
| SXT32413BB48-16.000M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 16.000M |
| SXT32413BB48-16.384M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 16.384M |
| SXT32413BB48-18.432M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 18.432M |
| SXT32413BB48-19.200M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 19.200M |
| SXT32413BB48-19.6608M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 19.6608M |
| SXT32413BB48-20.000M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 20.000M |
| SXT32413BB48-22.1184M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 22.1184M |
| SXT32413BB48-24.000M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 24.000M |
| SXT32413BB48-24.576M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 24.576M |
| SXT32413BB48-25.000M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 25.000M |
| SXT32413BB48-26.000M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 26.000M |
| SXT32413BB48-27.000M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 27.000M |
| SXT32413BB48-27.120M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 27.120M |
| SXT32413BB48-28.63636M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 28.63636M |
| SXT32413BB48-29.4912M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 29.4912M |
| SXT32413BB48-30.000M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 30.000M |
| SXT32413BB48-32.000M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 32.000M |
| SXT32413BB48-36.000M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 36.000M |
| SXT32413BB48-37.400M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 37.400M |
| SXT32413BB48-38.400M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 38.400M |
| SXT32413BB48-40.000M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 40.000M |
| SXT32413BB48-44.000M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 44.000M |
| SXT32413BB48-48.000M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 48.000M |
| SXT32413BB48-50.000M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 13pF | ±30ppm | 50.000M |
