Skyworks晶振,7050mm,599BFC000159DGR,6G信号接收器晶振
频率：148.5MHz
尺寸：7.0×5.0mm
Skyworks晶振,7050mm,599BFC000159DGR,6G信号接收器晶振,Skyworks晶振,压控晶振,Si599 有源晶振采用Skyworks Solutions先进的DSPLL®电路,在任何频率下提供低抖动时钟,它们是用户可编程到从10到810兆赫的任何输出频率,分辨率为28万亿分之一(PPT),该器件通过2引脚I2C兼容串行接口编程,宽频率范围和超精细的编程分辨率使这些器件非常适合需要在线动态频率调节或非整数相关速率的多速率操作的应用,6G信号接收器晶振,便携式多媒体设备晶振,以太网晶振,光纤通道晶振.
订购热线：0755-27876565
Skyworks晶振,7050mm,599BFC000159DGR,6G信号接收器晶振,Skyworks晶振,压控晶振,Si599 有源晶振采用Skyworks Solutions先进的DSPLL®电路,在任何频率下提供低抖动时钟,它们是用户可编程到从10到810兆赫的任何输出频率,分辨率为28万亿分之一(PPT),该器件通过2引脚I2C兼容串行接口编程,宽频率范围和超精细的编程分辨率使这些器件非常适合需要在线动态频率调节或非整数相关速率的多速率操作的应用,6G信号接收器晶振,便携式多媒体设备晶振,以太网晶振,光纤通道晶振.

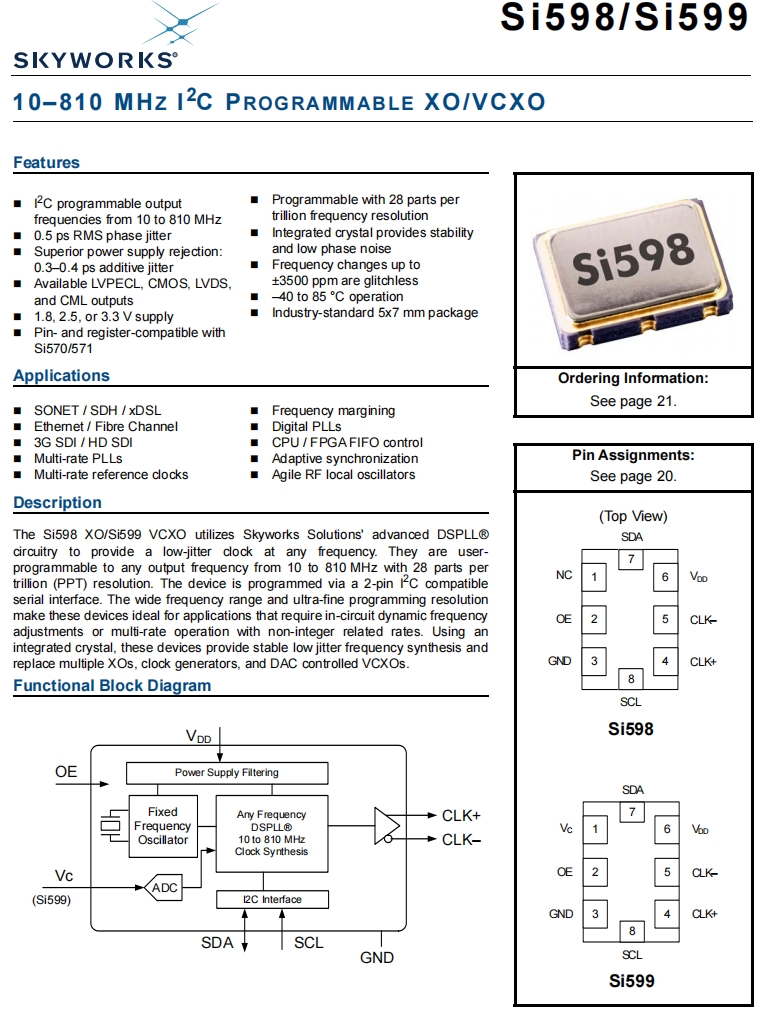

Skyworks晶振,7050mm,599BFC000159DGR,6G信号接收器晶振特点：
•I2C可编程输出频率从10MHz到810MHz
•0.5ps RMS相位抖动
•优越的电源拒绝能力:0.3-0.4 ps附加抖动
•引脚和寄存器兼容Si570/571
•可编程的28万亿分之一的频率分辨率
•集成晶体提供稳定性和低相位噪声
•频率变化到±3500ppm无故障
•具备CMOS, LVPECL，LVDS和CML输出
•3.3, 2.5和1.8 V电源选项
•行业标准的5 × 7mm封装和引脚
•工作温度-40~85°C
Skyworks晶振,7050mm,599BFC000159DGR,6G信号接收器晶振规格表
项目
符号
规格说明
条件
额定频率
f_nom
148.5MHz
请联系我们以便获取其它可用频率的相关信息
电源电压
Vcc
3.3V
储存温度
T_stg
-55℃~+125℃
裸存
工作温度
T_use
-40℃~ +85℃
频率稳定性
f_tol
±50 ppm
+25℃,超出标准的规格说明请联系我们以便获取相关信息
电源电流
IDD
110mA Max
LVDS
对称性（占空比）
SYM
48%~52%
在输出交叉点
输出电压
VOD
0.9VPP Max
LVDS
VO
1.275V Max
输入电压
VIH
0.75 x VDD Min
VIL
0.5V Max
上升下降时间
tr/tf
350ps Max
LVDS
起始时间
t str
10ms Max
相位抖动
tpj
0.5ps Typ

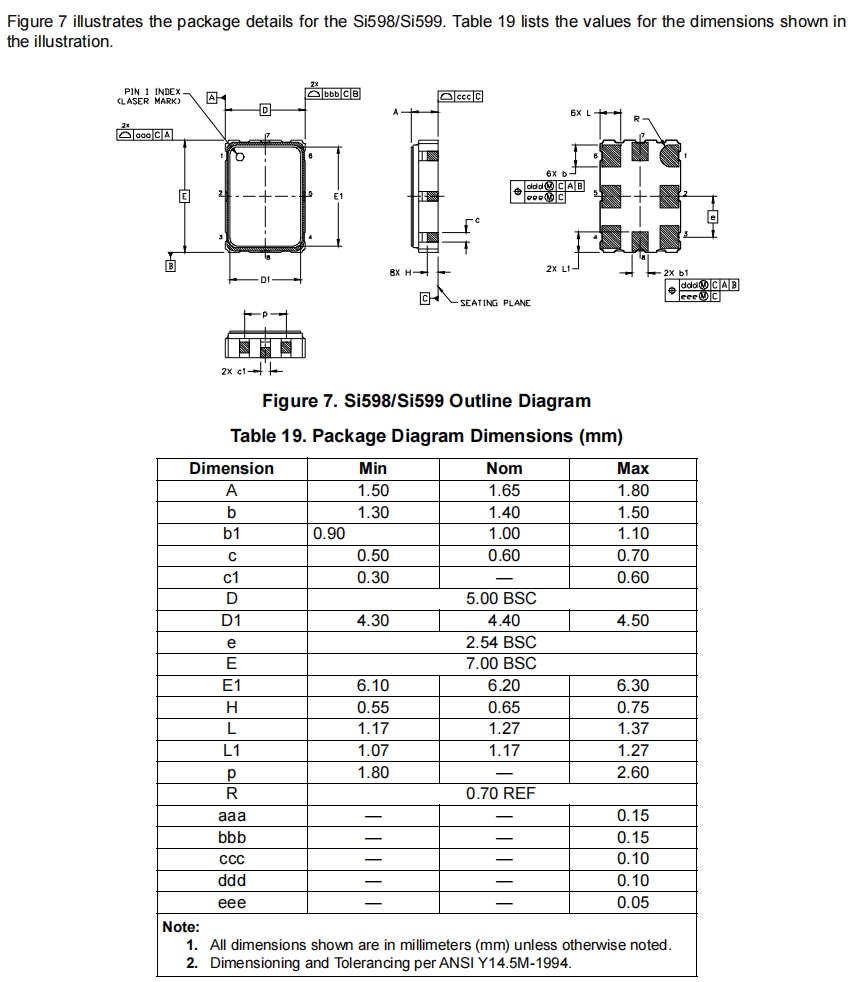

Skyworks晶振,7050mm,599BFC000159DGR,6G信号接收器晶振尺寸图
| 原厂编码 | 品牌 | 型号 | 频率 | 输出 | 电压 | 频率稳定性 | 工作温度 |
| 599BFC000159DGR | Skyworks Solutions Inc. | Si599 | 148.5 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599NGC000112DGR | Skyworks Solutions Inc. | Si599 | 10 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599BFC000159DG | Skyworks Solutions Inc. | Si599 | 148.5 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599NGC000112DG | Skyworks Solutions Inc. | Si599 | 10 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599BAC000780DG | Skyworks Solutions Inc. | Si599 | 30 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BAC000780DGR | Skyworks Solutions Inc. | Si599 | 30 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599ACC000112DGR | Skyworks Solutions Inc. | Si599 | 10 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599AGC000112DGR | Skyworks Solutions Inc. | Si599 | 10 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599BGC000121DGR | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599BGC000770DGR | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599ACC000112DG | Skyworks Solutions Inc. | Si599 | 10 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599AGC000112DG | Skyworks Solutions Inc. | Si599 | 10 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599BGC000121DG | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599BGC000770DG | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599ADC000107DG | Skyworks Solutions Inc. | Si599 | 10 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BAC001795DG | Skyworks Solutions Inc. | Si599 | 133.3125 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BBC000159DG | Skyworks Solutions Inc. | Si599 | 148.5 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BCB000107DG | Skyworks Solutions Inc. | Si599 | 10 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599BEC000121DG | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BEC000642DG | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BEC000770DG | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BHC000348DG | Skyworks Solutions Inc. | Si599 | 16.384 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599EBC000159DG | Skyworks Solutions Inc. | Si599 | 148.5 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 599ECB000103DG | Skyworks Solutions Inc. | Si599 | 155.52 MHz | LVPECL | 2.5V | ±50ppm | -40°C ~ 85°C |
| 599ECB000553DG | Skyworks Solutions Inc. | Si599 | 155 MHz | LVPECL | 2.5V | ±50ppm | -40°C ~ 85°C |
| 599FCB000107DG | Skyworks Solutions Inc. | Si599 | 10 MHz | LVDS | 2.5V | ±50ppm | -40°C ~ 85°C |
| 599FCB000112DG | Skyworks Solutions Inc. | Si599 | 10 MHz | LVDS | 2.5V | ±50ppm | -40°C ~ 85°C |
| 599MHC000775DG | Skyworks Solutions Inc. | Si599 | 36.864 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599ADC000107DGR | Skyworks Solutions Inc. | Si599 | 10 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BAC001795DGR | Skyworks Solutions Inc. | Si599 | 133.3125 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BBC000159DGR | Skyworks Solutions Inc. | Si599 | 148.5 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BCB000107DGR | Skyworks Solutions Inc. | Si599 | 10 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599BEC000121DGR | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BEC000642DGR | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BEC000770DGR | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BHC000348DGR | Skyworks Solutions Inc. | Si599 | 16.384 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599EBC000159DGR | Skyworks Solutions Inc. | Si599 | 148.5 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 599ECB000103DGR | Skyworks Solutions Inc. | Si599 | 155.52 MHz | LVPECL | 2.5V | ±50ppm | -40°C ~ 85°C |
| 599ECB000553DGR | Skyworks Solutions Inc. | Si599 | 155 MHz | LVPECL | 2.5V | ±50ppm | -40°C ~ 85°C |
| 599FCB000107DGR | Skyworks Solutions Inc. | Si599 | 10 MHz | LVDS | 2.5V | ±50ppm | -40°C ~ 85°C |
| 599FCB000112DGR | Skyworks Solutions Inc. | Si599 | 10 MHz | LVDS | 2.5V | ±50ppm | -40°C ~ 85°C |
| 599MHC000775DGR | Skyworks Solutions Inc. | Si599 | 36.864 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599ADA000105DG | Skyworks Solutions Inc. | Si599 | 622.08 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599AHA000141DG | Skyworks Solutions Inc. | Si599 | 56.32 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BAA000121DG | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BAA001603DG | Skyworks Solutions Inc. | Si599 | 148.5 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BDA000372DG | Skyworks Solutions Inc. | Si599 | 800 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BEA000110DG | Skyworks Solutions Inc. | Si599 | 74.25 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BEA000642DG | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BHA000282DG | Skyworks Solutions Inc. | Si599 | 10 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599MDA000118DG | Skyworks Solutions Inc. | Si599 | 156.25 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BAA001207DG | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599AHA000121DG | Skyworks Solutions Inc. | Si599 | 100 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BHA000121DG | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599AEA000121DG | Skyworks Solutions Inc. | Si599 | 100 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BEA000121DG | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599ADA000105DGR | Skyworks Solutions Inc. | Si599 | 622.08 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599AHA000141DGR | Skyworks Solutions Inc. | Si599 | 56.32 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BAA000121DGR | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BAA001603DGR | Skyworks Solutions Inc. | Si599 | 148.5 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BDA000372DGR | Skyworks Solutions Inc. | Si599 | 800 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BEA000110DGR | Skyworks Solutions Inc. | Si599 | 74.25 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BEA000642DGR | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BHA000282DGR | Skyworks Solutions Inc. | Si599 | 10 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599MDA000118DGR | Skyworks Solutions Inc. | Si599 | 156.25 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BAA001207DGR | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BEA000121DGR | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BHA000121DGR | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599AEA000121DGR | Skyworks Solutions Inc. | Si599 | 100 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599AHA000121DGR | Skyworks Solutions Inc. | Si599 | 100 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599ACA000107DG | Skyworks Solutions Inc. | Si599 | 10 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599AFA000107DG | Skyworks Solutions Inc. | Si599 | 10 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599BCA000112DG | Skyworks Solutions Inc. | Si599 | 10 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599BFA000313DG | Skyworks Solutions Inc. | Si599 | 300 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599ECA000113DG | Skyworks Solutions Inc. | Si599 | 311.04 MHz | LVPECL | 2.5V | ±50ppm | -40°C ~ 85°C |
| 599FFA001058DG | Skyworks Solutions Inc. | Si599 | 644.53 MHz | LVDS | 2.5V | ±50ppm | -40°C ~ 85°C |
| 599AGA000112DG | Skyworks Solutions Inc. | Si599 | 10 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599AGA000164DG | Skyworks Solutions Inc. | Si599 | 400 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599FGA000159DG | Skyworks Solutions Inc. | Si599 | 148.5 MHz | LVDS | 2.5V | ±50ppm | -40°C ~ 85°C |
| 599AGA000121DG | Skyworks Solutions Inc. | Si599 | 100 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599BGA000121DG | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599ADA900001DGR | Skyworks Solutions Inc. | Si599 | 622.08 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599ADB000107DG | Skyworks Solutions Inc. | Si599 | 10 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599AHB000704DG | Skyworks Solutions Inc. | Si599 | 146 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599ACA000107DGR | Skyworks Solutions Inc. | Si599 | 10 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599AFA000107DGR | Skyworks Solutions Inc. | Si599 | 10 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599BCA000112DGR | Skyworks Solutions Inc. | Si599 | 10 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599BFA000313DGR | Skyworks Solutions Inc. | Si599 | 300 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599ECA000113DGR | Skyworks Solutions Inc. | Si599 | 311.04 MHz | LVPECL | 2.5V | ±50ppm | -40°C ~ 85°C |
| 599FFA001058DGR | Skyworks Solutions Inc. | Si599 | 644.53 MHz | LVDS | 2.5V | ±50ppm | -40°C ~ 85°C |
| 599AGA000112DGR | Skyworks Solutions Inc. | Si599 | 10 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599AGA000164DGR | Skyworks Solutions Inc. | Si599 | 400 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599FGA000159DGR | Skyworks Solutions Inc. | Si599 | 148.5 MHz | LVDS | 2.5V | ±50ppm | -40°C ~ 85°C |
| 599BGA000121DGR | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599AGA000121DGR | Skyworks Solutions Inc. | Si599 | 100 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599FDB000107DGR | Skyworks Solutions Inc. | Si599 | 10 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 599MDB000707DGR | Skyworks Solutions Inc. | Si599 | 164 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599FAB000274DGR | Skyworks Solutions Inc. | Si599 | 148 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 599FBB002378DGR | Skyworks Solutions Inc. | Si599 | 148.5 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 599ADB000107DGR | Skyworks Solutions Inc. | Si599 | 10 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599AHB000704DGR | Skyworks Solutions Inc. | Si599 | 146 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599AHB001054DGR | Skyworks Solutions Inc. | Si599 | 162 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BAB000121DGR | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BAB000159DGR | Skyworks Solutions Inc. | Si599 | 148.5 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BAB000262DGR | Skyworks Solutions Inc. | Si599 | 70 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BBB000909DGR | Skyworks Solutions Inc. | Si599 | 62.914 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BDB000159DGR | Skyworks Solutions Inc. | Si599 | 148.5 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BDB000653DGR | Skyworks Solutions Inc. | Si599 | 161.132812 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599AHB001054DG | Skyworks Solutions Inc. | Si599 | 162 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BAB000121DG | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BAB000159DG | Skyworks Solutions Inc. | Si599 | 148.5 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BAB000262DG | Skyworks Solutions Inc. | Si599 | 70 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BBB000909DG | Skyworks Solutions Inc. | Si599 | 62.914 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BDB000159DG | Skyworks Solutions Inc. | Si599 | 148.5 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BDB000653DG | Skyworks Solutions Inc. | Si599 | 161.132812 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599FDB000107DG | Skyworks Solutions Inc. | Si599 | 10 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 599MDB000707DG | Skyworks Solutions Inc. | Si599 | 164 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599FAB000274DG | Skyworks Solutions Inc. | Si599 | 148 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 599FBB002378DG | Skyworks Solutions Inc. | Si599 | 148.5 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 599ADA000372DGR | Skyworks Solutions Inc. | Si599 | 800 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BHA000800DGR | Skyworks Solutions Inc. | Si599 | 289 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599ADA000372DG | Skyworks Solutions Inc. | Si599 | 800 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BHA000800DG | Skyworks Solutions Inc. | Si599 | 289 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
