无源贴片晶振Q22FA23V0008600适用于平板电脑应用
无源晶振就是石英晶体谐振器的别称，英文名（crystal），无源晶振没有电压的问题，信号电平是可变的，主要用在各种电子线路中起产生频率的作用。是有2个引脚的无极性元件，需要借助于时钟电路才能产生振荡信号，自身无法振荡起来，分为直插式与贴片式。

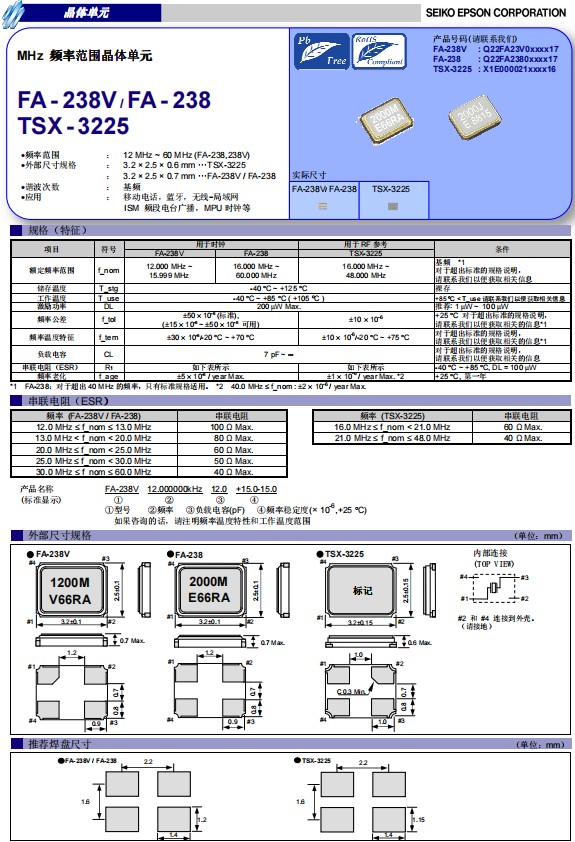

日本爱普生晶振FA-238V是一款小体积尺寸3.2x2.5mm四脚贴片晶振，无源晶振，石英晶体谐振器，FA-238V频率范围12MHz至15.9999MHz之间，可以在-40℃至+85℃（+105℃）温度内稳定工作，该产品具有小体积轻薄型，耐热、耐振、耐冲击等优良的耐环境特性，被广泛用于移动通讯，智能手机，平板电脑，汽车电子，移动电话，无线蓝牙，ISM频段电台广播，MPU时钟等.
无源贴片晶振Q22FA23V0008600适用于平板电脑应用
| 爱普生晶振 |
 尺寸
|
 型号
|
 频率
|
 负载电容
|
 精度
|
       频率公差
|
 工作温度
|
| Q22FA23V0001200 | 3.2x2.5x0.7mm | FA-238V | 13.560000MHz | 12pF | +/-50ppm | +/-30ppm | -40to+80°C |
| Q22FA23V0001800 | 3.2x2.5x0.7mm | FA-238V | 12.288000MHz | 12pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0002200 | 3.2x2.5x0.7mm | FA-238V | 12.000000MHz | 10pF | +/-30ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0002600 | 3.2x2.5x0.7mm | FA-238V | 13.000000MHz | 10pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0002700 | 3.2x2.5x0.7mm | FA-238V | 14.745600MHz | 20pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0002800 | 3.2x2.5x0.7mm | FA-238V | 12.000000MHz | 15pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0002900 | 3.2x2.5x0.7mm | FA-238V | 13.000000MHz | 20pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0003000 | 3.2x2.5x0.7mm | FA-238V | 13.000000MHz | 20pF | +/-30ppm | +/-50ppm | -20to+60°C |
| Q22FA23V0003300 | 3.2x2.5x0.7mm | FA-238V | 12.288000MHz | 12pF | +/-30ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0003700 | 3.2x2.5x0.7mm | FA-238V | 14.318180MHz | 20pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0004400 | 3.2x2.5x0.7mm | FA-238V | 12.000000MHz | 20pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0004800 | 3.2x2.5x0.7mm | FA-238V | 13.000000MHz | 7pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0005200 | 3.2x2.5x0.7mm | FA-238V | 13.560000MHz | 10pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0006800 | 3.2x2.5x0.7mm | FA-238V | 14.318000MHz | 12pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0006900 | 3.2x2.5x0.7mm | FA-238V | 12.000000MHz | 10pF | +/-15ppm | +/-15ppm | -20to+70°C |
| Q22FA23V0008200 | 3.2x2.5x0.7mm | FA-238V | 14.318180MHz | 16pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0008500 | 3.2x2.5x0.7mm | FA-238V | 12.288000MHz | 8pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0008600 | 3.2x2.5x0.7mm | FA-238V | 14.745600MHz | 12pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0009500 | 3.2x2.5x0.7mm | FA-238V | 12.000000MHz | 16pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0010300 | 3.2x2.5x0.7mm | FA-238V | 14.318180MHz | 12.5pF | +/-30ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0010600 | 3.2x2.5x0.7mm | FA-238V | 12.000000MHz | 11pF | +/-30ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0010700 | 3.2x2.5x0.7mm | FA-238V | 12.000000MHz | 10pF | +/-50ppm | +/-50ppm | -40to+85°C |
| Q22FA23V0011400 | 3.2x2.5x0.7mm | FA-238V | 14.318180MHz | 18pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0011900 | 3.2x2.5x0.7mm | FA-238V | 12.500000MHz | 16pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0012300 | 3.2x2.5x0.7mm | FA-238V | 13.560000MHz | 12pF | +/-20ppm | +/-30ppm | -40to+85°C |
| Q22FA23V0013100 | 3.2x2.5x0.7mm | FA-238V | 12.000000MHz | 18pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0013600 | 3.2x2.5x0.7mm | FA-238V | 12.000000MHz | 8pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0014400 | 3.2x2.5x0.7mm | FA-238V | 12.000000MHz | 10pF | +/-15ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0014900 | 3.2x2.5x0.7mm | FA-238V | 12.000000MHz | 20pF | +/-30ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0015000 | 3.2x2.5x0.7mm | FA-238V | 12.000000MHz | 10pF | +/-10ppm | +/-10ppm | -20to+70°C |
| Q22FA23V0016000 | 3.2x2.5x0.7mm | FA-238V | 12.000000MHz | 16pF | +/-30ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0016200 | 3.2x2.5x0.7mm | FA-238V | 12.288000MHz | 10pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0016400 | 3.2x2.5x0.7mm | FA-238V | 14.318180MHz | 9pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0017000 | 3.2x2.5x0.7mm | FA-238V | 12.000000MHz | 12pF | +/-30ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0017800 | 3.2x2.5x0.7mm | FA-238V | 13.560000MHz | 18pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0017900 | 3.2x2.5x0.7mm | FA-238V | 12.500000MHz | 10pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0018000 | 3.2x2.5x0.7mm | FA-238V | 14.745600MHz | 16pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0019200 | 3.2x2.5x0.7mm | FA-238V | 12.288000MHz | 10pF | +/-30ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0019300 | 3.2x2.5x0.7mm | FA-238V | 12.000000MHz | 12.5pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0019500 | 3.2x2.5x0.7mm | FA-238V | 13.000000MHz | 9pF | +/-20ppm | +/-50ppm | -40to+85°C |
| Q22FA23V0019700 | 3.2x2.5x0.7mm | FA-238V | 12.000000MHz | 8pF | +/-15ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0020500 | 3.2x2.5x0.7mm | FA-238V | 14.745600MHz | 8pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0021000 | 3.2x2.5x0.7mm | FA-238V | 14.745600MHz | 18pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0023300 | 3.2x2.5x0.7mm | FA-238V | 14.318180MHz | 10pF | +/-20ppm | +/-20ppm | -20to+70°C |
| Q22FA23V0023500 | 3.2x2.5x0.7mm | FA-238V | 12.000000MHz | 9pF | +/-30ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0023900 | 3.2x2.5x0.7mm | FA-238V | 14.318000MHz | 10pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0024100 | 3.2x2.5x0.7mm | FA-238V | 14.318180MHz | 10pF | +/-50ppm | +/-30ppm | -40to+85°C |
| Q22FA23V0024500 | 3.2x2.5x0.7mm | FA-238V | 14.318000MHz | 16pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0024700 | 3.2x2.5x0.7mm | FA-238V | 12.000000MHz | 10pF | +/-20ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0025500 | 3.2x2.5x0.7mm | FA-238V | 12.000000MHz | 12pF | +/-20ppm | +/-20ppm | -20to+70°C |
| Q22FA23V0026600 | 3.2x2.5x0.7mm | FA-238V | 13.560000MHz | 16pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0026800 | 3.2x2.5x0.7mm | FA-238V | 12.288000MHz | 16pF | +/-50ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0027900 | 3.2x2.5x0.7mm | FA-238V | 12.000000MHz | 18pF | +/-30ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0029100 | 3.2x2.5x0.7mm | FA-238V | 14.318180MHz | 12pF | +/-15ppm | +/-30ppm | -40to+85°C |
| Q22FA23V0030700 | 3.2x2.5x0.7mm | FA-238V | 14.318180MHz | 8pF | +/-30ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0031000 | 3.2x2.5x0.7mm | FA-238V | 14.318000MHz | 20pF | +/-30ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0031400 | 3.2x2.5x0.7mm | FA-238V | 14.318180MHz | 10pF | +/-50ppm | +/-50ppm | -40to+85°C |
| Q22FA23V0032600 | 3.2x2.5x0.7mm | FA-238V | 14.318180MHz | 12pF | +/-10ppm | +/-23ppm | -40to+85°C |
| Q22FA23V0032700 | 3.2x2.5x0.7mm | FA-238V | 12.000000MHz | 12pF | +/-20ppm | +/-23ppm | -40to+85°C |
| Q22FA23V0033200 | 3.2x2.5x0.7mm | FA-238V | 14.745600MHz | 18pF | +/-30ppm | +/-30ppm | -20to+70°C |
| Q22FA23V0035800 | 3.2x2.5x0.7mm | FA-238V | 12.000000MHz | 7pF | +/-30ppm | +/-20ppm | -20to+70°C |
| Q22FA23V0036700 | 3.2x2.5x0.7mm | FA-238V | 14.318000MHz | 9pF | +/-50ppm | +/-30ppm | -20to+75°C |
| Q22FA23V0037200 | 3.2x2.5x0.7mm | FA-238V | 12.288000MHz | 18pF | +/-20ppm | +/-30ppm | -40to+85°C |
| Q22FA23V0037300 | 3.2x2.5x0.7mm | FA-238V | 14.745600MHz | 16pF | +/-50ppm | +/-30ppm | -40to+85°C |
无源贴片晶振Q22FA23V0008600适用于平板电脑应用
石英晶体谐振器是一种生活中随处可见的电子器件，诞生于20世纪20年代初，因具有较高的品质因数及良好的频率稳定性，被广泛应用于航天、通信、军事等工业领域。顾名思义，制造石英晶体谐振器的原材料就是石英，一种非常重要的压电材料。其主要特征是其原子或分子有规律排列，反映在宏观上是外形的对称性，在电场的作用下，晶体内部产生应力而形变，从而产生机械振动，获得特定的频率。
