温补石英晶体振荡器X1G005391001900为通讯模块专用晶振
爱普生是日本有名的频率元件制造商,专业生产销售石英晶振,石英晶体振荡器,贴片晶振,晶体滤波器等.发展至今已是国际有名的晶体元件制造商,致力于为客户提供高性能,高可靠,高品质晶振产品。

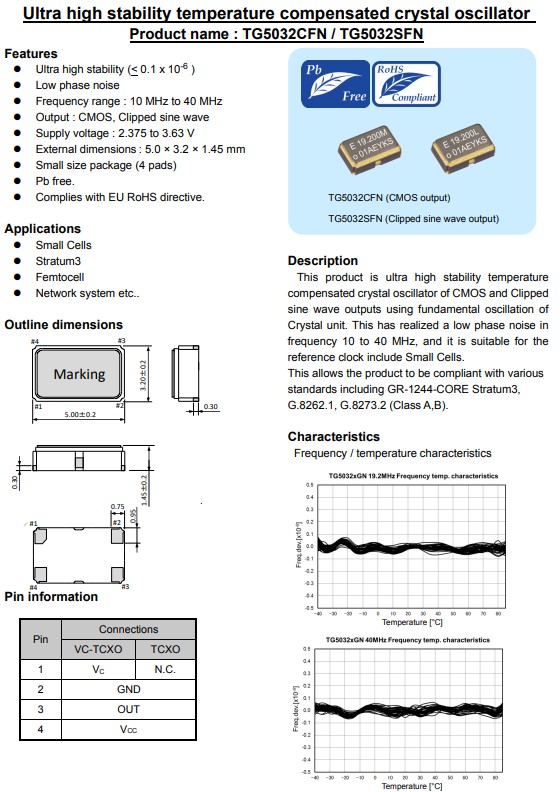

日本进口爱普生晶振TG5032CFN，是一款超高稳定性温补晶振(TCXO)，支持CMOS输出电平，四脚贴片晶振，小体积晶振尺寸5.0x3.2mm有源晶振，频率范围10MHz至40MHz，电源电压2.375V至3.63V，具有小体积轻薄型，低电源电压，低功耗，低抖动，低损耗，低耗能，低相位噪声等特点，被广泛用于移动通信，汽车电子，智能家居，智能手机，网络设备，消费电子，可穿戴设备等。
温补石英晶体振荡器X1G005391001900为通讯模块专用晶振
| 产品编码 |
  型号
|
  频率
|
  尺寸
|
  输出波
|
  电源电压
|
  精度
|
  工作温度
|
| X1G005391000600 | TG5032CFN | 19.200000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm | -40 to ++85°C |
| X1G005391000700 | TG5032CFN | 40.000000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm | -40 to ++85°C |
| X1G005391000800 | TG5032CFN | 25.000000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm | -40 to ++85°C |
| X1G005391000900 | TG5032CFN | 10.000000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm | -40 to ++85°C |
| X1G005391001000 | TG5032CFN | 10.000000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm | -40 to ++85°C |
| X1G005391001100 | TG5032CFN | 26.000000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm | -40 to ++85°C |
| X1G005391001500 | TG5032CFN | 20.000000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm | -40 to ++85°C |
| X1G005391001600 | TG5032CFN | 25.000000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm | -40 to ++85°C |
| X1G005391001700 | TG5032CFN | 19.200000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm | -40 to ++85°C |
| X1G005391001800 | TG5032CFN | 26.000000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm | -40 to ++85°C |
| X1G005391001900 | TG5032CFN | 25.000000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm | -40 to ++85°C |
| X1G005391002000 | TG5032CFN | 26.000000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm | -40 to ++85°C |
| X1G005391002100 | TG5032CFN | 10.000000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm | -40 to ++85°C |
| X1G005391002200 | TG5032CFN | 40.000000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm | -40 to ++85°C |
| X1G005391002300 | TG5032CFN | 24.576000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm | -40 to ++85°C |
| X1G005391002500 | TG5032CFN | 10.000000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm | -40 to ++85°C |
| X1G005391002600 | TG5032CFN | 20.000000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm | -40 to ++85°C |
| X1G005391002700 | TG5032CFN | 40.000000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm | -40 to ++85°C |
| X1G005391003000 | TG5032CFN | 19.440000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm | -40 to ++85°C |
| X1G005391003100 | TG5032CFN | 40.000000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm | -40 to ++85°C |
| X1G005391003200 | TG5032CFN | 40.000000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm | -40 to ++85°C |
| X1G005391003300 | TG5032CFN | 30.720000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm | -40 to ++85°C |
| X1G005391003400 | TG5032CFN | 20.000000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm | -40 to ++85°C |
| X1G005391003500 | TG5032CFN | 25.600000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm | -40 to +85°C |
| X1G005391003600 | TG5032CFN | 30.720000MHz | 5.00x3.20x1.45mm | CMOS | 3.135 to 3.465V | +/-1.0ppm | -40 to +85°C |
| X1G005391003700 | TG5032CFN | 15.360000MHz | 5.00x3.20x1.50mm | CMOS | 3.135 to 3.465V | +/-1.0ppm | -40 to +85°C |
石英晶体振荡器（以下简称晶振）是利用石英晶体压电效应而制成的器件，它的作用是输出高精度和高稳定度的脉冲信号，为整个电路提供时序基准。我们知道，现在电路中有越来越多的时序电路，它们之间的协同运行必须要有一个时间基准，才能统一一致的行动，就像电视剧里特种行动小队在出发前都要对下表一样，晶振在系统中起的作用就如同队长的手表，它如果稳定性或准确性不好的话，那整个系统就会错误频出，故障率很高。所以又把晶振称为单板的“心脏”。 石英晶体振荡器是由品质因数Q极高的石英晶体谐振器和振荡电路组成。晶体的品质因数、切割取向、晶体振子的结构及电路形式等，共同决定振荡器的性能。国际电工委员会（IEC）将石英晶体振荡器分为4类：普通晶体振荡器（SPXO），电压控制式晶体振荡器（VCXO），温度补偿式晶体振荡器（TCXO），恒温控制式晶体振荡器（OCXO）。目前发展中的还有数字补偿式晶体振荡器（DCXO）以及混合式的VOCXO振荡等。
