SG2520VHN差分晶振X1G005941000915专用于5G通信网络设备
5G将成倍增加网络通信流量。5G通信网络需要高速和宽带，同时将噪声水平保持在最低水平。这可以通过通信设备的高频、低抖动参考时钟来实现。用于80公里以上400 Gbps/800 Gbps传输的光通信模块需要小尺寸、20x10-6稳定性参考时钟。

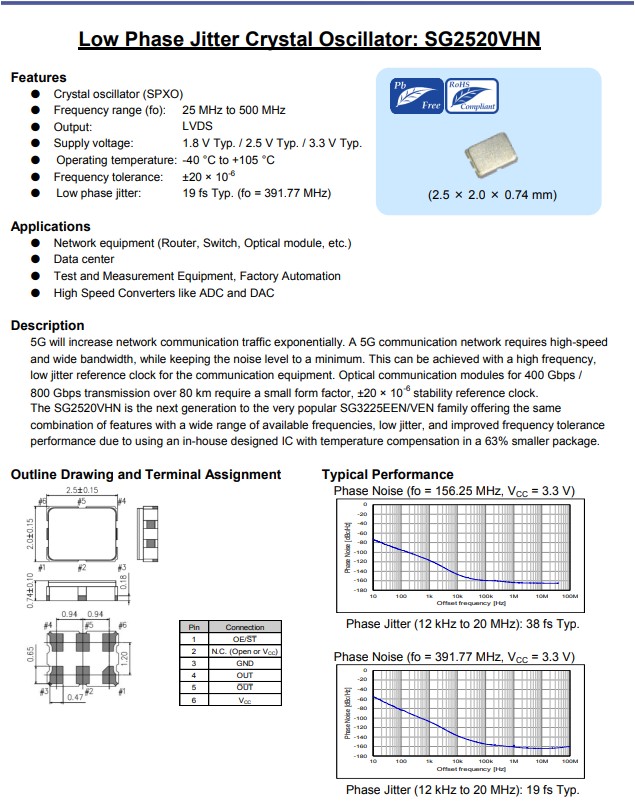

爱普生晶振SG2520VHN是非常受欢迎的SG3225EEN/VEN系列的下一代产品，提供相同的功能组合，具有广泛的可用频率、低功耗，低抖动和更高的频率容差性能，因为它采用了内部设计的温度补偿IC，2.5x2.0mm封装尺寸减小了63%。支持LVDS输出有源差分晶体振荡器，电源电压1.8V至3.3V，频率范围25MHz至500MHz任意一频点具有低电源电压，满足产品低消耗电流特点，应用于网络设备(路由器，交换机，光模块) ，数据中心，测试和测量设备，工厂自动化，ADC和DAC等高速转换器等。
SG2520VHN差分晶振X1G005941000915专用于5G通信网络设备
| 产品编码 |
 型号
|
 频率
|
 石英晶振
|
 输出波
|
 电源电压
|
 工作温度
|
| X1G005941000115 | SG2520VHN | 156.250000MHz | 2.50x2.00x0.84mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
| X1G005941000215 | SG2520VHN | 156.250000MHz | 2.50x2.00x0.84mm | LVDS | 2.375 to 2.625V | -40 to 85°C |
| X1G005941000315 | SG2520VHN | 156.250000MHz | 2.50x2.00x0.84mm | LVDS | 1.710 to 1.890V | -40 to 105°C |
| X1G005941000415 | SG2520VHN | 156.250000MHz | 2.50x2.00x0.84mm | LVDS | 1.710 to 1.890V | -40 to 85°C |
| X1G005941000515 | SG2520VHN | 156.250000MHz | 2.50x2.00x0.84mm | LVDS | 3.135 to 3.465V | -40 to 105°C |
| X1G005941000615 | SG2520VHN | 155.520000MHz | 2.50x2.00x0.84mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
| X1G005941000715 | SG2520VHN | 156.250000MHz | 2.50x2.00x0.84mm | LVDS | 1.710 to 1.890V | -40 to 85°C |
| X1G005941000815 | SG2520VHN | 174.703000MHz | 2.50x2.00x0.84mm | LVDS | 2.375 to 2.625V | -40 to 85°C |
| X1G005941000915 | SG2520VHN | 156.250000MHz | 2.50x2.00x0.84mm | LVDS | 2.375 to 2.625V | -40 to 105°C |
| X1G005941001015 | SG2520VHN | 156.250000MHz | 2.50x2.00x0.84mm | LVDS | 3.135 to 3.465V | -40 to 85°C |
| X1G005941001115 | SG2520VHN | 156.250000MHz | 2.50x2.00x0.84mm | LVDS | 1.710 to 1.890V | -40 to 85°C |
| 产品编码 |
  贴片晶振
|
  频率
|
  尺寸
|
  输出波
|
  电源电压
|
  工作温度
|
| X1G005901000200 | SG2520VGN | 156.250000MHz | 2.50x2.00x0.84mm | LVDS | 1.710 to 1.890V | -40 to 85°C |
| X1G005901000300 | SG2520VGN | 156.250000MHz | 2.50x2.00x0.84mm | LVDS | 2.375 to 2.625V | -40 to 85°C |
| X1G005901000400 | SG2520VGN | 156.250000MHz | 2.50x2.00x0.84mm | LVDS | 3.135 to 3.465V | -40 to 105°C |
| X1G005901000600 | SG2520VGN | 156.250000MHz | 2.50x2.00x0.84mm | LVDS | 2.375 to 2.625V | -40 to 85°C |
| X1G005901000700 | SG2520VGN | 156.250000MHz | 2.50x2.00x0.84mm | LVDS | 1.710 to 1.890V | -40 to 105°C |
| X1G005901000800 | SG2520VGN | 156.250000MHz | 2.50x2.00x0.84mm | LVDS | 2.375 to 2.625V | -40 to 105°C |
SG2520VHN差分晶振X1G005941000915专用于5G通信网络设备
日本爱普生LVDS晶振也就是我们所说的EPSON差分晶振,具有多种输出功能，差分贴片晶体振荡器使用于产品中能够很容易地识别小信号,能够从容精确地处理'双极'信号,对外部电磁干扰（EMI）是高度免疫的.
