低相位抖动差分晶振X1G005221003400满足产品低消耗电流的特点

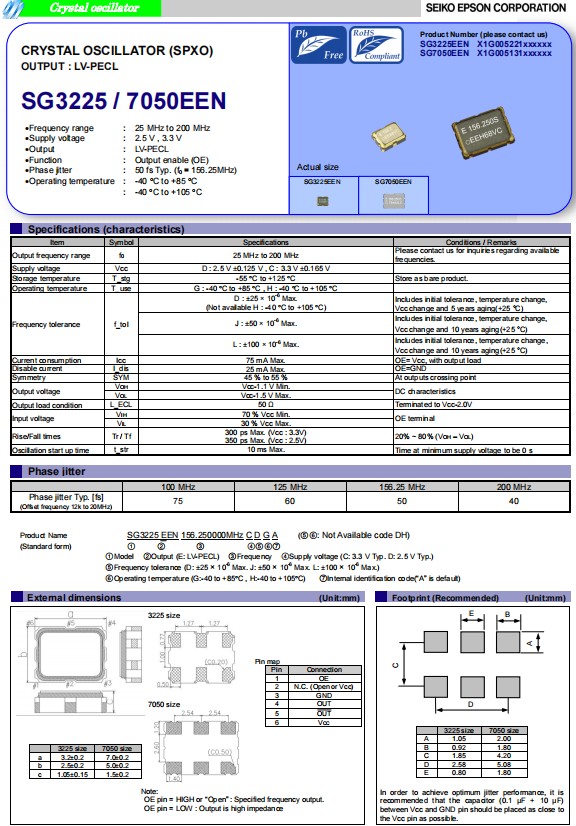

日本爱普生晶振SG3225EEN是一款小体积尺寸3.2x2.5mm六脚贴片晶振，频率范围可提供25M至200MHZ任意一频点，具有低电源电压，满足产品低消耗电流的特点。差分晶振分为LVDS，LV-PECL，HCSL三态输出模式，爱普生SG3225EEN晶振则是LV-PECL输出差分晶振，爱普生SG3225EEN差分晶体振荡器，高品质，满足不同产品需求可提供频率稳定偏差+-20PPM，+-50PPM，+-100PPM多种选择。低消耗电流，工作温度可达到-40℃至+85℃以及-40℃至+105℃，具有低相位抖动。在电源电压最低时，震荡启动时间所需时间仅0秒。
低相位抖动差分晶振X1G005221003400满足产品低消耗电流的特点
| 产品编码 |
 型号
|
 频率
|
 石英晶振
|
 输出波
|
 电源电压
|
 工作温度
|
| X1G005221000100 | SG3225EEN | 100.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221000200 | SG3225EEN | 125.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221000300 | SG3225EEN | 125.003125MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221000400 | SG3225EEN | 155.520000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221000500 | SG3225EEN | 156.250000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221000700 | SG3225EEN | 156.253906MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221000800 | SG3225EEN | 156.250000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221001300 | SG3225EEN | 100.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221001400 | SG3225EEN | 200.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221001800 | SG3225EEN | 100.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221001900 | SG3225EEN | 50.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221002100 | SG3225EEN | 125.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 105°C |
| X1G005221002300 | SG3225EEN | 25.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221002400 | SG3225EEN | 166.015625MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221002800 | SG3225EEN | 156.250000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 105°C |
| X1G005221003000 | SG3225EEN | 25.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221003100 | SG3225EEN | 50.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221003200 | SG3225EEN | 160.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221003300 | SG3225EEN | 200.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221003400 | SG3225EEN | 125.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221003600 | SG3225EEN | 54.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 105°C |
| X1G005221003700 | SG3225EEN | 100.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 105°C |
| X1G005221003800 | SG3225EEN | 25.000625MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221003900 | SG3225EEN | 170.016000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221004200 | SG3225EEN | 163.387607MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221004300 | SG3225EEN | 25.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 105°C |
| X1G005221004400 | SG3225EEN | 100.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221004800 | SG3225EEN | 156.250000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 105°C |
| X1G005221005100 | SG3225EEN | 100.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 105°C |
| X1G005221005400 | SG3225EEN | 146.370000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221005500 | SG3225EEN | 150.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 85°C |
| X1G005221005600 | SG3225EEN | 155.520000MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465V | -40 to 105°C |
| X1G005221100100 | SG3225EEN | 100.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 2.375 to 2.625V | -40 to 85°C |
| X1G005221100200 | SG3225EEN | 125.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 2.375 to 2.625V | -40 to 85°C |
| X1G005221100300 | SG3225EEN | 156.250000MHz | 3.20x2.50x1.20mm | LV-PECL | 2.375 to 2.625V | -40 to 85°C |
| X1G005221100500 | SG3225EEN | 156.250000MHz | 3.20x2.50x1.20mm | LV-PECL | 2.375 to 2.625V | -40 to 105°C |
| X1G005221100700 | SG3225EEN | 156.250000MHz | 3.20x2.50x1.20mm | LV-PECL | 2.375 to 2.625V | -40 to 85°C |
| X1G005221100800 | SG3225EEN | 156.253906MHz | 3.20x2.50x1.20mm | LV-PECL | 2.375 to 2.625V | -40 to 85°C |
| X1G005221101000 | SG3225EEN | 50.000000MHz | 3.20x2.50x1.20mm | LV-PECL | 2.375 to 2.625V | -40 to 85°C |
低相位抖动差分晶振X1G005221003400满足产品低消耗电流的特点
差分晶振具有低电平,低抖动，低功耗等特性。差分晶振作为目前行业中高要求、高技术石英晶体振荡器，具有相位低、损耗低的特点。因此也被称之为“低抖动振荡器，低抖动石英晶振，低相位晶振，低损耗晶振”。
