晶振是电子产品都得依赖的一款电子器件,它是通常应用到一些高端电子产品当中。削波正弦波形是TCXO最受欢迎的输出选项,这是为什么呢,主要原因有两点.其一是低功耗,改善了热特性以及更好的老化和频率稳定性能;其二则是比CMOS输出更好的相位噪声性能.也就是说石英晶振在采用削顶正玄波作为输出方式之后会极大的减少谐波分量的数量,使得晶振产品具备低相位噪声的性能.

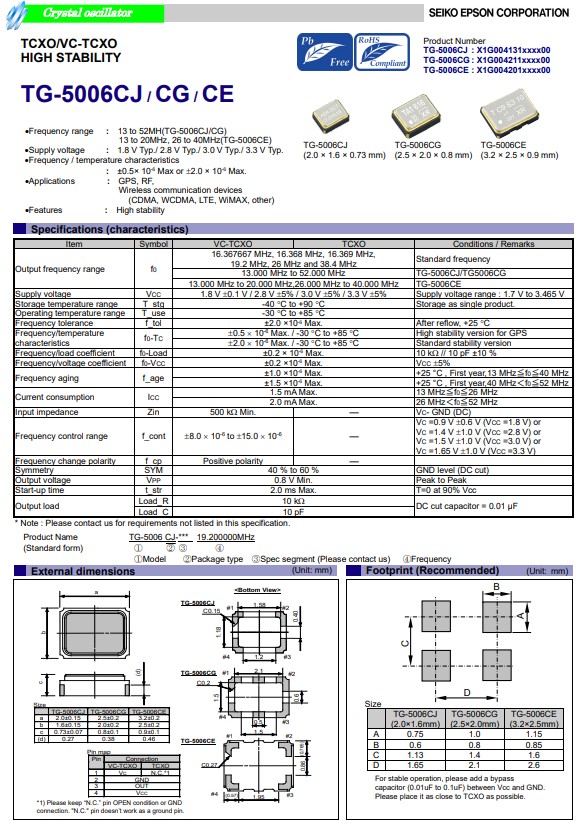

日本进口爱普生晶振TG5006CJ是一款TCXO温补晶振，小体积晶振尺寸2.0x1.6mm有源晶振，四脚贴片晶振，电源电压1.8V,2.8V,3.0V,3.3V，频率范围13MHz至52MHz，具有超小型，轻薄型，低电源电压，低抖动，低功耗，低损耗，低耗能，低电平，低相位噪声等特点，广泛应用于各种应用领域，如无线通信设备和电信设备，计算机和外围设备，仪器仪表，航空航天，仓储，工业，汽车，医疗和军事等。

车载控制器TCXO晶振TG-5006CJ编码X1G004131004900

产品编码	型号	频率	贴片晶振	输出波	电源电压	精度
X1G004131000400	TG-5006CJ	26.000000MHz	2.00x1.60x0.73mm	Clippedsinewave	1.700 to 1.900V	+/-2.0ppm
X1G004131000600	TG-5006CJ	16.367667MHz	2.00x1.60x0.73mm	Clippedsinewave	2.850 to 3.150V	+/-2.0ppm
X1G004131000700	TG-5006CJ	16.368000MHz	2.00x1.60x0.73mm	Clippedsinewave	2.850 to 3.150V	+/-2.0ppm
X1G004131000800	TG-5006CJ	16.369000MHz	2.00x1.60x0.73mm	Clippedsinewave	2.850 to 3.150V	+/-2.0ppm
X1G004131000900	TG-5006CJ	19.200000MHz	2.00x1.60x0.73mm	Clippedsinewave	2.850 to 3.150V	+/-2.0ppm
X1G004131001000	TG-5006CJ	26.000000MHz	2.00x1.60x0.73mm	Clippedsinewave	2.850 to 3.150V	+/-2.0ppm
X1G004131001100	TG-5006CJ	38.400000MHz	2.00x1.60x0.73mm	Clippedsinewave	2.850 to 3.150V	+/-2.0ppm
X1G004131001300	TG-5006CJ	16.367667MHz	2.00x1.60x0.73mm	Clippedsinewave	2.850 to 3.150V	+/-2.0ppm
X1G004131001400	TG-5006CJ	16.368000MHz	2.00x1.60x0.73mm	Clippedsinewave	2.850 to 3.150V	+/-2.0ppm
X1G004131001500	TG-5006CJ	16.369000MHz	2.00x1.60x0.73mm	TCXO晶振	2.850 to 3.150V	+/-2.0ppm
X1G004131001600	TG-5006CJ	19.200000MHz	2.00x1.60x0.73mm	Clippedsinewave	2.850 to 3.150V	+/-2.0ppm
X1G004131001700	TG-5006CJ	26.000000MHz	2.00x1.60x0.73mm	Clippedsinewave	2.850 to 3.150V	+/-2.0ppm
X1G004131001800	TG-5006CJ	38.400000MHz	2.00x1.60x0.73mm	Clippedsinewave	1.700 to 3.300V	+/-2.0ppm

X1G004131002600	TG-5006CJ	40.000000MHz	2.00x1.60x0.73mm	Clippedsinewave	2.850 to 3.150V	+/-1.5ppm
X1G004131002900	TG-5006CJ	19.200000MHz	2.00x1.60x0.73mm	Clippedsinewave	2.600 to 3.000V	+/-2.0ppm
X1G004131003100	TG-5006CJ	40.000000MHz	2.00x1.60x0.73mm	Clippedsinewave	2.850 to 3.150V	+/-2.0ppm
X1G004131003200	TG-5006CJ	26.635300MHz	2.00x1.60x0.73mm	Clippedsinewave	2.700 to 3.465V	+/-2.0ppm
X1G004131003300	TG-5006CJ	28.974000MHz	2.00x1.60x0.73mm	Clippedsinewave	2.700 to 3.465V	+/-2.0ppm
X1G004131003400	TG-5006CJ	26.000000MHz	2.00x1.60x0.73mm	Clippedsinewave	1.700 to 1.900V	+/-1.5ppm
X1G004131003600	TG-5006CJ	26.000000MHz	2.00x1.60x0.73mm	温补晶振	2.660 to 2.940V	+/-1.5ppm
X1G004131003700	TG-5006CJ	19.200000MHz	2.00x1.60x0.73mm	Clippedsinewave	2.660 to 2.940V	+/-2.0ppm
X1G004131003800	TG-5006CJ	26.000000MHz	2.00x1.60x0.73mm	Clippedsinewave	1.700 to 1.900V	+/-2.0ppm
X1G004131004100	TG-5006CJ	40.000000MHz	2.00x1.60x0.73mm	Clippedsinewave	2.850 to 3.150V	+/-2.0ppm
X1G004131004200	TG-5006CJ	32.000000MHz	2.00x1.60x0.73mm	Clippedsinewave	2.850 to 3.150V	+/-2.0ppm
X1G004131004400	TG-5006CJ	24.576000MHz	2.00x1.60x0.73mm	Clippedsinewave	3.135 to 3.465V	+/-2.0ppm
X1G004131004900	TG-5006CJ	26.000000MHz	2.00x1.60x0.73mm	Clippedsinewave	1.700 to 1.900V	+/-2.0ppm
