晶振在蓝牙模块中无处不在，常用的四款晶振是SMD2016，SMD2520，SMD3225，SMD5032贴片晶振，使用的频率范围：12MHz，16MHZ，20MHz，24MHZ，26MHZ，32MHz，另外还有一款频率为32.768KHZ。晶振是非常复杂的频率元器件。

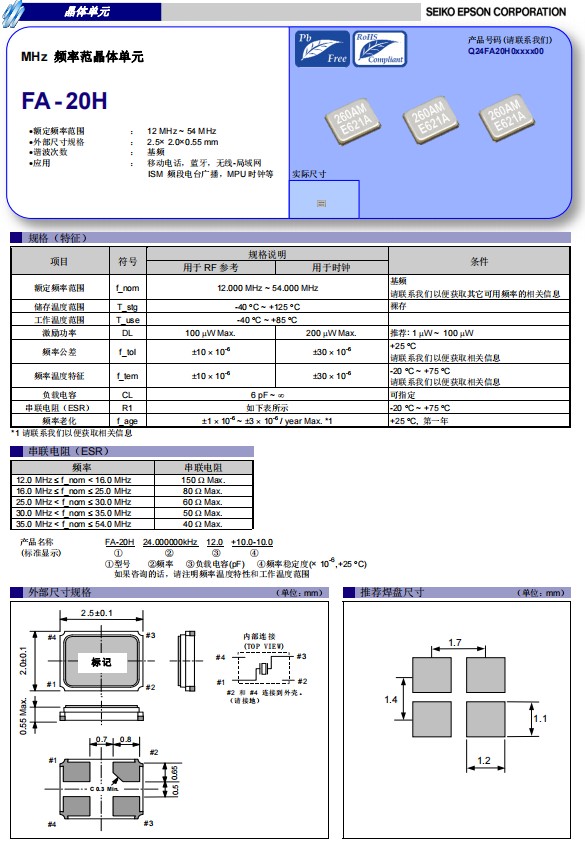

日本进口爱普生晶振FA-20H，是一款石英晶体谐振器，小体积晶振尺寸2.5x2.0mm无源晶振，四脚贴片晶振，频率范围12MHz至54MHz。具有超小型，轻薄型，耐热及耐环境特性，主要用于移动电话，智能手机，蓝牙模块，无线-局域网，儿童用游戏机，ISM频段电台广播，MPU时钟等。

常用封装2520mm晶振Q24FA20H0007300用于蓝牙模块晶振应用

爱普生晶振	尺寸	型号	频率	负载电容	精度	频率公差	工作温度
Q24FA20H0000100	2.5x2x0.55mm	FA-20H	18.000000MHz	10pF	+/-10ppm	+/-20ppm	-30to+85°C
Q24FA20H0000300	2.5x2x0.55mm	FA-20H	40.000000MHz	9pF	+/-10ppm	+/-18ppm	-20to+70°C
Q24FA20H0000500	2.5x2x0.55mm	FA-20H	26.000000MHz	9pF	+/-10ppm	+/-10ppm	-20to+75°C
Q24FA20H0000600	2.5x2x0.55mm	FA-20H	26.000000MHz	10pF	+/-10ppm	+/-10ppm	-20to+70°C
Q24FA20H0000800	2.5x2x0.55mm	FA-20H	48.000000MHz	7pF	+/-50ppm	+/-30ppm	-20to+70°C
Q24FA20H0002900	2.5x2x0.55mm	FA-20H	40.000000MHz	8pF	+/-10ppm	+/-15ppm	-20to+75°C
Q24FA20H0003100	2.5x2x0.55mm	FA-20H	40.000000MHz	9pF	+/-10ppm	+/-15ppm	-20to+75°C
Q24FA20H0003600	2.5x2x0.55mm	FA-20H	40.000000MHz	11.5pF	+/-10ppm	+/-15ppm	-20to+75°C
Q24FA20H0003800	2.5x2x0.55mm	FA-20H	40.000000MHz	12pF	+/-10ppm	+/-10ppm	-20to+70°C
Q24FA20H0003900	2.5x2x0.55mm	FA-20H	26.000000MHz	9pF	-9/+11ppm	-10/+8ppm	-20to+75°C
Q24FA20H0004400	2.5x2x0.55mm	FA-20H	16.000000MHz	9pF	+/-10ppm	+/-12ppm	-20to+75°C
Q24FA20H0004700	2.5x2x0.55mm	FA-20H	40.000000MHz	8.5pF	+/-15ppm	+/-15ppm	-20to+85°C
Q24FA20H0005000	2.5x2x0.55mm	FA-20H	32.000000MHz	16pF	+/-10ppm	+/-25ppm	-40to+85°C
Q24FA20H0005100	2.5x2x0.55mm	FA-20H	16.000000MHz	12pF	+/-10ppm	+/-10ppm	-15to+75°C
Q24FA20H0005200	2.5x2x0.55mm	FA-20H	40.000000MHz	9pF	+/-10ppm	+/-10ppm	-20to+75°C
Q24FA20H0005300	2.5x2x0.55mm	FA-20H	16.000000MHz	9pF	+/-20ppm	+/-20ppm	-20to+70°C
Q24FA20H0005400	2.5x2x0.55mm	FA-20H	24.000000MHz	12pF	+/-30ppm	+/-30ppm	-20to+75°C
Q24FA20H0005900	2.5x2x0.55mm	FA-20H	16.000000MHz	6pF	+/-10ppm	+/-12ppm	-20to+75°C
Q24FA20H0006600	2.5x2x0.55mm	FA-20H	16.000000MHz	9pF	+/-30ppm	+/-30ppm	-20to+75°C
Q24FA20H0006900	2.5x2x0.55mm	FA-20H	40.000000MHz	10pF	+/-10ppm	+/-15ppm	-30to+85°C
Q24FA20H0007000	2.5x2x0.55mm	FA-20H	26.000000MHz	8pF	+/-10ppm	+/-10ppm	-20to+75°C
Q24FA20H0007300	2.5x2x0.55mm	FA-20H	26.000000MHz	10pF	+/-10ppm	+/-10ppm	-20to+75°C
Q24FA20H0007400	2.5x2x0.55mm	FA-20H	26.000000MHz	10.5pF	+/-10ppm	+/-10ppm	-20to+75°C
Q24FA20H0007700	2.5x2x0.55mm	FA-20H	26.000000MHz	12pF	+/-10ppm	+/-10ppm	-20to+75°C
Q24FA20H0007900	2.5x2x0.55mm	FA-20H	26.000000MHz	16pF	+/-10ppm	+/-10ppm	-20to+75°C
Q24FA20H0008500	2.5x2x0.55mm	FA-20H	24.000000MHz	10pF	+/-10ppm	+/-10ppm	-20to+75°C
Q24FA20H0008600	2.5x2x0.55mm	FA-20H	24.576000MHz	8pF	+/-15ppm	+/-15ppm	-20to+75°C
Q24FA20H0008700	2.5x2x0.55mm	FA-20H	30.000000MHz	10pF	+/-10ppm	+/-10ppm	-20to+70°C
Q24FA20H0009200	2.5x2x0.55mm	FA-20H	24.000000MHz	10pF	+/-10ppm	+/-20ppm	-40to+85°C
Q24FA20H0009300	2.5x2x0.55mm	FA-20H	12.000000MHz	10pF	+/-30ppm	+/-30ppm	-20to+70°C
Q24FA20H0009500	2.5x2x0.55mm	FA-20H	27.000000MHz	7pF	+/-10ppm	+/-10ppm	-20to+75°C

Q24FA20H0034600	2.5x2x0.55mm	FA-20H	31.250000MHz	12pF	+/-50ppm	+/-50ppm	-40to+85°C
Q24FA20H0035200	2.5x2x0.55mm	FA-20H	16.000000MHz	9pF	+/-10ppm	+/-10ppm	-20to+75°C
Q24FA20H0035500	2.5x2x0.55mm	FA-20H	25.000000MHz	16pF	+/-10ppm	+/-15ppm	-30to+85°C
Q24FA20H0036400	2.5x2x0.55mm	FA-20H	32.000000MHz	12pF	+/-10ppm	+/-13ppm	-30to+85°C
Q24FA20H0037100	2.5x2x0.55mm	FA-20H	32.000000MHz	6pF	+/-10ppm	+/-13ppm	-30to+85°C
Q24FA20H0037200	2.5x2x0.55mm	FA-20H	16.000000MHz	15pF	+/-20ppm	+/-30ppm	-20to+85°C
Q24FA20H0038000	2.5x2x0.55mm	FA-20H	32.000000MHz	16pF	+/-10ppm	+/-20ppm	-40to+85°C
Q24FA20H0038100	2.5x2x0.55mm	FA-20H	28.636360MHz	30pF	+/-30ppm	+/-30ppm	-40to+85°C
Q24FA20H0038400	2.5x2x0.55mm	FA-20H	30.000000MHz	15pF	+/-10ppm	+/-20ppm	-40to+85°C
Q24FA20H0038600	2.5x2x0.55mm	FA-20H	12.000000MHz	10pF	+/-20ppm	+/-25ppm	-20to+75°C
Q24FA20H0038700	2.5x2x0.55mm	FA-20H	16.384000MHz	10pF	+/-15ppm	+/-15ppm	-20to+70°C
Q24FA20H0039000	2.5x2x0.55mm	FA-20H	25.000000MHz	18pF	+/-20ppm	+/-18ppm	-40to+85°C
Q24FA20H0039100	2.5x2x0.55mm	FA-20H	16.000000MHz	16pF	+/-20ppm	+/-30ppm	-20to+70°C
Q24FA20H0039400	2.5x2x0.55mm	FA-20H	24.000000MHz	12pF	+/-10ppm	+/-19ppm	-40to+85°C
Q24FA20H0040400	2.5x2x0.55mm	FA-20H	25.000000MHz	12pF	+/-10ppm	+/-10ppm	-20to+70°C
Q24FA20H0041800	2.5x2x0.55mm	FA-20H	16.000000MHz	12pF	+/-20ppm	+/-40ppm	-40to+85°C
Q24FA20H0042200	2.5x2x0.55mm	FA-20H	24.000000MHz	20pF	+/-30ppm	+/-20ppm	-20to+75°C
Q24FA20H0042400	2.5x2x0.55mm	FA-20H	27.000000MHz	20pF	+/-30ppm	+/-30ppm	-20to+75°C
Q24FA20H0042800	2.5x2x0.55mm	FA-20H	27.120000MHz	10pF	+/-10ppm	+/-30ppm	-40to+85°C
Q24FA20H0043100	2.5x2x0.55mm	FA-20H	27.120000MHz	18pF	+/-20ppm	+/-30ppm	-40to+85°C
Q24FA20H0043400	2.5x2x0.55mm	FA-20H	24.000000MHz	9pF	+/-10ppm	+/-10ppm	-20to+75°C
Q24FA20H0044200	2.5x2x0.55mm	FA-20H	16.000000MHz	8pF	+/-10ppm	+/-11ppm	-20to+75°C
Q24FA20H0045900	2.5x2x0.55mm	FA-20H	25.000000MHz	12pF	+/-30ppm	+/-30ppm	-20to+70°C
Q24FA20H0047800	2.5x2x0.55mm	FA-20H	32.000000MHz	12pF	+/-10ppm	+/-25ppm	-40to+85°C
Q24FA20H0048500	2.5x2x0.55mm	FA-20H	16.000000MHz	10pF	+/-10ppm	+/-10ppm	-20to+75°C
Q24FA20H0049200	2.5x2x0.55mm	FA-20H	25.400000MHz	10pF	+/-10ppm	+/-10ppm	-20to+75°C
Q24FA20H0049600	2.5x2x0.55mm	FA-20H	40.000000MHz	8pF	+/-10ppm	+/-10ppm	-20to+75°C

常用封装2520mm晶振Q24FA20H0007300用于蓝牙模块晶振应用

晶振特点和属性:
1. 按形状区分晶振有(SMD贴片晶振)和DIP(插件晶振)两种。贴片晶振价格跟插件晶振相对比下，贴片晶振价格贵一些。
2. 按频率区分贴片晶振有MHZ和KHZ。MHZ常用封装的有SMD2016、SMD2520、SMD3225、SMD5032、SMD6035、SMD7050。而KHZ最常用的频率32.768KHZ；在手机和蓝牙应用的晶振频率有：12MHZ，16MHZ，24 MHZ，26 MHZ，32MHZ贴片晶振配套使用。
3. 按性能区分贴片晶振分为：有源晶振（石英晶体振荡器、温补振荡器、压控振荡器、恒温振荡器）和无源晶振（石英晶体谐振器、陶瓷晶振）。
4. 按材质区分贴片晶振分为金属封装和陶瓷封装。
