CMOS输出晶体振荡器X1G004801004000适用于无线数据传输

来源：亿金电子查看手机网址

扫一扫!

扫一扫!

浏览：- 发布日期：2022-09-23 10:48:34【大中小】

分享到：

爱普生是日本有名的频率元件制造商,专业生产销售石英晶振,石英晶体振荡器,贴片晶振,晶体滤波器等.发展至今已是国际有名的晶体元件制造商,致力于为客户提供高性能,高可靠,高品质晶振产品。

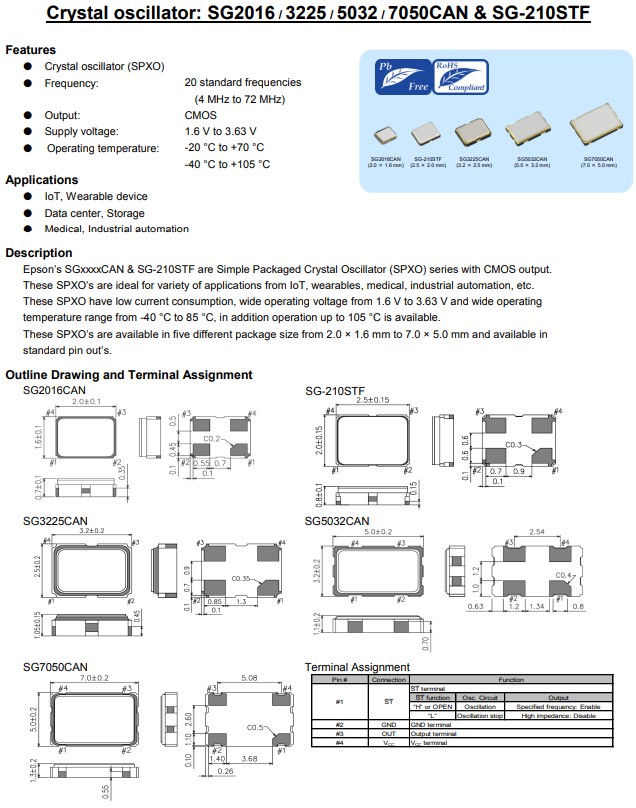

爱普生晶振SG2016CAN是一款CMOS输出石英晶体振荡器(SPXO)，小体积晶振尺寸2.0x1.6mm四脚贴片晶振，有源晶振，电源电压1.6V至3.63V，频率范围4MHz至72MHz，工作温度范围-20℃至+70℃/-40℃至+105℃，该产品具有超小型，轻薄型，低电源电压，低抖动，低功耗，低损耗，低耗能等特点，被广泛用于5G移动通讯设备，工业控制，消费电子，智能安防，物联网，车载电子，无线数据传输，光电技术及各种变频调速设备等通讯设备。

CMOS输出晶体振荡器X1G004801004000适用于无线数据传输

产品编码	型号	频率	贴片晶振	输出波	电源电压	工作温度
X1G004801000200	SG2016CAN	24.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801000300	SG2016CAN	26.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801000700	SG2016CAN	12.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801001200	SG2016CAN	25.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801001300	SG2016CAN	50.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801001400	SG2016CAN	16.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801001800	SG2016CAN	20.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G004801002000	SG2016CAN	48.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801002100	SG2016CAN	27.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G004801002400	SG2016CAN	25.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-20 to 70°C
X1G004801002600	SG2016CAN	33.333300MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801002700	SG2016CAN	10.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G004801002800	SG2016CAN	50.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G004801002900	SG2016CAN	10.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801003000	SG2016CAN	4.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801003100	SG2016CAN	24.576000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G004801003500	SG2016CAN	25.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G004801003600	SG2016CAN	40.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G004801003900	SG2016CAN	26.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G004801004000	SG2016CAN	24.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G004801004400	SG2016CAN	12.288000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801004500	SG2016CAN	8.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801004600	SG2016CAN	8.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G004801004900	SG2016CAN	4.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C

X1G004801005000	SG2016CAN	12.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-20 to 70°C
X1G004801005100	SG2016CAN	12.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G004801005200	SG2016CAN	12.288000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-20 to 70°C
X1G004801005300	SG2016CAN	12.288000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G004801005400	SG2016CAN	14.745600MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801005500	SG2016CAN	14.745600MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G004801005600	SG2016CAN	16.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G004801005700	SG2016CAN	20.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-20 to 70°C
X1G004801005800	SG2016CAN	20.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801005900	SG2016CAN	24.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-20 to 70°C
X1G004801006000	SG2016CAN	24.576000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801006100	SG2016CAN	27.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801006200	SG2016CAN	32.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801006300	SG2016CAN	32.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G004801006400	SG2016CAN	33.330000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801006500	SG2016CAN	33.330000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G004801006600	SG2016CAN	33.333300MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G004801006700	SG2016CAN	40.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801006800	SG2016CAN	48.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-20 to 70°C
X1G004801006900	SG2016CAN	48.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G004801007000	SG2016CAN	50.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-20 to 70°C
X1G004801007100	SG2016CAN	72.000000MHz	2.00x1.60x0.70mm	CMOS	1.710 to 3.630V	-20 to 70°C
X1G004801007200	SG2016CAN	72.000000MHz	2.00x1.60x0.70mm	CMOS	1.710 to 3.630V	-40 to 85°C
X1G004801007300	SG2016CAN	72.000000MHz	2.00x1.60x0.70mm	CMOS	2.250 to 3.630V	-40 to 105°C
X1G004801007600	SG2016CAN	32.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-20 to 70°C
X1G004801007700	SG2016CAN	26.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-20 to 70°C

CMOS输出晶体振荡器X1G004801004000适用于无线数据传输

石英晶体振荡器优点：
1、石英钟走时准、耗电省、经久耐用为其最大优点。不论是老式石英钟或是新式多功能石英钟都是以石英晶体振荡器为核心电路，其频率精度决定了电子钟表的走时精度。
2、随着电视技术的发展，近来彩电多采用500kHz或503kHz的晶体振荡器作为行、场电路的振荡源，经1/3的分频得到15625Hz的行频，其稳定性和可靠性大为提高。而且晶振价格便宜，更换容易。
3、在通信系统产品中，石英晶体振荡器的价值得到了更广泛的体现，同时也得到了更快的发展。许多高性能的石英晶振主要应用于通信网络、无线数据传输、高速数字数据传输等。
