爱普生FA-128晶振编码Q22FA1280001100具有小体积轻薄型稳定性能高
爱普生品牌系列MHz的石英贴片晶振,目前占据了中国市场进口晶25％的份额,品牌质量,货期,品种,品质是广大用户有目共睹,最早期从MP3，MP4,收音机模块启用开始,在到国内外各大知名品牌手机,最后应用到国内山寨手机市场,几乎占据80％的手机行业晶振类别,产品本身特点是体积小,耐高温,稳定性能高,排带包装,应用自动贴片方便.

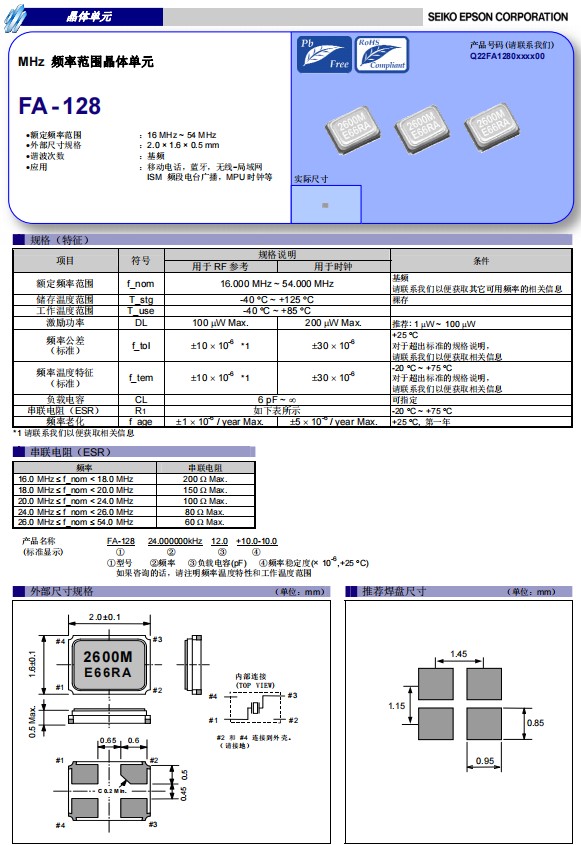

爱普生晶振FA-128，小体积尺寸:2.0x1.6mm无源晶振，频率范围:16MHz至54MHz，四脚贴片晶振，石英晶体谐振器，频率容差(标准):±10x10-6/±30x10-6(@+25℃)，作为要求高精度的通信模块的参考时钟，以及作为要求小型化的应用(TWS(真正的无线立体声)、智能手表等)的无线通信和微型计算机的时钟。).
爱普生FA-128晶振编码Q22FA1280001100具有小体积轻薄型稳定性能高
| Product Number |
 爱普生晶振
|
 Model
|
 Frequency
|
 CL Value
|
 Freq.tol. @+25°C
|
 Freq.tol./Temp.range
|
 Temperature range
|
| Q22FA1280000200 | 2 x 1.6 x 0.5mm | FA-128 | 48.000000 MHz | 12 pF | +/-50 ppm | +/-30 ppm | -20 to +70 °C |
| Q22FA1280000700 | 2 x 1.6 x 0.5mm | FA-128 | 38.400000 MHz | 10 pF | +/-15 ppm | +/-15 ppm | -20 to +85 °C |
| Q22FA1280000800 | 2 x 1.6 x 0.5mm | FA-128 | 27.000000 MHz | 10 pF | +/-30 ppm | +/-30 ppm | -20 to +70 °C |
| Q22FA1280001000 | 2 x 1.6 x 0.5mm | FA-128 | 38.400000 MHz | 10 pF | +/-10 ppm | +/-10 ppm | -20 to +75 °C |
| Q22FA1280001100 | 2 x 1.6 x 0.5mm | FA-128 | 26.000000 MHz | 10 pF | +/-10 ppm | +/-10 ppm | -20 to +75 °C |
| Q22FA1280001300 | 2 x 1.6 x 0.5mm | FA-128 | 24.000000 MHz | 16 pF | +/-30 ppm | +/-30 ppm | -25 to +70 °C |
| Q22FA1280001400 | 2 x 1.6 x 0.5mm | FA-128 | 24.000000 MHz | 16 pF | +/-30 ppm | +/-30 ppm | -40 to +85 °C |
| Q22FA1280001800 | 2 x 1.6 x 0.5mm | FA-128 | 32.000000 MHz | 12 pF | +/-10 ppm | +/-10 ppm | -20 to +75 °C |
| Q22FA1280002000 | 2 x 1.6 x 0.5mm | FA-128 | 26.000000 MHz | 9 pF | +/-10 ppm | +/-10 ppm | -20 to +75 °C |
| Q22FA1280002100 | 2 x 1.6 x 0.5mm | FA-128 | 27.120000 MHz | 10 pF | +/-10 ppm | +/-10 ppm | -20 to +75 °C |
| Q22FA1280002200 | 2 x 1.6 x 0.5mm | FA-128 | 24.000000 MHz | 10 pF | +/-10 ppm | +/-10 ppm | -20 to +75 °C |
| Q22FA1280002400 | 2 x 1.6 x 0.5mm | FA-128 | 26.000000 MHz | 12 pF | +/-10 ppm | +/-10 ppm | -20 to +75 °C |
| Q22FA1280002500 | 2 x 1.6 x 0.5mm | FA-128 | 32.000000 MHz | 8 pF | +/-10 ppm | +/-10 ppm | -20 to +75 °C |
| Q22FA1280002600 | 2 x 1.6 x 0.5mm | FA-128 | 26.000000 MHz | 8 pF | +/-10 ppm | +/-10 ppm | -20 to +75 °C |
| Q22FA1280003000 | 2 x 1.6 x 0.5mm | FA-128 | 24.000000 MHz | 12 pF | +/-30 ppm | +/-30 ppm | -20 to +70 °C |
| Q22FA1280003100 | 2 x 1.6 x 0.5mm | FA-128 | 32.000000 MHz | 18 pF | +/-30 ppm | +/-30 ppm | -20 to +75 °C |
| Q22FA1280003400 | 2 x 1.6 x 0.5mm | FA-128 | 27.120000 MHz | 8 pF | +/-15 ppm | +/-15 ppm | -30 to +70 °C |
| Q22FA1280003500 | 2 x 1.6 x 0.5mm | FA-128 | 24.000000 MHz | 10 pF | +/-30 ppm | +/-30 ppm | -20 to +75 °C |
| Q22FA1280003700 | 2 x 1.6 x 0.5mm | FA-128 | 24.000000 MHz | 12 pF | +/-50 ppm | +/-30 ppm | -20 to +75 °C |
| Q22FA1280003800 | 2 x 1.6 x 0.5mm | FA-128 | 24.000000 MHz | 10 pF | +/-50 ppm | +/-30 ppm | -20 to +75 °C |
| Q22FA1280004300 | 2 x 1.6 x 0.5mm | FA-128 | 32.000000 MHz | 8 pF | +/-10 ppm | +/-20 ppm | -40 to +85 °C |
| Q22FA1280004400 | 2 x 1.6 x 0.5mm | FA-128 | 48.000000 MHz | 16 pF | +/-15 ppm | +/-18 ppm | -40 to +85 °C |
| Q22FA1280004500 | 2 x 1.6 x 0.5mm | FA-128 | 38.400000 MHz | 8.5 pF | +/-10 ppm | +/-10 ppm | -20 to +75 °C |
爱普生FA-128晶振编码Q22FA1280001100具有小体积轻薄型稳定性能高
| Q22FA1280004700 | 2 x 1.6 x 0.5mm | FA-128 | 26.000000 MHz | 12 pF | +/-10 ppm | +/-10 ppm | -20 to +85 °C |
| Q22FA1280005300 | 2 x 1.6 x 0.5mm | FA-128 | 24.000000 MHz | 12 pF | +/-10 ppm | +/-10 ppm | -20 to +70 °C |
| Q22FA1280005400 | 2 x 1.6 x 0.5mm | FA-128 | 24.000000 MHz | 8 pF | +/-10 ppm | +/-10 ppm | -20 to +70 °C |
| Q22FA1280006100 | 2 x 1.6 x 0.5mm | FA-128 | 44.000000 MHz | 12 pF | +/-10 ppm | +/-10 ppm | -20 to +75 °C |
| Q22FA1280006200 | 2 x 1.6 x 0.5mm | FA-128 | 48.000000 MHz | 8 pF | +/-30 ppm | +/-30 ppm | -20 to +70 °C |
| Q22FA1280006400 | 2 x 1.6 x 0.5mm | FA-128 | 37.400000 MHz | 18 pF | +/-10 ppm | +/-10 ppm | -20 to +75 °C |
| Q22FA1280006700 | 2 x 1.6 x 0.5mm | FA-128 | 24.000000 MHz | 7 pF | +/-30 ppm | +/-30 ppm | -20 to +75 °C |
| Q22FA1280007000 | 2 x 1.6 x 0.5mm | FA-128 | 27.000000 MHz | 7 pF | +/-10 ppm | +/-15 ppm | -20 to +70 °C |
| Q22FA1280008500 | 2 x 1.6 x 0.5mm | FA-128 | 27.120000 MHz | 10 pF | +/-30 ppm | +/-30 ppm | -20 to +75 °C |
| Q22FA1280008900 | 2 x 1.6 x 0.5mm | FA-128 | 48.000000 MHz | 8 pF | +/-30 ppm | +/-50 ppm | -30 to +85 °C |
| Q22FA1280009000 | 2 x 1.6 x 0.5mm | FA-128 | 25.000000 MHz | 12 pF | +/-10 ppm | +/-20 ppm | -40 to +85 °C |
| Q22FA1280009100 | 2 x 1.6 x 0.5mm | FA-128 | 27.120000 MHz | 7 pF | +/-50 ppm | +/-30 ppm | -20 to +70 °C |
| Q22FA1280009200 | 2 x 1.6 x 0.5mm | FA-128 | 32.000000 MHz | 10 pF | +/-10 ppm | +/-20 ppm | -40 to +85 °C |
| Q22FA1280009400 | 2 x 1.6 x 0.5mm | FA-128 | 40.000000 MHz | 8 pF | +/-10 ppm | +/-10 ppm | -20 to +75 °C |
| Q22FA1280009900 | 2 x 1.6 x 0.5mm | FA-128 | 40.000000 MHz | 8 pF | +/-10 ppm | -11/+13 ppm | -30 to +85 °C |
| Q22FA1280010000 | 2 x 1.6 x 0.5mm | FA-128 | 38.400000 MHz | 8 pF | +/-10 ppm | -11/+13 ppm | -30 to +85 °C |
| Q22FA1280010100 | 2 x 1.6 x 0.5mm | FA-128 | 40.000000 MHz | 10 pF | +/-10 ppm | +/-20 ppm | -40 to +85 °C |
| Q22FA1280010500 | 2 x 1.6 x 0.5mm | FA-128 | 25.000000 MHz | 12.5 pF | +/-30 ppm | +/-30 ppm | -20 to +75 °C |
| Q22FA1280010700 | 2 x 1.6 x 0.5mm | FA-128 | 25.000000 MHz | 10 pF | +/-50 ppm | +/-30 ppm | -20 to +75 °C |
| Q22FA1280010800 | 2 x 1.6 x 0.5mm | FA-128 | 25.000000 MHz | 12 pF | +/-30 ppm | +/-30 ppm | -20 to +75 °C |
| Q22FA1280011200 | 2 x 1.6 x 0.5mm | FA-128 | 27.120000 MHz | 10 pF | +/-15 ppm | +/-15 ppm | -20 to +75 °C |
| Q22FA1280011400 | 2 x 1.6 x 0.5mm | FA-128 | 24.000000 MHz | 9 pF | +/-10 ppm | +/-10 ppm | -20 to +75 °C |
| Q22FA1280011600 | 2 x 1.6 x 0.5mm | FA-128 | 32.000000 MHz | 12 pF | +/-15 ppm | +/-20 ppm | -20 to +70 °C |
| Q22FA1280011900 | 2 x 1.6 x 0.5mm | FA-128 | 32.000000 MHz | 10 pF | +/-20 ppm | +/-20 ppm | -20 to +75 °C |
| Q22FA1280012000 | 2 x 1.6 x 0.5mm | FA-128 | 24.000000 MHz | 8 pF | +/-10 ppm | +/-10 ppm | -20 to +75 °C |
爱普生FA-128晶振编码Q22FA1280001100具有小体积轻薄型稳定性能高
小型贴片石英晶振主要采用了，先进的晶片的抛光工艺技术，是晶体行业中石英晶片研磨技术中表面处理的最高技术，最终使晶片表面更光洁，平行度及平面度更好，大大的降低谐振电阻，使精度得到了很大的提升。改变了传统的生产工艺，使产品在各项参数得到了很大的改良,外观尺寸具有薄型表面贴片型石英晶体谐振器,特别适用于有小型化要求的市场领域,比如智能手机,无线蓝牙,平板电脑等电子数码产品。
