安防设备应用晶振SG3225VEN差分晶振X1G005351007600

来源：亿金电子查看手机网址

扫一扫!

扫一扫!

浏览：- 发布日期：2022-10-14 10:08:50【大中小】

分享到：

科技发展对差分晶振的使用日益增多,各大晶振品牌纷纷推出差分晶体振荡器,比如我们所熟悉的KDS晶振,京瓷晶振,NDK晶振,爱普生晶振,IDT晶振等知名品牌.我们都知道差分晶振除了有普通晶振有的功能外,最大的不同就是输出的方式是差分信号.

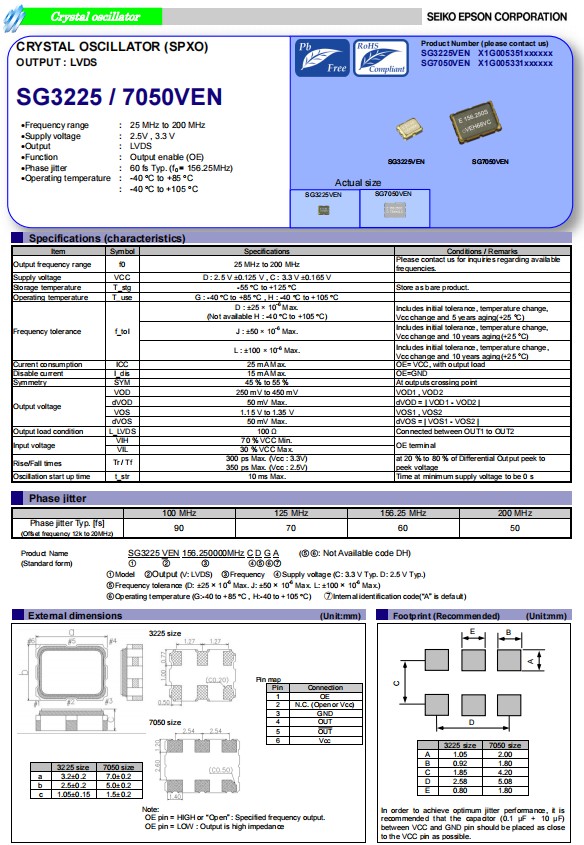

日本爱普生晶振SG3225VEN，是一款LVDS输出差分晶振，小体积晶振尺寸3.2x2.5mm有源晶振，石英晶体振荡器，六脚贴片晶振，电源电压:2.5V，3.3V，频率范围:25MHz至200MHz，工作温度可达到-40℃至+85℃以及-40℃至+105℃，该产品具有超小型，轻薄型，低电源电压，低抖动，低耗能，低损耗，低功耗等特点，被广泛用于通讯设备，机顶盒，光端机，安防设备及各种频率控制设备上.

安防设备应用晶振SG3225VEN差分晶振X1G005351007600

产品编码	型号	频率	贴片晶振	输出波	电源电压	工作温度
X1G005521000100	SG3225VEN	212.500000MHz	3.20x2.50x1.20mm	LVDS	3.135 to 3.465V	-40 to 85°C
X1G005521000200	SG3225VEN	312.500000MHz	3.20x2.50x1.20mm	LVDS	3.135 to 3.465V	-40 to 85°C
X1G005521000500	SG3225VEN	322.265600MHz	3.20x2.50x1.20mm	LVDS	3.135 to 3.465V	-40 to 85°C
X1G005521000900	SG3225VEN	333.330000MHz	3.20x2.50x1.20mm	LVDS	3.135 to 3.465V	-40 to 85°C
X1G005521001100	SG3225VEN	245.760000MHz	3.20x2.50x1.20mm	LVDS	3.135 to 3.465V	-40 to 85°C
X1G005521100700	SG3225VEN	322.265625MHz	3.20x2.50x1.20mm	LVDS	2.375 to 2.625V	-40 to 85°C
X1G005351007600	SG3225VEN	26.000000MHz	3.20x2.50x1.20mm	LVDS	3.135 to 3.465V	-40 to 85°C
X1G005351007700	SG3225VEN	148.500000MHz	3.20x2.50x1.20mm	LVDS	3.135 to 3.465V	-40 to 85°C
X1G005351007800	SG3225VEN	50.000000MHz	3.20x2.50x1.20mm	LVDS	3.135 to 3.465V	-40 to 85°C
X1G005351007900	SG3225VEN	155.520000MHz	3.20x2.50x1.20mm	LVDS	3.135 to 3.465V	-40 to 85°C
X1G005351100200	SG3225VEN	125.000000MHz	3.20x2.50x1.20mm	LVDS	2.375 to 2.625V	-40 to 85°C
X1G005351100400	SG3225VEN	100.000000MHz	3.20x2.50x1.20mm	LVDS	2.375 to 2.625V	-40 to 85°C
X1G005351100600	SG3225VEN	156.250000MHz	3.20x2.50x1.20mm	LVDS	2.375 to 2.625V	-40 to 85°C
X1G005351100700	SG3225VEN	125.000000MHz	3.20x2.50x1.20mm	LVDS	2.375 to 2.625V	-40 to 105°C
X1G005351100800	SG3225VEN	100.000000MHz	3.20x2.50x1.20mm	LVDS	2.375 to 2.625V	-40 to 85°C

X1G005351100900	SG3225VEN	125.000000MHz	3.20x2.50x1.20mm	LVDS	2.375 to 2.625V	-40 to 85°C
X1G005351101000	SG3225VEN	25.000000MHz	3.20x2.50x1.20mm	LVDS	2.375 to 2.625V	-40 to 85°C
X1G005351101100	SG3225VEN	72.000000MHz	3.20x2.50x1.20mm	LVDS	2.375 to 2.625V	-40 to 85°C
X1G005351101200	SG3225VEN	156.250000MHz	3.20x2.50x1.20mm	LVDS	2.375 to 2.625V	-40 to 105°C
X1G005351101300	SG3225VEN	133.333000MHz	3.20x2.50x1.20mm	LVDS	2.375 to 2.625V	-40 to 85°C
X1G005351101400	SG3225VEN	50.000000MHz	3.20x2.50x1.20mm	LVDS	2.375 to 2.625V	-40 to 85°C
X1G005351101500	SG3225VEN	50.000000MHz	3.20x2.50x1.20mm	LVDS	2.375 to 2.625V	-40 to 105°C
X1G005351101600	SG3225VEN	100.000000MHz	3.20x2.50x1.20mm	LVDS	2.375 to 2.625V	-40 to 105°C
X1G005351101800	SG3225VEN	156.242187MHz	3.20x2.50x1.20mm	LVDS	2.375 to 2.625V	-40 to 85°C
X1G005351101900	SG3225VEN	200.000000MHz	3.20x2.50x1.20mm	LVDS	2.375 to 2.625V	-40 to 85°C
X1G005351102000	SG3225VEN	148.351648MHz	3.20x2.50x1.20mm	LVDS	2.375 to 2.625V	-40 to 85°C
X1G005351102100	SG3225VEN	148.500000MHz	3.20x2.50x1.20mm	LVDS	2.375 to 2.625V	-40 to 85°C

安防设备应用晶振SG3225VEN差分晶振X1G005351007600

常用的差分石英晶体振荡器输出均属于方波，输出功率比较大，驱动能力较强，但谐波分量非常多。这两种输出模式是差分晶振的输出逻辑，两者的相位刚好相反，因此它们能够组成更高性能的系统，同时还能消除共模噪声。差分输出（例如PECL，LVDS，HCSL) 可以满足高速数据传输，应用于高速计算机，数字通信系统，雷达，测量仪器，频率合成器等。
