X1G004171028000是一款用于物联网应用的晶体振荡器

来源：亿金电子查看手机网址

扫一扫!

扫一扫!

浏览：- 发布日期：2022-10-13 09:41:44【大中小】

分享到：

爱普生晶振是国内外都比较出名使用又多的晶振品牌，无论是从晶振品牌的知名度以及石英晶振的产品质量来讲都是得到广大使用，该产品的群体所认可的。无论是KHZ晶振，还是MHZ晶振爱普生晶振公司都会涉及到，小到1610尺寸晶振，大到8045贴片晶振。它们正随着市场的需求从而改进产品的封装尺寸。

爱普生晶振SG-210STF是一款CMOS输出石英晶体振荡器(SPXO)系列。小体积尺寸2.5x2.0mm四脚贴片晶振，有源晶振，1.6V至3.63V的宽工作电压和-40℃至+105℃的宽工作温度范围，频率范围1MHz至75MHz，具有超小型，轻薄型，低抖动，低功耗，耐热及耐环境特性，非常适合物联网，可穿戴设备，医疗，数据中心，存储，工业自动化等各种应用。

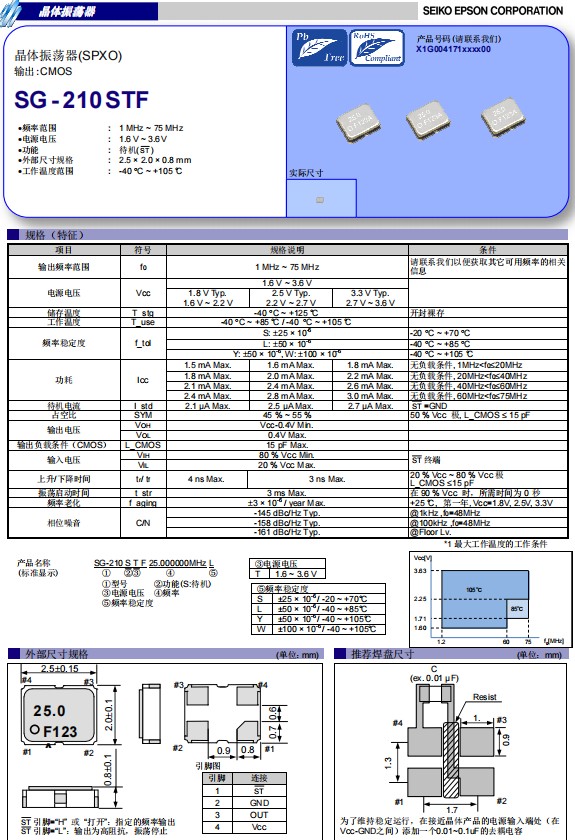

X1G004171028000是一款用于物联网应用的晶体振荡器

产品编码	型号	频率	尺寸	输出波	电源电压	工作温度
X1G004171016300	SG-210STF	12.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-20 to 70°C
X1G004171019700	SG-210STF	24.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G004171020600	SG-210STF	40.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G004171021800	SG-210STF	20.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-20 to 70°C
X1G004171023800	SG-210STF	20.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G004171024400	SG-210STF	26.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G004171025000	SG-210STF	27.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G004171028000	SG-210STF	12.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G004171029900	SG-210STF	4.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G004171030000	SG-210STF	33.330000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G004171036500	SG-210STF	10.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G004171036600	SG-210STF	12.288000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G004171036700	SG-210STF	14.745600MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G004171036800	SG-210STF	24.576000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G004171036900	SG-210STF	48.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G004171037000	SG-210STF	72.000000MHz	2.50x2.00x0.80mm	CMOS	1.710 to 3.630V	-20 to 70°C
X1G004171037100	SG-210STF	72.000000MHz	2.50x2.00x0.80mm	CMOS	2.250 to 3.630V	-40 to 105°C

产品编码	型号	进口晶振	尺寸	输出波	电源电压	工作温度
X1G004171000900	SG-210STF	4.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G004171001500	SG-210STF	8.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G004171001600	SG-210STF	10.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G004171001800	SG-210STF	12.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G004171001900	SG-210STF	12.288000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G004171002500	SG-210STF	14.745600MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G004171002700	SG-210STF	16.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G004171002900	SG-210STF	20.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G004171003100	SG-210STF	24.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G004171003200	SG-210STF	24.576000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G004171003300	SG-210STF	25.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G004171003400	SG-210STF	26.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G004171003500	SG-210STF	27.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G004171004000	SG-210STF	32.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G004171004500	SG-210STF	40.000000MHz	2.50x2.00x0.80mm	CMOS	1.620 to 3.630V	-40 to 85°C

X1G004171028000是一款用于物联网应用的晶体振荡器

石英晶体振荡器优点：
1、石英钟走时准、耗电省、经久耐用为其最大优点。不论是老式石英钟或是新式多功能石英钟都是以石英晶体振荡器为核心电路，其频率精度决定了电子钟表的走时精度。
2、随着电视技术的发展，近来彩电多采用500kHz或503kHz的晶体振荡器作为行、场电路的振荡源，经1/3的分频得到15625Hz的行频，其稳定性和可靠性大为提高。而且晶振价格便宜，更换容易。
3、在通信系统产品中，石英晶体振荡器的价值得到了更广泛的体现，同时也得到了更快的发展。许多高性能的石英晶振主要应用于通信网络、无线数据传输、高速数字数据传输等。
