PETERMANN introduces crystal oscillators for ultrasound
Every development and production specialist knows it! Quartz crystal can’t handle ultrasonic welding and cleaning. The quartzcrystal resonators are damaged by the high-frequency welding or cleaning process.
The clocking specialist PETERMANN-TECHNIK from Landsberg am Lech is the first in the world to present an SMD晶振 in miniaturised ceramic housing measuring 3.2×2.5 mm, which was specially developed to handle ultrasonic-based welding and cleaning. A sensation!
In the meantime, the SMD quartz in 3.2×2.5 mm/4pad housing (series SMD03025/4) has become the cheapest miniaturised SMD quartz in ceramic housing. For this reason, it is only logical that the quartz suitable for ultrasonic welding and cleaning is available in the housing that is in greatest demand, 3.2×2.5 mm/4pad.

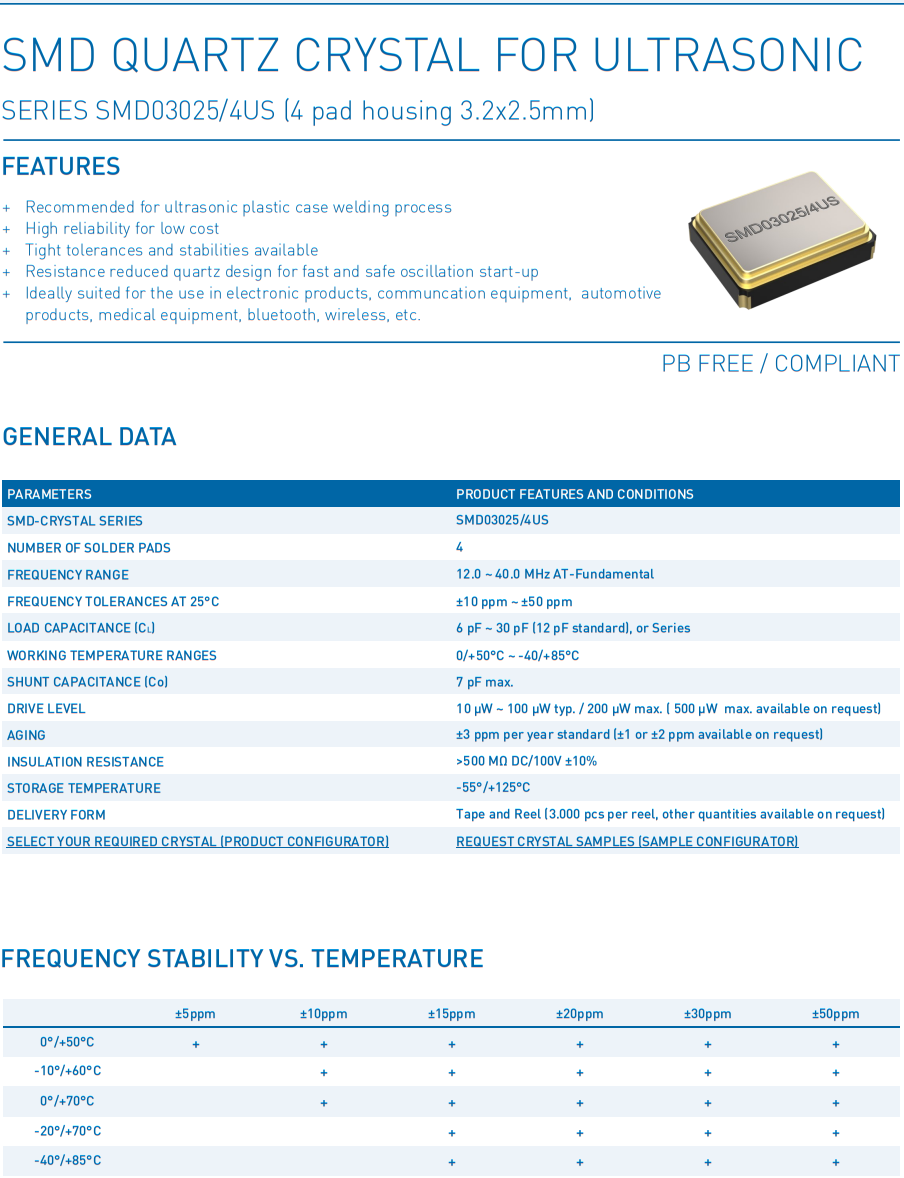

The SMD quartz suitable for ultrasonic from the “SMD03025/4US” series can be welded and cleaned by ultrasonic. In doing so, this quartz, whose quartz resonator has a special fixed ultrasonic limit, is designed for ultrasonic frequencies of 15 kHz, 20 kHz, 35 kHz and 40 kHz.
The “SMD03025/4US”, available with a frequency range of 12–40 MHz, can be shipped with frequency tolerances starting at ±10 ppm at +25 °C and with temperature stabilities beginning at ±10 ppm beyond the temperature range of -20/+70 °C. Beyond the industrial temperature range of -40/+85 °C, the closest temperature stability is ±15 ppm.
Because of the very affordable price, the ultrasonic-resistant all-rounder, which is manufactured in clean rooms, can be used in any application that demands very inexpensive SMD quartz with excellent parameters and outstanding durability, such as in the automotive, medical, embedded, industrial, commercial, WIFI, wireless (WLAN, ISM, KNX, ZigBee, Z-Wave, etc.), consumer and telecommunications sectors and more.
Of course, the range of PETERMANN-TECHNIK products also includes 32.768 kHz solutions (quartzes and ultra low power oscillators).
In addition to the very extensive product range, the specialists at PETERMANN-TECHNIK also provide comprehensive product advice. Very comprehensive circuit analyses/circuit simulations can also be performed by in-house engineering as needed. These analyses are carried out based on the DIN/IEC60444 standards for oscillating crystals and include oscillation safety tests (determination of the exact oscillation reserve), determination of the piezoelectricity and many other tests.晶振资料下载
The incredibly extensive final report provides insight on the connection, will confirm the correct dimensioning of the tested circuitry or may contain proposals for adjustment. Support for this series is carried out in coordination with the customer’s engineering, purchasing, production and QA departments. The aim is to make use of a very extensive range of services to be able to facilitate a fast time to market for the customer.
In the meantime, the SMD quartz in 3.2×2.5 mm/4pad housing (series SMD03025/4) has become the cheapest miniaturised SMD quartz in ceramic housing. For this reason, it is only logical that the quartz suitable for ultrasonic welding and cleaning is available in the housing that is in greatest demand, 3.2×2.5 mm/4pad.
The SMD quartz suitable for ultrasonic from the “SMD03025/4US” series can be welded and cleaned by ultrasonic. In doing so, this quartz, whose quartz resonator has a special fixed ultrasonic limit, is designed for ultrasonic frequencies of 15 kHz, 20 kHz, 35 kHz and 40 kHz.
The “SMD03025/4US”, available with a frequency range of 12–40 MHz, can be shipped with frequency tolerances starting at ±10 ppm at +25 °C and with temperature stabilities beginning at ±10 ppm beyond the temperature range of -20/+70 °C. Beyond the industrial temperature range of -40/+85 °C, the closest temperature stability is ±15 ppm.
Because of the very affordable price, the ultrasonic-resistant all-rounder, which is manufactured in clean rooms, can be used in any application that demands very inexpensive SMD quartz with excellent parameters and outstanding durability, such as in the automotive, medical, embedded, industrial, commercial, WIFI, wireless (WLAN, ISM, KNX, ZigBee, Z-Wave, etc.), consumer and telecommunications sectors and more.
Of course, the range of PETERMANN-TECHNIK products also includes 32.768 kHz solutions (quartzes and ultra low power oscillators).
In addition to the very extensive product range, the specialists at PETERMANN-TECHNIK also provide comprehensive product advice. Very comprehensive circuit analyses/circuit simulations can also be performed by in-house engineering as needed. These analyses are carried out based on the DIN/IEC60444 standards for oscillating crystals and include oscillation safety tests (determination of the exact oscillation reserve), determination of the piezoelectricity and many other tests.晶振资料下载
The incredibly extensive final report provides insight on the connection, will confirm the correct dimensioning of the tested circuitry or may contain proposals for adjustment. Support for this series is carried out in coordination with the customer’s engineering, purchasing, production and QA departments. The aim is to make use of a very extensive range of services to be able to facilitate a fast time to market for the customer.
同时，3.2×2.5 mm/4pad外壳的SMD晶振(系列SMD03025/4)已成为陶瓷外壳中最便宜的小型化SMD石英晶振。出于这个原因，适合超声波焊接和清洁的石英在需求最大的外壳中可用，3.2×2.5 mm/4pad。
“SMD03025/4US”系列适用于超声波的贴片晶振可以通过超声波焊接和清洗。因此，这种石英，其石英谐振器具有特殊的固定超声波限制，设计用于15khz, 20khz, 35khz和40khz的超声波频率。
“SMD03025/4US”的频率范围为12-40 MHz，在+25°C时，频率公差从±10 ppm开始，在-20/+70°C的温度范围内，温度稳定性从±10 ppm开始。在工业温度范围-40/+85°C之外，最接近的温度稳定性为±15 ppm。
由于价格非常实惠，在洁净室中制造的抗超声波全能产品可用于任何需要非常便宜的SMD石英的应用，具有优异的参数和出色的耐用性，例如汽车，医疗，嵌入式，工业，商业，WIFI，无线(WLAN, ISM, KNX, ZigBee, Z-Wave等)，消费者和电信部门等。
当然，PETERMANN-TECHNIK产品范围还包括32.768 kHz解决方案(石英和超低功率石英晶体振荡器)。
除了非常广泛的产品范围外，PETERMANN-TECHNIK的专家还提供全面的产品建议。非常全面的电路分析/电路模拟也可以根据需要由内部工程执行。这些分析是根据DIN/IEC60444振荡晶体标准进行的，包括振荡安全测试(精确振荡储备的测定)，压电性的测定和许多其他测试。
每个开发和生产专家都知道这一点!石英晶体不能进行超声波焊接和清洗。石英谐振器在高频焊接或清洗过程中损坏。令人难以置信的广泛的最终报告提供了对连接的见解，将确认测试电路的正确尺寸或可能包含调整建议。与客户的工程、采购、生产和质量保证部门协调进行对该系列的支持。其目的是利用非常广泛的服务范围，以便能够为客户提供快速上市的时间。
