ECS-3225MV-250-BN-TR晶体振荡器是LoRa WAN的理想选择

来源：亿金电子查看手机网址

扫一扫!

扫一扫!

浏览：- 发布日期：2023-02-16 09:33:59【大中小】

分享到：

ECS晶振ECS-3225MV系列是一款微型SMD HCMOS振荡器，具有MultiVolt容量为1.62V至3.63V，低功耗、固定频率、低抖动、MultiVolt表面贴装石英晶体振荡器。为节省电路板空间，采用小体积3.2x2.5x1.2mm (LWH)封装四角贴片晶振。MultiVolt特性允许客户将同一器件用于多种设计，从而降低认证要求并减少库存。ECS的表面贴装MultiVolt晶体振荡器非常适合低功耗、便携式、工业和物联网应用。ECS-3225MV-250-BN-TR晶体振荡器是LoRa WAN的理想选择

贴片石英晶振	品牌	型号	频率	工作温度
ECS-3225S33-250-FN-TR	ECS Crystal	ECS-3225S	25MHz	-40°C ~ 85°C
ECS-3225S33-250-FN-TR	ECS Crystal	ECS-3225S	25MHz	-40°C ~ 85°C
ECS-3225S33-250-FN-TR	ECS Crystal	ECS-3225S	25MHz	-40°C ~ 85°C
ECS-3225S33-260-FN-TR	ECS Crystal	ECS-3225S	26MHz	-40°C ~ 85°C
ECS-3225S33-260-FN-TR	ECS Crystal	ECS-3225S	26MHz	-40°C ~ 85°C
ECS-3225S33-260-FN-TR	ECS Crystal	ECS-3225S	26MHz	-40°C ~ 85°C
ECS-3225S33-400-FN-TR	ECS Crystal	ECS-3225S	40MHz	-40°C ~ 85°C
ECS-3225S33-400-FN-TR	ECS Crystal	ECS-3225S	40MHz	-40°C ~ 85°C
ECS-3225S33-400-FN-TR	ECS Crystal	ECS-3225S	40MHz	-40°C ~ 85°C
ECS-3225S25-240-FN-TR	ECS Crystal	ECS-3225S	24MHz	-40°C ~ 85°C
ECS-3225S25-240-FN-TR	ECS Crystal	ECS-3225S	24MHz	-40°C ~ 85°C
ECS-3225S25-240-FN-TR	ECS Crystal	ECS-3225S	24MHz	-40°C ~ 85°C
ECS-3225S25-250-FN-TR	ECS Crystal	ECS-3225S	25MHz	-40°C ~ 85°C
ECS-3225S25-250-FN-TR	ECS Crystal	ECS-3225S	25MHz	-40°C ~ 85°C
ECS-3225S25-250-FN-TR	ECS晶振	ECS-3225S	25MHz	-40°C ~ 85°C
ECS-3225S18-160-FN-TR	ECS Crystal	ECS-3225S	16MHz	-40°C ~ 85°C
ECS-3225S18-160-FN-TR	ECS Crystal	ECS-3225S	16MHz	-40°C ~ 85°C
ECS-3225S18-160-FN-TR	ECS Crystal	ECS-3225S	16MHz	-40°C ~ 85°C
ECS-3225S18-200-FN-TR	ECS Crystal	ECS-3225S	20MHz	-40°C ~ 85°C
ECS-3225S18-200-FN-TR	ECS Crystal	ECS-3225S	20MHz	-40°C ~ 85°C
ECS-3225S18-200-FN-TR	ECS Crystal	ECS-3225S	20MHz	-40°C ~ 85°C
ECS-3225S18-240-FN-TR	ECS Crystal	ECS-3225S	24MHz	-40°C ~ 85°C
ECS-3225S18-240-FN-TR	ECS Crystal	ECS-3225S	24MHz	-40°C ~ 85°C
ECS-3225S18-240-FN-TR	ECS Crystal	ECS-3225S	24MHz	-40°C ~ 85°C
ECS-3225S18-270-FN-TR	ECS Crystal	ECS-3225S	27MHz	-40°C ~ 85°C
ECS-3225S18-270-FN-TR	ECS Crystal	ECS-3225S	27MHz	-40°C ~ 85°C
ECS-3225S18-270-FN-TR	ECS Crystal	ECS-3225S	27MHz	-40°C ~ 85°C
ECS-3225S18-320-FN-TR	ECS Crystal	ECS-3225S	32MHz	-40°C ~ 85°C

ECS-3225MV-250-BN-TR晶体振荡器是LoRa WAN的理想选择

特点:
小体积尺寸：3.2x2.5毫米的尺寸
4焊盘配置有源晶振
多伏特1.6V至3.63V
兼容1.8V、2.5V或3.3V电源
低抖动:1 pS
-BN选项:50 ppm，-40℃至+85℃
-CN选项:25 ppm，-40℃至+85℃
符合RoHS 2和REACH标准
MSL 1号
铅饰面金
应用：物联网，存储设备，商业现货(COTS)，航行，医疗(非维持生命)，移动设备，产业的，无线设备，测试设备，通用微处理器，IP摄像机

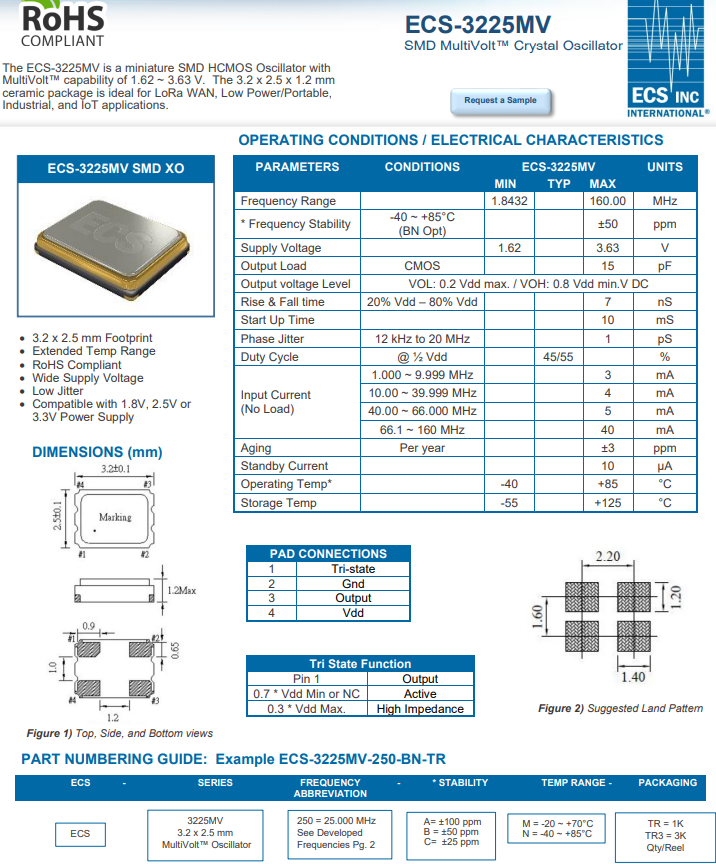

ECS-3225MV

图片	晶振系列	频率	频率稳定性	工作温度
	ECS-3225MV-120-BN-TR	12 MHz	±50ppm	-40°C ~ +85°C
	ECS-3225MV-160-CN-TR	16 MHz	±25ppm	-40°C ~ +85°C
	ECS-3225MV-250-BN-TR	25 MHz	±50ppm	-40°C ~ +85°C
	ECS-3225MV-250-CN-TR	25 MHz	±25ppm	-40°C ~ +85°C
	ECS-3225MV-260-CN-TR	26 MHz	±25ppm	-40°C ~ +85°C
	ECS-3225MV-320-BN-TR	32 MHz	±50ppm	-40°C ~ +85°C
