ECS-240-18-33-JEN-TR3非常适合电路板空间至关重要的应用

来源：亿金电子查看手机网址

扫一扫!

扫一扫!

浏览：- 发布日期：2023-02-13 09:28:11【大中小】

分享到：

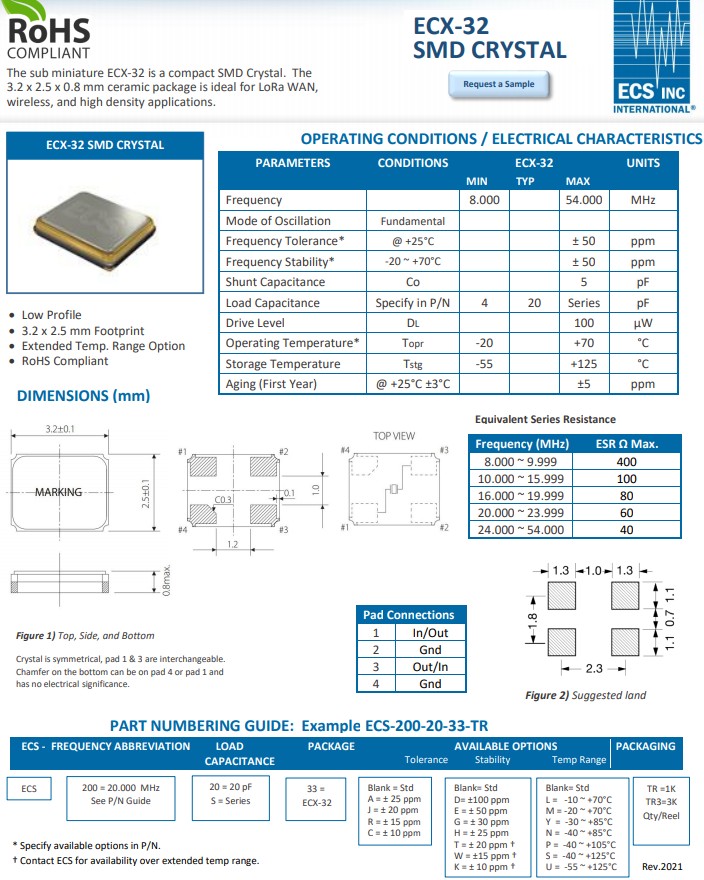

ECS晶振ECX-32系列紧凑型3.2毫米x2.5毫米x0.8mm陶瓷封装，四脚贴片晶振，MHz石英晶体提供8MHz至54MHz的宽频率范围。这些晶体具有10ppm的严格稳定性和容差选项，以及-50°C至+125°C的扩展温度范围选项。标准器件提供20pF负载电容，但额外提供8pF、10pF、12pF和18pF负载电容选项。这些石英晶体ECS-240-18-33-JEN-TR3非常适合电路板空间至关重要的应用，是LoRa WAN、无线、移动、物联网、Wi-Fi和蓝牙的理想选择。

图片	编码	频率	频率稳定性	操作温度范围
	ECS-240-18-33-JEN-TR3	24 MHz	±50ppm	-40°C ~ +85°C
	ECS-80-10-33-CKM-TR3	8 MHz	±10ppm	-20°C ~ +70°C
	ECS-160-18-33-AEN-TR3	16 MHz	±50ppm	-40°C ~ +85°C
	ECS-200-18-33-JGN-TR3	20 MHz	±30ppm	-40°C ~ +85°C
	ECS-250-10-33-AGM-TR3	25 MHz	±30ppm	-20°C ~ +70°C
	ECS-100-18-33-AGM-TR3	10 MHz	±30ppm	-20°C ~ +70°C

ECS-240-18-33-JEN-TR3非常适合电路板空间至关重要的应用

特点:
小体积尺寸：3.2x2.5x0.8mm四脚贴片晶振
频率范围:8兆赫~ 54兆赫
标准工业温度范围:-20℃至+70℃
提供扩展温度范围选项
严格的10ppm容差
紧密的10ppm稳定性
符合RoHS和REACH标准
应用:
无线的
移动的
无线保真
蓝牙
物联网

无源晶振	厂家	型号	频率	工作温度	包装/封装
ECS-250-20-33-CKM-TR	ECS Crystal	ECX-32	25MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-250-20-33-CKM-TR	ECS Crystal	ECX-32	25MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-250-20-33-CKM-TR	ECS Crystal	ECX-32	25MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-120-20-33-CKM-TR	ECS Crystal	ECX-32	12MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-120-20-33-CKM-TR	ECS Crystal	ECX-32	12MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-120-20-33-CKM-TR	ECS Crystal	ECX-32	12MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-240-20-33-CKM-TR	ECS Crystal	ECX-32	24MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-240-20-33-CKM-TR	ECS Crystal	ECX-32	24MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-240-20-33-CKM-TR	ECS Crystal	ECX-32	24MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-270-20-33-CKM-TR	ECS Crystal	ECX-32	27MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-270-20-33-CKM-TR	ECS Crystal	ECX-32	27MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-270-20-33-CKM-TR	ECS Crystal	ECX-32	27MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-184-20-33-CKM-TR	ECS Crystal	ECX-32	18.432MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-184-20-33-CKM-TR	ECS Crystal	ECX-32	18.432MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-184-20-33-CKM-TR	ECS Crystal	ECX-32	18.432MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-184-20-33-DU-TR	ECS Crystal	ECX-32	18.432MHz	-55°C ~ 125°C	4-SMD, No Lead
ECS-184-20-33-DU-TR	ECS Crystal	ECX-32	18.432MHz	-55°C ~ 125°C	4-SMD, No Lead
ECS-184-20-33-DU-TR	ECS Crystal	ECX-32	18.432MHz	-55°C ~ 125°C	4-SMD, No Lead
ECS-120-20-33-DU-TR	ECS Crystal	ECX-32	12MHz	-55°C ~ 125°C	4-SMD, No Lead
ECS-120-20-33-DU-TR	ECS Crystal	ECX-32	12MHz	-55°C ~ 125°C	4-SMD, No Lead
ECS-120-20-33-DU-TR	ECS Crystal	ECX-32	12MHz	-55°C ~ 125°C	4-SMD, No Lead
ECS-250-20-33-TR	ECS Crystal	ECX-32	25MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-250-20-33-TR	ECS Crystal	ECX-32	25MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-250-20-33-TR	ECS Crystal	ECX-32	25MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-120-20-33-TR	ECS Crystal	ECX-32	12MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-120-20-33-TR	ECS Crystal	ECX-32	12MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-120-20-33-TR	ECS Crystal	ECX-32	12MHz	-20°C ~ 70°C	SMD晶振
ECS-240-20-33-TR	ECS Crystal	ECX-32	24MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-240-20-33-TR	ECS Crystal	ECX-32	24MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-240-20-33-TR	ECS Crystal	ECX-32	24MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-160-20-33-TR	ECS Crystal	ECX-32	16MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-160-20-33-TR	ECS Crystal	ECX-32	16MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-160-20-33-TR	ECS Crystal	ECX-32	16MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-162.57-20-33-TR	ECS Crystal	ECX-32	16.257MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-162.57-20-33-TR	ECS Crystal	ECX-32	16.257MHz	-20°C ~ 70°C	4-SMD, No Lead
