GPS定位系统专用晶振CWX815-32.768MHz/7050mm/5V/CMOS/±25ppm/SMD
晶振的功能是为系统提供基本的时钟信号，通常一个系统共用一个晶振，便于各部分保持同步。有些通讯系统的基频和射频使用不同的晶振，不同的规格封装延伸很多的频点等不同的参数，而通过电子调整频率的方法保持同步，在我们日常生活中也离不开贴片晶振.时钟振荡器是利用了晶体的压电效应制造的,当在晶片的两面上加交变电压时，晶片会反复的机械变形而产生振动，而这种机械振动又会反过来产生交变电压。GPS定位系统专用晶振CWX815-32.768MHz/7050mm/5V/CMOS/±25ppm/SMD

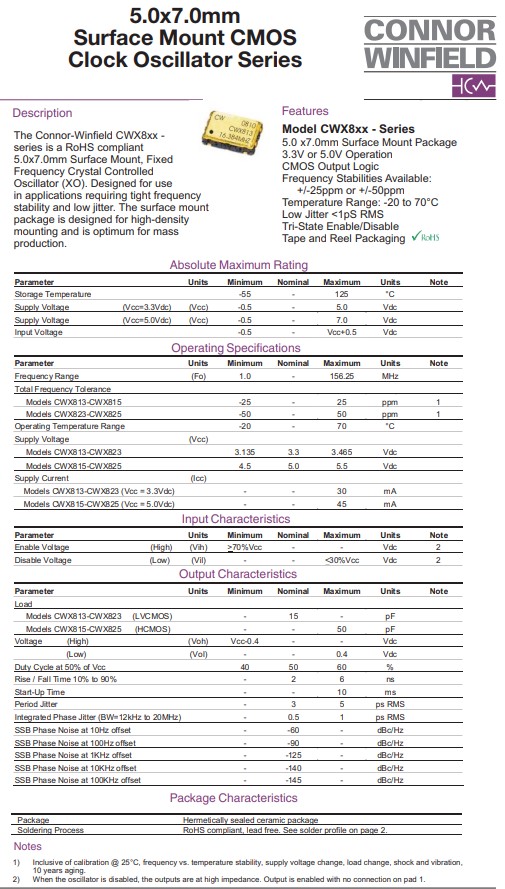

GPS定位系统专用晶振CWX815-32.768MHz/7050mm/5V/CMOS/±25ppm/SMD，ConnorWinfield康纳温菲尔德CWX8xx系列型号，CWX815晶振，是一款小体积晶振尺寸5.0x7.0mm毫米表面贴装，四脚贴片晶振，有源晶振，石英晶体振荡器(XO)。为使用而设计在要求严格频率的应用中，稳定性和低抖动。表面贴装CMOS时钟振荡器系列，封装设计用于高密度安装，是质量的最佳选择生产。符合RoHS标准 3.3V或5.0V工作电压，有源晶振CMOS输出逻辑，可用的频率稳定性: 低抖动< 1pS RMS 三态使能/禁用，胶带和卷轴包装 +/-25ppm或+/-50ppm，温度范围:-20至70摄氏度，被广泛用于通讯设备，无线网络，蓝牙模块，汽车电子，GPS定位系统，导航仪，医疗设备，数码电子，物联网等应用。
| 进口晶振编码 | 品牌 | 型号 | 频率 | 工作温度 | 包装/封装 |
| CWX815-1.544M | ConnorWinfield晶振 | CWX815 | 1.544MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-1.8432M | ConnorWinfield晶振 | CWX815 | 1.8432MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-3.6864M | ConnorWinfield晶振 | CWX815 | 3.6864MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-4.0M | ConnorWinfield晶振 | CWX815 | 4MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-7.3728M | ConnorWinfield晶振 | CWX815 | 7.3728MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-8.0M | ConnorWinfield晶振 | CWX815 | 8MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-10.0M | ConnorWinfield晶振 | CWX815 | 10MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-12.0M | ConnorWinfield晶振 | CWX815 | 12MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-12.288M | ConnorWinfield晶振 | CWX815 | 12.288MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-14.31818M | ConnorWinfield晶振 | CWX815 | 14.31818MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-15.36M | ConnorWinfield晶振 | CWX815 | 15.36MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-16.0M | ConnorWinfield晶振 | CWX815 | 16MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-16.384M | ConnorWinfield晶振 | CWX815 | 16.384MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-18.432M | ConnorWinfield晶振 | CWX815 | 18.432MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-19.44M | ConnorWinfield晶振 | CWX815 | 19.44MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-20.0M | ConnorWinfield晶振 | CWX815 | 20MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-20.48M | ConnorWinfield晶振 | CWX815 | 20.48MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-24.0M | ConnorWinfield晶振 | CWX815 | 24MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-24.576M | 康纳温菲尔德晶振 | CWX815 | 24.576MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-25.0M | ConnorWinfield晶振 | CWX815 | 25MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-27.0M | ConnorWinfield晶振 | CWX815 | 27MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-29.4912M | ConnorWinfield晶振 | CWX815 | 29.4912MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-30.0M | ConnorWinfield晶振 | CWX815 | 30MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-32.0M | ConnorWinfield晶振 | CWX815 | 32MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-32.768M | ConnorWinfield晶振 | CWX815 | 32.768MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-33.0M | ConnorWinfield晶振 | CWX815 | 33MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-33.333M | ConnorWinfield晶振 | CWX815 | 33.333MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-40.0M | ConnorWinfield晶振 | CWX815 | 40MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-44.736M | ConnorWinfield晶振 | CWX815 | 44.736MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-45.0M | ConnorWinfield晶振 | CWX815 | 45MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-49.152M | ConnorWinfield晶振 | CWX815 | 49.152MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-50.0M | ConnorWinfield晶振 | CWX815 | 50MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-60.0M | ConnorWinfield晶振 | CWX815 | 60MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-64.0M | ConnorWinfield晶振 | CWX815 | 64MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-66.6666M | ConnorWinfield晶振 | CWX815 | 66.6666MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-72.0M | ConnorWinfield晶振 | CWX815 | 72MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-80.0M | ConnorWinfield晶振 | CWX815 | 80MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX815-100.0M | ConnorWinfield晶振 | CWX815 | 100MHz | -20°C ~ 70°C | 4-SMD, No Lead |
