麦特伦皮晶振,M1004S156 24.000000插件晶振,49S室外6G基站晶振
频率：24MHz
尺寸：11.05mm*4.65mm
麦特伦皮晶振,M1004S156 24.000000插件晶振,49S室外6G基站晶振，美国麦特伦皮晶振公司，MtronPTI晶振，石英晶振，插件晶振，二脚晶振，49S晶振，进口晶振，ATS晶振，高品质晶振，耐环境晶振，耐冲击晶振，无源晶振，环保无铅晶振，产品可靠，用户指定公差，符合国际标准
麦特伦皮晶振,M1004S156 24.000000插件晶振,49S室外6G基站晶振

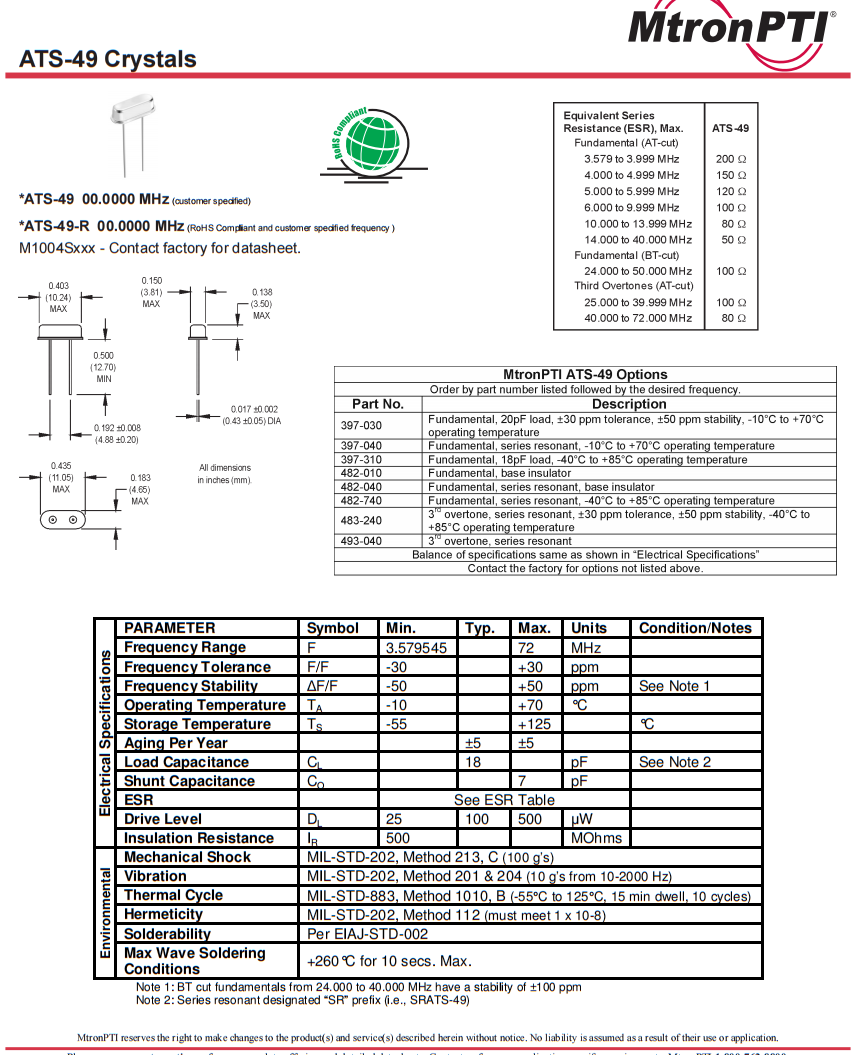

参数
Symbol
Min.
Typ.
Max.
Units
Condition/Notes
频率范围
F
3.579545
72
MHz
频率容差
F/F
-30
+30
ppm
频率稳定度
AF/F
-50
+50
ppm
See Note 1
工作温度范围
TA
- 10
+70
°C
储存温度范围
TS
-55
+125
°C
老化
±5
±5
负载电容
L
18
pF
See Note 2
分流电容
CO
7
pF
驱动电平
DL
25
100
500
W
绝缘电阻
IR
500
MOhms
机械冲击
MIL-STD-202, Method 213, C (100 g’s)
振动
MIL-STD-202, Method 201 & 204 (10 g’s from 10-2000 Hz)
热循环
MIL-STD-883, Method 1010, B (-55°C to 125°C, 15 min dwell, 10 cycles)
密封性
MIL-STD-202, Method 112 (must meet 1 x 10-8)
可焊性
Per EIAJ-STD-002
最大波焊条件
+260°C for 10 secs. Max.
麦特伦皮晶振,M1004S156 24.000000插件晶振,49S室外6G基站晶振
| 原厂编码 | 型号 | 类型 | 频率稳定度 | 频率 | 频率容差 |
| M220168MPJ 156.250000 | M220x | XO | ±20 ppm | 156.25 | ±20 ppm |
| 1698-065 18.600000 | MHO+ | XO | ±25 ppm | 18.6 | ±10 ppm |
| XO9085-002 | XO9085 | OCXO | ±100 ppb | 100 | ±100 ppb |
| XO9085-004 | XO9085 | OCXO | ±100 ppb | 100 | ±100 ppb |
| M61612GTSN 10.000000 | M616x | VCTCXO | ±0.5 ppm | 10 | ±1 ppm |
| M61612JFCN 20.000000 | M616x | TCXO | ±1 ppm | 20 | ±1 ppm |
| M61612JTCN 10.000000 | M616x | VCTCXO | ±1 ppm | 10 | ±1 ppm |
| M61612LTCN 10.000000 | M616x | VCTCXO | ±4.6 ppm | 10 | ±1 ppm |
| M61612MFCN 10.000000 | M616x | TCXO | ±0.2 ppm | 10 | ±1 ppm |
| M61613LFSN 50.000000 | M616x | TCXO | ±4.6 ppm | 50 | ±1 ppm |
| M61616LTCN 10.000000 | M616x | VCTCXO | ±4.6 ppm | 10 | ±1 ppm |
| M61641GFCN 10.000000 | M616x | TCXO | ±0.5 ppm | 10 | ±1 ppm |
| M61641GFCN 40.000000 | M616x | TCXO | ±0.5 ppm | 40 | ±1 ppm |
| M61642GFCN 24.000000 | M616x | TCXO | ±0.5 ppm | 24 | ±1 ppm |
| M61642GFSN 20.000000 | M616x | TCXO | ±0.5 ppm | 20 | ±1 ppm |
| M61642GTSN 40.000000 | M616x | VCTCXO | ±0.5 ppm | 40 | ±1 ppm |
| M61642JFCN 20.000000 | M616x | TCXO | ±1 ppm | 20 | ±1 ppm |
| M61642JFCN 50.000000 | M616x | TCXO | ±1 ppm | 50 | ±1 ppm |
| M61642JFSN 10.000000 | M616x | TCXO | ±1 ppm | 10 | ±1 ppm |
| M61642JTSN 9.600000 | M616x | VCTCXO | ±1 ppm | 9.6 | ±1 ppm |
| M61642KFSN 10.000000 | M616x | TCXO | ±2 ppm | 10 | ±1 ppm |
| M61646PTCN 50.000000 | M616x | VCTCXO | ±0.3 ppm | 50 | ±1 ppm |
| M61652GFCN 10.000000 | M616x | TCXO | ±0.5 ppm | 10 | ±1 ppm |
| M61652GFSN 10.000000 | M616x | TCXO | ±0.5 ppm | 10 | ±1 ppm |
| M61812GTSN 10.000000 | M168x | VCTCXO | ±0.5 ppm | 10 | ±1 ppm |
| M61812MFSN 16.384000 | M618x | TCXO | ±0.2 ppm | 16.384 | ±1 ppm |
| M61812MTSN 16.384000 | M618x | VCTCXO | ±0.2 ppm | 16.384 | ±1 ppm |
| M61812PFCN 25.000000 | M168x | TCXO | ±0.3 ppm | 25 | ±1 ppm |
| M61812PTCN 24.576000 | M168x | VCTCXO | ±0.3 ppm | 24.576 | ±1 ppm |
| M61816GFCN 50.000000 | M168x | TCXO | ±0.5 ppm | 50 | ±1 ppm |
| M61816PTCN 50.000000 | M168x | VCTCXO | ±0.3 ppm | 50 | ±1 ppm |
| M6181S020 32.000000 | M618x | VCTCXO | ±0.28 ppm | 32 | ±1 ppm |
| M61822PFSN 8.192000 | M168x | TCXO | ±0.3 ppm | 8.192 | ±1 ppm |
| HPO-310 66.000000 | HPO | XO | ±5 ppm | 66 | ±5 ppm |
| HPO-310 77.760000 | HPO | XO | ±5 ppm | 77.76 | ±5 ppm |
| HPO-311 112.500000 | HPO | XO | ±5 ppm | 112.5 | ±5 ppm |
| HPO-311 25.000000 | HPO | XO | ±5 ppm | 25 | ±5 ppm |
| HPO-311 62.208000 | HPO | XO | ±5 ppm | 62.208 | ±5 ppm |
| HPO-320 66.000000 | HPO | XO | ±5 ppm | 66 | ±5 ppm |
| HPO-320 77.760000 | HPO | XO | ±5 ppm | 77.76 | ±5 ppm |
| HPO-321 112.500000 | HPO | XO | ±5 ppm | 112.5 | ±5 ppm |
| HPO-321 25.000000 | HPO | XO | ±5 ppm | 25 | ±5 ppm |
| HPO-321 62.208000 | HPO | XO | ±5 ppm | 62.208 | ±5 ppm |
| XO5085-012R | XO5085 | OCXO | ±100 ppb | 100 | ±100 ppb |
| XO5123-034R | XO5123 | OCXO | ±10 ppb | 10 | ±10 ppb |
| XO5123-037R | XO5123 | OCXO | ±10 ppb | 10 | ±10 ppb |
| XO5123-040R | XO5123 | OCXO | ±10 ppb | 10 | ±10 ppb |
| XO5123-060R | XO5123 | OCXO | ±0.6 ppb | 40 | ±0.6 ppb |
| XO5123-061R | XO5123 | OCXO | ±5 ppb | 10 | ±5 ppb |
| XO5123-064R | XO5123 | OCXO | ±10 ppb | 10 | ±10 ppb |
| XO5123-065R | XO5123 | OCXO | ±0.6 ppb | 10 | ±0.6 ppb |
| XO5123-070R | XO5123 | OCXO | ±2 ppb | 10 | ±2 ppb |
| 1485-003 10.000000 | M1 | XO | ±25 ppm | 10 | ±10 ppm |
| 60501-26N-48.000 | M1 | XO | ±25 ppm | 48 | ±25 ppm |
| 1378-003 16.000000 | MHO+ | XO | ±100 ppm | 16 | ±100 ppm |
| 1698-575 66.666700 | M2 | XO | ±50 ppm | 66.6667 | ±50 ppm |
| 60551-43N 16.384000 | M2 | XO | ±100 ppm | 16.384 | ±100 ppm |
| M2001S038 50.000000 | M2 | XO | ±50 ppm | 50 | ±50 ppm |
| M2002S031 66.000000 | M2 | XO | ±50 ppm | 66 | ±50 ppm |
| M2002S041 16.384000 | M2 | XO | ±100 ppm | 16.384 | ±100 ppm |
| M2002S220 39.995800 | M2 | XO | ±50 ppm | 39.9958 | ±50 ppm |
| M2002S294 40.000000 | M2 | XO | ±100 ppm | 40 | ±100 ppm |
| M2002S295 60.000000 | M2 | XO | ±100 ppm | 60 | ±100 ppm |
| M2002S429 16.000000 | M2 | XO | ±100 ppm | 16 | ±100 ppm |
| M2002S454 40.000000 | M2 | XO | ±50 ppm | 40 | ±50 ppm |
| M2002S455 12.000000 | M2 | XO | ±50 ppm | 12 | ±50 ppm |
| M2002S654 50.000000 | M2 | XO | ±100 ppm | 50 | ±100 ppm |
| M2002S656 99.000000 | M2 | XO | ±100 ppm | 99 | ±100 ppm |
| M2002S709 43.200000 | M2 | XO | ±100 ppm | 43.2 | ±100 ppm |
| M2002S725 19.660800 | M2 | XO | ±100 ppm | 19.6608 | ±100 ppm |
| M2002S773 33.000000 | M2 | XO | ±100 ppm | 33 | ±100 ppm |
| M2002S833 10.000000 | M2 | XO | ±100 ppm | 10 | ±100 ppm |
| M2002T012 50.000000 | M2 | XO | ±50 ppm | 50 | ±50 ppm |
| M2002T171 125.000000 | M2 | XO | ±50 ppm | 125 | ±50 ppm |
| M2002T179 25.000000 | M2 | XO | ±100 ppm | 25 | ±100 ppm |
| M2002T186 66.667000 | M2 | XO | ±100 ppm | 66.667 | ±100 ppm |
| M2002T201 33.333300 | M2 | XO | ±50 ppm | 33.3333 | ±50 ppm |
| M2002T202 25.000000 | M2 | XO | ±50 ppm | 25 | ±50 ppm |
| M2002T271 66.666000 | M2 | XO | ±25 ppm | 66.666 | ±25 ppm |
| M2002T299 33.333000 | M2 | XO | ±50 ppm | 33.333 | ±50 ppm |
| M2002T301 50.000000 | M2 | XO | ±30 ppm | 50 | ±30 ppm |
| M210224ULC 500.000000 | M210x | XO | ±50 ppm | 500 | ±50 ppm |
| M218TAN 51.840000 | M2 | XO | ±20 ppm | 51.84 | ±20 ppm |
| M218TCN 100.000000 | M2 | XO | ±20 ppm | 100 | ±20 ppm |
| M218TCN 125.000000 | M2 | XO | ±20 ppm | 125 | ±20 ppm |
| M218TCN 20.141600 | M2 | XO | ±20 ppm | 20.1416 | ±20 ppm |
| M218TCN 44.736000 | M2 | XO | ±20 ppm | 44.736 | ±20 ppm |
