美国Microchip晶振,VC-801A-EAF-KAAN-100M0000000TR,6G接收器晶振
prevnext

美国Microchip晶振,VC-801A-EAF-KAAN-100M0000000TR,6G接收器晶振

频率：100MHZ

尺寸：5.0mm x 3.2mm

美国Microchip晶振,VC-801A-EAF-KAAN-100M0000000TR,6G接收器晶振,美国Microchip晶振,VC-801A有源晶振是一种具有CMOS输出的石英稳定方波发生器,使用基频或第三泛音晶体,导致非常低的抖动性能,以及提高可靠性和降低成本的单片IC,VC-801A-EAF-KAAN-100M0000000TR晶振,5032进口晶振,6G接收器晶振,微蜂蜂窝晶振,测试和测量设备晶振,数模转换器和FPGA晶振.
订购热线：0755-27876565
QQ咨询 点击这里给我发消息

yijin-1

美国Microchip晶振,VC-801A-EAF-KAAN-100M0000000TR,6G接收器晶振,美国Microchip晶振,VC-801A有源晶振是一种具有CMOS输出的石英稳定方波发生器,使用基频或第三泛音晶体,导致非常低的抖动性能,以及提高可靠性和降低成本的单片IC,VC-801A-EAF-KAAN-100M0000000TR晶振,5032进口晶振,6G接收器晶振,微蜂蜂窝晶振,测试和测量设备晶振,数模转换器和FPGA晶振.

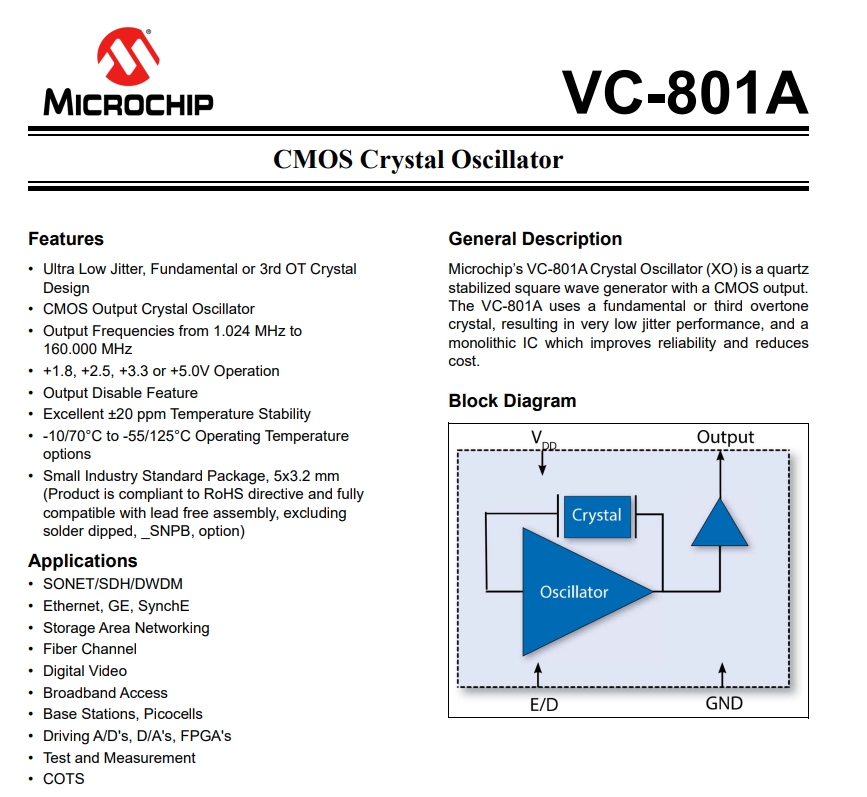

美国Microchip晶振,VC-801A-EAF-KAAN-100M0000000TR,6G接收器晶振特点：

•超低抖动，基本或第三泛音水晶设计

•CMOS输出晶体振荡器

•输出频率从1.024 MHz到160.000MHz

•1.8V, 2.5V, 3.3V, 5.0V操作

•输出禁用功能

•卓越的±25 ppm温度稳定性

•工作温度选择-10°C至+70°C， -40°C至+85°C， -40°C至+105°C， -40°C至+125°C或-55°C至+125°C

•小型工业标准5.0mmx 3.2mm包装

•产品符合RoHS指令和与无铅组件完全兼容(不包括焊浸_SNPB选项)

yijin-2

美国Microchip晶振,VC-801A-EAF-KAAN-100M0000000TR,6G接收器晶振规格表

项目 规格说明 条件
额定频率 100MHz 请联系我们以便获取其它可用频率的相关信息
电源电压 3.3V
储存温度 -55℃~+125℃ 裸存
工作温度 -40℃~ +105℃
频率稳定度 ±50ppm 包括由初始公差、温度和电源电压引起的频率变化
老化 ±5ppm
 1 year @ +25°C
电流 25mA Max 65.001 MHz to 100 MHz
负载 15pf
输出逻辑电平低（Vol） 0.1x VDD  Max
输出逻辑电平高（Voh） 0.9x VDD  Max
输出上升下降时间
 3ns Max
 50.001 MHz to 160 MHz
起始时间 10ms Max
占空比 45%~55%
周期抖动
 2.3ps 100MHz,RMS

yijin-3

美国Microchip晶振,VC-801A-EAF-KAAN-100M0000000TR,6G接收器晶振尺寸图

VC-801A-3

VC-801A

VC-801A-1

原厂代码 晶振品牌 型号 类型 频率 电压 尺寸
DSC1123CI2-125.0000 Microchip Technology DSC1123 MEMS (Silicon) 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123CI2-200.0000 Microchip Technology DSC1123 MEMS (Silicon) 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123AE2-100.0000 Microchip Technology DSC1123 MEMS (Silicon) 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1001CI2-027.0000 Microchip Technology DSC1001 MEMS (Silicon) 27MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123CE1-156.2500 Microchip Technology DSC1123 MEMS (Silicon) 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123CI2-150.0000 Microchip Technology DSC1123 MEMS (Silicon) 150MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123CI2-100.0000 Microchip Technology DSC1123 MEMS (Silicon) 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103DI2-312.5000 Microchip Technology DSC1103 MEMS (Silicon) 312.5MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1123DI2-050.0000 Microchip Technology DSC1123 MEMS (Silicon) 50MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1123CI2-156.2500 Microchip Technology DSC1123 MEMS (Silicon) 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123BL2-125.0000 Microchip Technology DSC1123 MEMS (Silicon) 125MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1123CI5-125.0000 Microchip Technology DSC1123 MEMS (Silicon) 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-300.0000 Microchip Technology DSC1103 MEMS (Silicon) 300MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123DL5-200.0000 Microchip Technology DSC1123 MEMS (Silicon) 200MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1123NL5-100.0000 Microchip Technology DSC1123 MEMS (Silicon) 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
MX574BBD322M265 Microchip Technology MX57 XO (Standard) 322.265625MHz 2.375 V ~ 3.63 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1001CI2-018.4320 Microchip Technology DSC1001 MEMS (Silicon) 18.432MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123CI1-200.0000 Microchip Technology DSC1123 MEMS (Silicon) 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123CI1-156.2500 Microchip Technology DSC1123 MEMS (Silicon) 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123AE2-300.0000 Microchip Technology DSC1123 MEMS (Silicon) 300MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1123AI1-125.0000 Microchip Technology DSC1123 MEMS (Silicon) 125MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1123AI2-125.0000 Microchip Technology DSC1123 MEMS (Silicon) 125MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1122CE1-125.0000 Microchip Technology DSC1122 MEMS (Silicon) 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123AE2-200.0000 Microchip Technology DSC1123 MEMS (Silicon) 200MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103CI1-075.0000 Microchip Technology DSC1103 MEMS (Silicon) 75MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123AI2-150.0000 Microchip Technology DSC1123 MEMS (Silicon) 150MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1123AI1-200.0000 Microchip Technology DSC1123 MEMS (Silicon) 200MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC557-0344SI1 Microchip Technology DSC557-03 MEMS (Silicon) 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.177" W (5.00mm x 4.50mm)
DSC6003CI1A-033.0000 Microchip Technology DSC60XX MEMS (Silicon) 33MHz 1.71 V ~ 3.63 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC6111CI1A-008.0000 Microchip Technology DSC6100 MEMS (Silicon) 8MHz 1.71 V ~ 3.63 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC6011JI1A-024.0000 Microchip Technology DSC60XX MEMS (Silicon) 24MHz 1.71 V ~ 3.63 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC6083CI2A-032K800 Microchip Technology DSC60XX MEMS (Silicon) 32.8kHz 1.71 V ~ 3.63 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC6083CI2A-307K000 Microchip Technology DSC60XX MEMS (Silicon) 307kHz 1.71 V ~ 3.63 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC6001CI2A-004.0000 Microchip Technology DSC60XX MEMS (Silicon) 4MHz 1.71 V ~ 3.63 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC6001CI2A-032.0000 Microchip Technology DSC60XX MEMS (Silicon) 32MHz 1.71 V ~ 3.63 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC6083CI2A-250K000 Microchip Technology DSC60XX MEMS (Silicon) 250kHz 1.71 V ~ 3.63 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC6083CI2A-002K000 Microchip Technology DSC60XX MEMS (Silicon) 2kHz 1.71 V ~ 3.63 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC6101JI2A-024.0000 Microchip Technology DSC6100 MEMS (Silicon) 24MHz 1.71 V ~ 3.63 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1001CC1-047.3333 Microchip Technology DSC1001 MEMS (Silicon) 47.3333MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1030BC1-008.0000 Microchip Technology DSC1030 MEMS (Silicon) 8MHz 3V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1001BC1-024.0000 Microchip Technology DSC1001 MEMS (Silicon) 24MHz 1.8 V ~ 3.3 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1033BC1-026.6000 Microchip Technology DSC1033 MEMS (Silicon) 26MHz 3.3V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1001DI1-001.8432 Microchip Technology DSC1001 MEMS (Silicon) 1.8432MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1033CI1-048.0000 Microchip Technology DSC1033 MEMS (Silicon) 48MHz 3.3V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1033CI1-024.0000 Microchip Technology DSC1033 MEMS (Silicon) 24MHz 3.3V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1033DI1-012.0000 Microchip Technology DSC1033 MEMS (Silicon) 12MHz 3.3V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1033DI1-036.0000 Microchip Technology DSC1033 MEMS (Silicon) 36MHz 3.3V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1001CI1-027.0000 Microchip Technology DSC1001 MEMS (Silicon) 27MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1033CI1-050.0000 Microchip Technology DSC1033 MEMS (Silicon) 50MHz 3.3V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC6001CI1A-011.0592 Microchip Technology DSC60XX MEMS (Silicon) 11.0592MHz 1.71 V ~ 3.63 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1001CI2-024.0000 Microchip Technology DSC1001 MEMS (Silicon) 24MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1033BE2-024.0000 Microchip Technology DSC1033 MEMS (Silicon) 24MHz 3.3V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1001DI2-038.4000 Microchip Technology DSC1001 MEMS (Silicon) 38.4MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1001CI5-033.3333 Microchip Technology DSC1001 MEMS (Silicon) 33.3333MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1101DM2-012.0000 Microchip Technology DSC1101 MEMS (Silicon) 12MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1001DE5-018.4320 Microchip Technology DSC1001 MEMS (Silicon) 18.432MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1101AI2-040.0000 Microchip Technology DSC1101 MEMS (Silicon) 40MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1101AI2-080.0000 Microchip Technology DSC1101 MEMS (Silicon) 80MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1101AI2-064.0000 Microchip Technology DSC1101 MEMS (Silicon) 64MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1124CI5-100.0000 Microchip Technology DSC1124 MEMS (Silicon) 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CM2-040.0000 Microchip Technology DSC1121 MEMS (Silicon) 40MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1101DL5-020.0000 Microchip Technology DSC1101 MEMS (Silicon) 20MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1101BI5-133.0000 Microchip Technology DSC1101 MEMS (Silicon) 133MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1101CL5-100.0000 Microchip Technology DSC1101 MEMS (Silicon) 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1122NE1-025.0000 Microchip Technology DSC1122 MEMS (Silicon) 25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1123CE1-125.0000 Microchip Technology DSC1123 MEMS (Silicon) 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1122DI2-200.0000 Microchip Technology DSC1122 MEMS (Silicon) 200MHz 2.25 V ~ 3.6 V 0.100" L x 0.079" W (2.54mm x 2.00mm)
DSC1123CI2-333.3333 Microchip Technology DSC1123 MEMS (Silicon) 333.3333MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123CI2-020.0000 Microchip Technology DSC1123 MEMS (Silicon) 20MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE1-125.0000 Microchip Technology DSC1103 MEMS (Silicon) 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123CI1-027.0000 Microchip Technology DSC1123 MEMS (Silicon) 27MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123CI2-333.3300 Microchip Technology DSC1123 MEMS (Silicon) 333.33MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123AI2-156.2570 Microchip Technology DSC1123 MEMS (Silicon) 156.257MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1123AI2-148.5000 Microchip Technology DSC1123 MEMS (Silicon) 148.5MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1123BL5-156.2500 Microchip Technology DSC1123 MEMS (Silicon) 156.25MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1123BI2-100.0000 Microchip Technology DSC1123 MEMS (Silicon) 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BI2-148.5000 Microchip Technology DSC1103 MEMS (Silicon) 148.5MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BI2-135.0000 Microchip Technology DSC1103 MEMS (Silicon) 135MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1102BI2-125.0000 Microchip Technology DSC1102 MEMS (Silicon) 125MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1102BI2-153.6000 Microchip Technology DSC1102 MEMS (Silicon) 153.6MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1123CI5-100.0000 Microchip Technology DSC1123 MEMS (Silicon) 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123CI5-156.2500 Microchip Technology DSC1123 MEMS (Silicon) 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123DL1-125.0000 Microchip Technology DSC1123 MEMS (Silicon) 125MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
MX575ABC70M0000 Microchip Technology MX57 XO (Standard) 70MHz 2.375 V ~ 3.63 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
MX553BBD156M250 Microchip Technology MX55 XO (Standard) 156.25MHz 2.375 V ~ 3.63 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
MX575ABB50M0000 Microchip Technology MX57 XO (Standard) 50MHz 2.375 V ~ 3.63 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
MX573LBB148M500 Microchip Technology MX57 XO (Standard) 148.5MHz 2.375 V ~ 3.63 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
MX554BBD322M265 Microchip Technology MX55 XO (Standard) 322.265625MHz 2.375 V ~ 3.63 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
MX573NBB311M040 Microchip Technology MX57 XO (Standard) 311.04MHz 2.375 V ~ 3.63 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
MX573NBD311M040 Microchip Technology MX57 XO (Standard) 311.04MHz 2.375 V ~ 3.63 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
MX573NBA622M080 Microchip Technology MX57 XO (Standard) 622.08MHz 2.375 V ~ 3.63 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1033DC1-012.0000 Microchip Technology DSC1033 MEMS (Silicon) 12MHz 3.3V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1001CI2-066.6666B Microchip Technology DSC1001 MEMS (Silicon) 66.6666MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1001CI2-066.6666B Microchip Technology DSC1001 MEMS (Silicon) 66.6666MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1001CI2-066.6666B Microchip Technology DSC1001 MEMS (Silicon) 66.6666MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1001DI1-026.0000T Microchip Technology DSC1001 MEMS (Silicon) 26MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1001DI1-026.0000T Microchip Technology DSC1001 MEMS (Silicon) 26MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1001DI1-026.0000T Microchip Technology DSC1001 MEMS (Silicon) 26MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1101CM2-062.2080T Microchip Technology DSC1101 MEMS (Silicon) 62.208MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1101CM2-062.2080T Microchip Technology DSC1101 MEMS (Silicon) 62.208MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1101CM2-062.2080T Microchip Technology DSC1101 MEMS (Silicon) 62.208MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121DM1-033.3333 Microchip Technology DSC1121 MEMS (Silicon) 33.3333MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1001DI2-004.0960T Microchip Technology DSC1001 MEMS (Silicon) 4.096MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1001DI2-004.0960T Microchip Technology DSC1001 MEMS (Silicon) 4.096MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1001DI2-004.0960T Microchip Technology DSC1001 MEMS (Silicon) 4.096MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1121BM1-024.0000 Microchip Technology DSC1121 MEMS (Silicon) 24MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1101CI5-020.0000T Microchip Technology DSC1101 MEMS (Silicon) 20MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1101CI5-020.0000T Microchip Technology DSC1101 MEMS (Silicon) 20MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1101CI5-020.0000T Microchip Technology DSC1101 MEMS (Silicon) 20MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123CI2-125.0000T Microchip Technology DSC1123 MEMS (Silicon) 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1101CL5-014.7456 Microchip Technology DSC1101 MEMS (Silicon) 14.7456MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1104BE2-100.0000 Microchip Technology DSC1104 MEMS (Silicon) 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1123AI2-062.5000T Microchip Technology DSC1123 MEMS (Silicon) 62.5MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1123AI2-062.5000T Microchip Technology DSC1123 MEMS (Silicon) 62.5MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1123AI2-062.5000T Microchip Technology DSC1123 MEMS (Silicon) 62.5MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103BI2-100.0000T Microchip Technology DSC1103 MEMS (Silicon) 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BI2-100.0000T Microchip Technology DSC1103 MEMS (Silicon) 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BI2-100.0000T Microchip Technology DSC1103 MEMS (Silicon) 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1121BI2-080.0000 Microchip Technology DSC1121 MEMS (Silicon) 80MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1124CI2-156.2500 Microchip Technology DSC1124 MEMS (Silicon) 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124CI5-100.0000T Microchip Technology DSC1124 MEMS (Silicon) 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124CI5-100.0000T Microchip Technology DSC1124 MEMS (Silicon) 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124CI5-100.0000T Microchip Technology DSC1124 MEMS (Silicon) 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1101DL5-052.8000 Microchip Technology DSC1101 MEMS (Silicon) 52.8MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1104CI5-125.0000 Microchip Technology DSC1104 MEMS (Silicon) 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1001DL5-020.0000T Microchip Technology DSC1001 MEMS (Silicon) 20MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1001DL5-020.0000T Microchip Technology DSC1001 MEMS (Silicon) 20MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1001DL5-020.0000T Microchip Technology DSC1001 MEMS (Silicon) 20MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1001DL5-024.0000T Microchip Technology DSC1001 MEMS (Silicon) 24MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1001DL5-024.0000T Microchip Technology DSC1001 MEMS (Silicon) 24MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1001DL5-024.0000T Microchip Technology DSC1001 MEMS (Silicon) 24MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1123DI2-100.0000B Microchip Technology DSC1123 MEMS (Silicon) 100MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1123DI2-100.0000B Microchip Technology DSC1123 MEMS (Silicon) 100MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1123DI2-100.0000B Microchip Technology DSC1123 MEMS (Silicon) 100MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1123CI1-022.8800T Microchip Technology DSC1123 MEMS (Silicon) 22.88MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123CI1-022.8800T Microchip Technology DSC1123 MEMS (Silicon) 22.88MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123CI1-022.8800T Microchip Technology DSC1123 MEMS (Silicon) 22.88MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123CI2-212.5000 Microchip Technology DSC1123 MEMS (Silicon) 212.5MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1122CI2-103.1250 Microchip Technology DSC1122 MEMS (Silicon) 103.125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123CI1-122.8800 Microchip Technology DSC1123 MEMS (Silicon) 122.88MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE1-200.0000T Microchip Technology DSC1103 MEMS (Silicon) 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE1-200.0000T Microchip Technology DSC1103 MEMS (Silicon) 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE1-200.0000T Microchip Technology DSC1103 MEMS (Silicon) 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE1-156.2500T Microchip Technology DSC1103 MEMS (Silicon) 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE1-156.2500T Microchip Technology DSC1103 MEMS (Silicon) 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE1-156.2500T Microchip Technology DSC1103 MEMS (Silicon) 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1122CI1-156.2500 Microchip Technology DSC1122 MEMS (Silicon) 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123AE1-125.0000T Microchip Technology DSC1123 MEMS (Silicon) 125MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1123AE1-125.0000T Microchip Technology DSC1123 MEMS (Silicon) 125MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1123AE1-125.0000T Microchip Technology DSC1123 MEMS (Silicon) 125MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1122AE2-156.2500 Microchip Technology DSC1122 MEMS (Silicon) 156.25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1122BE1-156.2500T Microchip Technology DSC1122 MEMS (Silicon) 156.25MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1122BE1-156.2500T Microchip Technology DSC1122 MEMS (Silicon) 156.25MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1122BE1-156.2500T Microchip Technology DSC1122 MEMS (Silicon) 156.25MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1123AE2-040.0000 Microchip Technology DSC1123 MEMS (Silicon) 40MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1123AI2-040.0000 Microchip Technology DSC1123 MEMS (Silicon) 40MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1122BI1-100.0000 Microchip Technology DSC1122 MEMS (Silicon) 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1122BI2-100.0000 Microchip Technology DSC1122 MEMS (Silicon) 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1122BI2-114.2850 Microchip Technology DSC1122 MEMS (Silicon) 114.285MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1122BI2-155.5200 Microchip Technology DSC1122 MEMS (Silicon) 155.52MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1122BI2-156.2500 Microchip Technology DSC1122 MEMS (Silicon) 156.25MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1102BI1-100.0000 Microchip Technology DSC1102 MEMS (Silicon) 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1122AI2-150.0000 Microchip Technology DSC1122 MEMS (Silicon) 150MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1001DL5-075.0000 Microchip Technology DSC1001 MEMS (Silicon) 75MHz 1.7 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1001DL5-133.3330 Microchip Technology DSC1001 MEMS (Silicon) 133.333MHz 1.7 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1101CM1-075.0000 Microchip Technology DSC1101 MEMS (Silicon) 75MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1101CM1-033.3333 Microchip Technology DSC1101 MEMS (Silicon) 33.3333MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1101CM1-005.0000 Microchip Technology DSC1101 MEMS (Silicon) 5MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1001DI5-080.0000 Microchip Technology DSC1001 MEMS (Silicon) 80MHz 1.7 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1123CE5-100.0000 Microchip Technology DSC1123 MEMS (Silicon) 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1122NI5-025.0020 Microchip Technology DSC1122 MEMS (Silicon) 25.002MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103DI5-171.8181T Microchip Technology DSC1103 MEMS (Silicon) 171.8181MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI5-171.8181T Microchip Technology DSC1103 MEMS (Silicon) 171.8181MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI5-171.8181T Microchip Technology DSC1103 MEMS (Silicon) 171.8181MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI5-171.8181 Microchip Technology DSC1103 MEMS (Silicon) 171.8181MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1102CI5-150.0000T Microchip Technology DSC1102 MEMS (Silicon) 150MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1102CI5-150.0000T Microchip Technology DSC1102 MEMS (Silicon) 150MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1102CI5-150.0000T Microchip Technology DSC1102 MEMS (Silicon) 150MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-224.8200 Microchip Technology DSC1103 MEMS (Silicon) 224.82MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1123AL1-150.0000 Microchip Technology DSC1123 MEMS (Silicon) 150MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1122AI5-025.0020 Microchip Technology DSC1122 MEMS (Silicon) 25.002MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1123BI5-156.2500T Microchip Technology DSC1123 MEMS (Silicon) 156.25MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1123BI5-156.2500T Microchip Technology DSC1123 MEMS (Silicon) 156.25MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1123BI5-156.2500T Microchip Technology DSC1123 MEMS (Silicon) 156.25MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103CL5-106.2500T Microchip Technology DSC1103 MEMS (Silicon) 106.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CL5-106.2500T Microchip Technology DSC1103 MEMS (Silicon) 106.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CL5-106.2500T Microchip Technology DSC1103 MEMS (Silicon) 106.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124CI1-156.2500TA Microchip Technology DSC1124 MEMS (Silicon) 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124CI1-156.2500TA Microchip Technology DSC1124 MEMS (Silicon) 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124CI1-156.2500TA Microchip Technology DSC1124 MEMS (Silicon) 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103BL5-062.5000 Microchip Technology DSC1103 MEMS (Silicon) 62.5MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
MX553BBA312M500 Microchip Technology MX55 XO (Standard) 312.5MHz 2.375 V ~ 3.63 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC6111CI1A-016.0000 Microchip Technology DSC6100 MEMS (Silicon) 16MHz 1.71 V ~ 3.63 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1001CL2-012.0000 Microchip Technology DSC1001 MEMS (Silicon) 12MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1001DI1-050.0000 Microchip Technology DSC1001 MEMS (Silicon) 50MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1001DI1-024.0000 Microchip Technology DSC1001 MEMS (Silicon) 24MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1001DI1-025.0000 Microchip Technology DSC1001 MEMS (Silicon) 25MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1001CI2-033.3300 Microchip Technology DSC1001 MEMS (Silicon) 33.33MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1001DI5-100.0000 Microchip Technology DSC1001 MEMS (Silicon) 100MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1001DL5-025.0000 Microchip Technology DSC1001 MEMS (Silicon) 25MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1001CE2-006.0000 Microchip Technology DSC1001 MEMS (Silicon) 6MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1001CI1-050.0000 Microchip Technology DSC1001 MEMS (Silicon) 50MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1001CI2-012.0000 Microchip Technology DSC1001 MEMS (Silicon) 12MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1001CI2-033.3333 Microchip Technology DSC1001 MEMS (Silicon) 33.3333MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1001CI5-004.9152 Microchip Technology DSC1001 MEMS (Silicon) 4.9152MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1122CI5-200.0000 Microchip Technology DSC1122 MEMS (Silicon) 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1001CI1-048.0000 Microchip Technology DSC1001 MEMS (Silicon) 48MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1001CI1-026.0000 Microchip Technology DSC1001 MEMS (Silicon) 26MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1001AI2-050.0000 Microchip Technology DSC1001 MEMS (Silicon) 50MHz 1.8 V ~ 3.3 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1001AL2-027.0000 Microchip Technology DSC1001 MEMS (Silicon) 27MHz 1.8 V ~ 3.3 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC6083HE1A-032K800T Microchip Technology DSC60XX MEMS (Silicon) 32.8kHz 1.71 V ~ 3.63 V 0.063" L x 0.047" W (1.60mm x 1.20mm)
DSC6083HE1A-032K800T Microchip Technology DSC60XX MEMS (Silicon) 32.8kHz 1.71 V ~ 3.63 V 0.063" L x 0.047" W (1.60mm x 1.20mm)
DSC6083HE1A-032K800T Microchip Technology DSC60XX MEMS (Silicon) 32.8kHz 1.71 V ~ 3.63 V 0.063" L x 0.047" W (1.60mm x 1.20mm)
DSC6011HI1A-002.5000T Microchip Technology DSC60XX MEMS (Silicon) 2.5MHz 1.71 V ~ 3.63 V 0.063" L x 0.047" W (1.60mm x 1.20mm)
DSC6011HI1A-002.5000T Microchip Technology DSC60XX MEMS (Silicon) 2.5MHz 1.71 V ~ 3.63 V 0.063" L x 0.047" W (1.60mm x 1.20mm)
DSC6011HI1A-002.5000T Microchip Technology DSC60XX MEMS (Silicon) 2.5MHz 1.71 V ~ 3.63 V 0.063" L x 0.047" W (1.60mm x 1.20mm)
DSC6013HI1A-002.5000T Microchip Technology DSC60XX MEMS (Silicon) 2.5MHz 1.71 V ~ 3.63 V 0.063" L x 0.047" W (1.60mm x 1.20mm)


yijin-5

YJ-6

深圳市亿金电子有限公司    SHENZHEN YIJIN ELECTRONICS CO;LTD

mphone联系人黄娜：18924600166

QQ工作QQ:857950243

myt贸易通：yijindz2014

tel座机：0755-27876565

email邮箱:yijindz@163.com

inter 网址：http://www.yijindz.com

mwx微信：yijindz，公众号：NDKcrystal

home地址：广东省深圳市宝安区107国道旁甲岸路

wxewm

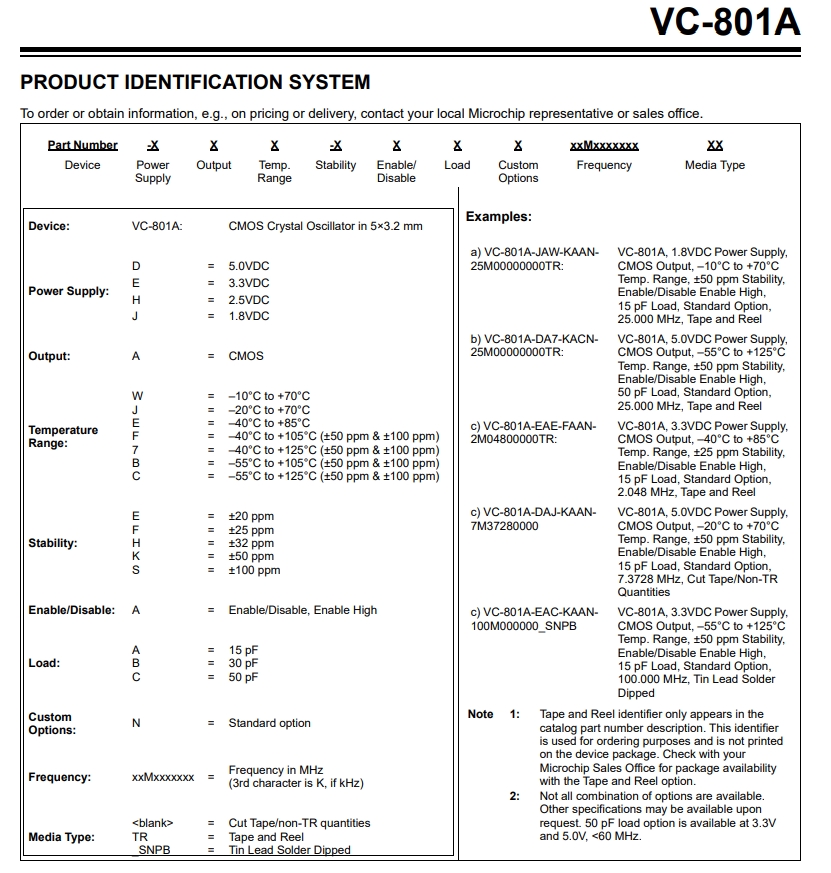

美国Microchip晶振 VC-801A-EAF-KAAN-100M0000000TR 6G接收器晶振

跟此产品相关的产品 / Related Products

AXLE5032S晶振,AXTAL进口晶振,5032贴片晶振,TCXO晶振,德国有源晶振
AXLE5032S晶振,AXTAL进口晶振,5032贴片晶振,TCXO晶振,德国有源晶振

AXLE5032S晶振,AXTAL进口晶振,5032贴片晶振,TCXO晶振,德国有源晶振

AXLE5032晶振的频率范围是10 ~ 50 MHz，尺寸为5.00mm x 3.20mm，是5032贴片晶振。该AXTAL进口晶振专门用于LEO应用，为TCXO晶振，也叫温补晶振，电源电压为3.3V，为德国有源晶振。低相位噪声，高频稳定性，具有低损耗，低耗能，低电压，低抖动，低差损，低电平，低功耗，低电源电压。温补振荡器（TCXO）产品本身具有温度补偿作用,高低温度稳定性:频率精度高0.5 PPM?2.0 PPM,工作温度范围: - 30度?85度,电源电压:1.8V?3.3V之间可供选择，产品本身具有温度电压控制功能，世界上最薄的晶振封装，频率:26兆赫，33.6兆赫,38.4兆赫,40兆赫,因产品性能稳定，精度高等优势,被广泛应用到一些比较高端的数码通讯产品领域,GPS全球定位系统,智能手机,WiMAX和蜂窝和无线通信等产品,符合RoHS/无铅.

NKG晶振|SCO5|SCO5-6D-44M000-YTS|5032进口晶振
NKG晶振|SCO5|SCO5-6D-44M000-YTS|5032进口晶振

NKG晶振|SCO5|SCO5-6D-44M000-YTS|5032进口晶振,NKG晶振,SCO5有源晶振,贴片晶振,SCO5-6D-44M000-YTS晶振,石英晶体振荡器,5032进口晶振,四脚封装晶振,频率44MHz,电压3.3V,负载15pF,频率稳定性30ppm,工作温度范围-40~105°C,低老化晶振,小体积晶振,耐高温晶振,监控摄像头晶振,无线局域网晶振,笔记本电脑晶振,工业自动化晶振.

IQD晶振|IQXC-49晶振|LFXTAL084712Reel|5032进口晶振
IQD晶振|IQXC-49晶振|LFXTAL084712Reel|5032进口晶振

IQD晶振|IQXC-49晶振|LFXTAL084712Reel|5032进口晶振,IQD晶振,IQXC-49石英晶振,无源晶振,LFXTAL084712Reel晶振,5032进口晶振,SMD晶体,晶体谐振器,二脚贴片晶振,频率11.0592MHz,负载18pF,频率容差30ppm,工作温度范围-20~70°C,高可靠性晶振,无铅环保晶振,小体积晶振,网络附属存储晶振,无线接入点晶振,音频系统晶振,智能家居晶振.

亿金电子产品中心 Product Center

晶振系列

日本进口晶振

台产晶振

欧美晶振

有源晶振

雾化片

贴片晶振

32.768K

声表面滤波器

石英晶振

KDS晶振

爱普生晶振

NDK晶振

温补晶振

联系亿金电子Contact us
咨询热线：0755-27876565

手机：189 2460 0166

QQ：857950243

邮箱：yijindz@163.com

地址：深圳市宝安区新安107国道旁甲岸路

Fast Track
快速通道

国内晶振分类：
Domestic Crystal
陶瓷晶振
泰艺晶振
TXC晶振
鸿星晶振
希华晶振
加高晶振
百利通亚陶晶振
嘉硕晶振
津绽晶振
石英晶体谐振器
SMD晶振
MERCURY晶振
应达利晶振
AKER晶振
香港NKG晶振
石英晶振
有源晶振
声表面滤波器
雾化片
32.768K
温补晶振
VC-TCXO晶振
差分晶振
压控晶振
恒温晶振
石英晶体振荡器
陶瓷谐振器
进口晶振分类：
Import Crystal
京瓷晶振
精工晶振
西铁城晶振
村田晶振
大河晶振
CTS晶振
微晶晶振
瑞康晶振
康纳温菲尔德晶振
高利奇晶振
Jauch晶振
AbraconCrystal晶振
维管晶振
ECScrystal晶振
日蚀晶振
拉隆晶振
格林雷晶振
SiTimeCrystal晶振
IDTcrystal晶振
PletronicsCrystal晶振
StatekCrystal晶振
KDS Quartz crystal
NDK Quartz crystal
EPSON Quartz crystal
AEK晶振
AEL晶振
Cardinal晶振
Crystek晶振
Euroquartz晶振
福克斯晶振
Frequency晶振
GEYER晶振
ILSI晶振
KVG晶振
MMDCOMP晶振
MtronPTI晶振
QANTEK晶振
QuartzCom晶振
QuartzChnik晶振
SUNTSU晶振
Transko晶振
WI2WI晶振
富士晶振
韩国三呢晶振
ITTI晶振
ACT晶振
Milliren晶振
Lihom晶振
rubyquartz晶振
Oscilent晶振
NAKA晶振
SHINSUNG晶振
SMI晶振
PDI晶振
C-TECH晶振
IQD晶振
Microchip晶振
NJR晶振
Silicon晶振
Fortiming晶振
CORE晶振
NIPPON晶振
NIC晶振
QVS晶振
Bomar晶振
Bliley晶振
GED晶振
FILTRONETICS晶振
STD晶振
Q-Tech晶振
Anderson晶振
Wenzel晶振
NEL晶振
EM晶振
PETERMANN晶振
FCD-Tech晶振
HEC晶振
FMI晶振
Macrobizes晶振
AXTAL晶振
瑞萨renesas晶振
Skyworks晶振
亿金首页32.768K贴片晶振有源晶振声表面滤波器KDS晶振NDK晶振爱普生晶振行业新闻联系亿金网站地图

Copyright © 1996-2012

深圳亿金电子有限公司版权所有

备案号：粤ICP备17105583号-1
