进口大真空3225晶振,1XVD030240VA压控晶振,6G物联网终端DSV321SV晶振
频率：30.24MHz

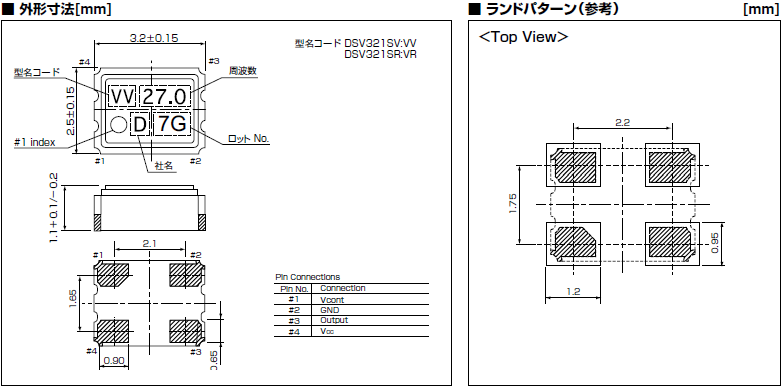

尺寸：3225mm
进口大真空3225晶振,1XVD030240VA压控晶振,6G物联网终端DSV321SV晶振，日本KDS晶振公司，小尺寸晶振，3225晶振，6G物联网终端晶振，6G通讯模块晶振，6G发射器晶振，压控晶振，有源晶振，石英晶振，KDS贴片晶振，3225尺寸，厚度1.1mm，小型SMD-VCXO，在小型的情况下确保足够的变量，，频率变化的模拟VCXO，低耗电流，DVD，数字电视，STB, ADSL，基础传输用。
进口大真空3225晶振,1XVD030240VA压控晶振,6G物联网终端DSV321SV晶振

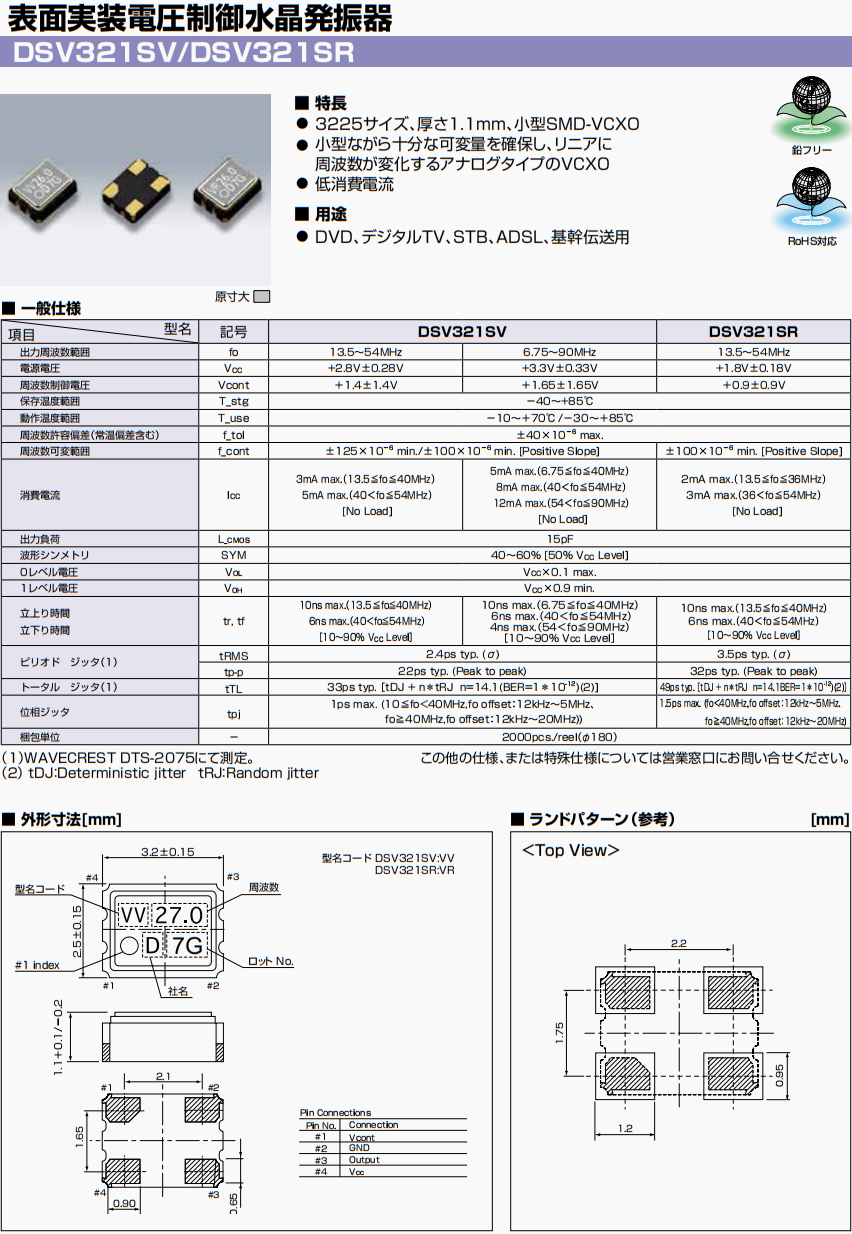

项目
型号
記号
DSV321SV
DSV321SR
频率范围
fo
13.5?54MHz
6.75?90MHz
13.5?54MHz
电源电压
VCC
+2.8V±0.28V
+3.3V±0.33V
+1.8V±0. 18V
频率控制电压
Vcont
＋1 .4±1.4V
＋1 .65±1.65V
＋0 .9±0.9V
储存温度范围
T_stg
−40?+85℃
工作温度范围
T_use
−10?＋70℃ /−30?＋85℃
温度范围内的频率偏差度
f_tol
频率容差
f_cont
±125×10−6 min./±100×10−6 min. [Positive Slope]
±100×10−6 min. [Positive Slope]
消耗电流
ICC
输出负荷
L_CMOS
15pF
波形识别器
SYM
40?60% [50％ VCC Level]
零电平电压
VOL
VCC ×0. 1 max.
一级电压
VOH
VCC ×0.9 min.
上升时间和下降时间
tr, tf
结束
tRMS
2.4ps typ. (σ)
3.5ps typ. (σ)
tp-p
22ps typ. (Peak to peak)
32ps typ. (Peak to peak)
总抖动
tTL
33ps typ. [tDJ + n＊tRJ n=14. 1(BER=1＊10- 12)(2)]
49ps typ. [tDJ + n＊tRJ n=14. 1BER=1＊10- 12)(2)]
相位抖动
tpj
包装单位
−
2000pcs./reel(φ180)
进口大真空3225晶振,1XVD030240VA压控晶振,6G物联网终端DSV321SV晶振
| 品牌 | 原厂代码 | 型号 | 尺寸 | 频率 | 负载/电压 | 精度 |
| KDS晶振 | 1XSE098304AR2 | DSO321SR | 3225 | 98.304MHZ | 3.3V | 50ppm |
| KDS晶振 | ZC08759 | DSO211AH | 2016 | 25.000MHZ | 3.3V | 50ppm |
| KDS晶振 | 1XSE009600AV | DSO321SV | 3225 | 9.6MHZ | 3.3V | 100ppm |
| KDS晶振 | 1XSE012000AR58 | DSO321SR | 3225 | 12.000MHZ | 3.3V | 50ppm |
| KDS晶振 | 1XSA050000AVW | DSO751SV | 7050 | 50.000MHZ | 3.3V | 100ppm |
| KDS晶振 | 1XSR025000AR25 | DSO751SR | 7050 | 25.000MHZ | 3.3V | 50ppm |
| KDS晶振 | 1D21407AQ3 | DSF753SAF | 7050 | 21.400MHZ | ||
| KDS晶振 | 1XTW16368FEA | DSB321SCL | 3225 | 16.368MHZ | 2.8V | 2.5ppm |
| KDS晶振 | 1XSF033333ARA | DSO221SR | 2520 | 33.3333MHZ | ||
| KDS晶振 | 7FE02496A00H0000008 | DSO221SX | 2520 | 24.96MHZ | ||
| KDS晶振 | 1XSE038702AR | DSO321SR | 3225 | 38.7024MHZ | ||
| KDS晶振 | 1XST156250AKM | DSO323SK | 3225 | 156.25MHZ | 50PPM | |
| KDS晶振 | 1XSE025000AR5 | DSO321SR | 3225 | 25.000MHZ | ||
| KDS晶振 | 1XSE050000ART | DSO321SR | 3225 | 50MHZ | ||
| KDS晶振 | 1XSE024000AW1 | DSO321SW | 3225 | 24.000MHZ | ||
| KDS晶振 | 1XSE033333ARD | DSO321SR | 3225 | 33.3333MHZ | ||
| KDS晶振 | 1D73375GR1 | DSF633SDF | 73.35MHZ | |||
| KDS晶振 | 1XSE013000AR7 | DSO321SR | 3225 | 13.000MHZ | 1.8V | 50PPM |
| KDS晶振 | 1XSE025000AR17 | DSO321SR | 3225 | 25.000MHZ | 3.3V | 50PPM |
| KDS晶振 | 1XSF022579EH1 | DSO221SHF | 2520 | 22.5792MHZ | 1.8V | 50PPM |
| KDS晶振 | 1XSE038400AR | DSO321SR | 3225 | 38.4MHZ | 1.8V | 12PPM |
| KDS晶振 | 1XSE024000AR83 | DSO321SR | 3225 | 24.000MHZ | 1.8V | 20PPM |
| KDS晶振 | 1XSF027000EH6 | DSO221SHF | 2520 | 27.000MHZ | 3.3V | 30PPM |
| KDS晶振 | 1XSF033333ARD | DSO221SHF | 2520 | 33.333MHZ | 3.3V | 50PPM |
| KDS晶振 | 1XSE027000AR128 | DSO321SR | 3225 | 27.000MHZ | 1.8V | 25PPM |
| KDS晶振 | 1XSF024000AR29 | DSO221SHF | 2520 | 24.000MHZ | 0 | 0 |
| KDS晶振 | 1XTW19200MCA | DSB321SDN | 3225 | 19.2MHZ | 3V | 1.5PPM |
| KDS晶振 | 1XSE045000AR8 | DSO321SR | 3225 | 45MHZ | 3.3V | 0 |
| KDS晶振 | 1XSE050000AV6 | DSO321SR | 3225 | 50.000MHZ | 3.3V | 50PPM |
| KDS晶振 | 1XSE054000AR5 | DSO321SR | 3225 | 54MHZ | 3.3V | 30PPM |
| KDS晶振 | 1XSE064000AB | DSO321SR | 3225 | 64MHZ | 5V | 100PPM |
| KDS晶振 | 1XSE150000AR1 | DSO321SR | 3225 | 150.000MHZ | 3.3V | 50PPM |
| KDS晶振 | 1XSR004000AB | DSO751SB | 7050 | 4MHZ | 3.3V | 40PPM |
| KDS晶振 | 1XSD048000AV2 | DSO531SV | 5032 | 48.000MHZ | 3.3V | 0 |
| KDS晶振 | 1XTW26000MAA | DSB321SDN | 3225 | 26.000MHZ | ||
| KDS晶振 | 1XTW26000CGA | DSB321SDA | 3225 | 26.000MHZ | ||
| KDS晶振 | 1XTW16368MAA | DSB321SDN | 3225 | 16.368MHZ | ||
| KDS晶振 | 1XTW16367CFB | DSB321SDA | 3225 | 16.367667MHZ | ||
| KDS晶振 | 1XTW16367CF | DSB321SDA | 3225 | 16.367667MHZ | ||
| KDS晶振 | 1XSF026000AH6 | DSO221SH | 2520 | 26.000MHZ | 1.8V | 20PPM |
| KDS晶振 | 1XSF006140AR | DSO221SR | 2520 | 6.140MHZ | ||
| KDS晶振 | 1XTW10000CAB | DSB321SDA | 3225 | 10.000MHZ | ||
| KDS晶振 | 1XSE010000ARV | DSO321SR | 3225 | 10.000MHZ | ||
| KDS晶振 | 1XSE012000ARH | DSO321SR | 3225 | 12.000MHZ | ||
| KDS晶振 | 1XTW12288FAB | DSB321SCL | 3225 | 12.288MHZ | ||
| KDS晶振 | 1XSF012288EH1 | DSO221SHF | 2520 | 12.288MHZ | ||
| KDS晶振 | 1XTW14745FBA | DSB321SCL | 3225 | 14.7456MHZ | ||
| KDS晶振 | 1XTW16367ADA | DSB321SCA | 3225 | 16.367667MHZ | ||
| KDS晶振 | 1XTW16367MAA | DSB321SDN | 3225 | 16.367667MHZ | ||
| KDS晶振 | 1XTW16369MAA | DSB321SDN | 3225 | 16.369MHZ | ||
| KDS晶振 | 1XSE019200AR7 | DSO321SR | 3225 | 19.200MHZ | ||
| KDS晶振 | 1XTW20000AAA | DSB321SCA | 3225 | 20.000MHZ | ||
| KDS晶振 | 1XTW20000CCA | DSB321SDA | 3225 | 20.000MHZ | ||
| KDS晶振 | 1XSE024576ARH | DSO321SR | 3225 | 24.576MHZ | ||
| KDS晶振 | 1XTR25000VAA | DSB535SD | 5032 | 25.000MHZ | ||
| KDS晶振 | 1XSE025000ARW | DSO321SR | 3225 | 25.000MHZ | ||
| KDS晶振 | 1XTW29491FAA | DSB321SDA | 3225 | 29.4912MHZ | ||
| KDS晶振 | 1XTW30000FCA | DSB321SCL | 3225 | 30.000MHZ | ||
| KDS晶振 | 1XTW40000FBA | DSB321SCL | 3225 | 40.000MHZ | ||
| KDS晶振 | 1D45015GQ48 | DSF751SBF | 5070 | 45.000MHZ | ||
| KDS晶振 | 1XTW52000FAA | DSB321SCL | 3225 | 52.000MHZ |
