日本KDS压控晶振,DSV753SV室外6G发射器晶振,1XVB046080VB压控晶振
频率：46.08MHz
尺寸：7.3×4.9mm
日本KDS压控晶振,DSV753SV室外6G发射器晶振,1XVB046080VB压控晶振，日本KDS晶振公司，小尺寸晶振，7050晶振，6G物联网终端晶振，6G室外基站晶振，6G发射器晶振，压控晶振，有源晶振，石英晶振，KDS贴片晶振，外形尺寸7.3×4.9×1.5mm，小型SMD-VCXO(0.06cc),DSV753S系列支持4种输出电平CMOS、LV-PECL、LVDS和HCSL,支持差速器输出(LV-PECL,LVDS,HCSL),低抖动,带三状态功能,用途,光传输设备、无线收发装置、数字影像设备、HDTV相关设备
订购热线：0755-27876565
日本KDS压控晶振,DSV753SV室外6G发射器晶振,1XVB046080VB压控晶振，日本大真空晶振公司，小尺寸晶振，7050晶振，6G物联网终端晶振，6G室外基站晶振，6G发射器晶振，压控晶振，有源晶振，石英晶振，KDS贴片晶振，外形尺寸7.3×4.9×1.5mm，小型SMD-VCXO(0.06cc),DSV753S系列支持4种输出电平CMOS、LV-PECL、LVDS和HCSL,支持差速器输出(LV-PECL,LVDS,HCSL),低抖动,带三状态功能,用途,光传输设备、无线收发装置、数字影像设备、HDTV相关设备
日本KDS压控晶振,DSV753SV室外6G发射器晶振,1XVB046080VB压控晶振

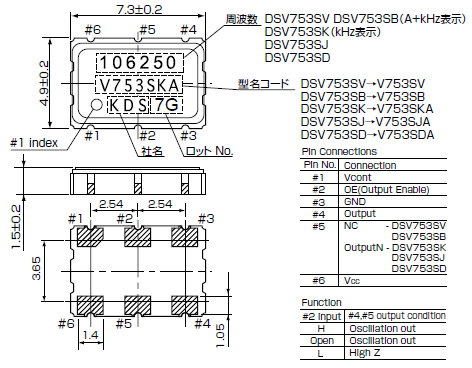

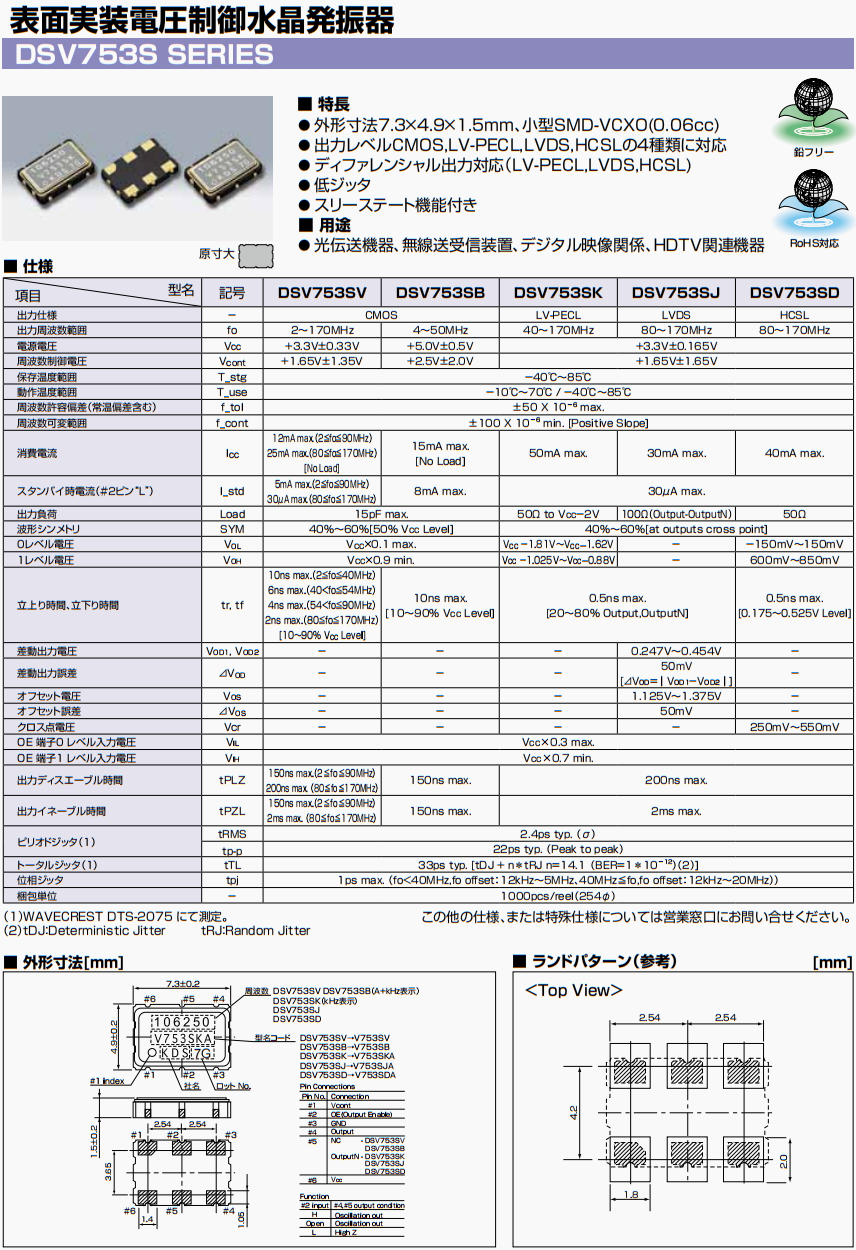

| 項目 | 型名 | 記号 | DSV753SV | DSV753SB | DSV753SK | DSV753SJ | DSV753SD |
| 输出类型 | − | CMOS | LV-PECL | LVDS | HCSL | ||
| 频率范围 | fo | 2~170MHz | 4~50MHz | 40~170MHz | 80~170MHz | 80~170MHz | |
| 电源电压 | VCC | +3.3V±0.33V | +5.0V±0.5V | +3.3V±0. 165V | |||
| 频率控制电压 | Vcont | +1.65V±1.35V | +2.5V±2.0V | +1.65V±1.65V | |||
| 储存温度范围 | T_stg | −40℃~85℃ | |||||
| 工作温度范围 | T_use | −10℃~70℃ / −40℃~85℃ | |||||
| 温度范围内的频率偏差度 | f_tol | ±50 X 10 −6 max. | |||||
| 频率容差 | f_cont | ±100 X 10 −6 min. [Positive Slope] | |||||
| 消耗电流 | ICC |
12mA max.(2≦fo≦90MHz)
25mA max.(80≦fo≦170MHz)
[No Load]
|
15mA max.
[No Load]
|
50mA max. | 30mA max. | 40mA max. | |
| 待机时电流(# 2引脚“L”) | I_std |
5mA max.(2≦fo≦90MHz)
30μA max.(80≦fo≦170MHz)
|
8mA max. | 30μA max. | |||
| 输出负荷 | Load | 15pF max. | 50Ω to VCC−2V | 100Ω(Output-OutputN) | 50Ω | ||
| 波形识别器 | SYM | 40%~60%[50% VCC Level] | 40%~60%[at outputs cross point] | ||||
| 零电平电压 | VOL | VCC×0. 1 max. | VCC −1.81V~VCC− 1.62V | − | −150mV~150mV | ||
| 一级电压 | VOH | VCC×0.9 min. | VCC −1.025V~VCC−0.88V | − | 600mV~850mV | ||
| 上升时间和下降时间 | tr, tf |
10ns max. (2≦fo≦40MHz)
6ns max. (40<fo≦54MHz)
4ns max. (54<fo≦90MHz)
2ns max. (80≦fo≦170MHz)
[10~90% VCC Level]
|
10ns max.
[10~90% VCC Level]
|
0.5ns max.
[20~80% Output,OutputN]
|
0.5ns max.
[0. 175~0.525V Level]
|
||
| 差动输出电压 | VOD1 , VOD2 | − | − | − | 0.247V~0.454V | − | |
| 差动输出误差 | ⊿VOD | − | − | − |
50mV
[⊿VOD＝|VOD1−VOD2 |]
|
− | |
| 偏移电压 | VOS | − | − | − | 1. 125V~1.375V | − | |
| 偏移误差 | ⊿VOS | − | − | − | 50mV | − | |
| 交叉点电压 | Vcr | − | − | − | − | 250mV~550mV | |
| OE端子0电平输入电压 | VIL | VCC ×0.3 max. | |||||
| OE端子一级输入电压 | VIH | VCC ×0.7 min. | |||||
| 输出显示时间 | tPLZ |
150ns max.(2≦fo≦90MHz)
200ns max. (80≦fo≦170MHz)
|
150ns max. | 200ns max. | |||
| 输出使能时间 | tPZL |
150ns max.(2≦fo≦90MHz)
2ms max. (80≦fo≦170MHz)
|
150ns max. | 2ms max. | |||
| 结束了(1) | tRMS | 2.4ps typ. (σ) | |||||
| tp-p | 22ps typ. (Peak to peak) | ||||||
| 总抖动 | tTL | 33ps typ. [tDJ + n＊tRJ n=14. 1(BER=1＊10−12)(2)] | |||||
| 相位抖动 | tpj | 1ps max. (fo<40MHz,fo offset：12kHz~5MHz、40MHz≦fo,fo offset：12kHz~20MHz)) | |||||
| 包装单位 | − | 1000pcs/reel(254φ) | |||||
日本KDS压控晶振,DSV753SV室外6G发射器晶振,1XVB046080VB压控晶振
| 品牌 | 原厂代码 | 型号 | 尺寸 | 频率 | 负载/电压 | 精度 |
| KDS晶振 | 1C240000AB0G | DSX321G | 3225 | 40.000MHZ | 10PF | 10PPM |
| KDS晶振 | 1C241600CDAA | DSX321G | 3225 | 41.6MHZ | 10PF | 30PPM |
| KDS晶振 | 1AJ043324C | SMD-49 | 11*4.6 | 4.332MHZ | 12PF | 20PPM |
| KDS晶振 | 1ZZNAE26000AB0J | DSX211SH | 2016 | 26.000MHZ | 7PF | 10PPM |
| KDS晶振 | 1AJ17408AAGA | SMD-49 | 11*4.6 | 17.408MHZ | 16PF | 50PPM |
| KDS晶振 | 1AJ250004B | SMD-49 | 11*4.6 | 25.000MHZ | 20PF | 30PPM |
| KDS晶振 | 1ZZCAA24000BE0B | DSX211G | 2016 | 24.000MHZ | 10PF | 20PPM |
| KDS晶振 | 1N227000BB0AK | DSX321G | 3225 | 27.000MHZ | 11PF | 12PPM |
| KDS晶振 | 1N230000AB0C | DSX321G | 3225 | 30.000MHZ | 10PF | 30PPM |
| KDS晶振 | 1N240000AB0J | DSX321G | 3225 | 40.000MHZ | 15PF | 15PPM |
| KDS晶振 | 1XSE098304AR2 | DSO321SR | 3225 | 98.304MHZ | 3.3V | 50ppm |
| KDS晶振 | 1AJ100005B | SMD-49 | 11*4.6 | 10.000MHZ | 12PF | 50PPM |
| KDS晶振 | 1ZN326000AB0A | DSX221SH | 2520 | 26.000MHZ | 7PF | 10PPM |
| KDS晶振 | 1AJ240006AEA | SMD-49 | 11*4.6 | 24.000MHZ | 16PF | 50PPM |
| KDS晶振 | 1AJ240006AK | SMD-49 | 11*4.6 | 24.000MHZ | 16PF | 30PPM |
| KDS晶振 | 1AJ240006BB | SMD-49 | 11*4.6 | 24.000MHZ | 16PF | 30PPM |
| KDS晶振 | 1AJ245765C | SMD-49 | 11*4.6 | 24.576MHZ | 18PF | 30PPM |
| KDS晶振 | ZC08759 | DSO211AH | 2016 | 25.000MHZ | 3.3V | 50ppm |
| KDS晶振 | 1AR270002GA | SMD-49 | 11*4.6 | 27.000MHZ | 12.9PF | 20PPM |
| KDS晶振 | 1AR304002A | SMD-49 | 11*4.6 | 30.400MHZ | 12PF | 50ppm |
| KDS晶振 | 1XXD16367MAA | DSB211SDN | 2016 | 16.367MHZ | 3.3V | 1.5ppm |
| KDS晶振 | ZC12467 | DSA211SDN | 2016 | 16.32MHZ | 3.3V | 1.5ppm |
| KDS晶振 | 1XXB16367MAA | DSB221SDN | 2520 | 16.367MHZ | 2.8V | 1.5ppm |
| KDS晶振 | 1XXB16369JFA | DSB221SDN | 2520 | 16.369MHZ | 3.3V | 1.5ppm |
| KDS晶振 | ZC09382 | DSA535SG | 5032 | 18.432MHZ | 3.3V | 1.5ppm |
| KDS晶振 | ZC12456 | DSB211SDN | 2016 | 16.320MHZ | 3.3V | 1.5ppm |
| KDS晶振 | 1ZNA32000BB0B | DSX221G | 2520 | 32.000MHZ | 12PF | 15ppm |
| KDS晶振 | ZC12965 | DSA321SDN | 3225 | 23.04MHZ | 3.3V | 1.5ppm |
| KDS晶振 | ZC13727 | DSX221SH | 2520 | 24.000MHZ | 10PF | 30ppm |
| KDS晶振 | 1ZNA16000AB0P | DSX221G | 2520 | 16.000MHZ | 9PF | 10ppm |
| KDS晶振 | X1H013000B81H | HSX531S | 5032 | 13.000MHZ | 8PF | 10ppm |
| KDS晶振 | X4S013000DA1H-W | HSX421S | 4025 | 13.000MHZ | 10PF | 20ppm |
| KDS晶振 | 1XSE009600AV | DSO321SV | 3225 | 9.6MHZ | 3.3V | 100ppm |
| KDS晶振 | 1XSE012000AR58 | DSO321SR | 3225 | 12.000MHZ | 3.3V | 50ppm |
| KDS晶振 | 1ZZNAE48000ZZ0R | DSX211SH | 2016 | 48.000MHZ | 7PF | 20PPM |
| KDS晶振 | 1N227000EE0L | DSX321G | 3225 | 27.000MHZ | 9PF | 50ppm |
| KDS晶振 | 1ZZCAA27120BB0D | DSX211G | 2016 | 27.12MHZ | 10PF | 20PPM |
| KDS晶振 | 1N226000AA0L | DSX321G | 3225 | 26.000MHZ | 7.5pf | 10ppm |
| KDS晶振 | 1N226000AA0G | DSX321G | 3225 | 26.000MHZ | 12.5PF | 10ppm |
| KDS晶振 | 1RAK38400CKA | DSR211STH | 2016 | 38.4MHZ | 7pf | 12ppm |
| KDS晶振 | 7CG03840A06 | DSR1612ATH | 1612 | 38.400MHZ | 8PF | 10ppm |
| KDS晶振 | 1CX40000EE1O | DSX840GA | 8045 | 40.000MHZ | 18PF | 50ppm |
| KDS晶振 | 1SF805E1MM | LOW PASS FILTER 1/4IN | ||||
| KDS晶振 | 1XSA050000AVW | DSO751SV | 7050 | 50.000MHZ | 3.3V | 100ppm |
| KDS晶振 | 1ZCP37400AA0H | DSX211AL | 2016 | 37.400MHZ | ||
| KDS晶振 | 1XSR025000AR25 | DSO751SR | 7050 | 25.000MHZ | 3.3V | 50ppm |
| KDS晶振 | 1AC112893EA | AT-49 | 11*4.6 | 11.2893MHZ | 10PF | 20ppm |
| KDS晶振 | 1AC125821EA | AT-49 | 11*4.6 | 12.58291MHZ | 8.8PF | 20ppm |
| KDS晶振 | 1XVD008192VB | DSV321SV | 3225 | 8.192MHZ | 3.3V | 40ppm |
| KDS晶振 | 1XVD024000VA | DSV321SV | 3225 | 24.000MHZ | 3.3V | 40ppm |
| KDS晶振 | 1AR245766AZ | SMD-49 | 11*4.6 | 24.576MHZ | 20PF | 30ppm |
| KDS晶振 | 1AR245766BE | SMD-49 | 11*4.6 | 24.576MHZ | ||
| KDS晶振 | 1AR270002CG | SMD-49 | 11*4.6 | 27.000MHZ | 10PF | 20PPM |
| KDS晶振 | 1AR270002CGA | SMD-49 | 11*4.6 | 27.000MHZ | 10PF | 30PPM |
| KDS晶振 | 1N226000AA0E | DSX321G | 3225 | 26.000MHZ | 8.1PF | 10PPM |
| KDS晶振 | 1AR270002EH | SMD-49 | 11*4.6 | 27.000MHZ | 12PF | 20PPM |
| KDS晶振 | 1AV270002BA | SMD-49 | 11*4.6 | 27.000MHZ | 16PF | 50PPM |
| KDS晶振 | 1AY289002DB | AT-49 | 11*4.6 | 28.900MHZ | 12PF | 50PPM |
| KDS晶振 | 1C228322EE0D | DSX321G | 3225 | 28.322MHZ | 10PF | 50PPM |
| KDS晶振 | 1C254000CC0C | DSX321G | 3225 | 54.000MHZ | 10PF | 30PPM |
| KDS晶振 | 1C319200AA0A | DSX321G | 3225 | 19.200MHZ | 8PF | 10PPM |
| KDS晶振 | 1C338400AA0B | DSX321G | 3225 | 38.400MHZ | 10PF | 10PPM |
| KDS晶振 | 1C707600CC1B | DSX530GA | 5032 | 7.600MHZ | 10PF | 30PPM |
| KDS晶振 | 1C736864CC1A | DSX530GA | 5032 | 36.864MHZ | 8PF | 25PPM |
| KDS晶振 | 1CW04000KK3C | DSX151GAL | 11.8*5.5 | 4.000MHZ | ||
| KDS晶振 | 1CW08192EK3A | DSX151GAL | 11.8*5.5 | 8.192MHZ | 15PF | 20ppm |
| KDS晶振 | 1D21407AQ3 | DSF753SAF | 7050 | 21.400MHZ | ||
| KDS晶振 | 1D44818GQ1 | DSF753SBF | 7050 | 44.85MHZ | ||
| KDS晶振 | 1D51610GQ1 | DSF753SBF | 7050 | 51.65MHZ | ||
| KDS晶振 | 1HX12288CD1A | DSX840GA | 8045 | 12.288MHZ | 20PF | 30PPM |
| KDS晶振 | 1AR270002CQ | SMD-49 | 11*4.6 | 27.000MHZ | 10PF | 30ppm |
| KDS晶振 | 1XTW16368FEA | DSB321SCL | 3225 | 16.368MHZ | 2.8V | 2.5ppm |
