IQD晶振|WATCH-3X8晶振|LFXTAL001420Bulk|圆柱晶体
频率：32.768KHz
尺寸：3.2mm×1.5mm
IQD晶振|WATCH-3X8晶振|LFXTAL001420Bulk|圆柱晶体,IQD晶振,WATCH-3X8圆柱晶体,无源晶振,LFXTAL001420Bulk晶振,石英晶体谐振器,进口插件晶振,3*8mm晶振,石英晶振,频率32.768KHz,负载12.5pF,频率容差10ppm,工作温度范围-20~70°C,无铅环保晶振,高精度晶振,抗冲击晶振,储存卡晶振,家用电视机顶盒晶振,数字电表晶振,随身听晶振.
IQD晶振|WATCH-3X8晶振|LFXTAL001420Bulk|圆柱晶体,IQD晶振,WATCH-3X8圆柱晶振,无源晶振,LFXTAL001420Bulk晶振,石英晶体谐振器,进口插件晶振,3*8mm晶振,石英晶振,频率32.768KHz,负载12.5pF,频率容差10ppm,工作温度范围-20~70°C,无铅环保晶振,高精度晶振,抗冲击晶振,储存卡晶振,家用电视机顶盒晶振,数字电表晶振,随身听晶振.

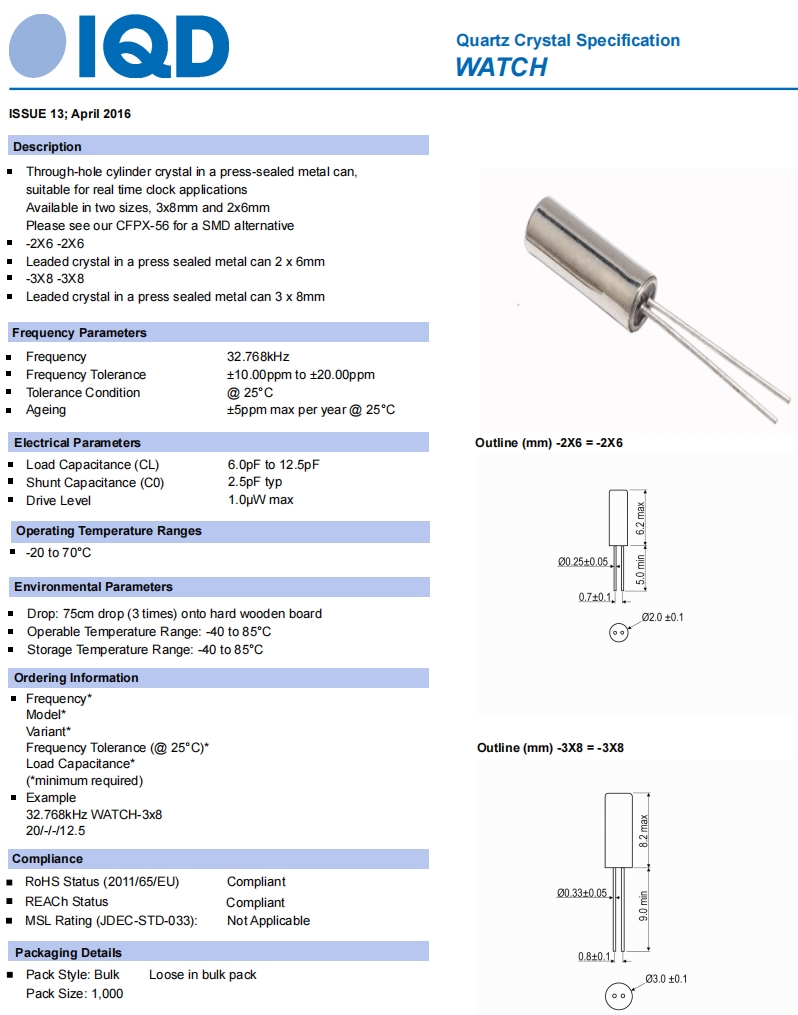

IQD晶振|WATCH-3X8晶振|LFXTAL001420Bulk|圆柱晶体规格表
参数
数值
频率
32.768KHz
频率容差@ 25°C ± 3°C
±10ppm
工作温度
-20~70°C
储存温度
-55~125°C
负载
12.5pF
并联电容
2.5pF typ
驱动电平
老化@ 25°C ± 3°C

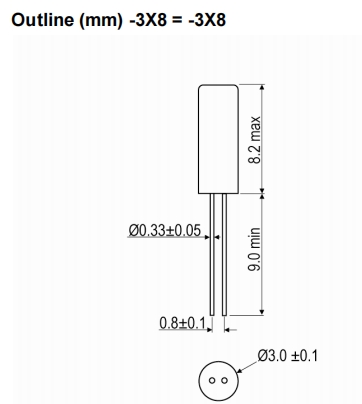

IQD晶振|WATCH-3X8晶振|LFXTAL001420Bulk|圆柱晶体尺寸图
| 编码 | 型号 | 频率 | 频率容差 | 工作温度 | 负载 |
| LFXTAL078348Reel | IQXC-146 | 0.032768MHz | ±20ppm | -40°C to 85°C | 6.00pF |
| LFXTAL080915Reel | IQXC-146 | 0.032768MHz | ±20ppm | -40°C to 85°C | 12.50pF |
| LFXTAL065253Cutt | IQXC-90 | 0.032768MHz | ±20ppm | -40°C to 85°C | 12.50pF |
| LFXTAL066198Cutt | IQXC-90 | 0.032768MHz | ±20ppm | -40°C to 85°C | 9.00pF |
| LFXTAL066198Reel | IQXC-90 | 0.032768MHz | ±20ppm | -40°C to 85°C | 9.00pF |
| LFXTAL066431Cutt | IQXC-90 | 0.032768MHz | ±20ppm | -40°C to 85°C | 7.00pF |
| LFXTAL082140Reel | IQXC-90 | 0.032768MHz | ±20ppm | -40°C to 85°C | 4.00pF |
| LFXTAL050789Bulk | IQXC-25 | 0.032768MHz | ±20ppm | -40°C to 85°C | 12.50pF |
| LFXTAL050789Cutt | IQXC-25 | 0.032768MHz | ±20ppm | -40°C to 85°C | 12.50pF |
| LFXTAL050789Reel | IQXC-25 | 0.032768MHz | ±20ppm | -40°C to 85°C | 12.50pF |
| LFXTAL051643Reel | IQXC-25 | 0.032768MHz | ±20ppm | -40°C to 85°C | 9.00pF |
| LFXTAL059461Cutt | IQXC-25 | 0.032768MHz | ±20ppm | -40°C to 85°C | 7.00pF |
| LFXTAL059461Reel | IQXC-25 | 0.032768MHz | ±20ppm | -40°C to 85°C | 7.00pF |
| LFXTAL062558Cutt | IQXC-25 | 0.032768MHz | ±10ppm | -40°C to 85°C | 9.00pF |
| LFXTAL062558Reel | IQXC-25 | 0.032768MHz | ±10ppm | -40°C to 85°C | 9.00pF |
| LFXTAL063829Reel | IQXC-25 | 0.032768MHz | ±10ppm | -40°C to 85°C | 12.50pF |
| LFXTAL065455Cutt | IQXC-25 | 0.032768MHz | ±20ppm | -40°C to 85°C | 6.00pF |
| LFXTAL065455Reel | IQXC-25 | 0.032768MHz | ±20ppm | -40°C to 85°C | 6.00pF |
| LFXTAL073264Cutt | IQXC-25 | 0.032768MHz | ±20ppm | -40°C to 85°C | 4.00pF |
| LFXTAL073264Reel | IQXC-25 | 0.032768MHz | ±20ppm | -40°C to 85°C | 4.00pF |
| LFXTAL079143Cutt | IQXC-25 | 0.032768MHz | ±20ppm | -40°C to 85°C | 12.50pF |
| LFXTAL009678 | CFPX-217 | 0.032768MHz | ±20ppm | -40°C to 85°C | 12.50pF |
| LFXTAL009706 | CFPX-217 | 0.032768MHz | ±20ppm | -40°C to 85°C | 9.00pF |
| LFXTAL009709 | CFPX-217 | 0.032768MHz | ±20ppm | -40°C to 85°C | 7.00pF |
| LFXTAL054236 | CFPX-217 | 0.032768MHz | ±20ppm | -40°C to 85°C | 6.00pF |
| LFXTAL059555Tray | CX11V TF | 0.032768MHz | ±20ppm | -55°C to 125°C | 9.00pF |
| LFXTAL084882 | IQXC-217 | 0.032768MHz | ±20ppm | -40°C to 85°C | 12.50pF |
| LFXTAL084883 | IQXC-217 | 0.032768MHz | ±20ppm | -40°C to 85°C | 9.00pF |
| LFXTAL084884 | IQXC-217 | 0.032768MHz | ±20ppm | -40°C to 85°C | 7.00pF |
| LFXTAL084885 | IQXC-217 | 0.032768MHz | ±20ppm | -40°C to 85°C | 6.00pF |
| LFXTAL059873Tray | CX9VHT TF | 0.032768MHz | ±100ppm | 0°C to 200°C | 9.00pF |
| LFXTAL077368Tray | CX4VHT TF | 0.032768MHz | ±30ppm | 0°C to 200°C | 9.00pF |
| LFXTAL078991Tray | CX4VHT TF | 0.032768MHz | ±100ppm | 0°C to 200°C | 9.00pF |
| LFXTAL083045Reel | CX4V TF | 0.2MHz | ±100ppm | -40°C to 85°C | 9.00pF |
| LFXTAL009589Reel | CFPX-155 | 0.032768MHz | ±20ppm | -40°C to 85°C | 12.50pF |
| LFXTAL055127Cutt | CFPX-155 | 0.032768MHz | ±20ppm | -40°C to 85°C | 6.00pF |
| LFXTAL003426Reel | CX1V TF | 0.032768MHz | ±30ppm | -40°C to 85°C | 9.00pF |
| LFXTAL003426Tray | CX1V TF | 0.032768MHz | ±30ppm | -40°C to 85°C | 9.00pF |
| LFXTAL083548Reel | CX1V TF | 0.032768MHz | ±30ppm | -40°C to 85°C | 9.00pF |
| LFXTAL083548Tray | CX1V TF | 0.032768MHz | ±30ppm | -40°C to 85°C | 9.00pF |
| LFXTAL056539Reel | CX1V TF | 0.4608MHz | ±500ppm | -40°C to 85°C | 4.00pF |
| LFXTAL029873Tray | CX1 EXT | 1.024MHz | ±100ppm | -40°C to 85°C | 10.00pF |
| LFXTAL014590Reel | CX1 EXT | 1.8432MHz | ±500ppm | -40°C to 85°C | 7.00pF |
| LFXTAL014590Tray | CX1 EXT | 1.8432MHz | ±500ppm | -40°C to 85°C | 7.00pF |
| LFXTAL090622Tray | CX1 EXT | 1.8432MHz | ±500ppm | -40°C to 85°C | 7.00pF |
| LFXTAL003000 | 85SMX | 0.032768MHz | ±20ppm | -40°C to 85°C | 12.50pF |
| LFXTAL016178 | 85SMX | 0.032768MHz | ±20ppm | -40°C to 85°C | 6.00pF |
| LFXTAL025159Bulk | CFPX-56 | 0.032768MHz | ±20ppm | -40°C to 85°C | 12.50pF |
| LFXTAL025159Reel | CFPX-56 | 0.032768MHz | ±20ppm | -40°C to 85°C | 12.50pF |
| LFXTAL058243Bulk | CFPX-56 | 0.032768MHz | ±20ppm | -40°C to 85°C | 7.00pF |
| LFXTAL001420Bulk | WATCH | 0.032768MHz | ±10ppm | -20°C to 70°C | 12.50pF |
| LFXTAL002995Bulk | WATCH | 0.032768MHz | ±20ppm | -20°C to 70°C | 12.50pF |
| LFXTAL002996Bulk | WATCH | 0.032768MHz | ±15ppm | -20°C to 70°C | 12.50pF |
| LFXTAL002997Bulk | WATCH | 0.032768MHz | ±20ppm | -20°C to 70°C | 12.50pF |
| LFXTAL010831Bulk | WATCH | 0.032768MHz | ±10ppm | -20°C to 70°C | 12.50pF |
| LFXTAL012459Bulk | WATCH | 0.032768MHz | ±20ppm | -20°C to 70°C | 6.00pF |
| LFXTAL012511Bulk | WATCH | 0.032768MHz | ±20ppm | -20°C to 70°C | 6.00pF |
| LFXTAL014219Bulk | WATCH | 0.032768MHz | ±20ppm | -20°C to 70°C | 6.00pF |
| LFXTAL020030Bulk | WATCH | 0.032768MHz | ±10ppm | -20°C to 70°C | 6.00pF |
| LFXTAL023551Bulk | WATCH | 0.032768MHz | ±10ppm | -20°C to 70°C | 10.00pF |
| LFXTAL025125Bulk | WATCH | 0.032768MHz | ±20ppm | -20°C to 70°C | 7.00pF |
| LFXTAL079092Bulk | WATCH | 0.032768MHz | ±20ppm | -20°C to 70°C | 9.00pF |
