IQD晶振|HC49/4HSMX晶振|LFXTAL084234Reel |49SMD晶振

频率：32MHZ

尺寸：13.4mm×4.9mm

IQD晶振|HC49/4HSMX晶振|LFXTAL084234Reel |49SMD晶振,IQD晶振,欧美晶振,HC49/4HSMX石英晶振,进口晶振,LFXTAL084234Reel晶振,49SMD晶振,工业标准封装,电阻焊接,在惰性气体中密封,频率32MHz,负载16pF,频率容差30ppm,工作温度范围-40~85°C,低成本晶振,高可靠性晶振,抗老化晶振,无线通信晶振,音频系统晶振,家用电视机顶盒晶振,储存卡U盘晶振.

订购热线：0755-27876565

IQD晶振|HC49/4HSMX晶振|LFXTAL084234Reel|49SMD晶振,IQD晶振,欧美晶振,HC49/4HSMX石英晶振,进口晶振,LFXTAL084234Reel晶振,49SMD晶振,工业标准封装,电阻焊接,在惰性气体中密封,频率32MHz,负载16pF,频率容差30ppm,工作温度范围-40~85°C,低成本晶振,高可靠性晶振,抗老化晶振,无线通信晶振,音频系统晶振,家用电视机顶盒晶振,储存卡U盘晶振.

yijin-2 IQD晶振|HC49/4HSMX晶振|LFXTAL084234Reel|49SMD晶振规格表

参数	数值
频率	32 MHz
频率容差@ 25°C ± 3°C	±30ppm
频率稳定性	±50ppm
工作温度	-40~85°C
储存温度	-55~125°C
负载	16 pF
并联电容	7pF max
驱动电平	500µW max
老化@ 25°C ± 3°C	±5ppm typical per year

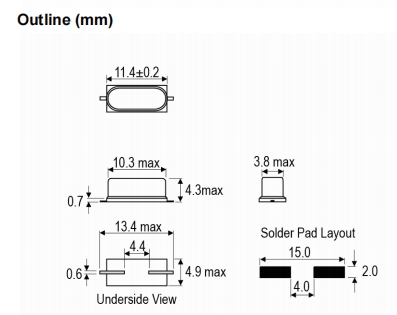

yijin-3 IQD晶振|HC49/4HSMX晶振|LFXTAL084234Reel|49SMD晶振尺寸图

编码	型号	频率	频率容差	频率稳定性	工作温度	负载
LFXTAL078795Cutt	IQXC-42	16.0MHz	±15ppm	±50ppm	-40°C to 85°C	8.00pF
LFXTAL081780RL3K	IQXC-42	16.0MHz	±10ppm	±20ppm	-30°C to 85°C	8.00pF
LFXTAL081781RL3K	IQXC-42	16.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL081821Cutt	IQXC-42	16.0MHz	±10ppm	±15ppm	-30°C to 85°C	12.00pF
LFXTAL082887RL3K	IQXC-42	16.0MHz	±10ppm	±30ppm	-40°C to 105°C	10.00pF
LFXTAL059585Cutt	IQXC-42	20.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL059585Reel	IQXC-42	20.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL059585RL3K	IQXC-42	20.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL064174RL3K	IQXC-42	24.0MHz	±30ppm	±30ppm	-40°C to 85°C	12.00pF
LFXTAL066139Cutt	IQXC-42	24.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069476RL3K	IQXC-42	24.0MHz	±10ppm	±10ppm	-20°C to 75°C	12.00pF
LFXTAL069493Cutt	IQXC-42	24.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069493Reel	IQXC-42	24.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069493RL3K	IQXC-42	24.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL072577RL3K	IQXC-42	24.0MHz	±10ppm	±20ppm	-40°C to 85°C	18.00pF
LFXTAL076411Cutt	IQXC-42	24.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL076411RL3K	IQXC-42	24.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL081531RL3K	IQXC-42	24.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL081646RL3K	IQXC-42	24.0MHz	±15ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL082123Cutt	IQXC-42	24.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082123RL3K	IQXC-42	24.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL090516RL3K	IQXC-42	24.0MHz	±50ppm	±50ppm	-40°C to 85°C	12.00pF
LFXTAL054026Cutt	IQXC-42	25.0MHz	±25ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL059552Reel	IQXC-42	25.0MHz	±20ppm	±30ppm	-40°C to 85°C	12.00pF
LFXTAL064933Cutt	IQXC-42	25.0MHz	±30ppm	±30ppm	0°C to 50°C	10.00pF
LFXTAL066140Cutt	IQXC-42	25.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069494Bulk	IQXC-42	25.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069494Cutt	IQXC-42	25.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069494Reel	IQXC-42	25.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069494RL3K	IQXC-42	25.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL075431RL3K	IQXC-42	25.0MHz	±30ppm	±40ppm	-30°C to 85°C	6.00pF
LFXTAL082125Cutt	IQXC-42	25.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082125RL3K	IQXC-42	25.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL085846RL3K	IQXC-42	25.0MHz	±25ppm	±50ppm	-40°C to 125°C	10.00pF
LFXTAL090436RL3K	IQXC-42	25.0MHz	±10ppm	±20ppm	-40°C to 105°C	10.00pF
LFXTAL059591Cutt	IQXC-42	26.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL059591Reel	IQXC-42	26.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL059591RL3K	IQXC-42	26.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL066141Cutt	IQXC-42	26.0MHz	±15ppm	±15ppm	-20°C to 70°C	10.00pF
LFXTAL076879Bulk	IQXC-42	26.0MHz	±30ppm	±30ppm	-40°C to 85°C	12.00pF
LFXTAL078377RL3K	IQXC-42	26.0MHz	±10ppm	±10ppm	-20°C to 75°C	12.00pF
LFXTAL081595Cutt	IQXC-42	26.0MHz	±10ppm	±30ppm	-40°C to 85°C	8.00pF
LFXTAL082126Cutt	IQXC-42	26.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082126Reel	IQXC-42	26.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082126RL3K	IQXC-42	26.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL083241Cutt	IQXC-42	26.0MHz	±15ppm	±20ppm	-20°C to 70°C	8.00pF
LFXTAL059592Cutt	IQXC-42	27.0MHz	±15ppm	±15ppm	-40°C to 85°C	10.00pF
LFXTAL072543Cutt	IQXC-42	27.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL072543Reel	IQXC-42	27.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL072543RL3K	IQXC-42	27.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL081349Reel	IQXC-42	27.0MHz	±15ppm	±20ppm	-40°C to 85°C	12.00pF
LFXTAL083147RL3K	IQXC-42	27.0MHz	±10ppm	±10ppm	-20°C to 70°C	18.00pF
LFXTAL063227Reel	IQXC-42	27.12MHz	±30ppm	±50ppm	-40°C to 85°C	12.00pF
LFXTAL063227RL3K	IQXC-42	27.12MHz	±30ppm	±50ppm	-40°C to 85°C	12.00pF
LFXTAL071489Bulk	IQXC-42	27.12MHz	±30ppm	±30ppm	-20°C to 70°C	10.00pF
LFXTAL071489Cutt	IQXC-42	27.12MHz	±30ppm	±30ppm	-20°C to 70°C	10.00pF
LFXTAL071489RL3K	IQXC-42	27.12MHz	±30ppm	±30ppm	-20°C to 70°C	10.00pF
LFXTAL076164Cutt	IQXC-42	27.12MHz	±10ppm	±10ppm	-20°C to 70°C	8.00pF
LFXTAL076164Reel	IQXC-42	27.12MHz	±10ppm	±10ppm	-20°C to 70°C	8.00pF
LFXTAL081630Cutt	IQXC-42	27.12MHz	±10ppm	±10ppm	-20°C to 70°C	8.00pF
LFXTAL081630RL3K	IQXC-42	27.12MHz	±10ppm	±10ppm	-20°C to 70°C	8.00pF
LFXTAL082127Cutt	IQXC-42	27.12MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082127RL3K	IQXC-42	27.12MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL059596Cutt	IQXC-42	30.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL059596Reel	IQXC-42	30.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL059596RL3K	IQXC-42	30.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL082128Cutt	IQXC-42	30.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082128RL3K	IQXC-42	30.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL058002RL3K	IQXC-42	32.0MHz	±10ppm	±10ppm	0°C to 50°C	8.00pF
LFXTAL058004Cutt	IQXC-42	32.0MHz	±10ppm	±10ppm	-20°C to 70°C	8.00pF
LFXTAL058004RL3K	IQXC-42	32.0MHz	±10ppm	±10ppm	-20°C to 70°C	8.00pF
LFXTAL058067Cutt	IQXC-42	32.0MHz	±15ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL058130RL3K	IQXC-42	32.0MHz	±10ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL058699Cutt	IQXC-42	32.0MHz	±10ppm	±10ppm	-10°C to 60°C	10.00pF
LFXTAL058962RL3K	IQXC-42	32.0MHz	±10ppm	±15ppm	-20°C to 70°C	12.00pF
LFXTAL059597Cutt	IQXC-42	32.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL059597Reel	IQXC-42	32.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL059597RL3K	IQXC-42	32.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL061700Cutt	IQXC-42	32.0MHz	±20ppm	±30ppm	-40°C to 85°C	8.00pF
LFXTAL061700Reel	IQXC-42	32.0MHz	±20ppm	±30ppm	-40°C to 85°C	8.00pF
LFXTAL072861RL3K	IQXC-42	32.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL073170RL3K	IQXC-42	32.0MHz	±10ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL077362RL3K	IQXC-42	32.0MHz	±10ppm	±20ppm	-40°C to 85°C	6.00pF
LFXTAL081227RL3K	IQXC-42	32.0MHz	±30ppm	±50ppm	-40°C to 85°C	12.00pF
LFXTAL081538RL3K	IQXC-42	32.0MHz	±10ppm	±10ppm	-20°C to 75°C	8.00pF
LFXTAL081567Cutt	IQXC-42	32.0MHz	±10ppm	±10ppm	-20°C to 75°C	8.00pF
LFXTAL081839RL3K	IQXC-42	32.0MHz	±30ppm	±30ppm	-40°C to 85°C	6.00pF
LFXTAL082129Cutt	IQXC-42	32.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082129RL3K	IQXC-42	32.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL083004RL3K	IQXC-42	32.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL085946RL3K	IQXC-42	32.0MHz	±10ppm	±20ppm	-40°C to 105°C	12.00pF
LFXTAL088678RL3K	IQXC-42	32.768MHz	±30ppm	±50ppm	-20°C to 70°C	8.00pF
LFXTAL082130Cutt	IQXC-42	37.4MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082130RL3K	IQXC-42	37.4MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL059627Cutt	IQXC-42	38.4MHz	±15ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL059627Reel	IQXC-42	38.4MHz	±15ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL059627RL3K	IQXC-42	38.4MHz	±15ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL075418Cutt	IQXC-42	38.4MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL075418Reel	IQXC-42	38.4MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL078271Cutt	IQXC-42	38.4MHz	±10ppm	±20ppm	-40°C to 85°C	18.00pF
LFXTAL081635Cutt	IQXC-42	38.4MHz	±10ppm	±10ppm	-20°C to 70°C	8.00pF
LFXTAL081635RL3K	IQXC-42	38.4MHz	±10ppm	±10ppm	-20°C to 70°C	8.00pF
LFXTAL081883RL3K	IQXC-42	38.4MHz	±10ppm	±15ppm	-35°C to 85°C	8.00pF
LFXTAL082131Cutt	IQXC-42	38.4MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082131RL3K	IQXC-42	38.4MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082468Cutt	IQXC-42	38.4MHz	±10ppm	±15ppm	-40°C to 85°C	10.00pF
LFXTAL082468RL3K	IQXC-42	38.4MHz	±10ppm	±15ppm	-40°C to 85°C	10.00pF
LFXTAL059632Cutt	IQXC-42	40.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL059632Reel	IQXC-42	40.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL059632RL3K	IQXC-42	40.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL082132Cutt	IQXC-42	40.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082132Reel	IQXC-42	40.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082132RL3K	IQXC-42	40.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL090469RL3K	IQXC-42	43.935MHz	±20ppm	±30ppm	-40°C to 85°C	12.00pF
LFXTAL090628Reel	IQXC-42	45.761MHz	±20ppm	±30ppm	-40°C to 85°C	12.00pF
LFXTAL066363Cutt	IQXC-42	48.0MHz	±50ppm	±50ppm	-40°C to 85°C	12.00pF
LFXTAL072546Cutt	IQXC-42	48.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL072546Reel	IQXC-42	48.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL072546RL3K	IQXC-42	48.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL082135Cutt	IQXC-42	48.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082135RL3K	IQXC-42	48.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL079374Cutt	IQXC-42	50.0MHz	±15ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL085859RL3K	IQXC-42	50.0MHz	±10ppm	±50ppm	-40°C to 125°C	8.00pF
LFXTAL071255Cutt	IQXC-42 AUTO	16.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071255Reel	IQXC-42 AUTO	16.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071256Cutt	IQXC-42 AUTO	20.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071256Reel	IQXC-42 AUTO	20.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL082989Cutt	IQXC-42 AUTO	20.0MHz	±50ppm	±150ppm	-40°C to 150°C	8.00pF
LFXTAL082989Reel	IQXC-42 AUTO	20.0MHz	±50ppm	±150ppm	-40°C to 150°C	8.00pF
LFXTAL083912Cutt	IQXC-42 AUTO	20.0MHz	±30ppm	±45ppm	-40°C to 125°C	8.00pF
LFXTAL071257Cutt	IQXC-42 AUTO	24.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071257Reel	IQXC-42 AUTO	24.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071258Cutt	IQXC-42 AUTO	24.576MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071258Reel	IQXC-42 AUTO	24.576MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071259Cutt	IQXC-42 AUTO	25.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071259Reel	IQXC-42 AUTO	25.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071260Cutt	IQXC-42 AUTO	26.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071260Reel	IQXC-42 AUTO	26.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071261Cutt	IQXC-42 AUTO	27.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071261Reel	IQXC-42 AUTO	27.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071262Cutt	IQXC-42 AUTO	32.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071262Reel	IQXC-42 AUTO	32.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL084010Reel	IQXC-42 AUTO	32.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082907Cutt	IQXC-42 AUTO	38.4MHz	±20ppm	±80ppm	-40°C to 125°C	8.00pF
LFXTAL070734Cutt	IQXC-42 AUTO	40.0MHz	±50ppm	±100ppm	-40°C to 125°C	8.00pF
LFXTAL070734Reel	IQXC-42 AUTO	40.0MHz	±50ppm	±100ppm	-40°C to 125°C	8.00pF
LFXTAL071265Cutt	IQXC-42 AUTO	40.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071265Reel	IQXC-42 AUTO	40.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL090472Reel	IQXC-42 AUTO	43.935MHz	±20ppm	±30ppm	-40°C to 85°C	12.00pF
LFXTAL071266Cutt	IQXC-42 AUTO	48.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071266Reel	IQXC-42 AUTO	48.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071267Cutt	IQXC-42 AUTO	50.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071267Reel	IQXC-42 AUTO	50.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL077082Cutt	IQXC-49	8.0MHz	±50ppm	±100ppm	-20°C to 70°C	16.00pF
LFXTAL077089Cutt	IQXC-49	8.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL077089Reel	IQXC-49	8.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL084035Reel	IQXC-49	8.0MHz	±30ppm	±30ppm	-20°C to 70°C	12.00pF
LFXTAL084673Reel	IQXC-49	8.0MHz	±50ppm	±50ppm	-40°C to 85°C	8.00pF
LFXTAL085089Reel	IQXC-49	8.0MHz	±20ppm	±20ppm	-40°C to 85°C	20.00pF
LFXTAL077084Reel	IQXC-49	10.0MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL077086Reel	IQXC-49	10.0MHz	±30ppm	±30ppm	-20°C to 70°C	18.00pF
LFXTAL084712Reel	IQXC-49	11.0592MHz	±30ppm	±30ppm	-20°C to 70°C	18.00pF
LFXTAL077079Reel	IQXC-49	18.432MHz	±30ppm	±50ppm	-40°C to 85°C	18.00pF
LFXTAL084840Reel	IQXC-49	20.0MHz	±30ppm	±30ppm	-20°C to 70°C	18.00pF
LFXTAL077077Reel	IQXC-49	24.0MHz	±30ppm	±30ppm	-40°C to 85°C	20.00pF
LFXTAL081544Cutt	IQXC-49	24.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL077078Reel	IQXC-49	25.0MHz	±30ppm	±30ppm	-40°C to 85°C	20.00pF
LFXTAL077083Bulk	IQXC-49	25.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL077083Cutt	IQXC-49	25.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL077083Reel	IQXC-49	25.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL077085Cutt	IQXC-49	25.0MHz	±20ppm	±50ppm	-20°C to 70°C	18.00pF
LFXTAL083868Reel	IQXC-49	25.0MHz	±30ppm	±50ppm	-40°C to 85°C	20.00pF
LFXTAL080861Bulk	IQXC-49	27.12MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL084410Cutt	IQXC-49	30.0MHz	±30ppm	±30ppm	-20°C to 70°C	18.00pF
LFXTAL084410Reel	IQXC-49	30.0MHz	±30ppm	±30ppm	-20°C to 70°C	18.00pF

yijin-5

YJ-6

深圳市亿金电子有限公司 SHENZHEN YIJIN ELECTRONICS CO;LTD

mphone 联系人黄娜：18924600166

工作QQ:857950243

myt 贸易通：yijindz2014

tel 座机：0755-27876565

email 邮箱:yijindz@163.com

inter 网址：http://www.yijindz.com

mwx 微信：yijindz，公众号：NDKcrystal

home 地址：广东省深圳市宝安区107国道旁甲岸路

wxewm

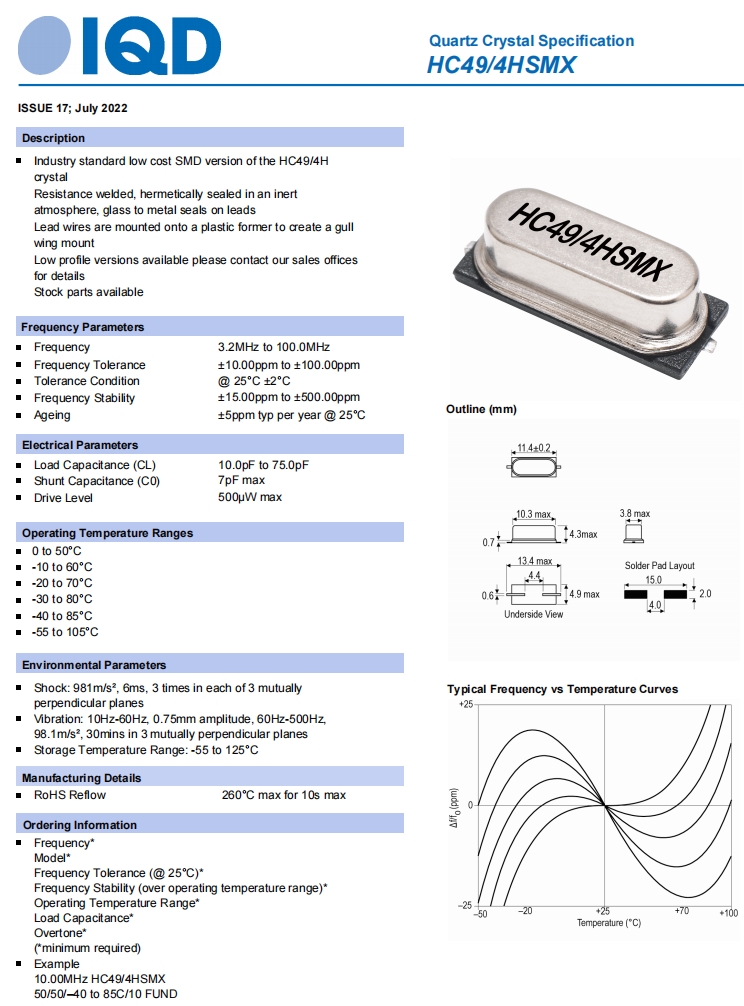

IQD晶振 HC49/4HSMX晶振 LFXTAL084234Reel 49SMD晶振

跟此产品相关的产品 / Related Products

SAW振荡器,AXPS10晶振,进口SMD晶振,德国进口晶振,石英晶振,AXTAL晶振

SAW振荡器,AXPS10晶振,进口SMD晶振,德国进口晶振,石英晶振,AXTAL晶振

AXTAL晶振中的AXPS10晶振，为SAW振荡器，也叫声表面波振荡器，适用于汽车门遥控开关，内部捕捉系统，数据链接，胎压监控系统，无线安全系统，无线条码的读取，无线键盘，无线鼠标，无线操纵杆，遥控灯开关等。该晶振的尺寸是20.3x13.0x5.7mm，频率范围为500~1600MHz，工作温度范围是-40~85度，为石英晶振，进口SMD晶振。声表面波振荡器具有低损耗，低耗能，低功耗，低差损，低电压，低抖动，低电平，低电源电压，低衰减，低相控，低相噪的特点。

安克晶振,SAW滤波器,7050贴片晶振,进口石英晶振,A152-258.2M2,俄罗斯进口晶振

安克晶振,SAW滤波器,7050贴片晶振,进口石英晶振,A152-258.2M2,俄罗斯进口晶振

俄罗斯进口晶振，AEK晶振，安克晶振，型号为：A152系列，编码为：A152-258.2M2，频率为：258.2MHz，该晶振的尺寸是：7.0x5.0mm，为7050贴片晶振，10垫脚贴片晶振，SAW滤波器，进口石英晶振，无源晶振，石英晶体谐振器，SMD晶体。具有轻薄型，高精度，高性能，高品质，耐热及耐环境特点。应用于：移动通讯设备晶振，蓝牙晶振，无线网络晶振，平板电脑晶振，仪器仪表设备，智能家居晶振等应用。AEK 按照俄罗斯标准和规范生产产品。在其存在的 20 年里，该公司对所供应产品的投诉最少。同时，我们保证自销售之日起 10 年或更长时间内免费更换因制造商过错而出现故障的产品。关键和高度可靠部件的客户可以进入生产现场，检查产品质量控制体系和生产文化。

9B-30.000MAAE-B,TXC晶振,30MHz,HC-49S晶振,12pF,9B系列,插件晶振

TXC晶振中的9B-30.000MAAE-B晶振，是9B系列晶振，该晶振的频率是30MHz，负载电容为12pF，也是HC-49S晶振，我们一般也叫插件晶振。自台湾晶技成立以来，便以卓越的技术实力、创新的研发能力，以及稳健的市场策略，逐步跃升为此领域的市场先驱之一。TXC对品质管理系统精益求精，以国际品质管理标准为基本要求，透过品质管理作业系统，追求世界级效率、效果之品质管理体系为目标。

亿金电子产品中心 Product Center
