IQD晶振|CFPX-218晶振|LFXTAL069395Reel|2520石英晶振

频率：16.384MHz

尺寸：2.5mm×2.0mm

IQD晶振|CFPX-218晶振|LFXTAL069395Reel|2520石英晶振,IQD晶振,CFPX-218无源晶振,贴片晶振,LFXTAL069395Reel晶振,2520石英晶振,石英晶体谐振器,四脚封装晶振,SMD晶振,频率16.384MHz,负载10pF,频率容差20ppm,工作温度范围-40~85°C,无铅环保晶振,高稳定性晶振,轻薄小晶振,智能手机晶振,平板电脑晶振,移动通信晶振,无线局域网晶振.

订购热线：0755-27876565

IQD晶振|CFPX-218晶振|LFXTAL069395Reel|2520石英晶振,IQD晶振,CFPX-218无源晶振,贴片晶振,LFXTAL069395Reel晶振,2520石英晶振,石英晶体谐振器,四脚封装晶振,SMD晶振,频率16.384MHz,负载10pF,频率容差20ppm,工作温度范围-40~85°C,无铅环保晶振,高稳定性晶振,轻薄小晶振,智能手机晶振,平板电脑晶振,移动通信晶振,无线局域网晶振.

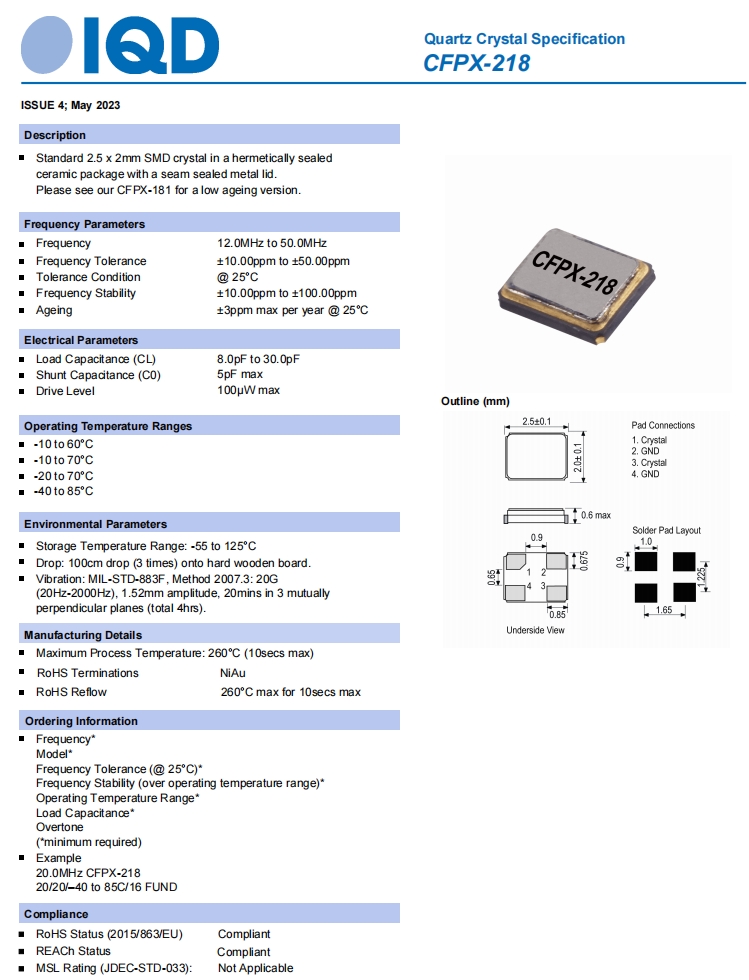

yijin-2 IQD晶振|CFPX-218晶振|LFXTAL069395Reel|2520石英晶振规格表

参数	数值
频率	16.384MHz
频率容差@ 25°C ± 3°C	±20ppm
频率稳定性	±20ppm
工作温度	-40~85°C
储存温度	-55~125°C
负载	10pF
并联电容	7pF max
驱动电平	100µW max.
老化@ 25°C ± 3°C	±3.0ppm per year max

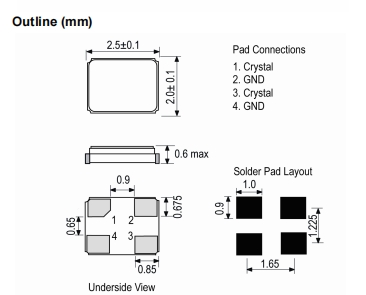

yijin-3 IQD晶振|CFPX-218晶振|LFXTAL069395Reel|2520石英晶振尺寸图

编码	型号	频率	频率容差	频率稳定性	工作温度	负载
LFXTAL071952RL3K	CFPX-218	12.0MHz	±20ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL072016Reel	CFPX-218	12.0MHz	±10ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL072016RL3K	CFPX-218	12.0MHz	±10ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL079264Reel	CFPX-218	12.0MHz	±30ppm	±30ppm	-40°C to 85°C	12.00pF
LFXTAL079389Cutt	CFPX-218	12.0MHz	±20ppm	±30ppm	-10°C to 60°C	10.00pF
LFXTAL052180Cutt	CFPX-218	16.0MHz	±10ppm	±15ppm	-20°C to 70°C	12.00pF
LFXTAL052180RL3K	CFPX-218	16.0MHz	±10ppm	±15ppm	-20°C to 70°C	12.00pF
LFXTAL052895Bulk	CFPX-218	16.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL054342Cutt	CFPX-218	16.0MHz	±20ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL061817RL3K	CFPX-218	16.0MHz	±10ppm	±20ppm	-30°C to 85°C	8.00pF
LFXTAL062065Cutt	CFPX-218	16.0MHz	±10ppm	±15ppm	-30°C to 85°C	8.00pF
LFXTAL062065RL3K	CFPX-218	16.0MHz	±10ppm	±15ppm	-30°C to 85°C	8.00pF
LFXTAL062487Cutt	CFPX-218	16.0MHz	±10ppm	±15ppm	-10°C to 60°C	22.00pF
LFXTAL068297RL3K	CFPX-218	16.0MHz	±10ppm	±10ppm	-20°C to 75°C	8.00pF
LFXTAL069392Cutt	CFPX-218	16.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069392Reel	CFPX-218	16.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069392RL3K	CFPX-218	16.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL071094RL3K	CFPX-218	16.0MHz	±15ppm	±15ppm	-10°C to 70°C	8.00pF
LFXTAL078960Cutt	CFPX-218	16.0MHz	±15ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL069395Cutt	CFPX-218	16.384MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069395Reel	CFPX-218	16.384MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069395RL3K	CFPX-218	16.384MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069400Cutt	CFPX-218	18.432MHz	±20ppm	±20ppm	-40°C to 85°C	18.00pF
LFXTAL069400Reel	CFPX-218	18.432MHz	±20ppm	±20ppm	-40°C to 85°C	18.00pF
LFXTAL069400RL3K	CFPX-218	18.432MHz	±20ppm	±20ppm	-40°C to 85°C	18.00pF
LFXTAL061682Cutt	CFPX-218	19.2MHz	±20ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL069404Cutt	CFPX-218	19.2MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069404Reel	CFPX-218	19.2MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069404RL3K	CFPX-218	19.2MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL082080Cutt	CFPX-218	19.2MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL082080RL3K	CFPX-218	19.2MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL090565RL3K	CFPX-218	19.2MHz	±25ppm	±25ppm	-40°C to 105°C	8.00pF
LFXTAL090181Reel	CFPX-218	19.6608MHz	±10ppm	±10ppm	-20°C to 70°C	8.00pF
LFXTAL052896Bulk	CFPX-218	20.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL052896Cutt	CFPX-218	20.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL069381Cutt	CFPX-218	20.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069381Reel	CFPX-218	20.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069381RL3K	CFPX-218	20.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL082081Cutt	CFPX-218	20.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL082081RL3K	CFPX-218	20.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL053106Bulk	CFPX-218	24.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL053106Cutt	CFPX-218	24.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL053106Reel	CFPX-218	24.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL061685Cutt	CFPX-218	24.0MHz	±20ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL069383Cutt	CFPX-218	24.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069383Reel	CFPX-218	24.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069383RL3K	CFPX-218	24.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL071973Cutt	CFPX-218	24.0MHz	±10ppm	±10ppm	-20°C to 70°C	8.00pF
LFXTAL081439RL3K	CFPX-218	24.0MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL081970RL3K	CFPX-218	24.0MHz	±10ppm	±30ppm	-40°C to 85°C	12.00pF
LFXTAL082082Cutt	CFPX-218	24.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL082082RL3K	CFPX-218	24.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL082790RL3K	CFPX-218	24.0MHz	±20ppm	±50ppm	-40°C to 85°C	8.00pF
LFXTAL090514RL3K	CFPX-218	24.0MHz	±30ppm	±30ppm	-40°C to 85°C	8.00pF
LFXTAL052183Cutt	CFPX-218	24.576MHz	±10ppm	±10ppm	-20°C to 70°C	12.00pF
LFXTAL053107Bulk	CFPX-218	24.576MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL053107Cutt	CFPX-218	24.576MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL069387Cutt	CFPX-218	24.576MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069387Reel	CFPX-218	24.576MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069387RL3K	CFPX-218	24.576MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL036577Cutt	CFPX-218	25.0MHz	±10ppm	±20ppm	-40°C to 85°C	20.00pF
LFXTAL037011Cutt	CFPX-218	25.0MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL053108Bulk	CFPX-218	25.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL059198Cutt	CFPX-218	25.0MHz	±10ppm	±30ppm	-40°C to 85°C	12.00pF
LFXTAL061687Cutt	CFPX-218	25.0MHz	±20ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL061687RL3K	CFPX-218	25.0MHz	±20ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL063334Cutt	CFPX-218	25.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL063334Reel	CFPX-218	25.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL063334RL3K	CFPX-218	25.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL063742RL3K	CFPX-218	25.0MHz	±30ppm	±30ppm	-20°C to 70°C	18.00pF
LFXTAL064865Cutt	CFPX-218	25.0MHz	±10ppm	±20ppm	-40°C to 85°C	12.00pF
LFXTAL064865Reel	CFPX-218	25.0MHz	±10ppm	±20ppm	-40°C to 85°C	12.00pF
LFXTAL069179Cutt	CFPX-218	25.0MHz	±20ppm	±20ppm	-40°C to 85°C	18.00pF
LFXTAL075452RL3K	CFPX-218	25.0MHz	±15ppm	±25ppm	-40°C to 85°C	8.00pF
LFXTAL078719Cutt	CFPX-218	25.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL078719RL3K	CFPX-218	25.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL079273Cutt	CFPX-218	25.0MHz	±10ppm	±15ppm	-20°C to 70°C	12.00pF
LFXTAL050991Cutt	CFPX-218	26.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL050991Reel	CFPX-218	26.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL050991RL3K	CFPX-218	26.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL052185Cutt	CFPX-218	26.0MHz	±10ppm	±10ppm	-20°C to 70°C	12.00pF
LFXTAL056504RL3K	CFPX-218	26.0MHz	±30ppm	±30ppm	-10°C to 60°C	15.00pF
LFXTAL062381Cutt	CFPX-218	26.0MHz	±10ppm	±20ppm	-40°C to 85°C	12.00pF
LFXTAL063922Cutt	CFPX-218	26.0MHz	±20ppm	±20ppm	-40°C to 85°C	20.00pF
LFXTAL081865Cutt	CFPX-218	26.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL081865RL3K	CFPX-218	26.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL061689RL3K	CFPX-218	27.0MHz	±20ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL069405Cutt	CFPX-218	27.0MHz	±20ppm	±20ppm	-40°C to 85°C	18.00pF
LFXTAL069405Reel	CFPX-218	27.0MHz	±20ppm	±20ppm	-40°C to 85°C	18.00pF
LFXTAL069405RL3K	CFPX-218	27.0MHz	±20ppm	±20ppm	-40°C to 85°C	18.00pF
LFXTAL079297Cutt	CFPX-218	27.0MHz	±30ppm	±15ppm	-30°C to 85°C	10.00pF
LFXTAL079297RL3K	CFPX-218	27.0MHz	±30ppm	±15ppm	-30°C to 85°C	10.00pF
LFXTAL082084Cutt	CFPX-218	27.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL082084RL3K	CFPX-218	27.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL072522Cutt	CFPX-218	27.12MHz	±15ppm	±15ppm	-10°C to 70°C	8.00pF
LFXTAL036792RL3K	CFPX-218	30.0MHz	±10ppm	±20ppm	-10°C to 60°C	12.00pF
LFXTAL065132RL3K	CFPX-218	30.0MHz	±20ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL069407Cutt	CFPX-218	30.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069407Reel	CFPX-218	30.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069407RL3K	CFPX-218	30.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL072844Cutt	CFPX-218	30.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL072844RL3K	CFPX-218	30.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL052187Cutt	CFPX-218	32.0MHz	±10ppm	±10ppm	-20°C to 70°C	12.00pF
LFXTAL053109Cutt	CFPX-218	32.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL056767RL3K	CFPX-218	32.0MHz	±50ppm	±50ppm	-40°C to 85°C	12.00pF
LFXTAL069268Cutt	CFPX-218	32.0MHz	±15ppm	±18ppm	-40°C to 85°C	10.00pF
LFXTAL069390Cutt	CFPX-218	32.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069390Reel	CFPX-218	32.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069390RL3K	CFPX-218	32.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL075523Cutt	CFPX-218	32.0MHz	±10ppm	±15ppm	-40°C to 85°C	12.00pF
LFXTAL078207Cutt	CFPX-218	32.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL078207RL3K	CFPX-218	32.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL078382Reel	CFPX-218	32.0MHz	±10ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL082427RL3K	CFPX-218	32.0MHz	±10ppm	±15ppm	-20°C to 70°C	8.00pF
LFXTAL053110Cutt	CFPX-218	40.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL081564RL3K	CFPX-218	40.0MHz	±20ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL082087Cutt	CFPX-218	40.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL082087RL3K	CFPX-218	40.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL082854RL3K	CFPX-218	40.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL083762RL3K	CFPX-218	40.0MHz	±10ppm	±10ppm	-20°C to 70°C	15.00pF
LFXTAL090186RL3K	CFPX-218	48.0MHz	±10ppm	±20ppm	-20°C to 70°C	20.00pF
LFXTAL061851Cutt	CFPX-218	50.0MHz	±20ppm	±20ppm	-10°C to 60°C	18.00pF
LFXTAL082088Cutt	CFPX-218	50.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL082088RL3K	CFPX-218	50.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL086178RL3K	CFPX-218	62.5MHz	±15ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL071268Cutt	CFPX-218 AUTO	16.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071268Reel	CFPX-218 AUTO	16.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071978Reel	CFPX-218 AUTO	16.0MHz	±50ppm	±200ppm	-40°C to 125°C	12.00pF
LFXTAL079216Reel	CFPX-218 AUTO	16.0MHz	±30ppm	±100ppm	-40°C to 125°C	8.00pF
LFXTAL081417Cutt	CFPX-218 AUTO	16.0MHz	±30ppm	±30ppm	-40°C to 85°C	15.00pF
LFXTAL081417Reel	CFPX-218 AUTO	16.0MHz	±30ppm	±30ppm	-40°C to 85°C	15.00pF
LFXTAL081520Reel	CFPX-218 AUTO	16.0MHz	±30ppm	±60ppm	-40°C to 125°C	10.00pF
LFXTAL071269Cutt	CFPX-218 AUTO	24.576MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071269Reel	CFPX-218 AUTO	24.576MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071270Cutt	CFPX-218 AUTO	25.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071270Reel	CFPX-218 AUTO	25.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL080866Reel	CFPX-218 AUTO	25.0MHz	±20ppm	±100ppm	-40°C to 125°C	8.00pF
LFXTAL071271Cutt	CFPX-218 AUTO	26.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071271Reel	CFPX-218 AUTO	26.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071272Cutt	CFPX-218 AUTO	27.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071272Reel	CFPX-218 AUTO	27.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL029069Reel	CFPX-98	3.6864MHz	±50ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL069441Reel	CFPX-98	4.9152MHz	±50ppm	±100ppm	-40°C to 85°C	12.00pF
