IQD晶振|CFPX-180晶振|LFXTAL065272RL3K|3225进口晶振

频率：32.768MHz

尺寸：3.2mm×2.5mm

IQD晶振|CFPX-180晶振|LFXTAL065272RL3K |3225进口晶振,IQD晶振,CFPX-180无源晶振,石英晶体,LFXTAL065272RL3K晶振,晶体谐振器,3225进口晶振,四脚贴片晶振,SMD晶振,频率32.768MHz,负载20pF,频率容差50ppm,工作温度范围-40~85°C,轻薄小晶振,高品质晶振,无铅环保晶振,消费电子产品晶振,家用网关晶振,调制解调器晶振,显示和控制面板晶振.

订购热线：0755-27876565

IQD晶振|CFPX-180晶振|LFXTAL065272RL3K|3225进口晶振,IQD晶振,CFPX-180无源晶振,石英晶体,LFXTAL065272RL3K晶振,晶体谐振器,3225进口晶振,四脚贴片晶振,SMD晶振,频率32.768MHz,负载20pF,频率容差50ppm,工作温度范围-40~85°C,轻薄小晶振,高品质晶振,无铅环保晶振,消费电子产品晶振,家用网关晶振,调制解调器晶振,显示和控制面板晶振.

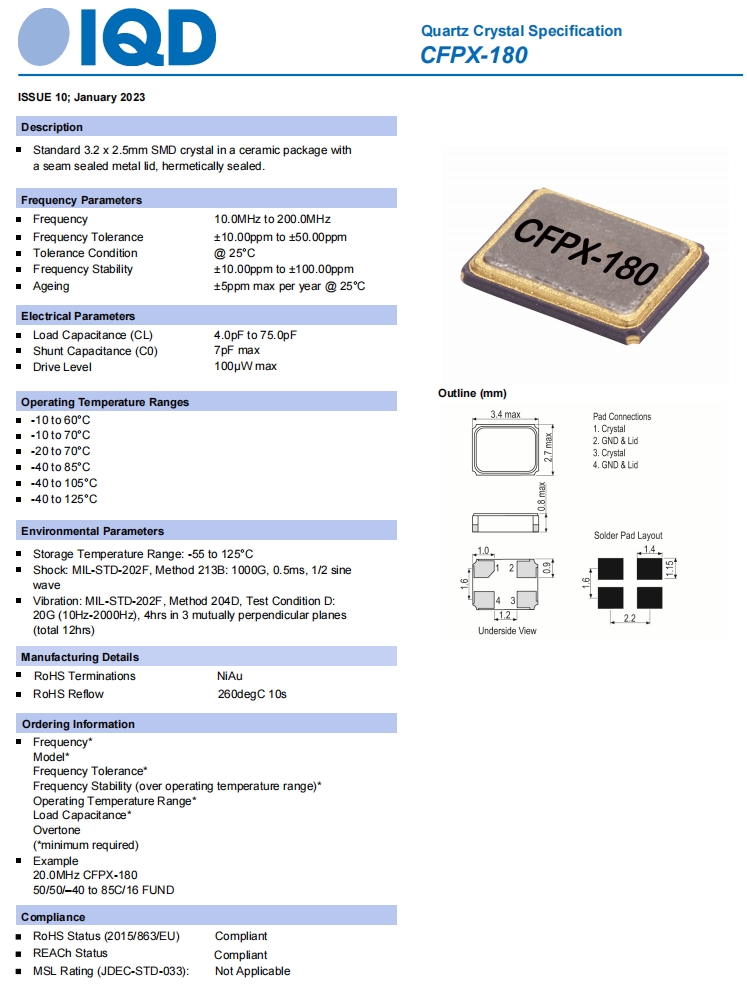

yijin-2 IQD晶振|CFPX-180晶振|LFXTAL065272RL3K|3225进口晶振规格表

参数	数值
频率	32.768MHz
频率容差@ 25°C ± 3°C	±50ppm
频率稳定性	±50ppm
工作温度	-40~85°C
储存温度	-55~125°C
负载	20pF
并联电容	7pF max
驱动电平	300µW max.
老化@ 25°C ± 3°C	±5.0ppm per year max

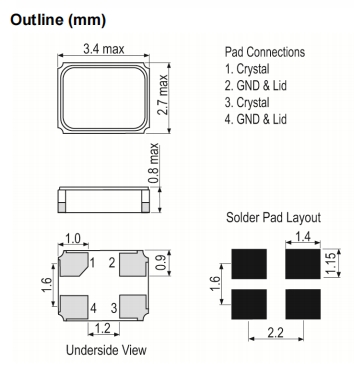

yijin-3 IQD晶振|CFPX-180晶振|LFXTAL065272RL3K|3225进口晶振尺寸图

编码	型号	频率	频率容差	频率稳定性	工作温度	负载
LFXTAL071952RL3K	CFPX-218	12.0MHz	±20ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL072016Reel	CFPX-218	12.0MHz	±10ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL072016RL3K	CFPX-218	12.0MHz	±10ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL079264Reel	CFPX-218	12.0MHz	±30ppm	±30ppm	-40°C to 85°C	12.00pF
LFXTAL079389Cutt	CFPX-218	12.0MHz	±20ppm	±30ppm	-10°C to 60°C	10.00pF
LFXTAL052180Cutt	CFPX-218	16.0MHz	±10ppm	±15ppm	-20°C to 70°C	12.00pF
LFXTAL052180RL3K	CFPX-218	16.0MHz	±10ppm	±15ppm	-20°C to 70°C	12.00pF
LFXTAL052895Bulk	CFPX-218	16.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL054342Cutt	CFPX-218	16.0MHz	±20ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL061817RL3K	CFPX-218	16.0MHz	±10ppm	±20ppm	-30°C to 85°C	8.00pF
LFXTAL062065Cutt	CFPX-218	16.0MHz	±10ppm	±15ppm	-30°C to 85°C	8.00pF
LFXTAL062065RL3K	CFPX-218	16.0MHz	±10ppm	±15ppm	-30°C to 85°C	8.00pF
LFXTAL062487Cutt	CFPX-218	16.0MHz	±10ppm	±15ppm	-10°C to 60°C	22.00pF
LFXTAL068297RL3K	CFPX-218	16.0MHz	±10ppm	±10ppm	-20°C to 75°C	8.00pF
LFXTAL069392Cutt	CFPX-218	16.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069392Reel	CFPX-218	16.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069392RL3K	CFPX-218	16.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL071094RL3K	CFPX-218	16.0MHz	±15ppm	±15ppm	-10°C to 70°C	8.00pF
LFXTAL078960Cutt	CFPX-218	16.0MHz	±15ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL069395Cutt	CFPX-218	16.384MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069395Reel	CFPX-218	16.384MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069395RL3K	CFPX-218	16.384MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069400Cutt	CFPX-218	18.432MHz	±20ppm	±20ppm	-40°C to 85°C	18.00pF
LFXTAL069400Reel	CFPX-218	18.432MHz	±20ppm	±20ppm	-40°C to 85°C	18.00pF
LFXTAL069400RL3K	CFPX-218	18.432MHz	±20ppm	±20ppm	-40°C to 85°C	18.00pF
LFXTAL061682Cutt	CFPX-218	19.2MHz	±20ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL069404Cutt	CFPX-218	19.2MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069404Reel	CFPX-218	19.2MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069404RL3K	CFPX-218	19.2MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL082080Cutt	CFPX-218	19.2MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL082080RL3K	CFPX-218	19.2MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL090565RL3K	CFPX-218	19.2MHz	±25ppm	±25ppm	-40°C to 105°C	8.00pF
LFXTAL090181Reel	CFPX-218	19.6608MHz	±10ppm	±10ppm	-20°C to 70°C	8.00pF
LFXTAL052896Bulk	CFPX-218	20.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL052896Cutt	CFPX-218	20.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL069381Cutt	CFPX-218	20.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069381Reel	CFPX-218	20.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069381RL3K	CFPX-218	20.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL082081Cutt	CFPX-218	20.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL082081RL3K	CFPX-218	20.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL053106Bulk	CFPX-218	24.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL053106Cutt	CFPX-218	24.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL053106Reel	CFPX-218	24.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL061685Cutt	CFPX-218	24.0MHz	±20ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL069383Cutt	CFPX-218	24.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069383Reel	CFPX-218	24.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069383RL3K	CFPX-218	24.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL071973Cutt	CFPX-218	24.0MHz	±10ppm	±10ppm	-20°C to 70°C	8.00pF
LFXTAL081439RL3K	CFPX-218	24.0MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL081970RL3K	CFPX-218	24.0MHz	±10ppm	±30ppm	-40°C to 85°C	12.00pF
LFXTAL082082Cutt	CFPX-218	24.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL082082RL3K	CFPX-218	24.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL082790RL3K	CFPX-218	24.0MHz	±20ppm	±50ppm	-40°C to 85°C	8.00pF
LFXTAL090514RL3K	CFPX-218	24.0MHz	±30ppm	±30ppm	-40°C to 85°C	8.00pF
LFXTAL052183Cutt	CFPX-218	24.576MHz	±10ppm	±10ppm	-20°C to 70°C	12.00pF
LFXTAL053107Bulk	CFPX-218	24.576MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL053107Cutt	CFPX-218	24.576MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL069387Cutt	CFPX-218	24.576MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069387Reel	CFPX-218	24.576MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069387RL3K	CFPX-218	24.576MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL036577Cutt	CFPX-218	25.0MHz	±10ppm	±20ppm	-40°C to 85°C	20.00pF
LFXTAL037011Cutt	CFPX-218	25.0MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL053108Bulk	CFPX-218	25.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL059198Cutt	CFPX-218	25.0MHz	±10ppm	±30ppm	-40°C to 85°C	12.00pF
LFXTAL061687Cutt	CFPX-218	25.0MHz	±20ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL061687RL3K	CFPX-218	25.0MHz	±20ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL063334Cutt	CFPX-218	25.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL063334Reel	CFPX-218	25.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL063334RL3K	CFPX-218	25.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL063742RL3K	CFPX-218	25.0MHz	±30ppm	±30ppm	-20°C to 70°C	18.00pF
LFXTAL064865Cutt	CFPX-218	25.0MHz	±10ppm	±20ppm	-40°C to 85°C	12.00pF
LFXTAL064865Reel	CFPX-218	25.0MHz	±10ppm	±20ppm	-40°C to 85°C	12.00pF
LFXTAL069179Cutt	CFPX-218	25.0MHz	±20ppm	±20ppm	-40°C to 85°C	18.00pF
LFXTAL075452RL3K	CFPX-218	25.0MHz	±15ppm	±25ppm	-40°C to 85°C	8.00pF
LFXTAL078719Cutt	CFPX-218	25.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL078719RL3K	CFPX-218	25.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL079273Cutt	CFPX-218	25.0MHz	±10ppm	±15ppm	-20°C to 70°C	12.00pF
LFXTAL050991Cutt	CFPX-218	26.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL050991Reel	CFPX-218	26.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL050991RL3K	CFPX-218	26.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL052185Cutt	CFPX-218	26.0MHz	±10ppm	±10ppm	-20°C to 70°C	12.00pF
LFXTAL056504RL3K	CFPX-218	26.0MHz	±30ppm	±30ppm	-10°C to 60°C	15.00pF
LFXTAL062381Cutt	CFPX-218	26.0MHz	±10ppm	±20ppm	-40°C to 85°C	12.00pF
LFXTAL063922Cutt	CFPX-218	26.0MHz	±20ppm	±20ppm	-40°C to 85°C	20.00pF
LFXTAL081865Cutt	CFPX-218	26.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL081865RL3K	CFPX-218	26.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL061689RL3K	CFPX-218	27.0MHz	±20ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL069405Cutt	CFPX-218	27.0MHz	±20ppm	±20ppm	-40°C to 85°C	18.00pF
LFXTAL069405Reel	CFPX-218	27.0MHz	±20ppm	±20ppm	-40°C to 85°C	18.00pF
LFXTAL069405RL3K	CFPX-218	27.0MHz	±20ppm	±20ppm	-40°C to 85°C	18.00pF
LFXTAL079297Cutt	CFPX-218	27.0MHz	±30ppm	±15ppm	-30°C to 85°C	10.00pF
LFXTAL079297RL3K	CFPX-218	27.0MHz	±30ppm	±15ppm	-30°C to 85°C	10.00pF
LFXTAL082084Cutt	CFPX-218	27.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL082084RL3K	CFPX-218	27.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL072522Cutt	CFPX-218	27.12MHz	±15ppm	±15ppm	-10°C to 70°C	8.00pF
LFXTAL036792RL3K	CFPX-218	30.0MHz	±10ppm	±20ppm	-10°C to 60°C	12.00pF
LFXTAL065132RL3K	CFPX-218	30.0MHz	±20ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL069407Cutt	CFPX-218	30.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069407Reel	CFPX-218	30.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069407RL3K	CFPX-218	30.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL072844Cutt	CFPX-218	30.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL072844RL3K	CFPX-218	30.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL052187Cutt	CFPX-218	32.0MHz	±10ppm	±10ppm	-20°C to 70°C	12.00pF
LFXTAL053109Cutt	CFPX-218	32.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL056767RL3K	CFPX-218	32.0MHz	±50ppm	±50ppm	-40°C to 85°C	12.00pF
LFXTAL069268Cutt	CFPX-218	32.0MHz	±15ppm	±18ppm	-40°C to 85°C	10.00pF
LFXTAL069390Cutt	CFPX-218	32.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069390Reel	CFPX-218	32.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069390RL3K	CFPX-218	32.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL075523Cutt	CFPX-218	32.0MHz	±10ppm	±15ppm	-40°C to 85°C	12.00pF
LFXTAL078207Cutt	CFPX-218	32.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL078207RL3K	CFPX-218	32.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL078382Reel	CFPX-218	32.0MHz	±10ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL082427RL3K	CFPX-218	32.0MHz	±10ppm	±15ppm	-20°C to 70°C	8.00pF
LFXTAL053110Cutt	CFPX-218	40.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL081564RL3K	CFPX-218	40.0MHz	±20ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL082087Cutt	CFPX-218	40.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL082087RL3K	CFPX-218	40.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL082854RL3K	CFPX-218	40.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL083762RL3K	CFPX-218	40.0MHz	±10ppm	±10ppm	-20°C to 70°C	15.00pF
LFXTAL090186RL3K	CFPX-218	48.0MHz	±10ppm	±20ppm	-20°C to 70°C	20.00pF
LFXTAL061851Cutt	CFPX-218	50.0MHz	±20ppm	±20ppm	-10°C to 60°C	18.00pF
LFXTAL082088Cutt	CFPX-218	50.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL082088RL3K	CFPX-218	50.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL086178RL3K	CFPX-218	62.5MHz	±15ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL065272RL3K	CFPX-180	32.768MHz	±50ppm	±50ppm	-40°C to 85°C	20.00pF
LFXTAL088666RL3K	CFPX-180	32.768MHz	±30ppm	±50ppm	-20°C to 70°C	16.00pF
LFXTAL059672Cutt	CFPX-180	36.0MHz	±10ppm	±10ppm	-10°C to 60°C	10.00pF
LFXTAL075445RL3K	CFPX-180	38.4MHz	±10ppm	±10ppm	-20°C to 75°C	8.50pF
LFXTAL076107RL3K	CFPX-180	38.4MHz	±30ppm	±50ppm	-40°C to 85°C	15.00pF
LFXTAL082763RL3K	CFPX-180	38.4MHz	±30ppm	±30ppm	-20°C to 70°C	9.00pF
LFXTAL083279Cutt	CFPX-180	38.4MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL035270Bulk	CFPX-180	40.0MHz	±50ppm	±50ppm	-10°C to 60°C	16.00pF
LFXTAL035270Cutt	CFPX-180	40.0MHz	±50ppm	±50ppm	-10°C to 60°C	16.00pF
LFXTAL059648Cutt	CFPX-180	40.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL059648Reel	CFPX-180	40.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL059648RL3K	CFPX-180	40.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL076900Cutt	CFPX-180	40.0MHz	±10ppm	±10ppm	-20°C to 75°C	9.00pF
LFXTAL082077RL3K	CFPX-180	40.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL054093Cutt	CFPX-180	41.0MHz	±50ppm	±50ppm	-10°C to 60°C	10.50pF
LFXTAL069379Cutt	CFPX-180	44.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL009549Bulk	CFPX-180	48.0MHz	±50ppm	±50ppm	-10°C to 60°C	16.00pF
LFXTAL053866Cutt	CFPX-180	48.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL053866RL3K	CFPX-180	48.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL055570Cutt	CFPX-180	48.0MHz	±30ppm	±50ppm	-40°C to 85°C	12.00pF
LFXTAL062288RL3K	CFPX-180	48.0MHz	±30ppm	±30ppm	-10°C to 60°C	18.00pF
LFXTAL071958Cutt	CFPX-180	48.0MHz	±30ppm	±20ppm	-40°C to 85°C	18.00pF
LFXTAL079244Cutt	CFPX-180	48.0MHz	±15ppm	±25ppm	-40°C to 85°C	8.00pF
LFXTAL080495RL3K	CFPX-180	48.0MHz	±50ppm	±30ppm	-40°C to 85°C	16.00pF
LFXTAL080873RL3K	CFPX-180	48.0MHz	±30ppm	±50ppm	-20°C to 70°C	10.00pF
LFXTAL082068RL3K	CFPX-180	48.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL083249Cutt	CFPX-180	48.0MHz	±30ppm	±30ppm	-40°C to 85°C	12.00pF
LFXTAL084993RL3K	CFPX-180	48.0MHz	±20ppm	±20ppm	-20°C to 70°C	18.00pF
LFXTAL090184RL3K	CFPX-180	48.0MHz	±10ppm	±20ppm	-20°C to 70°C	20.00pF
LFXTAL060843Cutt	CFPX-180	50.0MHz	±25ppm	±25ppm	-20°C to 70°C	10.00pF
LFXTAL060843Reel	CFPX-180	50.0MHz	±25ppm	±25ppm	-20°C to 70°C	10.00pF
LFXTAL060843RL3K	CFPX-180	50.0MHz	±25ppm	±25ppm	-20°C to 70°C	10.00pF
LFXTAL069349Cutt	CFPX-180	50.0MHz	±20ppm	±30ppm	-40°C to 85°C	8.00pF
LFXTAL072787Cutt	CFPX-180	50.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL072787RL3K	CFPX-180	50.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL082006Cutt	CFPX-180	50.0MHz	±10ppm	±10ppm	-20°C to 70°C	12.00pF
LFXTAL082006RL3K	CFPX-180	50.0MHz	±10ppm	±10ppm	-20°C to 70°C	12.00pF
LFXTAL082078Cutt	CFPX-180	50.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL082078Reel	CFPX-180	50.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL082078RL3K	CFPX-180	50.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL082568RL3K	CFPX-180	50.0MHz	±10ppm	±15ppm	-40°C to 85°C	12.00pF
LFXTAL082637RL3K	CFPX-180	50.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL083481RL3K	CFPX-180	50.0MHz	±20ppm	±20ppm	-40°C to 85°C	16.00pF
LFXTAL062546Cutt	CFPX-180	54.0MHz	±15ppm	±20ppm	-20°C to 70°C	19.00pF
LFXTAL062546RL3K	CFPX-180	54.0MHz	±15ppm	±20ppm	-20°C to 70°C	19.00pF
LFXTAL083943Cutt	CFPX-180	200.0MHz	±50ppm	±50ppm	-40°C to 85°C	12.00pF

yijin-5

YJ-6

深圳市亿金电子有限公司 SHENZHEN YIJIN ELECTRONICS CO;LTD

mphone 联系人黄娜：18924600166

工作QQ:857950243

myt 贸易通：yijindz2014

tel 座机：0755-27876565

email 邮箱:yijindz@163.com

inter 网址：http://www.yijindz.com

mwx 微信：yijindz，公众号：NDKcrystal

home 地址：广东省深圳市宝安区107国道旁甲岸路

wxewm

IQD晶振 CFPX-180晶振 LFXTAL065272RL3K 3225进口晶振

跟此产品相关的产品 / Related Products

: 日本NDK晶振,NZ2016SHA,车载晶振,2016有源贴片,CMOS输出振荡器; 日本NDK晶振,NZ2016SHA,车载晶振,2016有源贴片,CMOS输出振荡器，日本NDK晶振新生产研发的NZ2016SHA晶振适用于新宇宙用途。适合于安全类车载用途的高品质、高信赖性设计，频率可覆盖1.5 to 80MHz间的广泛范围，可对应 -40 to +125℃的宽温范围，是车载晶振。尺寸2.0×1.6mm，为2016贴片晶振。低相位抖动 : Typ. 100 fs (频率偏移：12 kHz to 20 MHz)@80 MHz, 3.3 V，可对应CMOS输出，缠带包装方式可对应自动搭载及IR回流焊接（无铅对应），为无铅产品，符合AEC-Q100/Q200 标准。车载晶振可称为为车规晶振，汽车晶振等，是指对使用在汽车或车载设备上的如汽车导航设备、安全设备、ADAS (自动驾驶辅助系统)等应用中的符合AEC-Q200技术标准的有源晶体振荡器、晶体谐振器、传感器、陀螺仪等频率元器件的一个约定俗成的叫法。

: NDK谐振器,32.768K,医疗器械晶振,NX2012SF,日本进口晶体,2012石英贴片; NDK谐振器,32.768K,医疗器械晶振,NX2012SF,日本进口晶体,2012石英贴片，随着小型化、轻量和无线通信需求的发展，医疗保健和医疗应用的需求不断增加。NDK 还为医疗保健和医疗领域做出贡献。自 1970 年代以来，NDK晶振开发了紧凑轻便的产品，以满足时代对高品质产品和便携式使用的需求。此外，NDK 产品还扩大了需要无线和远程控制使用的医疗保健市场。NX2012SF晶振频率为32.768KHz，尺寸是2.0×1.2×0.55mm，为2012贴片晶振。属于是小型、薄型、轻型的表面封装音叉型晶体谐振器。以对应高度管理医疗器械工程设计来实现产品的高品质。该NDK谐振器具有优越的耐热性、耐环境性能，以此确保产品的高性赖性，满足无铅焊接的回流温度曲线要求。日本进口晶体，2012石英贴片，32.768K晶振，医疗器械晶振，音叉表晶，NDK无源晶振，石英晶体谐振器。

: 7BG03276A25,进口KDS音叉晶振,1610石英贴片,移动通信晶振; 7BG03276A25,进口KDS音叉晶振,1610石英贴片,移动通信晶振 日本KDS大真空石英晶振中编码为 7BG03276A25 的晶振频率是32.768KHz，尺寸是1.6*1.0mm，为超小型、薄型、SMD音叉表晶，厚度仅为0.45mm，带有金属盖的陶瓷封装，串联电阻最大50k Ω，支持多种应用，包括移动通信设备、民用设备等。32.768KHZ晶振，其本身主要应用在时钟控制产品，或者是控制模块，主要给时钟芯片提供一个基准信号，其主要各项功能还得看应用何种产品。
