IQD晶振|CFPX-104晶振|LFXTAL059539Reel|5032mm晶振

频率：48MHz

尺寸：5.0mm×3.2mm

IQD晶振|CFPX-104晶振|LFXTAL059539Reel|5032mm晶振,欧美进口晶振,IQD晶振,CFPX-104贴片晶振,无源晶振,LFXTAL059539Reel晶振,晶体谐振器,5.0x3.2mm石英晶振,四脚封装晶振,SMD晶振,频率48MHz,负载18pF,频率容差20ppm,工作温度范围-40~85°C,高可靠性晶振,小体积晶振,低老化晶振,通信设备晶振,移动网络晶振,个人电脑外围设备晶振,数字设备晶振.

订购热线：0755-27876565

IQD晶振|CFPX-104晶振|LFXTAL059539Reel|5032mm晶振,欧美进口晶振,IQD晶振,CFPX-104贴片晶振,无源晶振,LFXTAL059539Reel晶振,晶体谐振器,5.0x3.2mm石英晶振,四脚封装晶振,SMD晶振,频率48MHz,负载18pF,频率容差20ppm,工作温度范围-40~85°C,高可靠性晶振,小体积晶振,低老化晶振,通信设备晶振,移动网络晶振,个人电脑外围设备晶振,数字设备晶振.

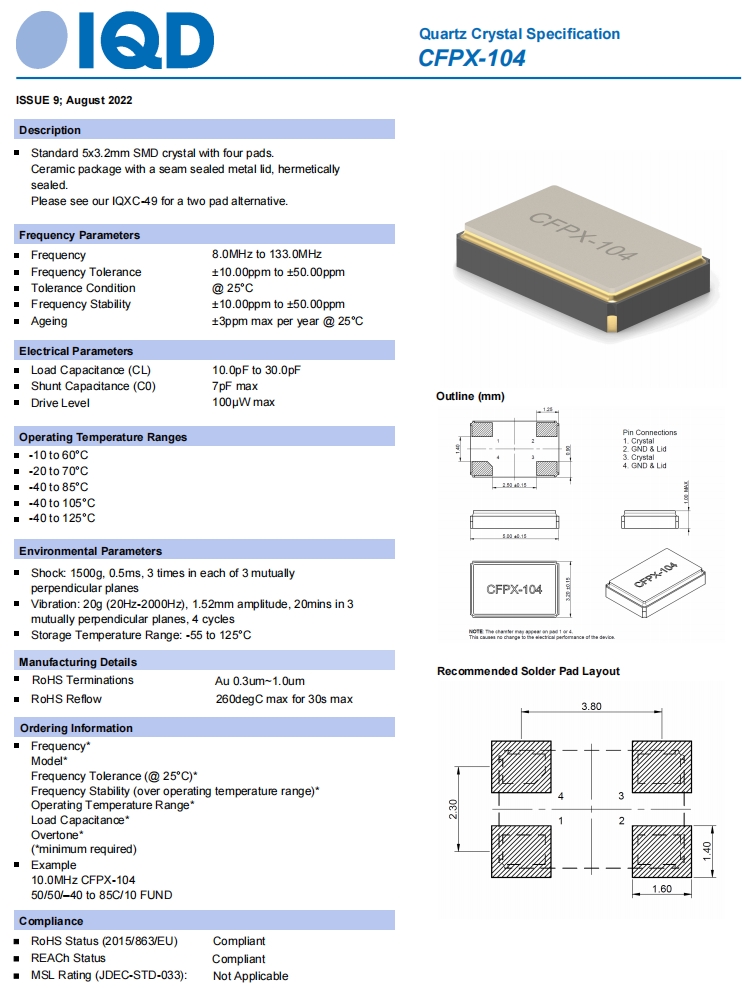

yijin-2 IQD晶振|CFPX-104晶振|LFXTAL059539Reel|5032mm晶振规格表

参数	数值
频率	48MHz
频率容差@ 25°C ± 3°C	±20ppm
频率稳定性	±30ppm
工作温度	-40~85°C
储存温度	-55~125°C
负载	18pF
并联电容	7pF max
驱动电平	300µW max.
老化@ 25°C ± 3°C	±5.0ppm per year max

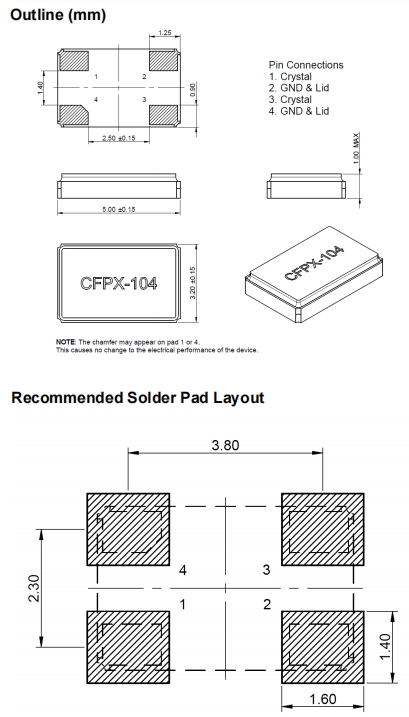

yijin-3 IQD晶振|CFPX-104晶振|LFXTAL059539Reel|5032mm晶振尺寸图

编码	型号	频率	频率容差	频率稳定性	工作温度	负载
LFXTAL053050Cutt	CFPX-104	8.0MHz	±30ppm	±30ppm	-20°C to 70°C	12.00pF
LFXTAL054323Bulk	CFPX-104	8.0MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL054323Cutt	CFPX-104	8.0MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL054323Reel	CFPX-104	8.0MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL055663Bulk	CFPX-104	8.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL055663Cutt	CFPX-104	8.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL055663Reel	CFPX-104	8.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL055901Cutt	CFPX-104	8.0MHz	±20ppm	±50ppm	-20°C to 70°C	18.00pF
LFXTAL055901Reel	CFPX-104	8.0MHz	±20ppm	±50ppm	-20°C to 70°C	18.00pF
LFXTAL057013Bulk	CFPX-104	8.0MHz	±20ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL059158Bulk	CFPX-104	8.0MHz	±30ppm	±30ppm	-40°C to 85°C	16.00pF
LFXTAL059158Cutt	CFPX-104	8.0MHz	±30ppm	±30ppm	-40°C to 85°C	16.00pF
LFXTAL061627Cutt	CFPX-104	8.0MHz	±20ppm	±30ppm	-40°C to 85°C	16.00pF
LFXTAL063177Cutt	CFPX-104	8.0MHz	±30ppm	±30ppm	-20°C to 70°C	18.00pF
LFXTAL063189Bulk	CFPX-104	8.0MHz	±10ppm	±20ppm	-40°C to 85°C	15.00pF
LFXTAL065886Cutt	CFPX-104	8.0MHz	±20ppm	±20ppm	-40°C to 85°C	18.00pF
LFXTAL066685Bulk	CFPX-104	8.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069277Bulk	CFPX-104	8.0MHz	±20ppm	±30ppm	-40°C to 85°C	20.00pF
LFXTAL070720Cutt	CFPX-104	8.0MHz	±20ppm	±20ppm	-40°C to 85°C	20.00pF
LFXTAL070722Bulk	CFPX-104	8.0MHz	±20ppm	±20ppm	-40°C to 85°C	30.00pF
LFXTAL078127Cutt	CFPX-104	8.0MHz	±20ppm	±20ppm	-20°C to 70°C	12.00pF
LFXTAL078323Cutt	CFPX-104	8.0MHz	±10ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL081233Bulk	CFPX-104	8.0MHz	±30ppm	±50ppm	-40°C to 85°C	12.00pF
LFXTAL061486Bulk	CFPX-104	8.192MHz	±30ppm	±50ppm	-40°C to 85°C	10.00pF
LFXTAL061486Cutt	CFPX-104	8.192MHz	±30ppm	±50ppm	-40°C to 85°C	10.00pF
LFXTAL061486Reel	CFPX-104	8.192MHz	±30ppm	±50ppm	-40°C to 85°C	10.00pF
LFXTAL075997Reel	CFPX-104	9.9MHz	±40ppm	±60ppm	-40°C to 125°C	12.00pF
LFXTAL056583Reel	CFPX-104	10.0MHz	±30ppm	±30ppm	-40°C to 85°C	12.00pF
LFXTAL072402Cutt	CFPX-104	10.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL072402Reel	CFPX-104	10.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL058513Bulk	CFPX-104	11.0592MHz	±30ppm	±50ppm	-40°C to 85°C	18.00pF
LFXTAL060205Bulk	CFPX-104	11.0592MHz	±10ppm	±10ppm	-10°C to 60°C	10.00pF
LFXTAL032878Bulk	CFPX-104	12.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL032878Cutt	CFPX-104	12.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL032878Reel	CFPX-104	12.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL035484Reel	CFPX-104	12.0MHz	±20ppm	±30ppm	-10°C to 60°C	20.00pF
LFXTAL036401Bulk	CFPX-104	12.0MHz	±20ppm	±50ppm	-20°C to 70°C	18.00pF
LFXTAL036401Reel	CFPX-104	12.0MHz	±20ppm	±50ppm	-20°C to 70°C	18.00pF
LFXTAL036584Bulk	CFPX-104	12.0MHz	±10ppm	±10ppm	-10°C to 60°C	10.00pF
LFXTAL050518Cutt	CFPX-104	12.0MHz	±30ppm	±30ppm	-40°C to 85°C	12.00pF
LFXTAL051048Bulk	CFPX-104	12.0MHz	±30ppm	±30ppm	-20°C to 70°C	18.00pF
LFXTAL055999Reel	CFPX-104	12.0MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL057514Bulk	CFPX-104	12.0MHz	±50ppm	±50ppm	-40°C to 85°C	12.00pF
LFXTAL057514Cutt	CFPX-104	12.0MHz	±50ppm	±50ppm	-40°C to 85°C	12.00pF
LFXTAL058139Bulk	CFPX-104	12.0MHz	±30ppm	±50ppm	-40°C to 85°C	15.00pF
LFXTAL058743Bulk	CFPX-104	12.0MHz	±10ppm	±10ppm	-20°C to 70°C	18.00pF
LFXTAL059522Bulk	CFPX-104	12.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL059522Reel	CFPX-104	12.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL061632Bulk	CFPX-104	12.0MHz	±20ppm	±30ppm	-40°C to 85°C	16.00pF
LFXTAL061632Cutt	CFPX-104	12.0MHz	±20ppm	±30ppm	-40°C to 85°C	16.00pF
LFXTAL062512Bulk	CFPX-104	12.0MHz	±50ppm	±50ppm	-40°C to 85°C	18.00pF
LFXTAL062512Cutt	CFPX-104	12.0MHz	±50ppm	±50ppm	-40°C to 85°C	18.00pF
LFXTAL063061Bulk	CFPX-104	12.0MHz	±10ppm	±20ppm	-40°C to 85°C	16.00pF
LFXTAL063500Bulk	CFPX-104	12.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL078871Cutt	CFPX-104	12.0MHz	±30ppm	±30ppm	-20°C to 70°C	20.00pF
LFXTAL080790Cutt	CFPX-104	12.0MHz	±10ppm	±10ppm	-20°C to 70°C	18.00pF
LFXTAL059523Bulk	CFPX-104	12.288MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL059523Reel	CFPX-104	12.288MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL056556Cutt	CFPX-104	12.5MHz	±50ppm	±50ppm	-40°C to 85°C	18.00pF
LFXTAL056556Reel	CFPX-104	12.5MHz	±50ppm	±50ppm	-40°C to 85°C	18.00pF
LFXTAL059477Reel	CFPX-104	12.8MHz	±10ppm	±20ppm	-40°C to 85°C	15.00pF
LFXTAL053614Reel	CFPX-104	13.0MHz	±20ppm	±50ppm	-20°C to 70°C	18.00pF
LFXTAL066473Bulk	CFPX-104	13.0MHz	±30ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL080835Bulk	CFPX-104	13.56MHz	±50ppm	±50ppm	-40°C to 85°C	18.00pF
LFXTAL033643Bulk	CFPX-104	14.31818MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL033643Reel	CFPX-104	14.31818MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL059526Bulk	CFPX-104	14.31818MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL059526Reel	CFPX-104	14.31818MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL033328Bulk	CFPX-104	14.7456MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL033328Cutt	CFPX-104	14.7456MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL033328Reel	CFPX-104	14.7456MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL072403Bulk	CFPX-104	14.7456MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL072403Reel	CFPX-104	14.7456MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL083467Cutt	CFPX-104	14.7456MHz	±20ppm	±20ppm	-40°C to 85°C	12.00pF
LFXTAL083467Reel	CFPX-104	14.7456MHz	±20ppm	±20ppm	-40°C to 85°C	12.00pF
LFXTAL030819Bulk	CFPX-104	16.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL030819Reel	CFPX-104	16.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL035082Cutt	CFPX-104	16.0MHz	±50ppm	±50ppm	-40°C to 85°C	10.00pF
LFXTAL050910Bulk	CFPX-104	16.0MHz	±30ppm	±30ppm	-40°C to 85°C	12.00pF
LFXTAL050910Cutt	CFPX-104	16.0MHz	±30ppm	±30ppm	-40°C to 85°C	12.00pF
LFXTAL057849Bulk	CFPX-104	16.0MHz	±10ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL059527Bulk	CFPX-104	16.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL061636Bulk	CFPX-104	16.0MHz	±20ppm	±30ppm	-40°C to 85°C	16.00pF
LFXTAL059528Bulk	CFPX-104	16.384MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL059528Reel	CFPX-104	16.384MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL059529Bulk	CFPX-104	18.432MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL059529Reel	CFPX-104	18.432MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL033265Bulk	CFPX-104	20.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL033265Cutt	CFPX-104	20.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL033265Reel	CFPX-104	20.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL056808Bulk	CFPX-104	20.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL056808Reel	CFPX-104	20.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL060218Bulk	CFPX-104	20.0MHz	±10ppm	±10ppm	-10°C to 60°C	10.00pF
LFXTAL061045Bulk	CFPX-104	20.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL061639Cutt	CFPX-104	20.0MHz	±20ppm	±30ppm	-40°C to 85°C	16.00pF
LFXTAL065376Cutt	CFPX-104	22.5792MHz	±10ppm	±10ppm	-10°C to 60°C	10.00pF
LFXTAL032817Bulk	CFPX-104	24.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL032817Cutt	CFPX-104	24.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL032817Reel	CFPX-104	24.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL051735Bulk	CFPX-104	24.0MHz	±50ppm	±50ppm	-40°C to 85°C	18.00pF
LFXTAL053798Reel	CFPX-104	24.0MHz	±10ppm	±25ppm	-40°C to 85°C	18.00pF
LFXTAL058856Bulk	CFPX-104	24.0MHz	±20ppm	±20ppm	-40°C to 85°C	18.00pF
LFXTAL059530Bulk	CFPX-104	24.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL059530Reel	CFPX-104	24.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL059693Reel	CFPX-104	24.0MHz	±10ppm	±10ppm	-10°C to 60°C	10.00pF
LFXTAL061087Bulk	CFPX-104	24.0MHz	±30ppm	±30ppm	-20°C to 70°C	18.00pF
LFXTAL063939Bulk	CFPX-104	24.0MHz	±30ppm	±30ppm	-20°C to 70°C	8.00pF
LFXTAL071469Bulk	CFPX-104	24.0MHz	±30ppm	±50ppm	-40°C to 85°C	18.00pF
LFXTAL071469Reel	CFPX-104	24.0MHz	±30ppm	±50ppm	-40°C to 85°C	18.00pF
LFXTAL033644Bulk	CFPX-104	24.576MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL033644Reel	CFPX-104	24.576MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL059531Bulk	CFPX-104	24.576MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL059531Reel	CFPX-104	24.576MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL033075Bulk	CFPX-104	25.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL033075Cutt	CFPX-104	25.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL033075Reel	CFPX-104	25.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL051737Bulk	CFPX-104	25.0MHz	±50ppm	±50ppm	-40°C to 85°C	18.00pF
LFXTAL055172Bulk	CFPX-104	25.0MHz	±20ppm	±50ppm	-20°C to 70°C	18.00pF
LFXTAL057895Bulk	CFPX-104	25.0MHz	±30ppm	±50ppm	-40°C to 85°C	15.00pF
LFXTAL058401Bulk	CFPX-104	25.0MHz	±20ppm	±20ppm	-40°C to 85°C	18.00pF
LFXTAL059532Bulk	CFPX-104	25.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL059532Reel	CFPX-104	25.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL061642Cutt	CFPX-104	25.0MHz	±20ppm	±30ppm	-40°C to 85°C	16.00pF
LFXTAL083060Cutt	CFPX-104	25.0MHz	±50ppm	±50ppm	-40°C to 85°C	30.00pF
LFXTAL035240Reel	CFPX-104	26.0MHz	±10ppm	±10ppm	-10°C to 60°C	16.00pF
LFXTAL064726Bulk	CFPX-104	26.0MHz	±10ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL072404Bulk	CFPX-104	26.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL072404Reel	CFPX-104	26.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL052412Cutt	CFPX-104	27.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL059697Bulk	CFPX-104	27.0MHz	±10ppm	±10ppm	-10°C to 60°C	10.00pF
LFXTAL063478Bulk	CFPX-104	27.12MHz	±30ppm	±30ppm	-20°C to 70°C	18.00pF
LFXTAL055896Bulk	CFPX-104	28.6363MHz	±20ppm	±20ppm	-20°C to 70°C	18.00pF
LFXTAL059487Bulk	CFPX-104	28.63636MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL030820Bulk	CFPX-104	30.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL030820Reel	CFPX-104	30.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL063464Cutt	CFPX-104	30.0MHz	±30ppm	±30ppm	-20°C to 70°C	18.00pF
LFXTAL065460Reel	CFPX-104	30.0MHz	±10ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL054902Bulk	CFPX-104	32.0MHz	±10ppm	±20ppm	-40°C to 85°C	12.00pF
LFXTAL059535Bulk	CFPX-104	32.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL059535Reel	CFPX-104	32.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL033645Bulk	CFPX-104	40.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL033645Reel	CFPX-104	40.0MHz	±50ppm	±50ppm	-10°C to 60°C	18.00pF
LFXTAL059537Bulk	CFPX-104	40.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL059537Reel	CFPX-104	40.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL059539Bulk	CFPX-104	48.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL059539Reel	CFPX-104	48.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL063491Cutt	CFPX-104	48.0MHz	±30ppm	±30ppm	-20°C to 70°C	18.00pF

yijin-5

YJ-6

深圳市亿金电子有限公司 SHENZHEN YIJIN ELECTRONICS CO;LTD

mphone 联系人黄娜：18924600166

工作QQ:857950243

myt 贸易通：yijindz2014

tel 座机：0755-27876565

email 邮箱:yijindz@163.com

inter 网址：http://www.yijindz.com

mwx 微信：yijindz，公众号：NDKcrystal

home 地址：广东省深圳市宝安区107国道旁甲岸路

wxewm

IQD晶振 CFPX-104晶振 LFXTAL059539Reel 5032mm晶振

跟此产品相关的产品 / Related Products

: SWS3129D48-32.768K,SUNTSU测量仪器晶振,3215mm时钟晶振; SWS3129D48-32.768K,SUNTSU测量仪器晶振,3215mm时钟晶振，美国进口晶振，Suntsu晶振，松图晶振，型号：SWS312，编码为：SWS3129D48-32.768K，频率为：32.768KHz，负载电容：9pF，精度：±20ppm，工作温度范围：-40℃至+85℃，小体积晶振尺寸：3.2x1.5x0.8mm封装，两脚贴片晶振，石英晶振，3215贴片晶振，无源晶振，SMD晶振，石英晶体谐振器。具有超小型晶振，轻薄型晶振，高性能晶振，高品质晶振，耐热及耐环境等特点，被广泛应用于：测试仪器晶振，实时时钟晶振，数字显示晶振，计时晶振，无线应用等。

: SWS11212D48-32.768K,1610mm手表晶体,SUNTSU超小型晶振; SWS11212D48-32.768K,1610mm手表晶体,SUNTSU超小型晶振，美国进口晶振，Suntsu晶振，松图晶振，型号：SWS112，编码为：SWS11212D48-32.768K，频率为：32.768KHz晶振，负载电容：12.5pF，精度：±20ppm，工作温度范围：-40℃至+85℃，小体积晶振尺寸：1.6x1.0x0.5mm封装，两脚贴片晶振，石英晶振，无源晶振，石英晶体谐振器，1610晶振，SMD晶振。具有超小型晶振，轻薄型晶振，高性能晶振，高品质晶振，耐热及耐环境等特点，非常适用于时钟晶振，钟表电子晶振，智能手机晶振，电脑主板晶振，测量仪器晶振，实时时钟，无线应用程序。

: IL3X2-HX5F6-32.768KHz,ILSI钟表电子晶振,3215mm,测量应用晶振; IL3X2-HX5F6-32.768KHz,ILSI钟表电子晶振,3215mm,测量应用晶振，美国进口晶振，ILSI晶振，艾尔西晶振，型号：IL3X2，编码为：IL3X2-HX5F6-32.768KHz，频率：32.768K晶振，负载电容：6pF，频率容差：±20ppm，工作温度范围：-40℃至+85℃，小体积晶振尺寸：3.2x1.5x0.9mm封装，两脚贴片晶振，石英晶振，无源晶振，SMD晶振，手表晶体，石英晶体谐振器，音叉表晶，符合RoHS和REACH。具有超小型，轻薄型，高性能，高品质，耐热及耐环境特点。特别适用于：实时时钟晶振，钟表电子晶振，测量晶振，仪表晶振，工业控制，时间参考等应用。
