12.86515四脚贴片晶振,GEYER高品质晶振,北斗卫星定位模块晶振

频率：19.6608MHz

尺寸：2520mm

12.86515四脚贴片晶振,GEYER高品质晶振,北斗卫星定位模块晶振，丹麦GEYER晶振公司，12.86515晶振，小体积晶振，高精度晶振，6G信号发射器晶振，贴片晶振，无源晶振，超小型晶振，智能交通灯晶振，石英晶振，进口晶振，高品质晶振，低损耗晶振,6G通讯设备晶振,6G网络终端晶振，2520晶振

订购热线：0755-27876565

yijin-1

12.86515四脚贴片晶振,GEYER高品质晶振,北斗卫星定位模块晶振，丹麦GEYER晶振公司，格耶晶振，12.86515晶振，小体积晶振，高精度晶振，6G信号发射器晶振，贴片晶振，无源晶振，超小型晶振，智能交通灯晶振，石英晶振，进口晶振，高品质晶振，低损耗晶振,6G通讯设备晶振,6G网络终端晶振，2520晶振

yijin-2

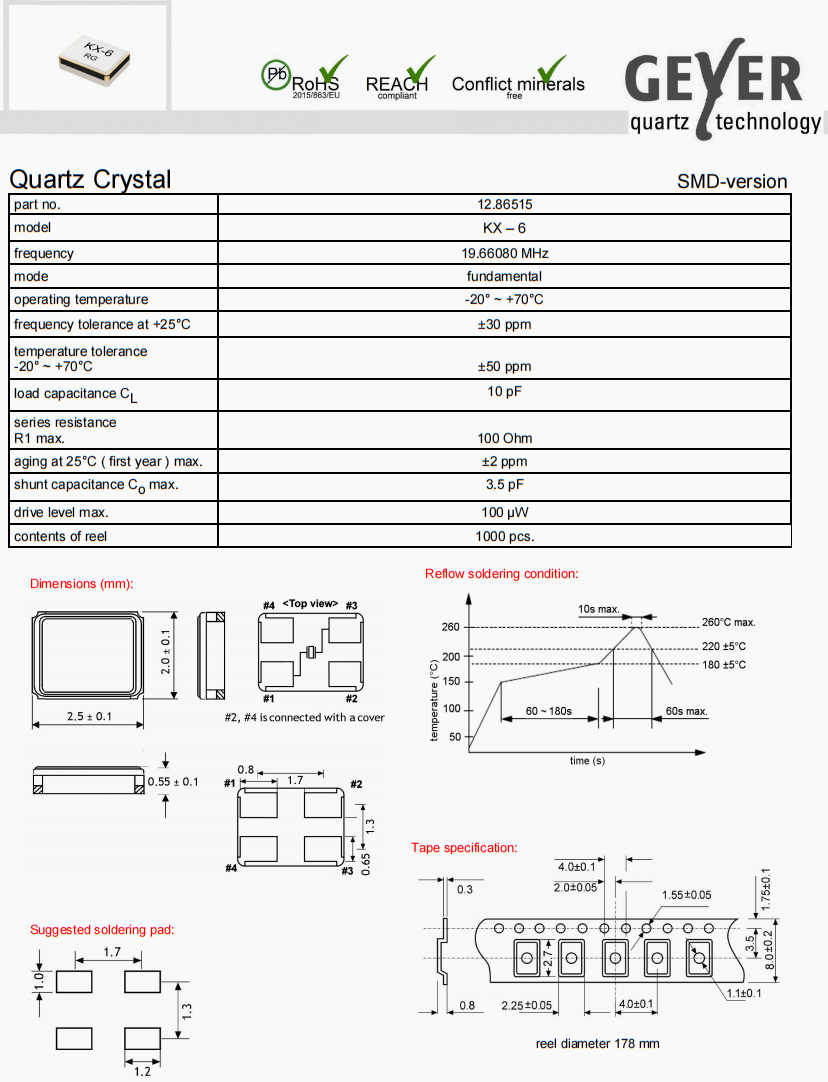

12.86515四脚贴片晶振,GEYER高品质晶振,北斗卫星定位模块晶振

编码	12.86515
型号	KX – 6
频率	19.66080 MHz
工作模式	fundamental
工作温度	-20° ~ +70°C
频率容差	±30 ppm
频率稳定度	±50 ppm
负载电容	10 pF
老化	±2 ppm
驱动电平	100 µW
包装数	1000 pcs.

yijin-3

12.86515四脚贴片晶振,GEYER高品质晶振,北斗卫星定位模块晶振

GEYER原厂编码	生产商品牌	描述	型号	频率	频率容差	频率稳定度	负载
12.85536	Geyer晶振	CYSTAL 40.0MHZ 8PF SMD	KX-5T	40 MHz	±20ppm	±10ppm	8pF
12.84816	Geyer晶振	Crystal 25.0MHz 8pF SMD	KX-4	25 MHz	±50ppm	±30ppm	8pF
12.88722	Geyer晶振	Crystal 16.0Mhz SMD KX-7T 12pF,	KX-7T	16 MHz	±25ppm	±10ppm	12pF
12.84805	Geyer晶振	Crystal 27.120MHz 8pF SMD	KX-4	27.12 MHz	±30ppm	±30ppm	8pF
12.86509	Geyer晶振	Cystal 48.0Mhz 10pF SMD	KX-6	48 MHz	±50ppm	±30ppm	10pF
12.89020	Geyer晶振	Crystal 32.0Mhz SMD KX-9A 16pF,	KX-9A	32 MHz	±10ppm	±30ppm	16pF
12.84813	Geyer晶振	Crystal 27.120MHz 8pF SMD	KX-4	27.12 MHz	±15ppm	±10ppm	8pF
12.60233	Geyer晶振	CRYSTAL 25.0MHZ 12PF SMD	KX-7T	25 MHz	±20ppm	±20ppm	12pF
12.85515	Geyer晶振	CYSTAL 27.0MHZ 8PF SMD	KX-5	27 MHz	±50ppm	±30ppm	8pF
12.86544	Geyer晶振	Crystal 16.0Mhz 10pF SMD	KX-7E	24 MHz	±120ppm	±30ppm	10pF
12.85547	Geyer晶振	CYSTAL 26.0MHZ 8PF SMD	KX-5T	26 MHz	±20ppm	±10ppm	8pF
12.89190	Geyer晶振	Crystal 8.0Mhz SMD KX-9AT 16pF,	KX-9AT	8 MHz	±30ppm	±100ppm	16pF
12.85562	Geyer晶振	CYSTAL 50.0MHZ 8PF SMD	KX-5T	50 MHz	±50ppm	±30ppm	8pF
12.60208	Geyer晶振	CRYSTAL 26.0MHZ 8PF SMD	KX-7T	26 MHz	±10ppm	±20ppm	8pF
12.86531	Geyer晶振	Cystal 16.0Mhz 10pF SMD	KX-6T	16 MHz	±100ppm	±30ppm	10pF
12.88664	Geyer晶振	Crystal 14.3181800Mhz 12pF SMD	KX-7	14.31818 MHz	±50ppm	±30ppm	12pF
12.89495	Geyer晶振	Crystal 8.0Mhz SMD KX-9BH 8pF, 4	KX-9BH	8 MHz	±50ppm	±50ppm	16pF
12.89103	Geyer晶振	Crystal 10.0Mhz SMD KX-9AE 16pF,	KX-9AE	10 MHz	±50ppm	±30ppm	16pF
12.88700	Geyer晶振	Crystal 30.0Mhz 12pF SMD	KX-7	30 MHz	±50ppm	±30ppm	12pF
12.89131	Geyer晶振	Crystal 48.0Mhz SMD KX-9AT 16pF,	KX-9AT	48 MHz	±50ppm	±30ppm	16pF
12.86512	Geyer晶振	Cystal 20.0Mhz 10pF SMD	KX-6	20 MHz	±50ppm	±30ppm	10pF
12.89126	Geyer晶振	Crystal 13.560Mhz SMD KX-9AE 16p	KX-9A	13.56 MHz	±120ppm	±30ppm	16pF
12.86550	Geyer晶振	Crystal 16.0Mhz 10pF SMD	KX-6E	16 MHz	±150ppm	±30ppm	10pF
12.86526	Geyer晶振	Cystal 26.0Mhz 10pF SMD	KX-6T	26 MHz	±20ppm	±10ppm	10pF
12.60090	Geyer晶振	CRYSTAL 24.0MHZ 12PF SMD	KX-7T	24 MHz	±20ppm	±20ppm	12pF
12.88701	Geyer晶振	Crystal 40.0Mhz 12pF SMD	KX-7T	40 MHz	±100ppm	±30ppm	12pF
12.88493	Geyer晶振	Crystal 33.33Mhz SMD KX-7T 12pF,	KX-7T	33.33333 MHz	±100ppm	±30ppm	12pF
12.85521	Geyer晶振	CYSTAL 26.0MHZ 10PF SMD	KX-5T	26 MHz	±20ppm	±10ppm	10pF
12.89078	Geyer晶振	Crystal 27.0Mhz SMD KX-9AT 16pF,	KX-9AT	27 MHz	±150ppm	±30ppm	16pF
12.86517	Geyer晶振	Cystal 24.0Mhz 10pF SMD	KX-6	24 MHz	±50ppm	±30ppm	10pF
12.84812	Geyer晶振	Crystal 25.0MHz 8pF SMD	KX-4	25 MHz	±50ppm	±30ppm	8pF
12.88508	Geyer晶振	Crystal 24.0Mhz 12pF SMD	KX-7T	24 MHz	±50ppm	±20ppm	12pF
12.88711	Geyer晶振	Crystal 25.0Mhz SMD KX-7T 12pF,	KX-7T	25 MHz	±30ppm	±30ppm	12pF
12.85519	Geyer晶振	CYSTAL 20.0MHZ 8PF SMD	KX-5T	20 MHz	±50ppm	±20ppm	8pF
12.89027	Geyer晶振	Crystal 25.0Mhz SMD KX-9A 16pF,	KX-9A	25 MHz	±30ppm	±30ppm	16pF
12.85539	Geyer晶振	CYSTAL 40.0MHZ 8PF SMD	KX-5T	48 MHz	±20ppm	±10ppm	12pF
12.88721	Geyer晶振	Crystal 16.0Mhz 12pF SMD	KX-7T	16 MHz	±30ppm	±30ppm	12pF
12.88667	Geyer晶振	Crystal 25.0Mhz SMD KX-7 12pF, 4	KX-7	25 MHz	±50ppm	±30ppm	12pF
12.85517	Geyer晶振	CYSTAL 54.0MHZ 8PF SMD	KX-5T	54 MHz	±100ppm	±30ppm	8pF
12.89017	Geyer晶振	Crystal 13.560Mhz SMD KX-9A 16pF	KX-9A	13.56 MHz	±50ppm	±30ppm	16pF
12.89082	Geyer晶振	Crystal 26.0Mhz SMD KX-9AT 16pF,	KX-9AT	26 MHz	±50ppm	±30ppm	16pF
12.60075	Geyer晶振	Cystal 30.0Mhz 8pF SMD	KX-7	30 MHz	±50ppm	±30ppm	8pF
12.89155	Geyer晶振	Crystal 32.0Mhz SMD KX-9AT 16pF,	KX-9AT	32 MHz	±30ppm	±30ppm	16pF
12.88522	Geyer晶振	Crystal 11.059200Mhz 12pF SMD	KX-7T	11.0592 MHz	±50ppm	±30ppm	12pF
12.88752	Geyer晶振	Crystal 10.0Mhz 12pF SMD	KX-7	10 MHz	±50ppm	±30ppm	12pF
12.85569	Geyer晶振	CYSTAL 27.120MHZ 8PF SMD	KX-5T	27.12 MHz	±15ppm	±10ppm	8pF
12.88565	Geyer晶振	Crystal 8.0Mhz 12pF SMD	KX-7E	8 MHz	±50ppm	±30ppm	12pF
12.85538	Geyer晶振	CYSTAL 24.5760MHZ 8PF SMD	KX-5T	24.576 MHz	±100ppm	±30ppm	8pF
12.86533	Geyer晶振	Cystal 26.0Mhz 10pF SMD	KX-6T	26 MHz	±100ppm	±30ppm	10pF
12.89209	Geyer晶振	Crystal 16.0Mhz SMD KX-9AE 20pF,	KX-9AE	16 MHz	±50ppm	±30ppm	20pF
12.86520	Geyer晶振	Cystal 27.0Mhz 10pF SMD	KX-6	27 MHz	±50ppm	±30ppm	10pF
12.86574	Geyer晶振	Crystal 27.0Mhz 8pF SMD	KX-6F	27 MHz	±150ppm	±30ppm	8pF
12.85541	Geyer晶振	CYSTAL 30.0MHZ 8PF SMD	KX-5	30 MHz	±30ppm	±30ppm	8pF
12.84818	Geyer晶振	Crystal 24.0MHz 8pF SMD	KX-4	24 MHz	±50ppm	±30ppm	8pF
12.86527	Geyer晶振	Cystal 20.0Mhz 10pF SMD	KX-6T	20 MHz	±15ppm	±10ppm	10pF
12.85534	Geyer晶振	CYSTAL 27.0MHZ 8PF SMD	KX-5T	27 MHz	±50ppm	±30ppm	8pF
12.86505	Geyer晶振	Cystal 26.0Mhz 10pF SMD	KX-6	26 MHz	±50ppm	±30ppm	10pF
12.60024	Geyer晶振	Cystal 27.0Mhz 12pF SMD	KX-7E	27 MHz	±100ppm	±30ppm	12pF
12.84803	Geyer晶振	Crystal 26.0MHz 8pF SMD	KX-4	26 MHz	±20ppm	±10ppm	8pF
